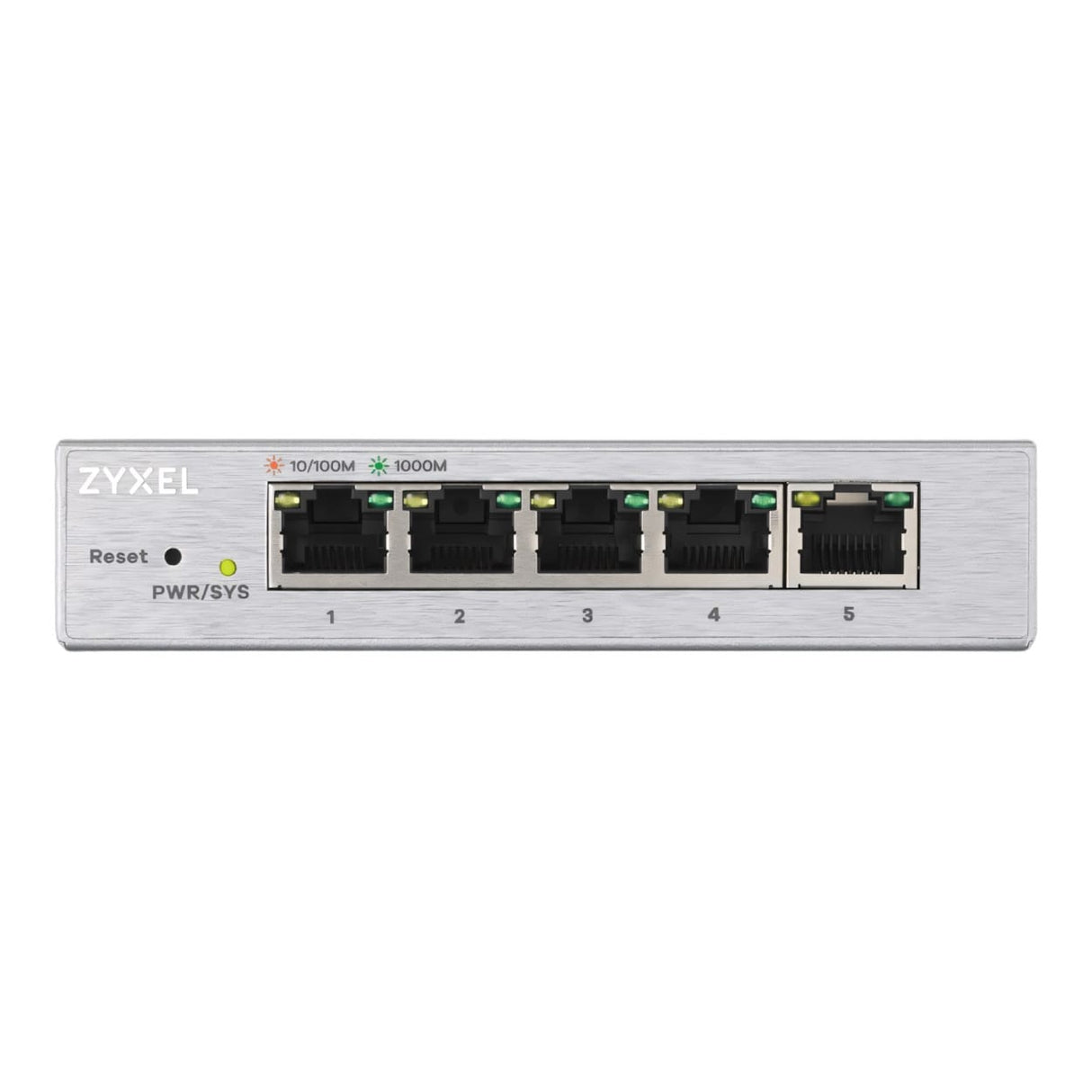

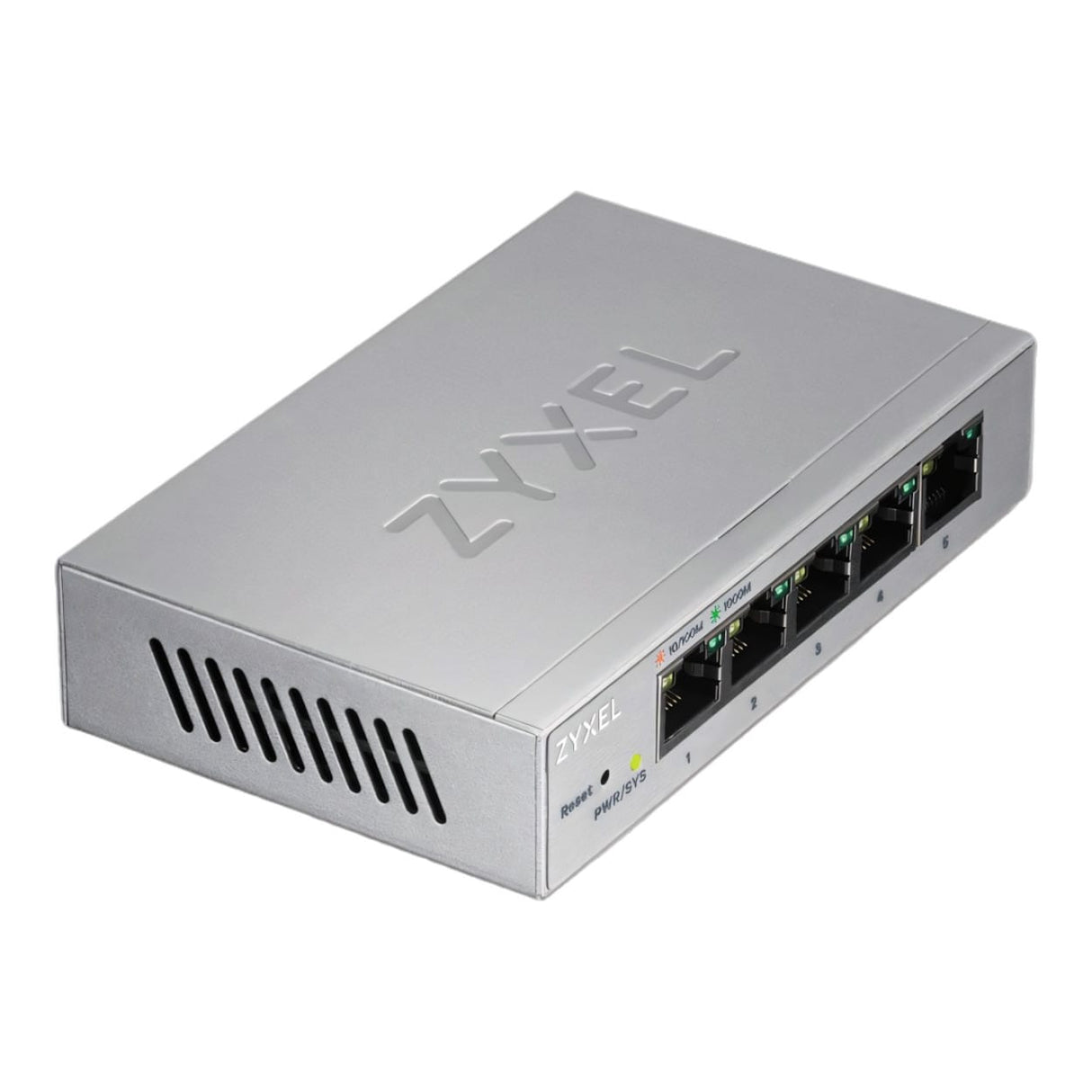

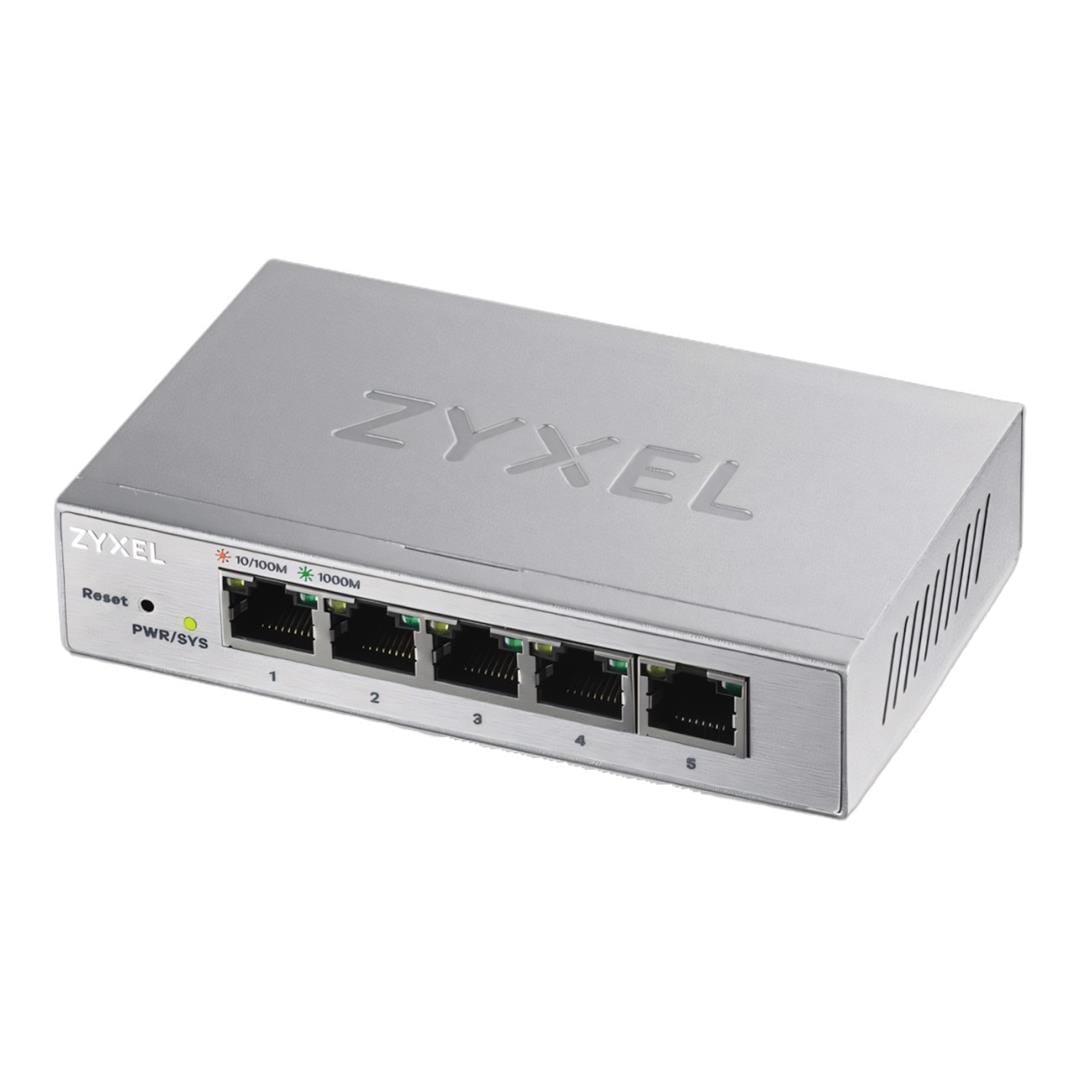

Zyxel GS1200 5-port Web Managed Gigabit Switch GS1200-5EU0101F

Zyxel GS1200 5-port Web Managed Gigabit Switch GS1200-5EU0101F

The Zyxel GS1200-5 is a compact 5-port Web Managed Gigabit Switch designed for small offices, home businesses and users who require greater network control without the complexity of a fully managed switch. It combines five Gigabit Ethernet ports with an intuitive web-based management interface and essential business networking features such as VLAN, Quality of Service, IGMP Snooping, link aggregation and port mirroring.

Key Features

• 5 x Gigabit Ethernet ports for high-speed wired network connections.
• Simple web-based management with no additional software required.
• IEEE 802.1Q VLAN and port-based VLAN support for improved network separation.
• Port-based QoS and IEEE 802.1p CoS help prioritise important network traffic.
• IGMP Snooping v1, v2 and v3 compatibility improves multicast traffic delivery.
• Link aggregation combines ports 3 and 4 into a higher-bandwidth connection.
• Port mirroring supports network monitoring and troubleshooting.
• Broadcast storm control and loop detection help protect network stability.
• IEEE 802.3az Energy Efficient Ethernet dynamically reduces power usage.
• Fanless metal design provides silent and reliable operation.

Simple Web-Based Management

The GS1200-5 provides an intuitive web-based interface for configuring and managing the switch. Users can adjust port settings, create VLANs, configure link aggregation, perform firmware updates and back up switch configurations without installing additional management software.

Improved Network Segmentation

IEEE 802.1Q and port-based VLAN capabilities allow different groups of users and devices to be separated on the same physical network. This can help isolate administrative systems, general office users, IP surveillance equipment or guest network resources.

Optimised Traffic Control

Port-based Quality of Service, IEEE 802.1p Class of Service and Weighted Round Robin scheduling allow important applications to receive higher priority. This helps maintain reliable performance for voice, video, data and other time-sensitive network traffic.

Efficient Multicast Streaming

IGMP Snooping v1, v2 and v3 compatibility allows the switch to forward multicast traffic only to ports that request it. This improves bandwidth efficiency for applications such as video streaming, gaming and other multicast services.

Silent and Energy-Efficient Operation

The fanless metal enclosure provides silent operation and reduces the number of moving components that may fail over time. IEEE 802.3az Energy Efficient Ethernet automatically adjusts power consumption according to network traffic levels.

• Specifications and Images may vary depending upon region / model.

Technical Specifications

The Zyxel GS1200-5 provides an affordable step up from an unmanaged switch, combining five Gigabit Ethernet ports with essential traffic management, network segmentation and monitoring features in a compact, fanless metal design.
