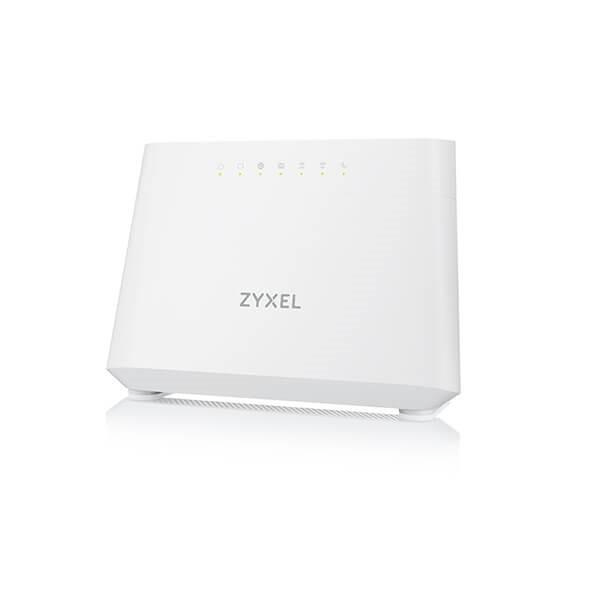

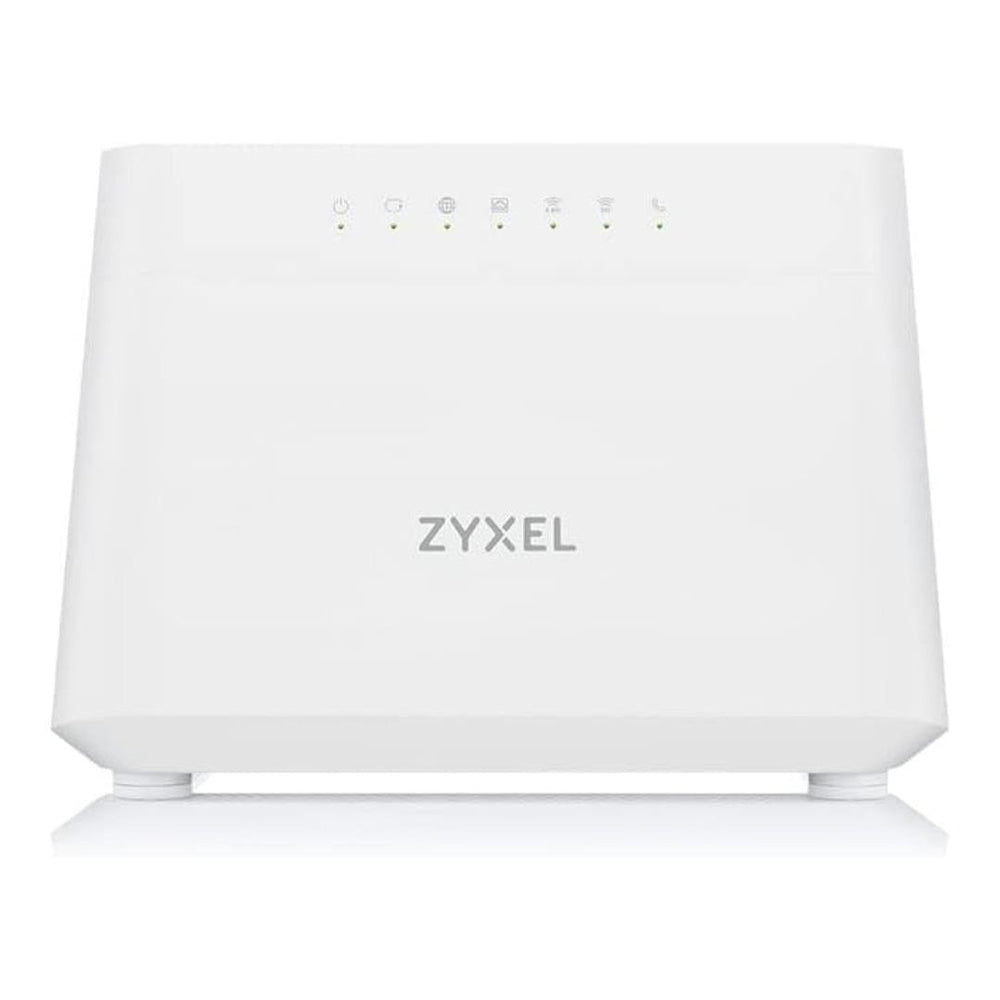

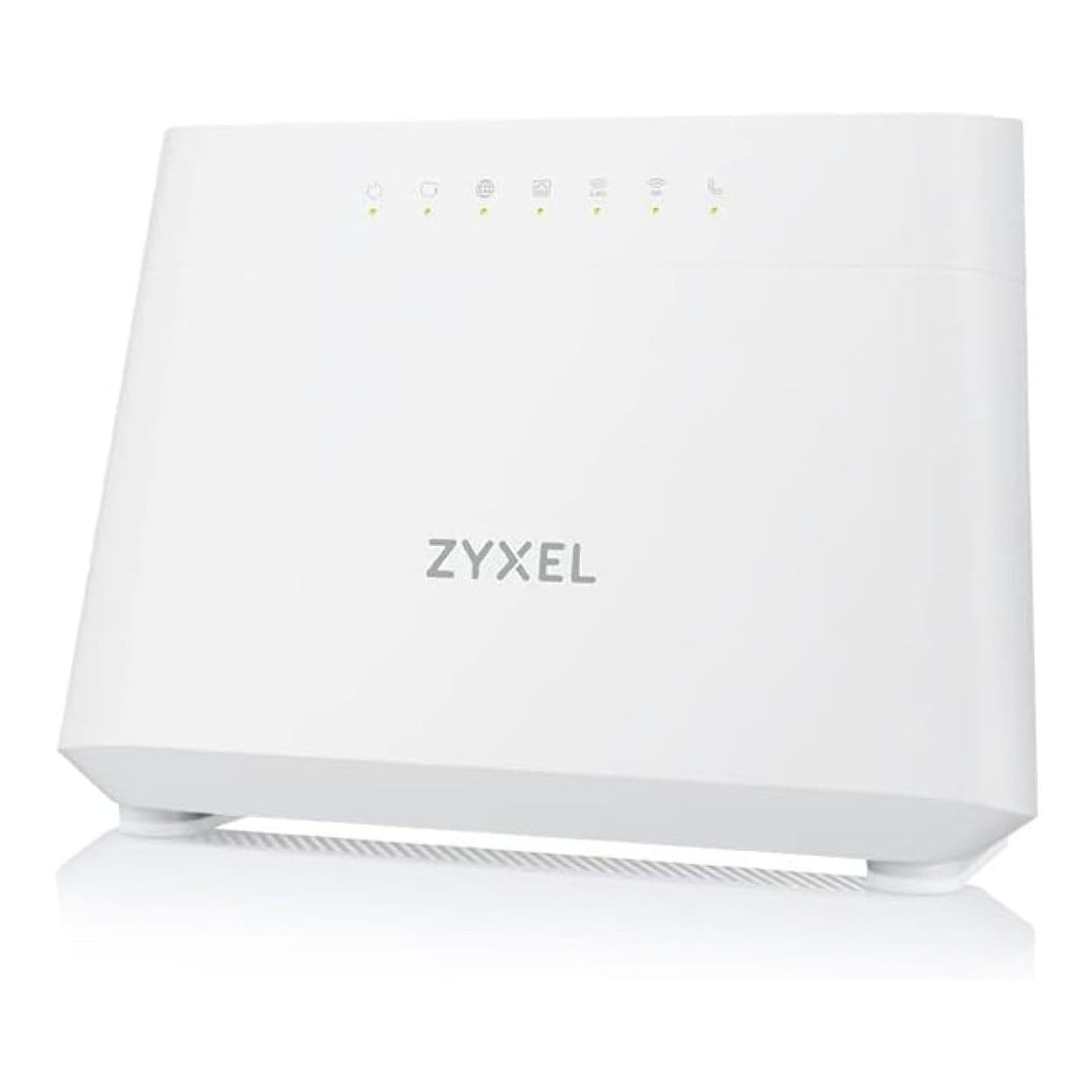

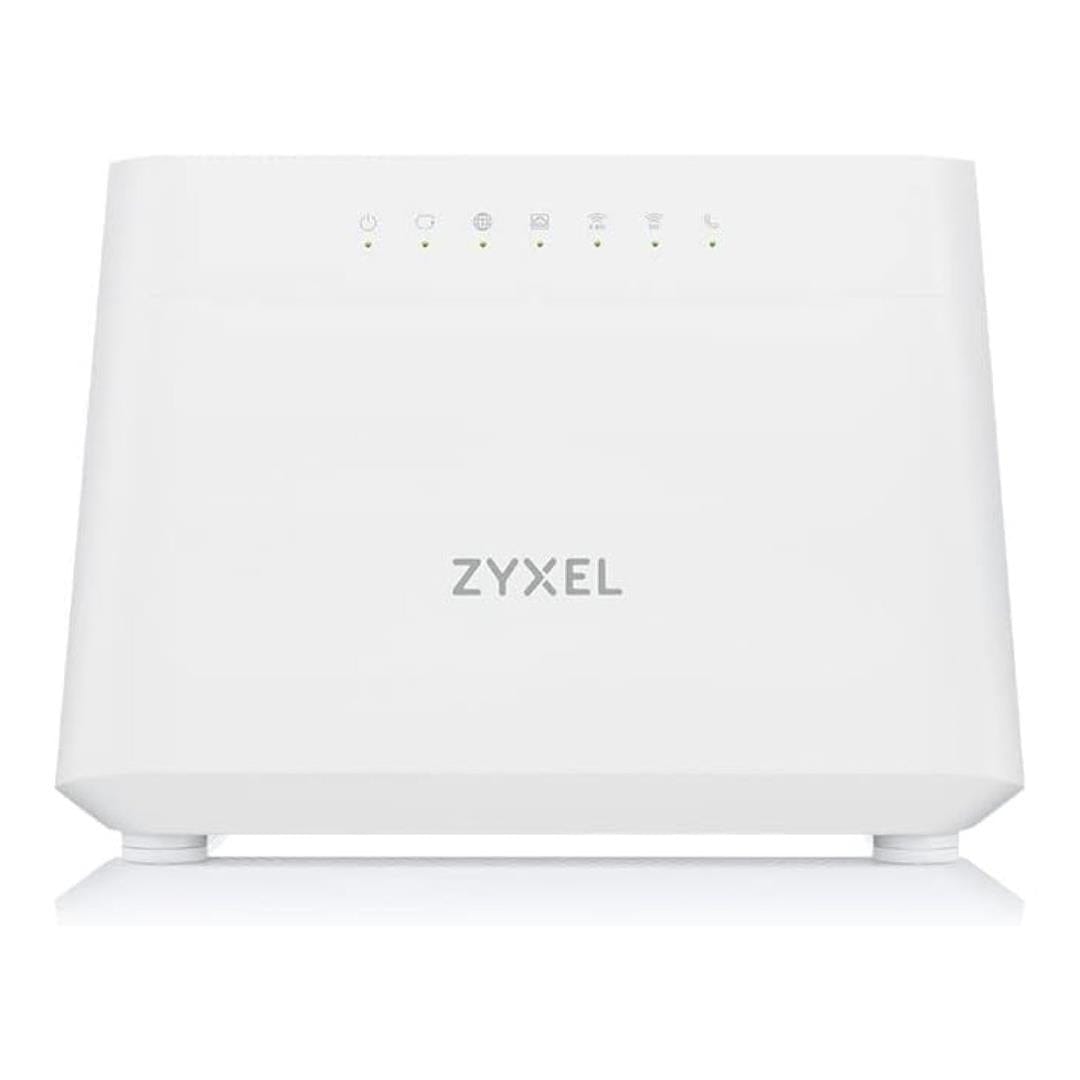

Zyxel EX3301 Dual-Band Wireless AX1800 Gigabit Ethernet IAD Router EX3301-T0

Zyxel EX3301 Dual-Band Wireless AX1800 Gigabit Ethernet IAD Router EX3301-T0

The Zyxel EX3301-T0 provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh® Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.

Features:

• WiFi 6 (11ax) for superior performance and coverage
• Zyxel MPro Mesh® Solutions (compliant with EasyMesh standards)
• Remote management via TR-069 and TR-181 i2
• NAT, firewall with SPI and DoS for better security
• VoIP SIP protocol with 3-way conference calls
• Multiple SSIDs for various service deployment scenarios
• Zyxel-developed OPAL for superior flexibility and faster time-to-market
• Ecofriendly compact design

WiFi 6 technology for superior lag-free performance

Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.

*The maximum wireless data transfer rate is derived from IEEE standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Zyxel OPAL firmware achieves superior flexibility and faster time-to-market

Compliant with the same OPAL firmware trunk applied in all Zyxel CPEs,the Series inherits a rich, field-proven feature set for guaranteed unchanged user experience even after migrating to the new devices.

Premium MPro Mesh® for whole-home coverage**

Featuring EasyMesh fully compliant Zyxel MPro Mesh® Solutions, the Series enhances your subscribers’ experience by providing self-adapting, easy-to-manage whole-home WiFi coverage, while reducing your service OPEX.

** Combining EX3301-T0 Wireless Extender is advised for the ideal mesh network performance.

Quality of Service (QoS) support

With QoS features, service providers can freely design their QoS policies and prioritize mission-critical services such as IPTV and VoIP based on their service plan offerings. This improves network efficiency and productivity that enable service providers to offer a real multi-play solution to meet the residential user needs.

TR-069/TR-181 issue-2 remote management for lower OPEX

Compliant with TR-069, the Series significantly simplifies deployment complexity and lowers operating and maintenance costs. The additional support to the latest TR-181 issue-2 data model also enhances service providers' visibility on subscriber LAN networks to offer improved customer assistance.

Ecofriendly compact design

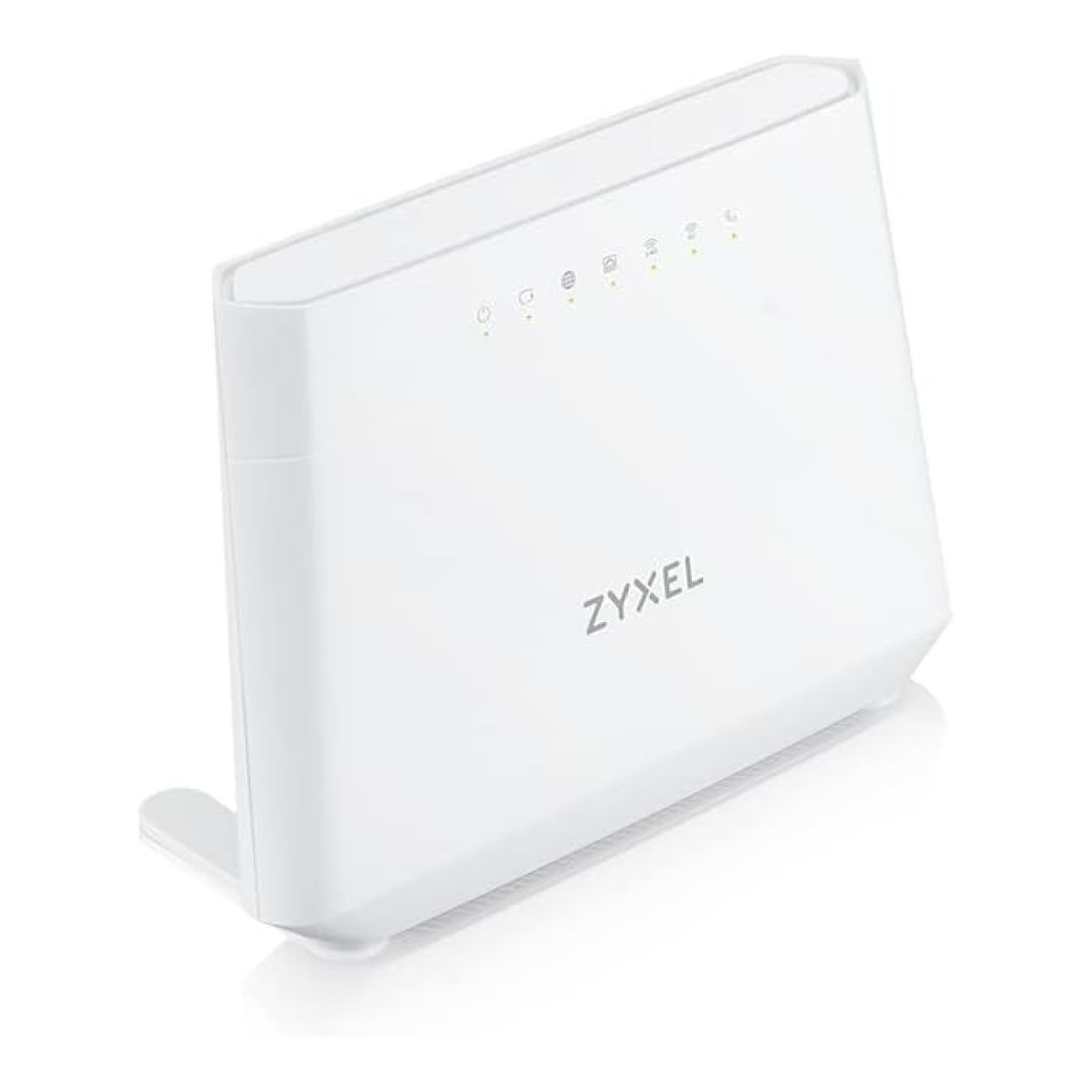

Zyxel commits to a sustainable future and to improving the environmental well-being of the community. The Zyxel EX3301-T0 adopts foldable stands with an ultra-thin exterior case to shrink each package volume, which improves pallet utilization by approximately 46% for lower carbon emissions.

Technical Specifications:

Hardware

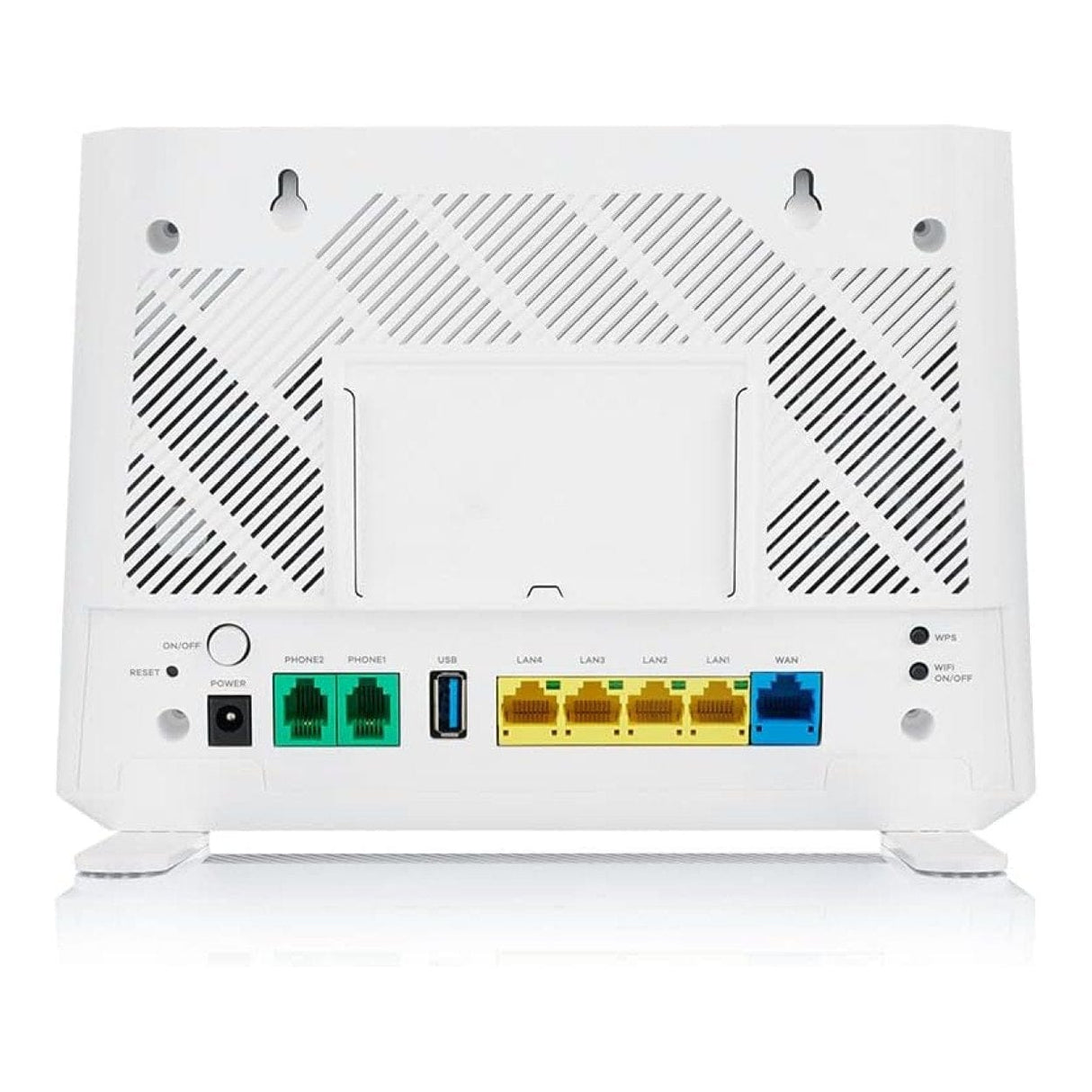

WAN Interface: RJ45/GbE Ethernet port (10/100/1000) – 5 (1 for Ethernet WAN)
POTS FXS Port: 2
USB Port: 1 (USB 2.0)

Router Features:

IPv4/IPv6

NAT

Port forwarding

WAN connection types: DHCP, PPPoE

DHCP option 60/121/125

DHCP server on LAN

IGMP v1/v2, IGMP proxy

Dynamic DNS

Wireless

Auto channel selection

WiFi Multimedia (WMM)

Wireless scheduling

Wireless output power management

Multiple SSID up to 4

Wi-Fi Protected Setup (WPS)

Intra-BSS traffic block

MAC address filtering

VLAN: 802.1q tag/tag based, VLAN to ETH port mapping, Bridged/routed VLAN

Voice

SIP v2 (RFC 3261)

SIP account (URL type included)

SDP (RFC 2327)

RTP (RFC 1889)

RTCP (RFC 1890)

G.168 echo cancellation

VAD/CNG

CODEC: G.711 a/u law / G.726 / G.722 / G.729

DTMF detection (in-band and out-of-band)

QoS (IP bandwidth management), ToS

Phonebook

FAX, modem detection and pass-through

T.38 FAX

IVR, Call waiting, Call hold/call retrieve, Call transferring, Call forwarding

Caller ID, Do not disturb

Three way conference

Flexible dial plan

Dynamic jitter buffer

On hook, off hook and flash detection

Wireless
WLAN: 2.4 GHz 2x2 ax + 5 GHz 2x2 ax
MPro Mesh® Compatibility: WX3100

Firewall

Stateful packet inspection

Denial of service

ICMP blocking

VPN

IPSec (Pass thru)

Network

TCP/IP, PPPoE, PPPoA

DHCP client/server/relay

UPnP

IP policy routing

Multi-to-multi NAT

Dynamic DNS (DDNS)

IGMP

Management

Web configurator

TR-069/TR-181 i2

Remote firmware upgrade

SNMP

Button

Power on/off

Wireless on/off

WPS

Reset

Status LEDs Indicators

Power

WAN

Internet

LAN

2.4 GHz

5 GHz

WPS

Phone (DX3301-T0 and EX3301-T0)

Power Consumption: 12V DC, 2A

What’s in the Box:

• Wireless gateway/IAD
• Power adapter
• Ethernet cable
• Phone cable
• Quick Start Guide
