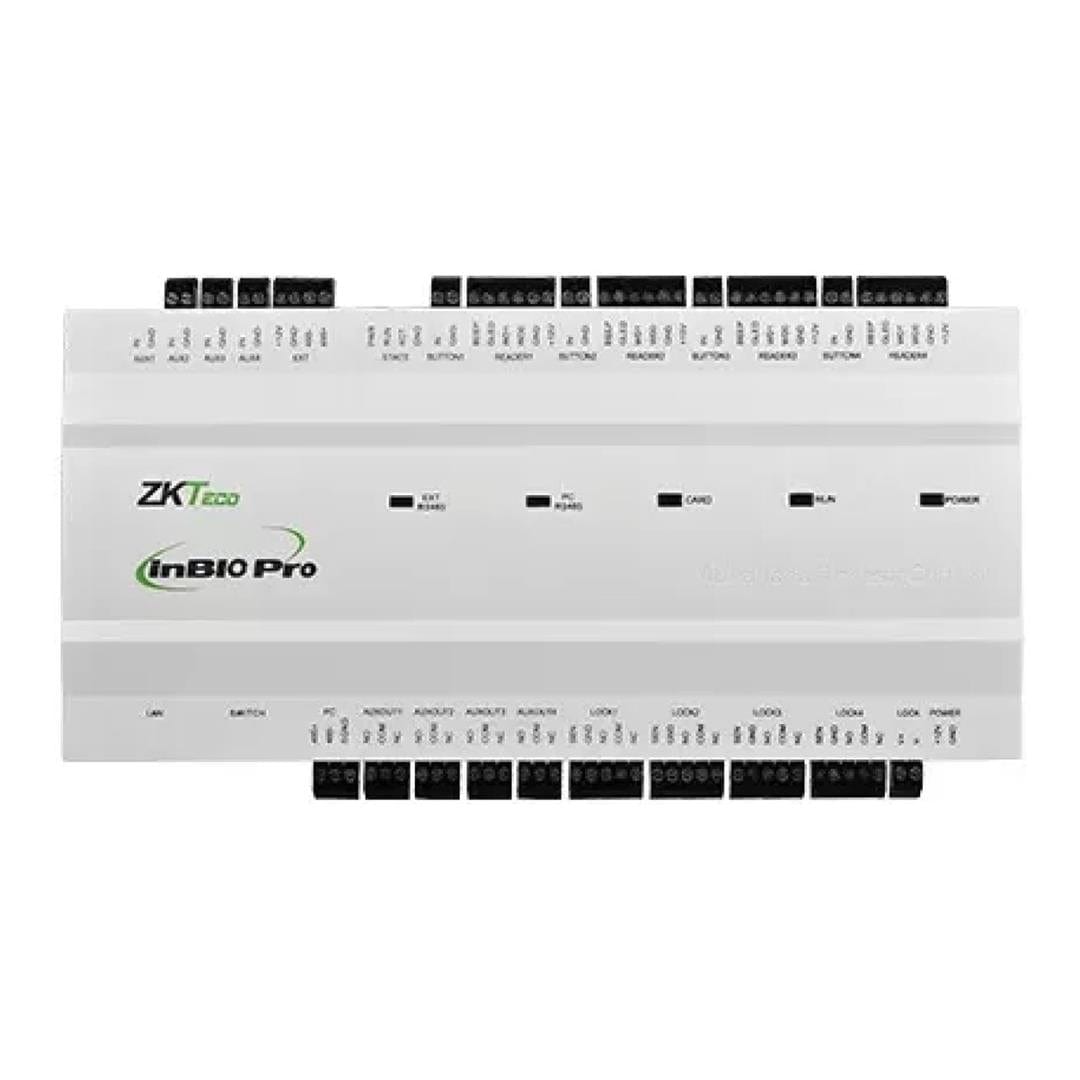

ZKTeco InBio460 Pro Plus Series 4-Door Access Control Panel

R 7,99900
Available Now

    Delivery and Shipping

    * Fast Delivery Available - Learn more

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

    ZKTeco InBio460 Pro Plus Series 4-Door Access Control Panel

    InBio Pro Plus Series is a project oriented, high-end product line with distinctive features, including embedded facial and fingerprint authentication, as well as advanced access control functions. Equipped with TCP/IP, it enables robust remote management and connectivity over local (LAN) and wide area networks (WAN), enhancing deployment flexibility and scalability.

    Comprising the InBio160 Pro Plus, InBio260 Pro Plus, and InBio460 Pro Plus models, the system supports up to 3,000 face templates and 20,000 fingerprint templates, a maximum of 100,000 card users, and 100,000 dynamic QR code capacity.

    Specifications

    Model Name: InBio460 Pro Plus
    Operation System: Linux OS
    Hardware: CPU: Single Core@1.0GHz, RAM: 128MB; ROM: 256MB;
    Authentication Method: Card / Password / Fingerprint / Face / QR Code
    Access Point Capacity: InBio460 Pro Plus: 4 Access Points
    Reader Capacity: 8x RS-485 Readers (ZKTecoRS-485 / OSDP), 4x 26 / 34 / 66-bit Wiegand Readers
    IO Expansion Board Capacity: 8pcs EX0808 (RS-485 connection)
    User Capacity: 100,000
    Card Capacity: 100,000 (1:N) (Standard)
    Fingerprint Template Capacity: 20,000 (1:N) (Standard)
    Face Template Capacity: 3,000 (1:N) (Standard)
    QR Code Capacity: 100,000 (Static QR Code / Dynamic QR Code)
    Transaction Capacity: 500,000 (Standard)
    Number of Inputs: 4x Exit Button, 4x Door Status, 4x AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
    Number of Outputs: 4x Form C Relay for Lock, 4x Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
    Max. Card Length: Supports up to 66 bits Card Length
    QR Code: PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.Dynamic QR codes on the ZKBio CVSecurity mobile application
    Communication: TCP / IP x1; RS-485: ZKTeco RS-485 / OSDP (Optional) x1; Wiegand (Input) x4; USB: Type A (USB Drive Only) x1; Aux Inputs x4, Aux Outputs x4 ; Electric Lock x4, Door Sensor x4, Exit Button x4, Alarm x4
    Standard Functions: Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback,Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods
    Access Control Interface: Wiegand (Card Reader), RS-485(RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader)
    Power Supply: 9.6V- 14.4V DC
    Operating Temperature: 0℃ to 45℃
    Operating Humidity: 20% to 80% RH (Non-condensing)
    Dimensions (L * W * H): 226 mm x 106 mm x 36.07mm
    Gross Weight: 1.098 Kg
