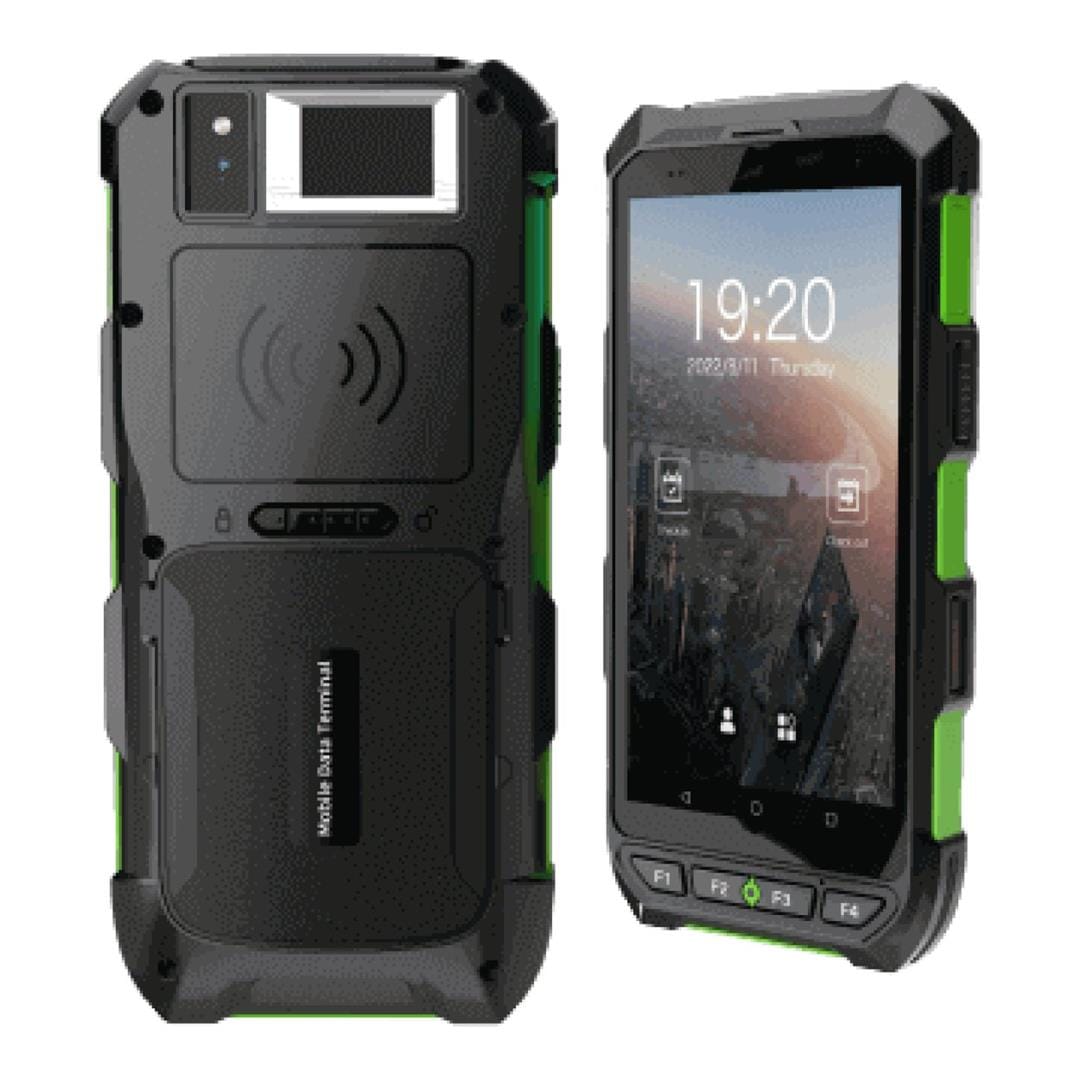

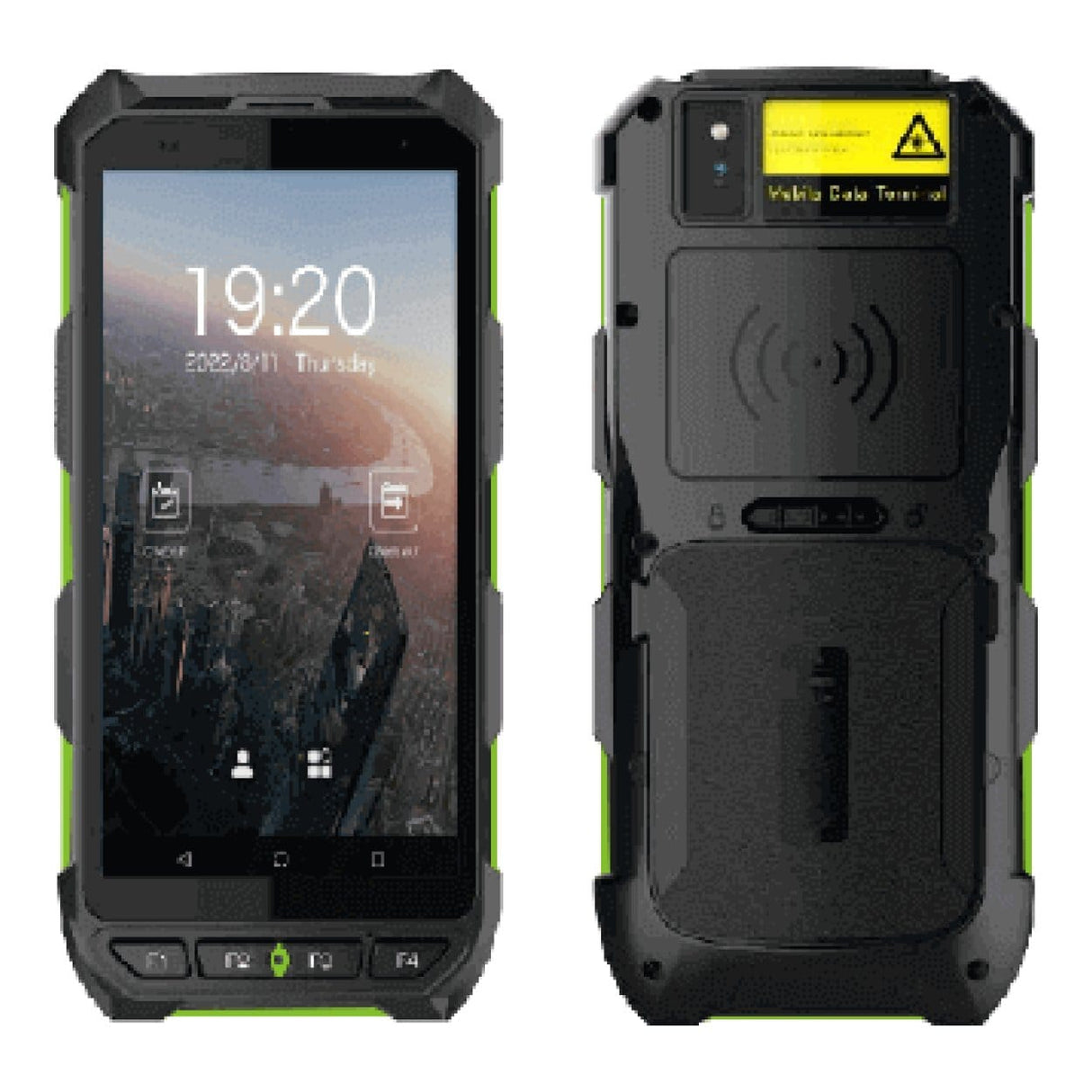

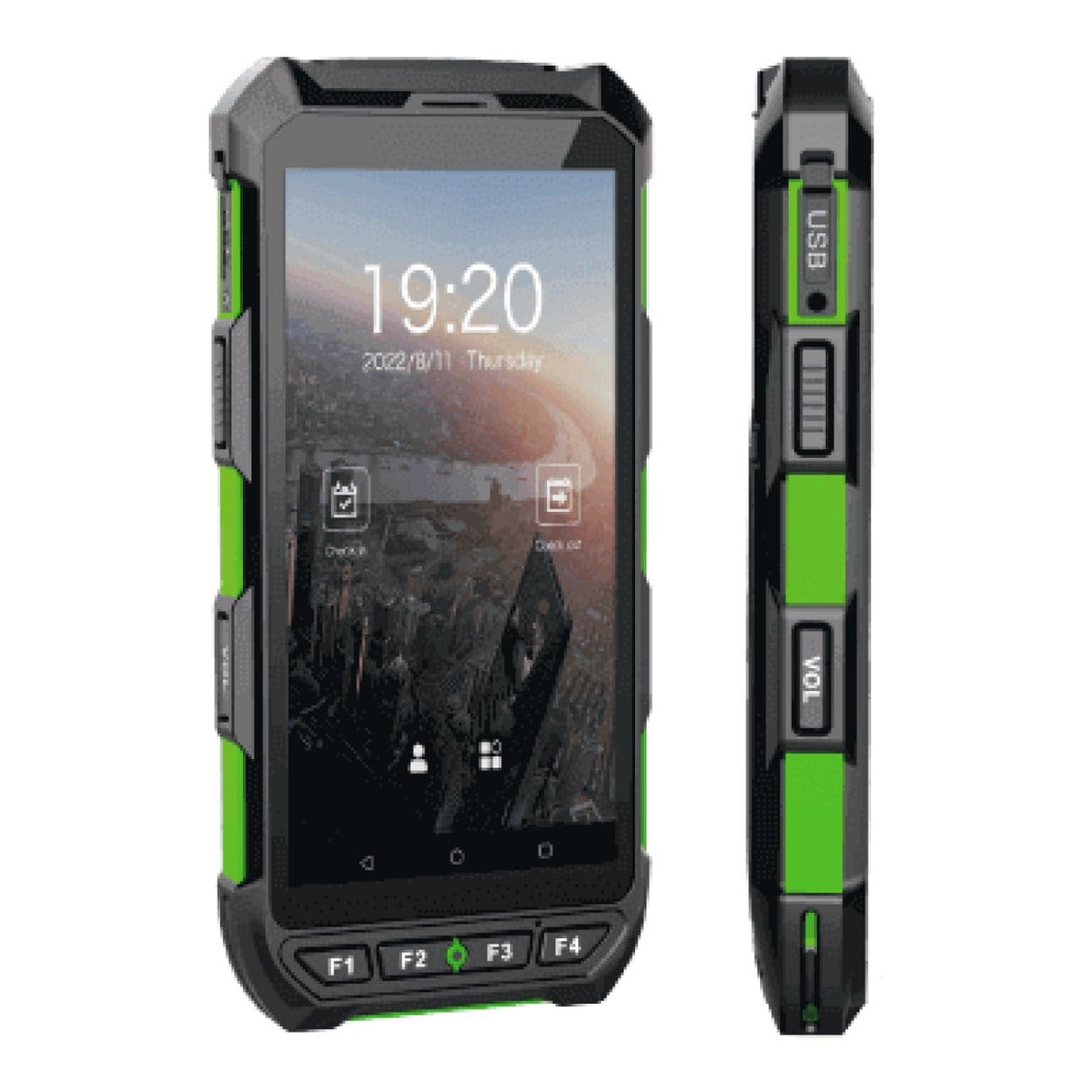

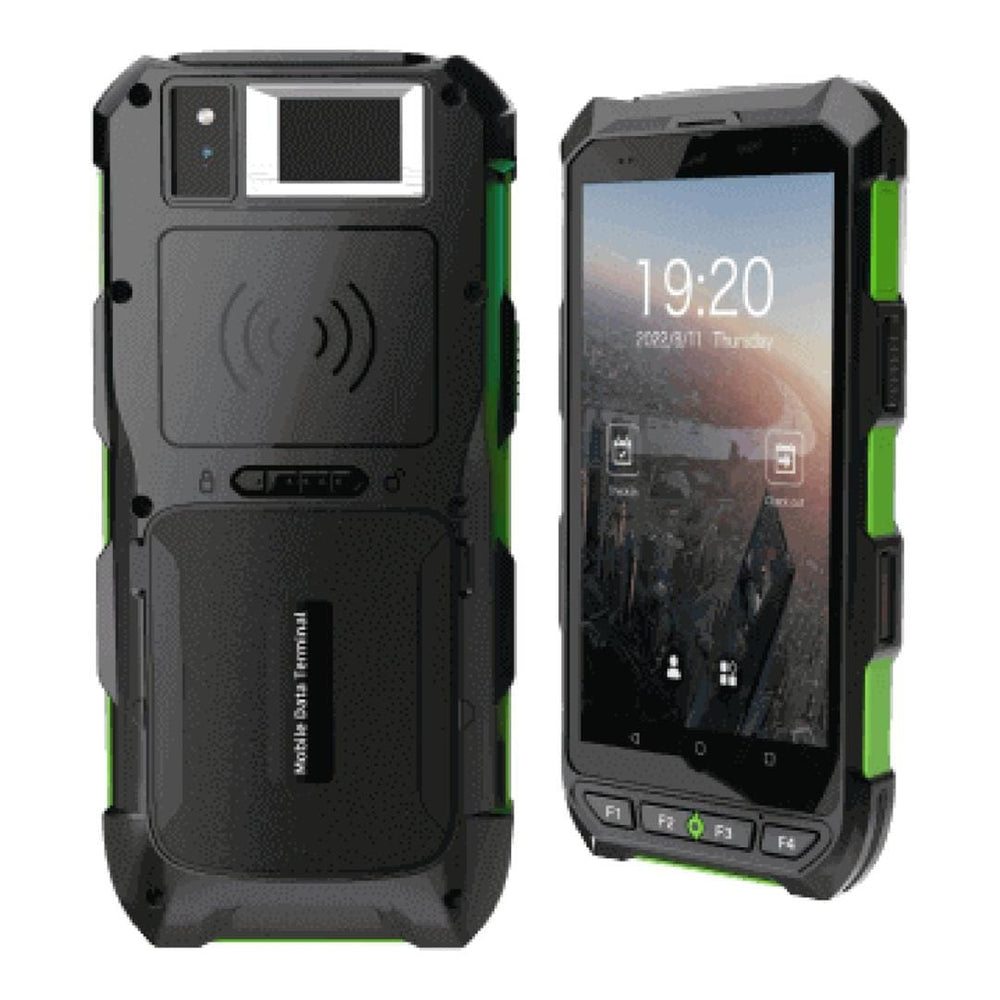

ZKTeco Horus H1-FP Handheld Multi Biometric Reader ZK-HORUS-H1-FP

ZKTeco Horus H1-FP Handheld Multi Biometric Reader ZK-HORUS-H1-FP

ZKTeco's Horus H1, a handheld mobile time and attendance terminal designed for versatile use. With the  rechargeable 5200mAh Li-ion battery, Horus H1 can operate for 5 hours without recharging. Also, the high-capacity  battery provides ample power to support Horus H1 to perform hybrid biometric verifications, including facial  recognition, fingerprint verification, NFC, and QR code management.

Technical Specifications:

System

Operating System
Android 10.0

CPU
64-bit Octa-core Cortex-A53, 2.0 GHz

Memory
4GB RAM / 64GB ROM
MicroSD card support (up to 256GB expansion)

SDK
PUSH SDK

Display

Screen Type
5.5-inch IPS capacitive LCD touchscreen

Resolution
720 × 1440

Camera

Rear Camera
Dual-lens, 13 MP

Front Camera
5 MP

QR Code & Barcode Support
Dynamic QR codes via ZKBioSecurity mobile application
Supports QR Code, PDF417, Data Matrix, MicroPDF417, and Aztec (third-party development supported)

Supported Card Types
ISO14443A & ISO15693
NFC-IP1, NFC-IP2

Communication

Cellular (3G / 4G)
TDD LTE: Bands 38, 39, 40, 41
FDD LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 20
WCDMA: 850 / 1900 / 2100 MHz
GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900 MHz

WLAN
2.4 GHz / 5.0 GHz dual frequency
IEEE 802.11 a/b/g/n/ac

Bluetooth
v2.1 + EDR
v3.0 + HS
v4.2

GPS
GPS (embedded A-GPS), GLONASS
Accuracy: approx. 5 m

Performance

Card Reading Distance (NFC)
3 cm – 5 cm

Biometric Authentication
Face recognition
Fingerprint (optional)

Facial Recognition Algorithm
ZKFace 5.6.2

Facial Recognition Distance
0.3 m – 2 m

Facial Recognition Speed
< 1 second

Facial Recognition Accuracy
≥ 99%

Fingerprint Sensor Type
Semiconductor

Fingerprint Comparison Time
≤ 0.5 seconds

Capacity

User Capacity
50,000

Face Capacity
50,000

Fingerprint Capacity
30,000 (optional)

Card Capacity
50,000

Log Capacity
1,000,000 records

Interface
1 × USB 2.0 Type-C

Protection Level
IP65

Supported Software
ZKBio Time
ZKBio Security
ZKBioCV Security

Firmware Functions
Push
Schedule Bell
Automatic Status Switch
Record Query
Groups
Holidays
DST
Workcode
Duress Mode (Password & Fingerprint)
Custom wallpaper & screen saver

Language Support
English, Korean, Latin American Spanish, Indonesian, Vietnamese, Traditional Chinese, Portuguese, Spanish, Farsi, Japanese, Russian, Thai

General

Power Supply
5V 2A

Battery
Embedded 5200 mAh Li-ion battery

Material
ABS plastic casing with tempered glass surface

Operating Temperature
-20°C to 50°C

Storage Temperature
-20°C to 70°C

Humidity
< 90% RH (operating & storage)

Operating Environment
Outdoor

Weight
Net weight: 400 g
With packaging: 700 g

Dimensions (H × W × D)
170 mm × 80 mm × 20 mm

Certifications
ISO9001
ISO14001
CE
FCC
