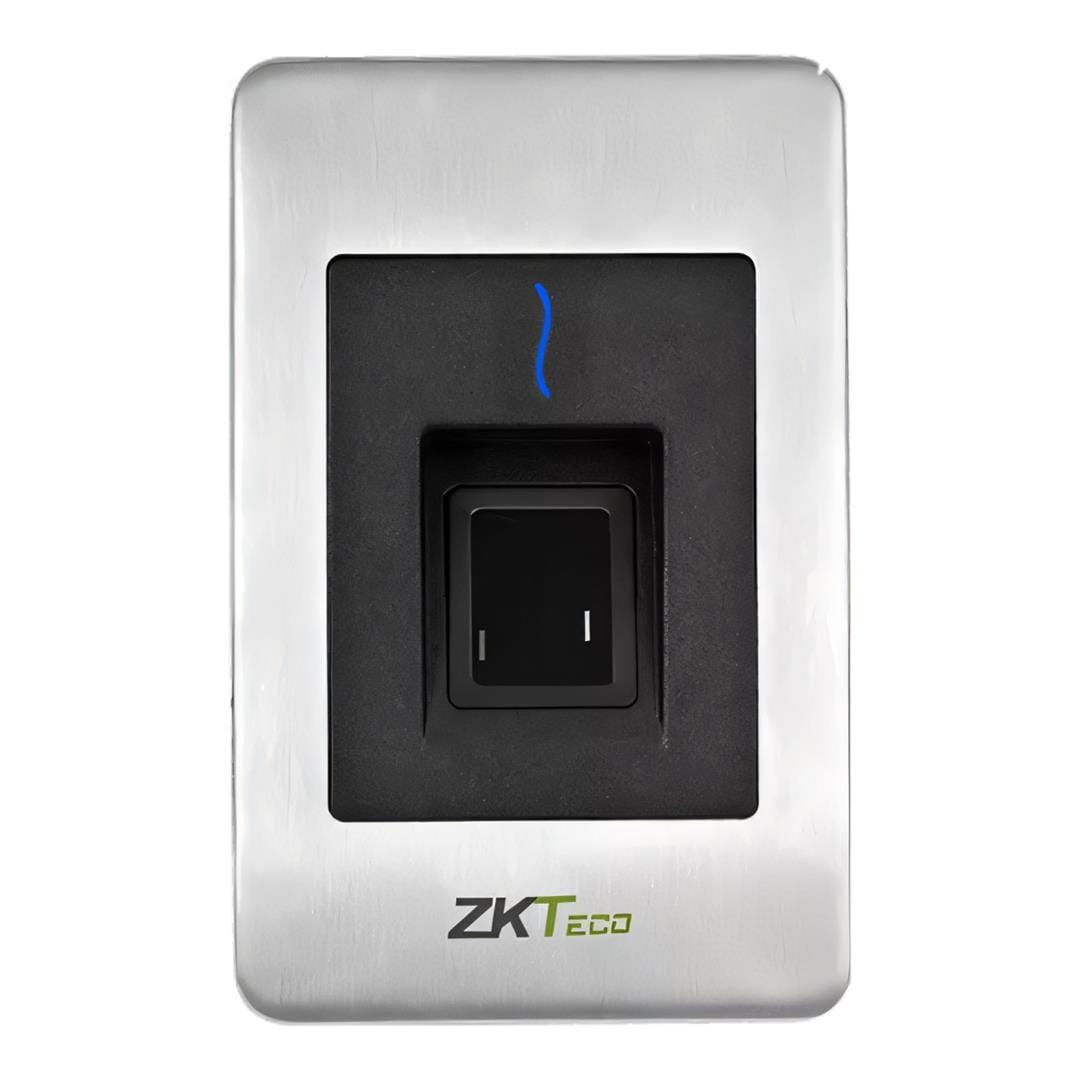

ZKTeco FR1500 IP65 Flush Mounted RS 485 Fingerprint Reader ZKAC00198

ZKTeco FR1500 IP65 Flush Mounted RS 485 Fingerprint Reader ZKAC00198

The ZKTeco FR1500 ZKAC00198 is a flush-mounted biometric fingerprint reader designed for integration with compatible access-control systems. It captures fingerprint data and transfers fingerprint templates to connected biometric access controllers through an RS485 interface, providing a compact authentication point for doors and controlled areas. A SilkID fingerprint sensor, 125kHz RFID support, stainless-steel front casing and IP65-rated construction make the FR1500 suitable for professional access-control installations.

Key Features

• Biometric fingerprint reader for access-control systems.
• SilkID fingerprint sensor.
• RS485 communication interface.
• Standard 125kHz RFID card support.
• Flush-mounted design for a neat installation.
• Designed for installation in a standard single-gang junction box.
• Durable stainless-steel front casing.
• IP65-rated environmental protection.
• Compatible with inBio/inBioPro controllers and supported standalone fingerprint devices.
• 12V DC operating voltage.
• Visual and audible status indication.

Biometric Fingerprint Authentication

The FR1500 provides fingerprint capture at the access point and transfers fingerprint templates to the connected access-control panel for processing. This architecture allows the reader to form part of a centrally managed biometric door-access system rather than operating as a standalone access controller.

SilkID Fingerprint Sensor

A SilkID fingerprint sensor provides the biometric interface for user authentication. The reader is designed to provide convenient fingerprint capture in access-control environments where biometric verification is required.

RS485 Integration

RS485 communication provides the connection between the FR1500 and compatible biometric access controllers. ZKTeco specifically positions the reader for integration with access-control panels, including compatible inBio and inBioPro systems.

Fingerprint and RFID Access

In addition to biometric fingerprint authentication, the standard configuration supports 125kHz RFID cards. Supporting specifications also identify optional configurations for other credential technologies, including HID Prox, MIFARE and HID iCLASS cards.

Flush-Mounted Stainless-Steel Design

The FR1500 is designed for flush mounting using a standard single-gang junction box, helping create a clean and professional installation at doors and access points. Its stainless-steel front casing provides a durable exterior for commercial access-control environments.

IP65 Environmental Protection

An IP65-rated design provides protection against dust and water ingress for suitably installed applications. The reader is specified for operation in temperatures from -10°C to 45°C and relative humidity from 20% to 95%.

Technical Specifications

What’s in the Box:

• ZKTeco FR1500 Fingerprint Reader

The ZKTeco FR1500 ZKAC00198 provides fingerprint and RFID authentication in a compact flush-mounted reader designed for compatible biometric access-control systems. With RS485 communication, a SilkID fingerprint sensor, stainless-steel construction and IP65 environmental protection, it provides a practical reader solution for professional door-access installations.
