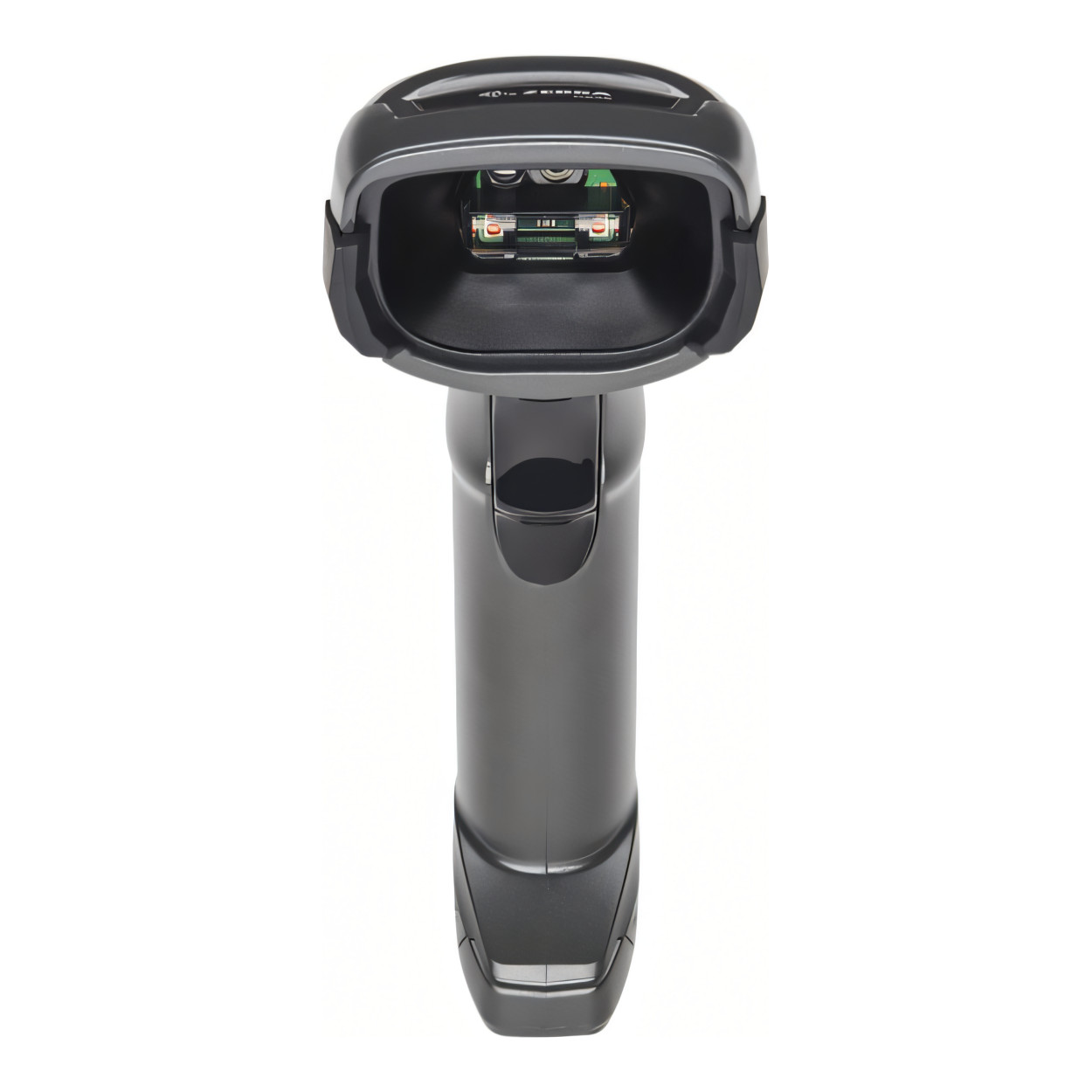

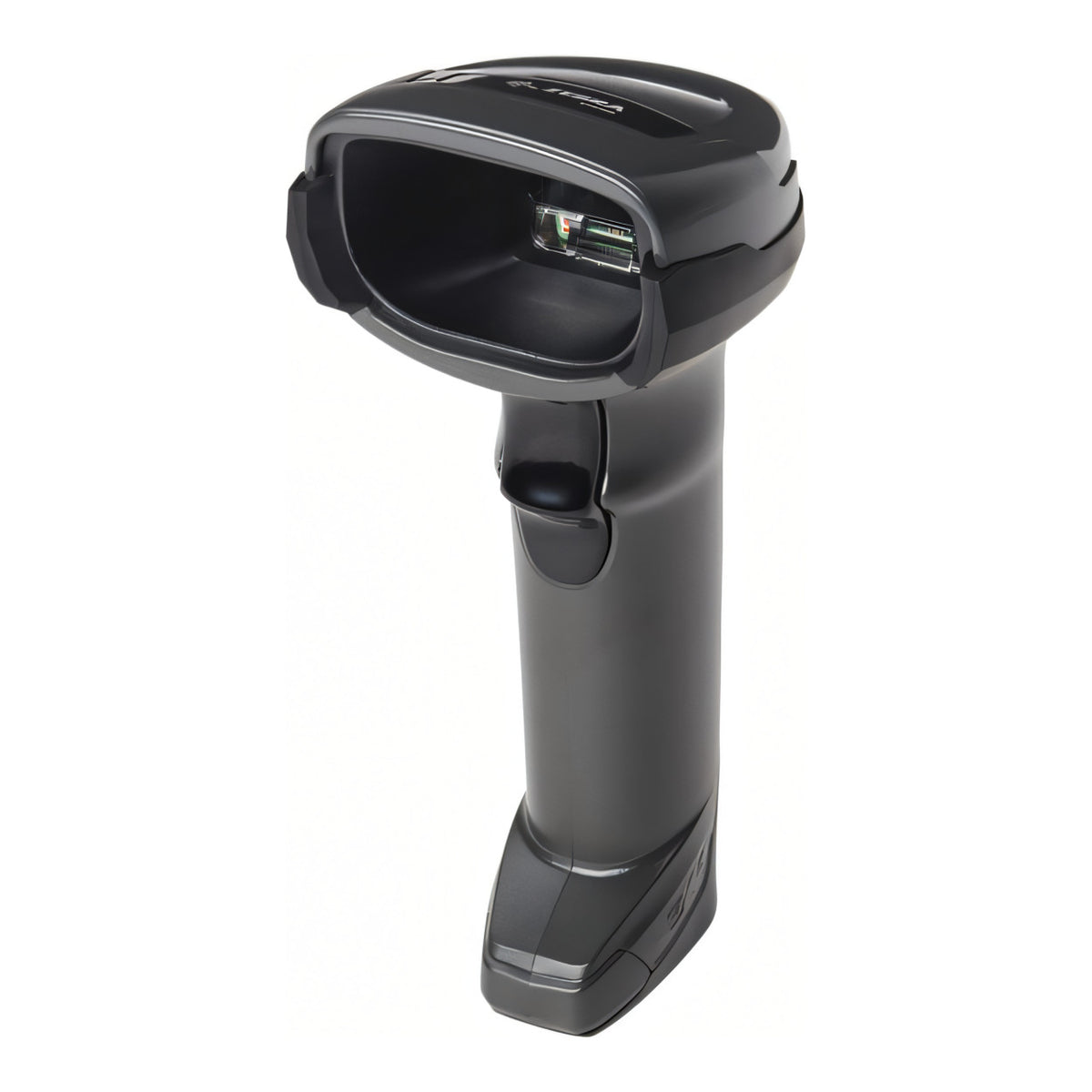

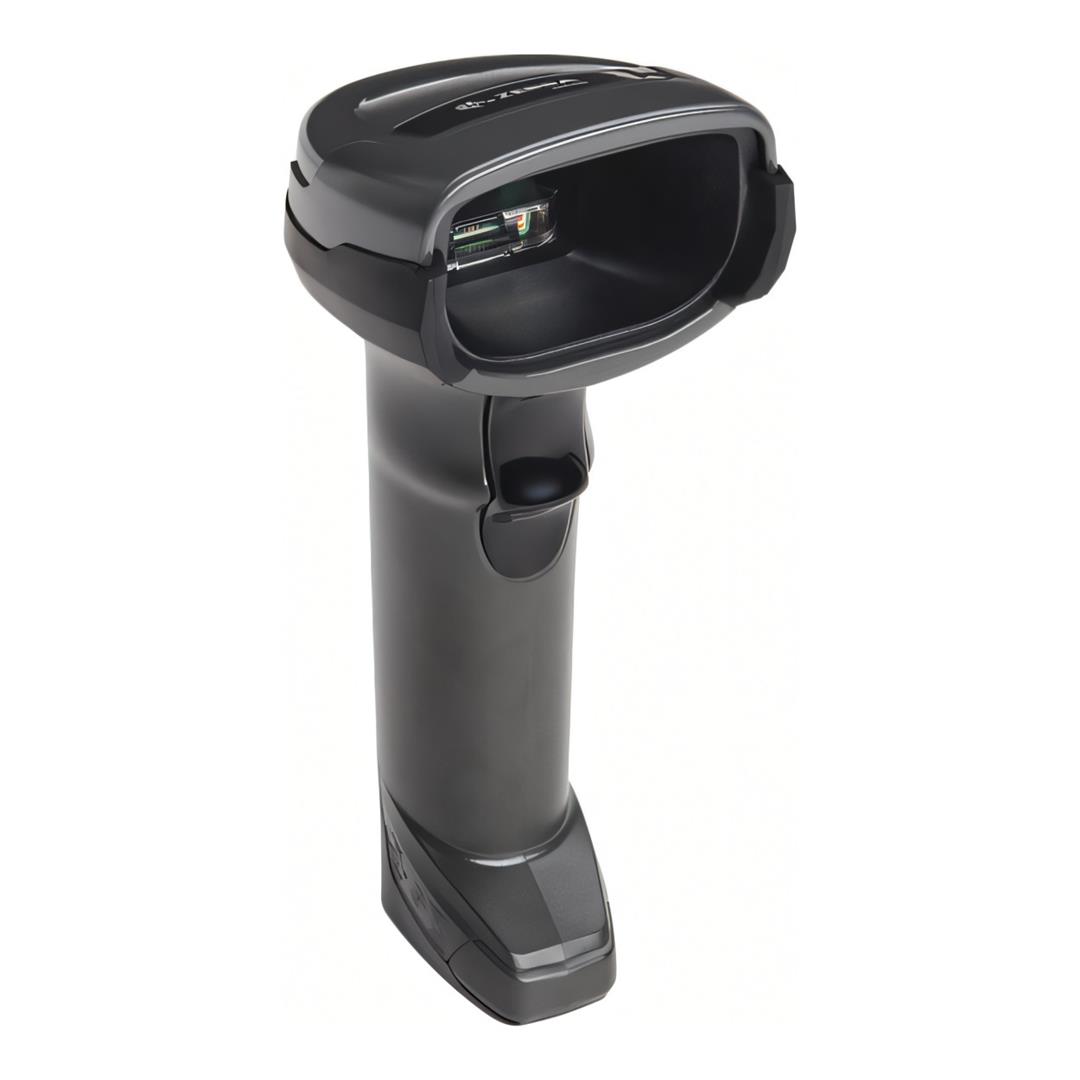

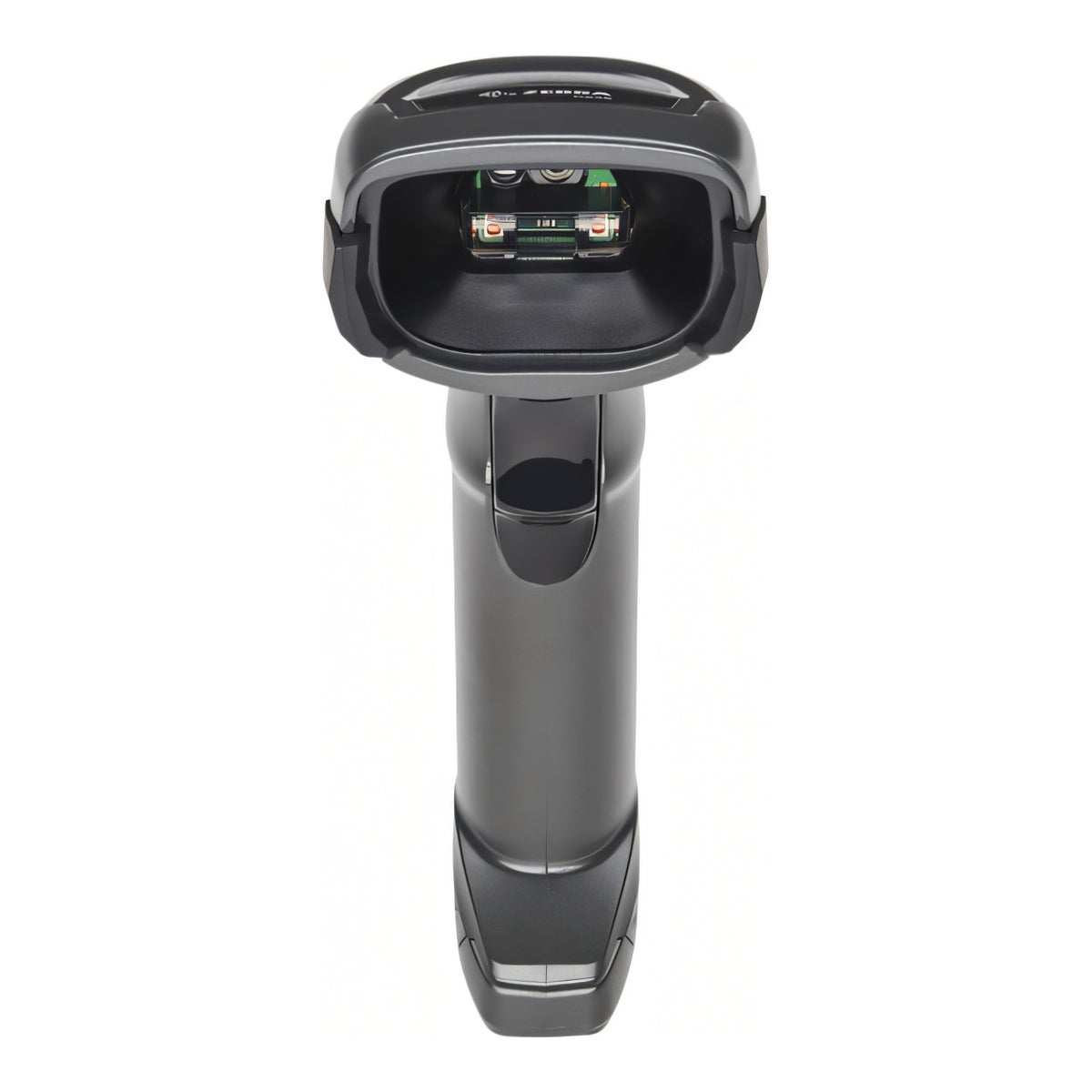

Zebra DS4678-SR 1D/2D LED Handheld Barcode Scanner Kit DS4678-SR7U2100PFW
The Zebra DS4678-SR7U2100PFW is a cordless standard-range 1D/2D barcode scanner kit designed for retail point-of-sale, inventory, receiving and other high-volume scanning applications. Its 1280 × 800 array imager captures printed and electronic barcodes as well as supported OCR data, while Bluetooth 5.2 connectivity provides cordless freedom. This kit includes the DS4678-SR scanner, a shielded USB cable and a Presentation Cradle for charging and convenient hands-free scanning.
Key Features
- 1D, 2D and OCR scanning: Captures a broad range of conventional barcodes, 2D codes and supported OCR data from labels, documents and electronic displays.
- Standard-range imager: The DS4678-SR uses a 1280 × 800 array image sensor designed for versatile everyday retail and commercial scanning.
- Bluetooth 5.2 connectivity: Provides cordless operation with BLE and Class 1 communication distances of up to 100 m under supported conditions.
- Full-shift battery performance: The 2,500 mAh PowerPrecision Li-ion battery supports more than 50,000 scans and over 13 hours of continuous scanning per charge.

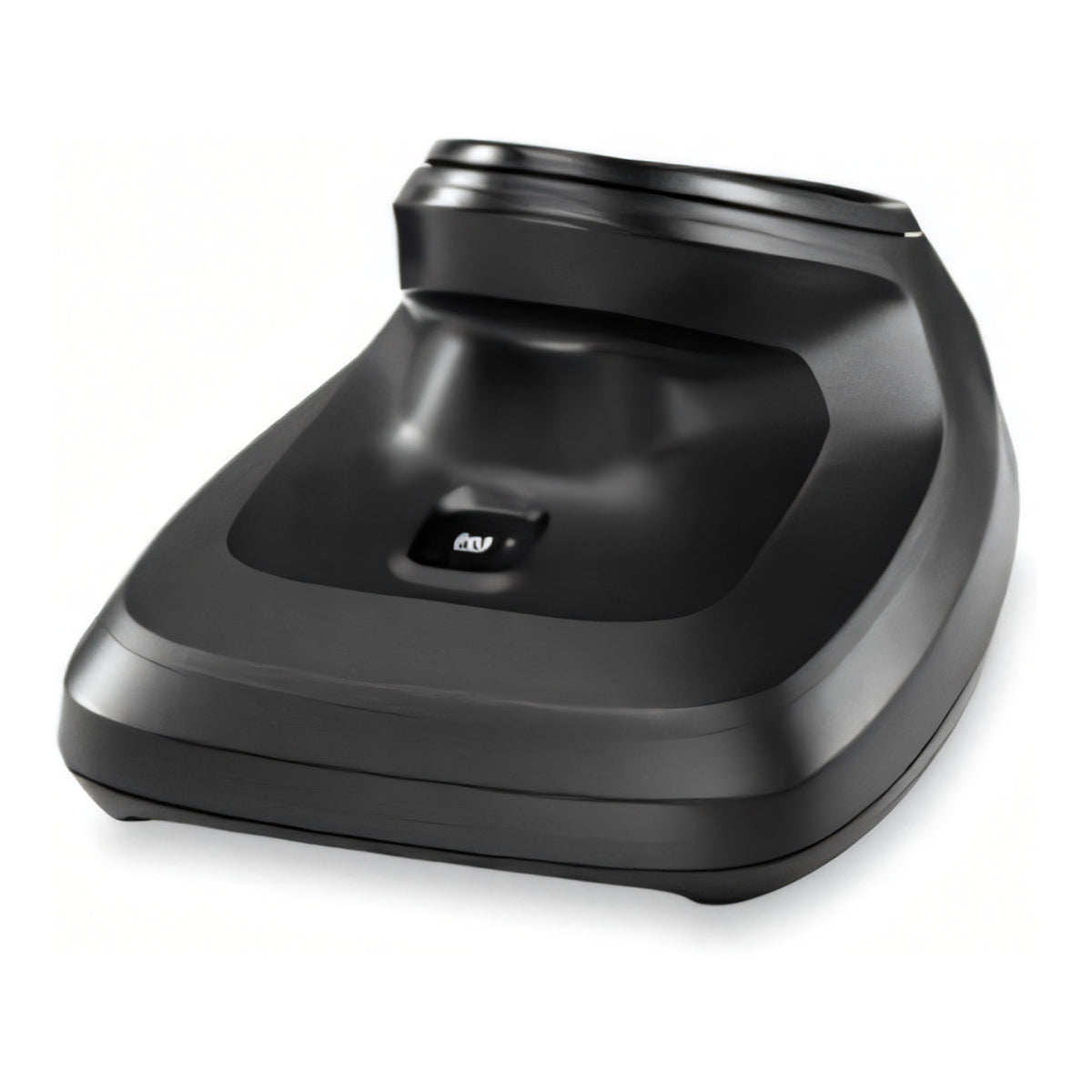

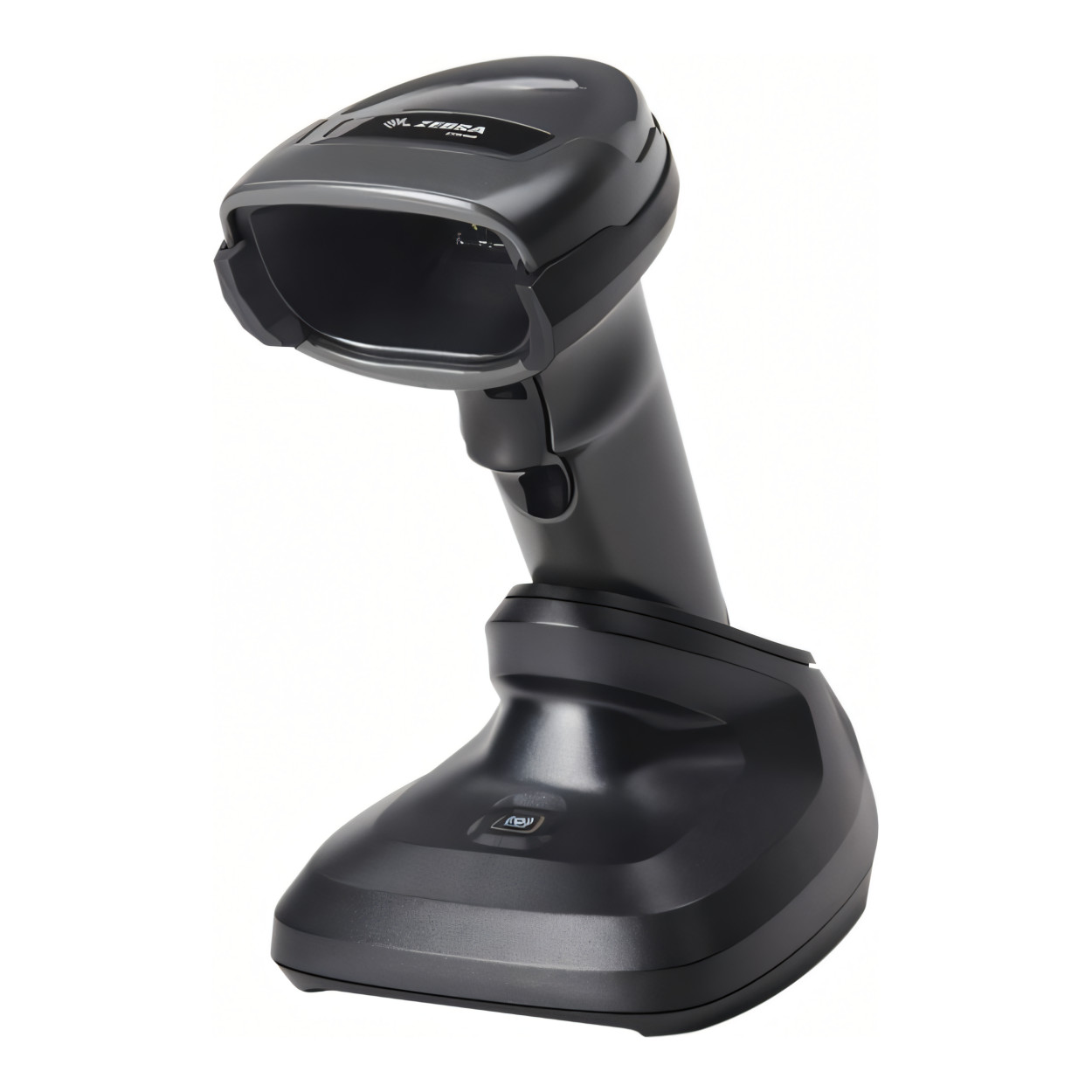

- Presentation Cradle included: The supplied CR8178 Presentation Cradle charges the scanner while providing a convenient hands-free presentation scanning position.
- Built for everyday use: IP52 sealing, multiple-drop resistance from 1.8 m and a 2,000-tumble specification help withstand demanding retail environments.
- Zebra DNA support: Compatible with Zebra tools including 123Scan, Scanner SDK and Scanner Management Service for configuration, application development and remote management.
Versatile Standard-Range Scanning
The DS4678-SR is designed to handle the diverse scanning requirements found across retail and commercial environments. It can capture standard 1D and 2D barcodes, mobile coupons displayed on smartphones, high-density codes and supported OCR data, allowing one scanner to support checkout, inventory, receiving and other workflows.
Cordless Bluetooth Operation
Bluetooth 5.2 with BLE gives operators the freedom to move away from the workstation when scanning bulky products or completing inventory tasks. The radio supports Bluetooth Class 1 operation at distances of up to 100 m and Class 2 operation at up to 10 m under supported conditions, with Serial Port and HID profiles available.
Full-Shift Battery Power
The integrated 2,500 mAh PowerPrecision Li-ion battery is designed to support more than 50,000 scans from a full charge, equivalent to more than 13 hours of continuous scanning under Zebra's specified test conditions. The supplied Presentation Cradle provides a convenient charging location between scanning tasks.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Zebra |
| Product Family | DS4600 Series |
| Model | DS4678-SR |
| Manufacturer Part Number | DS4678-SR7U2100PFW |
| Product Type | Cordless handheld barcode scanner kit |
| Scanner Configuration | Standard Range (SR) |
| Scan Technology | Array imager |
| Supported Scan Types | 1D, 2D and OCR |
| Image Sensor | 1280 × 800 pixels |
| Field of View | 31.6° horizontal × 22.6° vertical nominal |
| Aiming Pattern | Circular 617 nm amber LED |
| Illumination | 2 × 660 nm red LEDs |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew Tolerance | ±60° |
| Pitch Tolerance | ±60° |
| Roll Tolerance | 0° to 360° |
| Graphics Export Formats | Bitmap, JPEG, TIFF |
| 1D Symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 and additional supported formats |
| 2D Symbologies | PDF417, MicroPDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix and additional supported formats |
| OCR Support | OCR-A, OCR-B, MICR, US Currency |
| Minimum Element Resolution | Code 39: 3.0 mil; DataMatrix: 5.0 mil |
| Wireless Technology | Bluetooth 5.2 with BLE |
| Bluetooth Profiles | Serial Port Profile and HID |
| Bluetooth Class 1 Range | Up to 100 m (330 ft), subject to environment |
| Bluetooth Class 2 Range | Up to 10 m (33 ft), subject to environment |
| Battery Type | PowerPrecision Li-ion with asset reporting |
| Battery Capacity | 2,500 mAh |
| Scans per Full Charge | More than 50,000 at one scan per second |
| Continuous Scanning Runtime | More than 13 hours |
| Charge Time – External 12V | Approx. 2 hours 15 minutes |
| Charge Time – External 5V | Approx. 4 hours 30 minutes |
| Charge Time – BC1.2 USB | Approx. 3 hours |
| Charge Time – Standard USB | Approx. 7 hours 45 minutes |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485 |
| Keyboard Support | More than 90 international keyboards |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, rear-view LEDs and adjustable beeper |
| Ambient Light Immunity | 0 to 107,000 lux |
| Drop Resistance | Designed to withstand multiple 1.8 m drops to concrete |
| Tumble Resistance | 2,000 tumbles at 0.5 m |
| Ingress Protection | IP52 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Scanner Colour | Twilight Black |
| Scanner Dimensions (H × W × D) | 168 × 66 × 107 mm |
| Scanner Weight | 225 g |
| Presentation Cradle Dimensions (H × W × D) | 71 × 84 × 211 mm |
| Presentation Cradle Weight | 184.3 g |
| Scanner Software | Zebra DNA, 123Scan, Scanner SDK and Scanner Management Service |
| TAA Compliant | Yes |
| Scanner / Cradle Warranty | 3 years, subject to Zebra warranty terms |
What’s in the Box:
- 1 × Zebra DS4678-SR Scanner (DS4678-SR00007ZZWW)
- 1 × Zebra CR8178 Presentation Cradle (CR8178-PC100F4WW)
- 1 × Zebra Shielded USB Cable (CBA-U21-S07ZBR)
Equip your point-of-sale or inventory workflow with fast cordless 1D and 2D scanning, full-shift battery performance and an included Presentation Cradle, and add the Zebra DS4678-SR7U2100PFW kit to your cart today.
