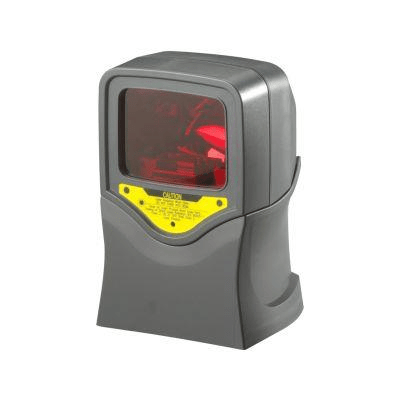

Zebex Z-6010USB Compact Laser Scanner

Zebex Z-6010USB Compact Laser Scanner

The Z-6010 is a compact hands-free omnidirectional laser scanner, and becomes a single-line laser scanner by pressing down a button.
It is designed to suit both requirements for omnidirectional and single-line scanning. With the reserved mounting holes at the back of the scanner body, the Z-6010 transforms to a scanning module to allow integration into your desirable hardware application. It also has an optional cradle with two joints which creates a three-dimensional adjustment capability by turning so that you can enjoy the benefit of a real best fit.• Support both omnidirectional and single-line scanning

Features:

• Aggressive scanning performance

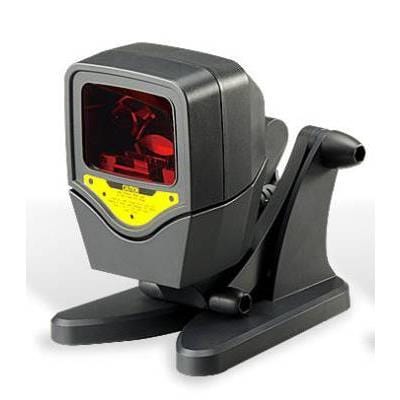

• Optional 3D turning cradle
• Proprietary Z-SCAN+ technology
• Flexible communications

Specifications:

• Light Source: 650 nm visible laser diodes
• Depth of Field: 5 mil: 40 – 90 mm, 7.5 mil: 0 – 150 mm, 10 mil: 0 – 180 mm, 13 mil: 0 – 200 mm, 20 mil: 0 – 280 mm
• Note: DOF may vary depending on environment condition and barcode quality.
• Scan Lines: 20
• Scan Pattern: 5 directions of scan field
• Scan Rate: 1400 scans per second/74 scans per second(single-line)
• Print Contrast: 30% @ UPC/EAN 100%
• Indicator: Two-color LED (blue & red)
• Programmable Operation: Beeper tone & volume
• System Interface: Keyboard, RS-232, HID USB, wand
