Zebex Z-3502U 2D Handheld Wired Barcode Scanner Black

Zebex Z-3502U 2D Handheld Wired Barcode Scanner Black

The Zebex Z-3502U is a rugged wired 2D handheld barcode scanner designed for demanding industrial, logistics, manufacturing and healthcare environments. Equipped with an advanced CMOS imaging system and specialised support for Direct Part Marking (DPM) codes, it can reliably decode both standard printed barcodes and difficult low-contrast codes marked directly onto components and surfaces.

Key Features:

• Industrial 2D handheld barcode scanner
• USB wired connectivity
• Advanced CMOS imaging technology
• 1280 x 1080 image sensor
• Supports 1D and 2D barcode scanning
• Optimised for Direct Part Marking (DPM) codes
• Reads difficult low-contrast and etched barcodes
• White, red and blue illumination
• Beeper, LED and vibration scan feedback
• Minimum 1D bar width of 3 mil
• Minimum 2D bar width of 5 mil
• IP54-rated housing
• Designed to withstand drops of up to 2.0m
• Operates in lighting conditions up to 100,000 lux
• Ideal for manufacturing, warehousing and logistics

Features

Advanced DPM Barcode Reading

The Z-3502 is specifically engineered to decode Direct Part Marking barcodes, including codes that are laser etched, printed, chemically marked or otherwise applied directly to components. This makes it suitable for automotive, manufacturing, healthcare and asset-tracking applications.

High-Resolution CMOS Imaging

A 1280 x 1080 CMOS image sensor provides accurate image capture for both traditional 1D barcodes and modern 2D codes, helping maintain reliable scanning performance across different barcode sizes and surface conditions.

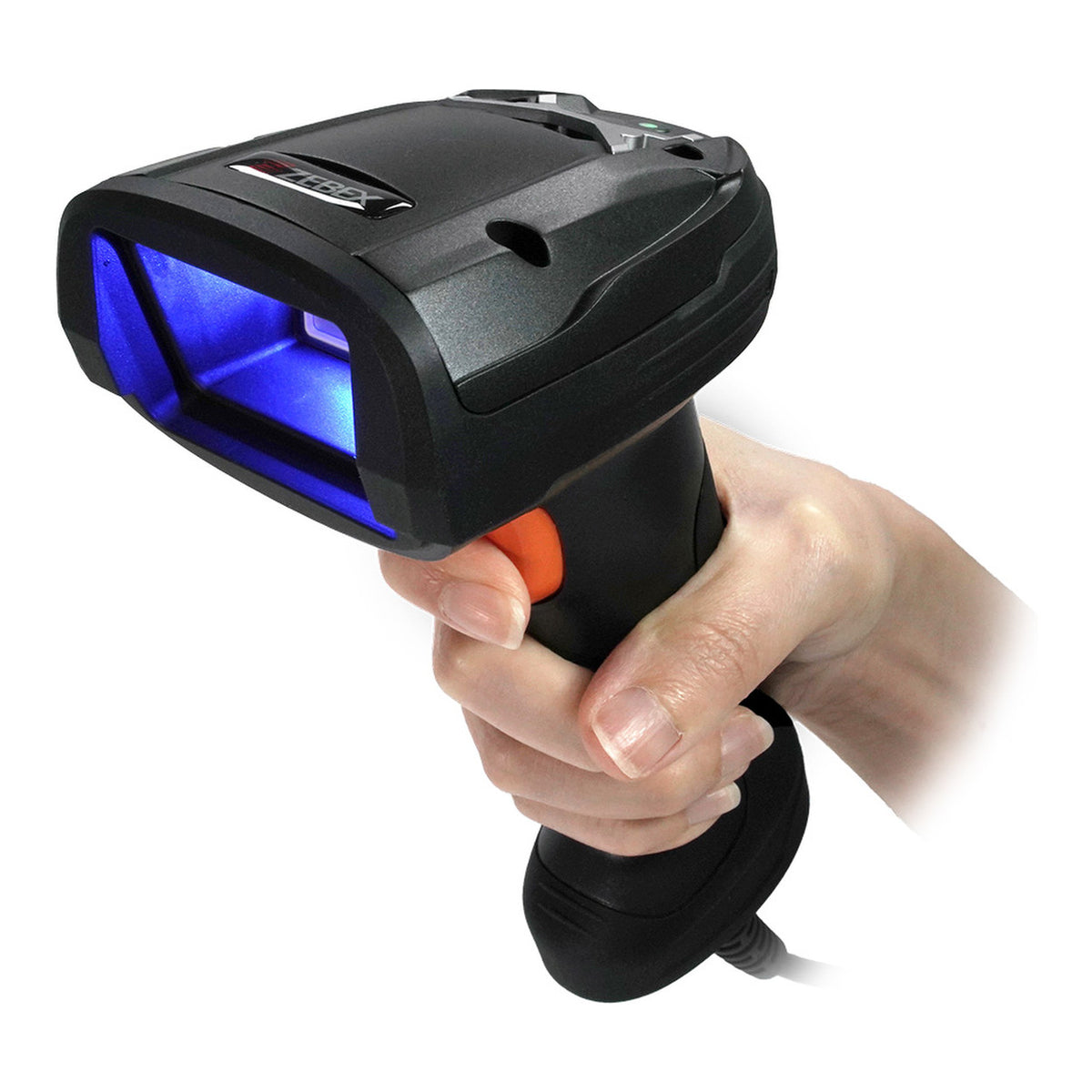

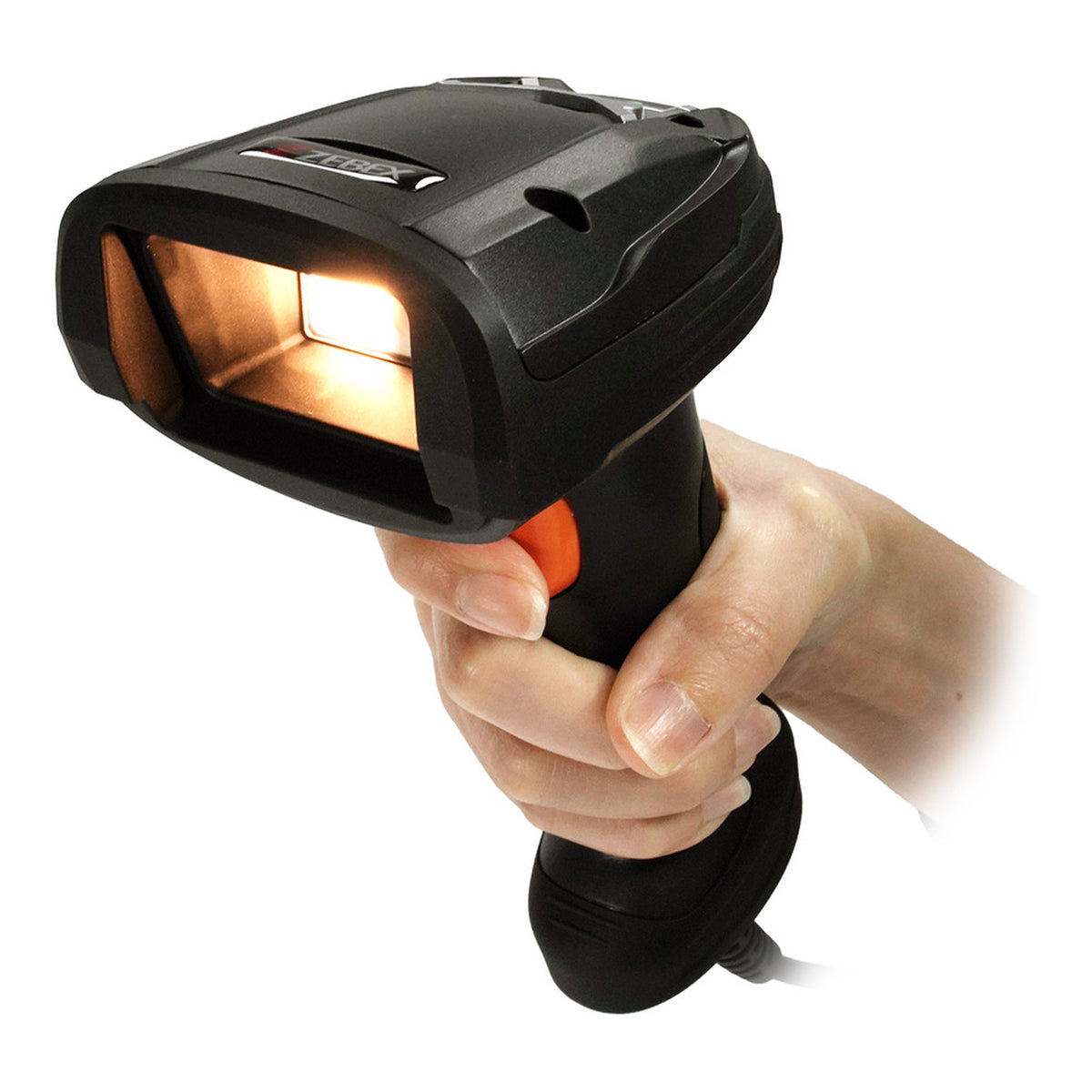

Flexible Multi-Colour Illumination

White, red and blue illumination helps improve barcode contrast across different materials and finishes, increasing decode accuracy when scanning challenging or reflective surfaces.

Rugged Industrial Construction

The scanner features an IP54-rated enclosure and is designed to withstand drops from up to 2.0 metres, helping provide dependable performance in demanding factory, warehouse and logistics environments.

Clear Scan Feedback

Beeper, LED and vibration indicators provide immediate confirmation of successful scans, which is useful in loud workplaces or environments where audible feedback may not always be practical.

USB Connectivity

The Z-3502U connects to compatible systems through USB and supports HID and CDC operating modes, making integration into existing POS, warehouse, manufacturing and inventory systems straightforward.

• The Z-3502U is the USB-interface version of the Z-3502 scanner.
• Actual scanning distance depends on barcode type, size, print quality and environmental conditions.
• DPM performance can vary according to the marking method and surface material.
• Designed for wired operation and does not include wireless connectivity.

Technical Specifications:

The Zebex Z-3502U delivers rugged wired barcode scanning with advanced DPM decoding, high-resolution 2D imaging, IP54 protection and multi-mode scan feedback, making it well suited to industrial, manufacturing, logistics and asset-tracking applications.
