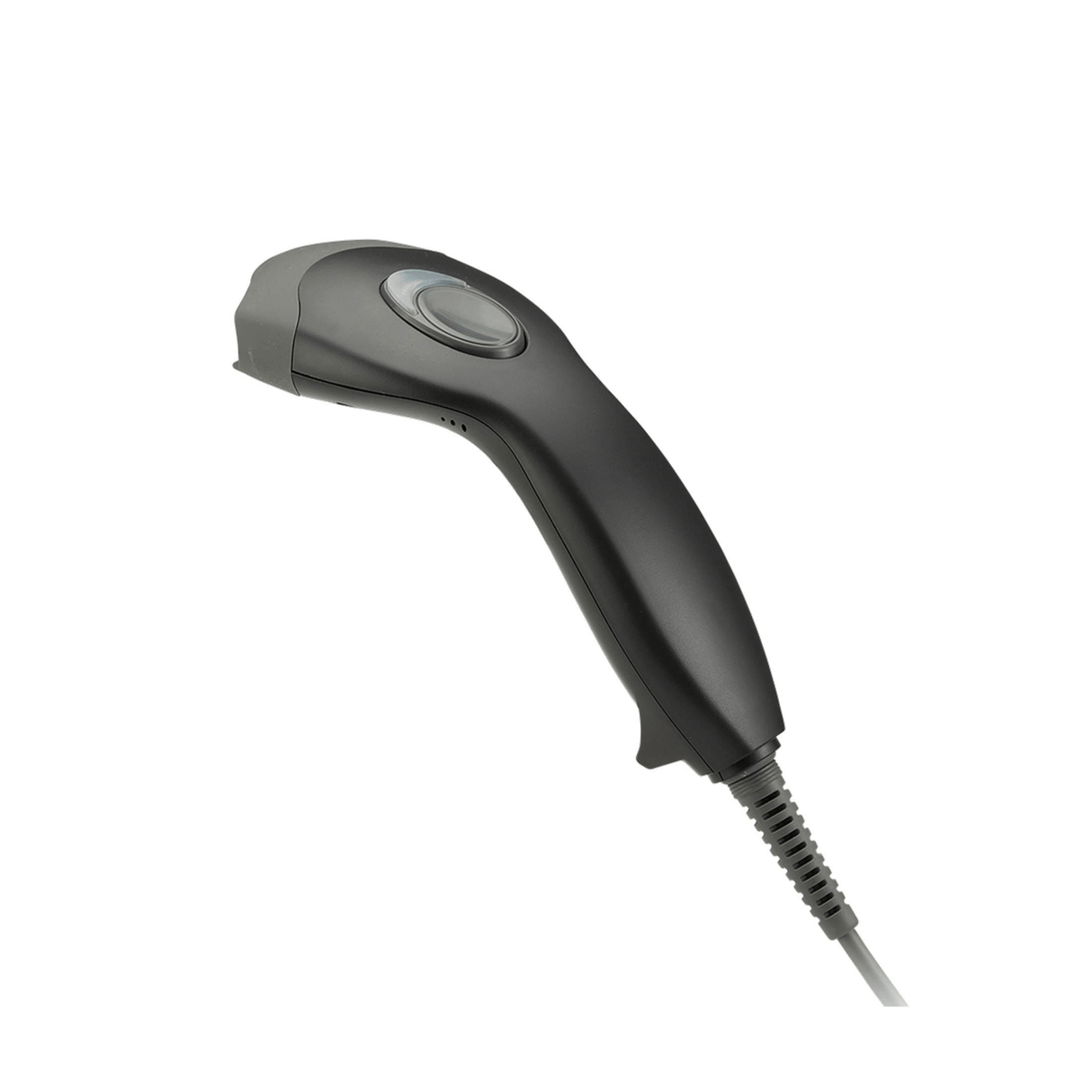

Zebex RS232 Handheld CCD Scanner Interface Z-3100/RS232

Zebex RS232 Handheld CCD Scanner Interface Z-3100/RS232

Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability.
At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.
It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.

Features:

• Proprietary Ultrascan decoding technology
• Streamline design and Large trigger for effortless operation
• 32-bit micro processor unit
• Analog image capture technology
• Support presentation scan mode
• 0 – 100,000 Lux light immunity
• Captures barcodes on mobile phone, tablet, or computer screens

Specifications:

• Light Source: 617 nm visible LED
• Optical System: Linear CCD array
• Microprocessor: 32-bit
• Depth of Field: 4 mil: 0 – 60 mm, 5 mil: 0 – 100 mm, 7.5 mil: 0 – 180 mm, 10 mil: 0 – 220 mm, 13 mil: 0 – 285 mm, 20 mil: 0 – 350 mm
• Note: DOF may vary depending on environment condition and barcode quality.
• Scan Angle: 42°
• Scan Rate: 330 scans per second
• Print Contrast: 30% @ UPC/EAN 100%
• Indicator: Blue LED
• Programmable Operation: Programmable tone & beep time
• System Interface: Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
