Yealink MCore-OPS-G2 Gen 2 PC Module for MeetingBoard Series 1303292

Yealink MCore-OPS-G2 Gen 2 PC Module for MeetingBoard Series – 1303292

The Yealink MCore-OPS-G2 is a compact Windows computing module designed for compatible Yealink MeetingBoard and MeetingBoard Pro collaboration displays. Powered by an Intel Core Ultra 5 processor with 16 GB of DDR5 memory and a 256 GB SSD, it adds an integrated Windows 11 computing environment for running compatible conferencing and workplace applications directly from the MeetingBoard.

Integrated Computing for MeetingBoard

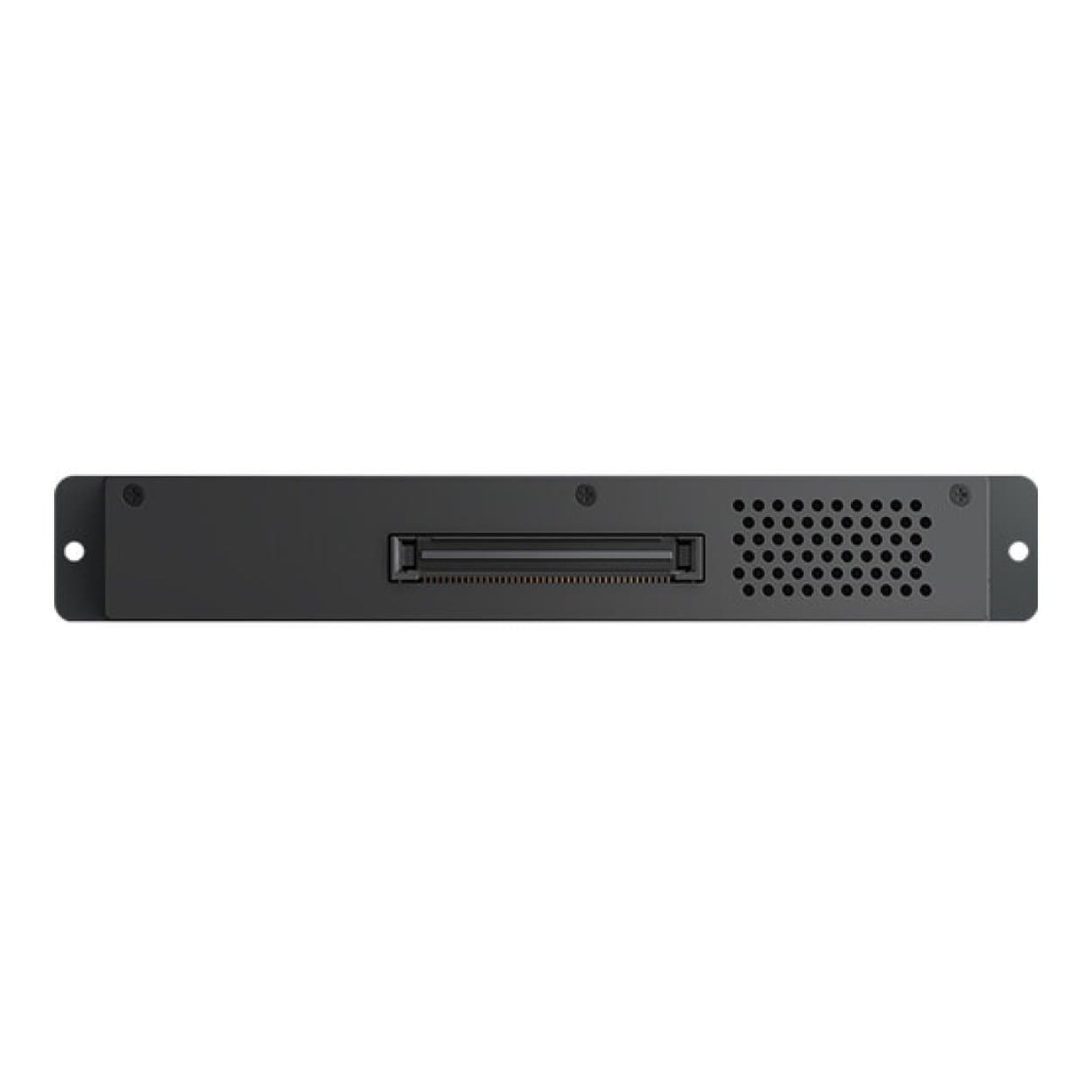

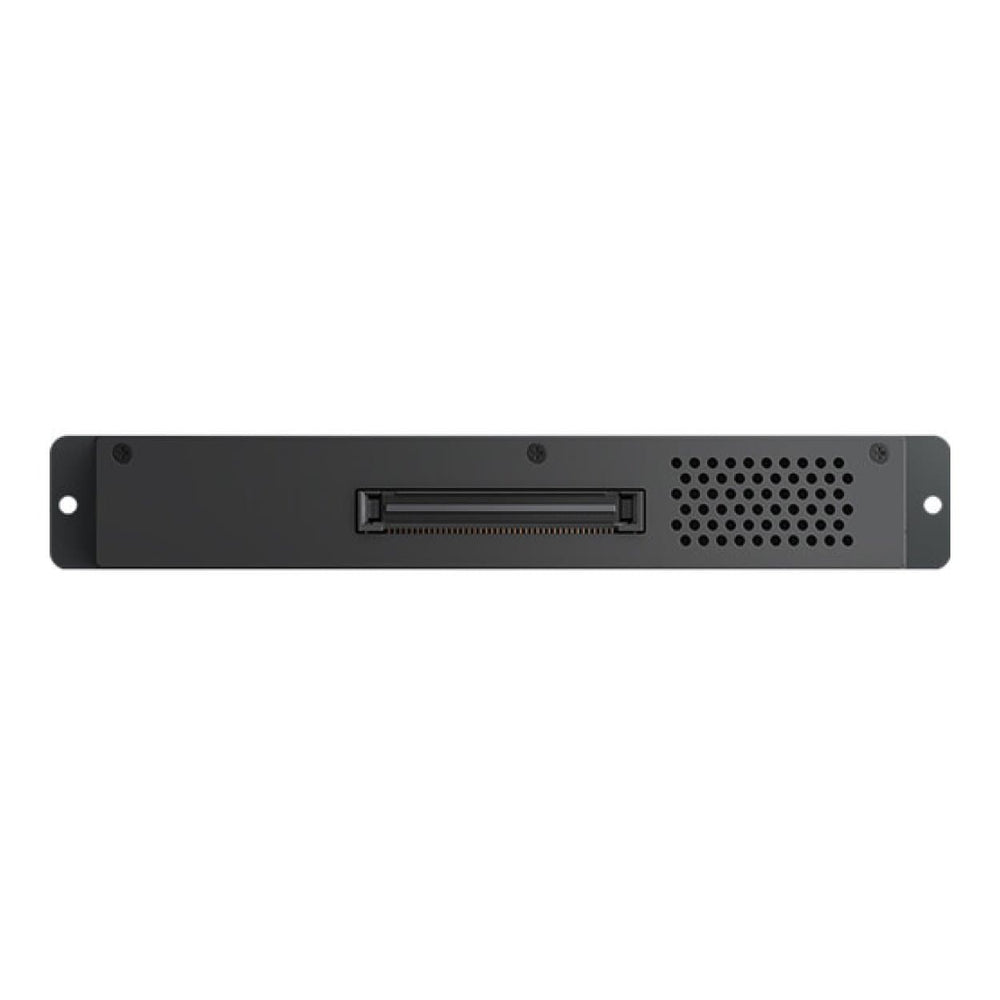

The MCore-OPS-G2 installs into the compatible OPS slot of a Yealink MeetingBoard, avoiding the need for a separate external meeting-room computer and associated mounting hardware. This embedded design helps simplify deployment while keeping the meeting-room installation neat and self-contained.

Intel Core Ultra Performance

An Intel Core Ultra 5 125H processor combines general computing, graphics and AI-processing capabilities for conferencing, content handling and compatible workplace applications. Yealink specifies up to 34 TOPS of AI processing performance, supported by 16 GB of dual-module DDR5 memory for multitasking.

Windows 11 IoT Enterprise

The standard MCore-OPS-G2 includes Windows 11 IoT Enterprise x64 and its associated licence, providing a managed Windows platform for compatible collaboration applications. This 1303292 model is the standard version and should not be confused with the separately available MCore-OPS-G2T, which is the Microsoft Teams Rooms-certified variant.

4K HDMI Content Input

An HDMI input supports 4K content sharing from a connected source. Built-in EDID helps manage display information between connected devices, while CEC support allows compatible displays to wake automatically without requiring separate manual operation.

Flexible Room Connectivity

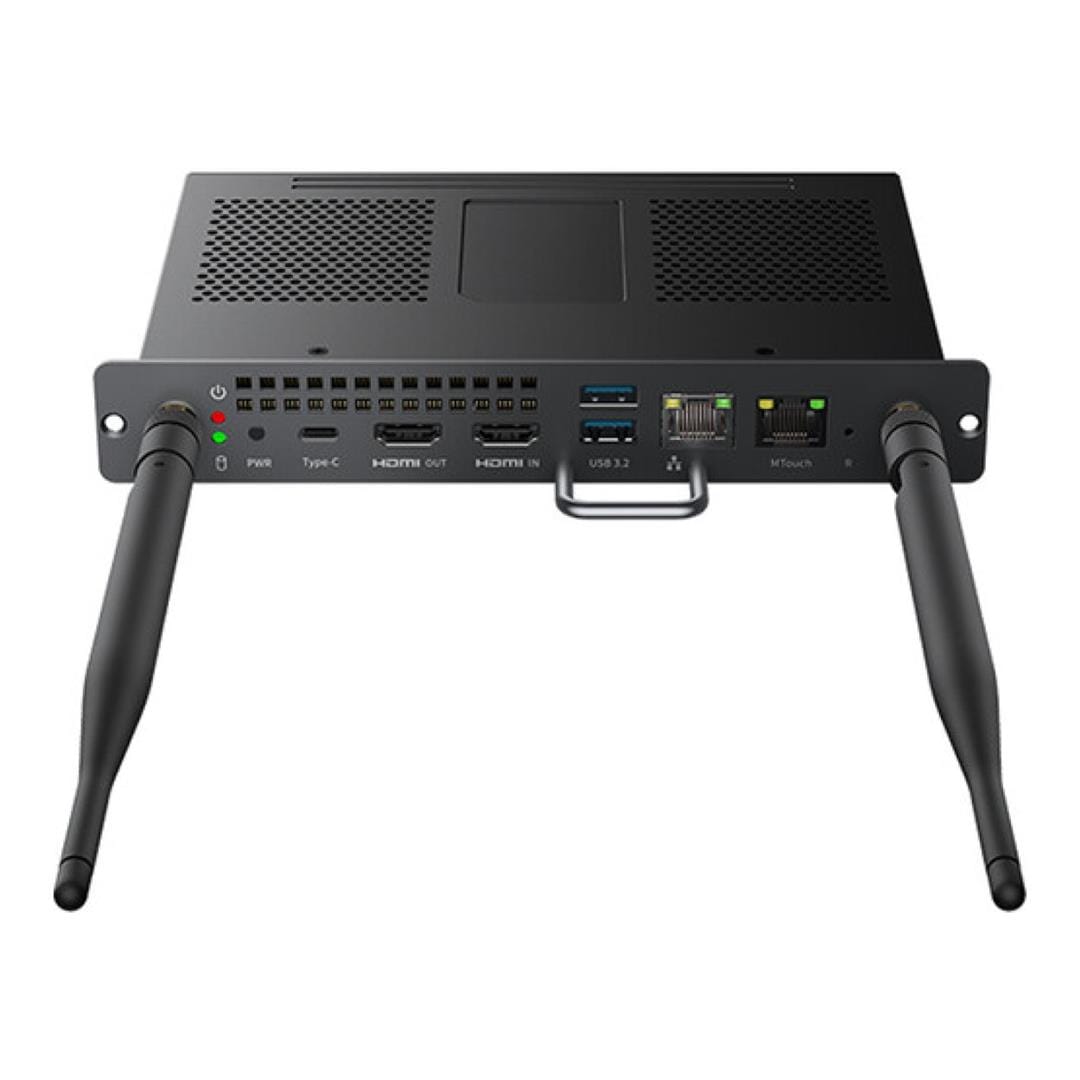

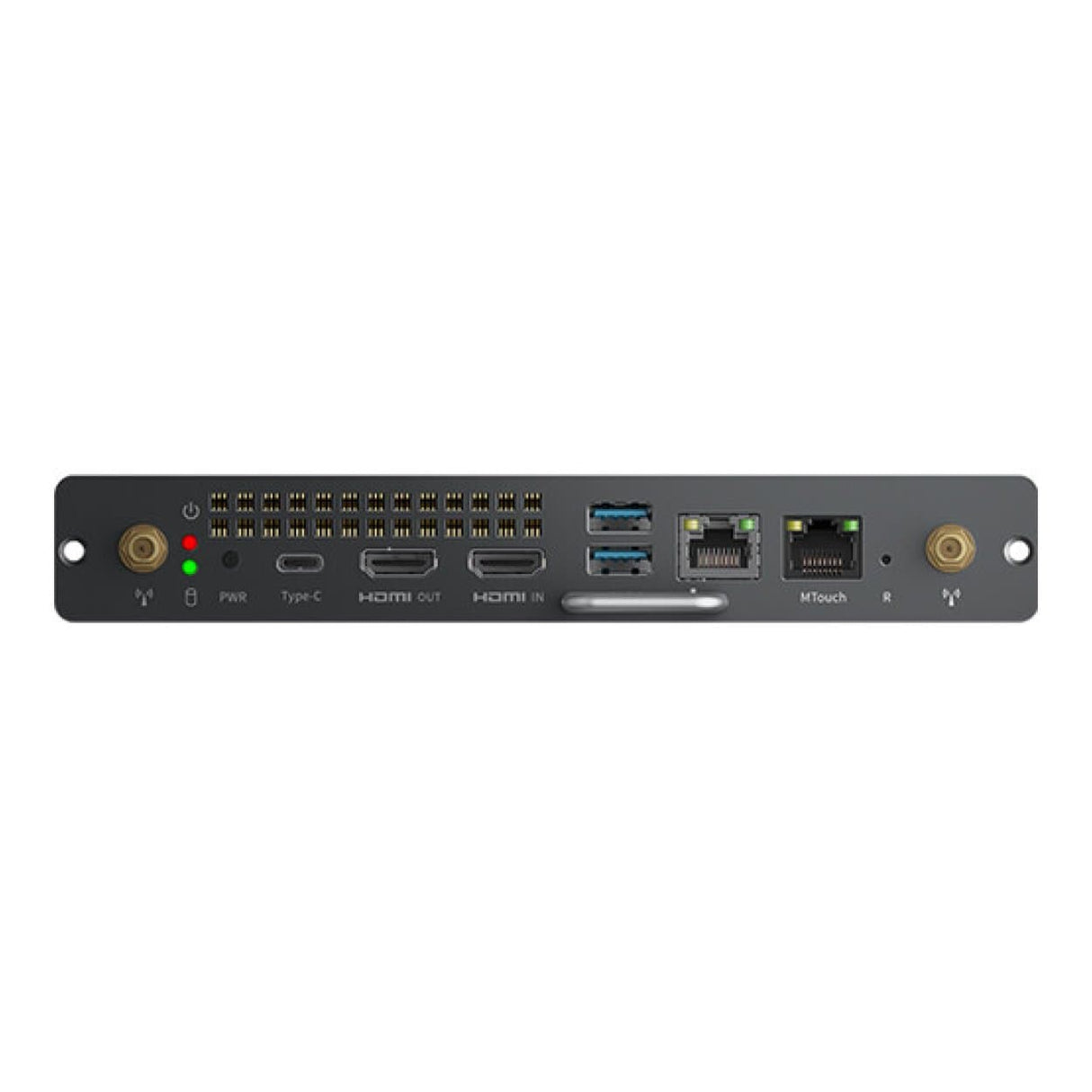

The module includes dedicated MTouch and LAN connections, HDMI input and output, two USB 3.0 Type-A ports and one USB 3.0 Type-C port. Wi-Fi 6 and Bluetooth 5.2 provide additional wireless connectivity for compatible networks and peripherals.

Enterprise Security Features

TPM 2.0, UEFI Secure Boot and Kernel DMA protection help support a more secure enterprise deployment. These hardware and firmware features can assist IT teams with protecting system integrity and managing compatible Windows security policies.

Key Features:

• Purpose-built modular Windows computer for compatible Yealink MeetingBoard and MeetingBoard Pro systems.
• Intel Core Ultra 5 125H processor for conferencing, multitasking and workplace applications.
• 16 GB DDR5 memory configured as two 8 GB modules.
• 256 GB solid-state drive provides fast local system storage.
• Preloaded with Windows 11 IoT Enterprise x64 and the associated operating-system licence.
• 4K HDMI input supports high-resolution content sharing from a connected device.
• Built-in EDID and CEC support help simplify display integration and automatic wake-up.
• Wi-Fi 6, Bluetooth 5.2 and wired LAN connectivity.
• TPM 2.0, UEFI Secure Boot and Kernel DMA protection.
• Embedded OPS form factor reduces the need for an externally mounted meeting-room computer.

Technical Specifications:

Compatibility Note

Confirm that the intended Yealink MeetingBoard model, firmware and meeting platform support the MCore-OPS-G2 before purchasing. Organisations requiring a Microsoft Teams Rooms-certified module should select the MCore-OPS-G2T rather than this standard MCore-OPS-G2 model.

Add integrated Windows computing to a compatible Yealink MeetingBoard and simplify your meeting-room deployment with the MCore-OPS-G2.
