Xiaomi BE19000 Pro Wi-Fi 7 Tri-band Router DVB4550GL

Xiaomi BE19000 Pro Wi-Fi 7 Tri-band Router DVB4550GL

The Xiaomi BE19000 Pro is a tri-band Wi-Fi 7 router designed for demanding connected homes, gaming environments and small studios that need high-speed wireless and wired networking. It combines a theoretical wireless capacity of up to 18,656Mbps with dual 10 Gigabit Ethernet ports, four 2.5 Gigabit Ethernet ports and flexible storage expansion. Xiaomi Mesh support, smart-home integration and practical network management features help it support a wide range of connected devices and high-bandwidth activities.

Tri-band Wi-Fi 7 Performance

Three wireless bands help distribute devices and workloads across the network. The 2.4GHz band provides stable connectivity for smart-home equipment and everyday devices, while the 5GHz and 6GHz bands support bandwidth-intensive activities such as gaming, high-resolution streaming, video conferencing and large file transfers.

All three bands use a 4 × 4 configuration with four spatial streams. Their combined theoretical wireless capacity reaches up to 18,656Mbps, comprising up to 1,376Mbps on 2.4GHz, 5,760Mbps on 5GHz and 11,520Mbps on 6GHz.

Wi-Fi 7 Technologies

Wi-Fi 7 introduces technologies designed to improve throughput, responsiveness and network efficiency when used with compatible devices. Multi-Link Operation allows supported devices to use more than one wireless band, while 4K QAM increases data transmission density. Enhanced OFDMA helps the router manage multiple connected devices more efficiently.

• Multi-Link Operation can combine compatible wireless links for improved throughput and lower latency.
• 4K QAM supports higher data density when used with compatible client devices.
• Enhanced OFDMA helps distribute network resources between multiple devices.
• Multi-band steering can automatically direct compatible devices to a suitable frequency band.
• Beamforming directs wireless signals towards connected devices to support more reliable coverage.

Multi-gigabit Wired Networking

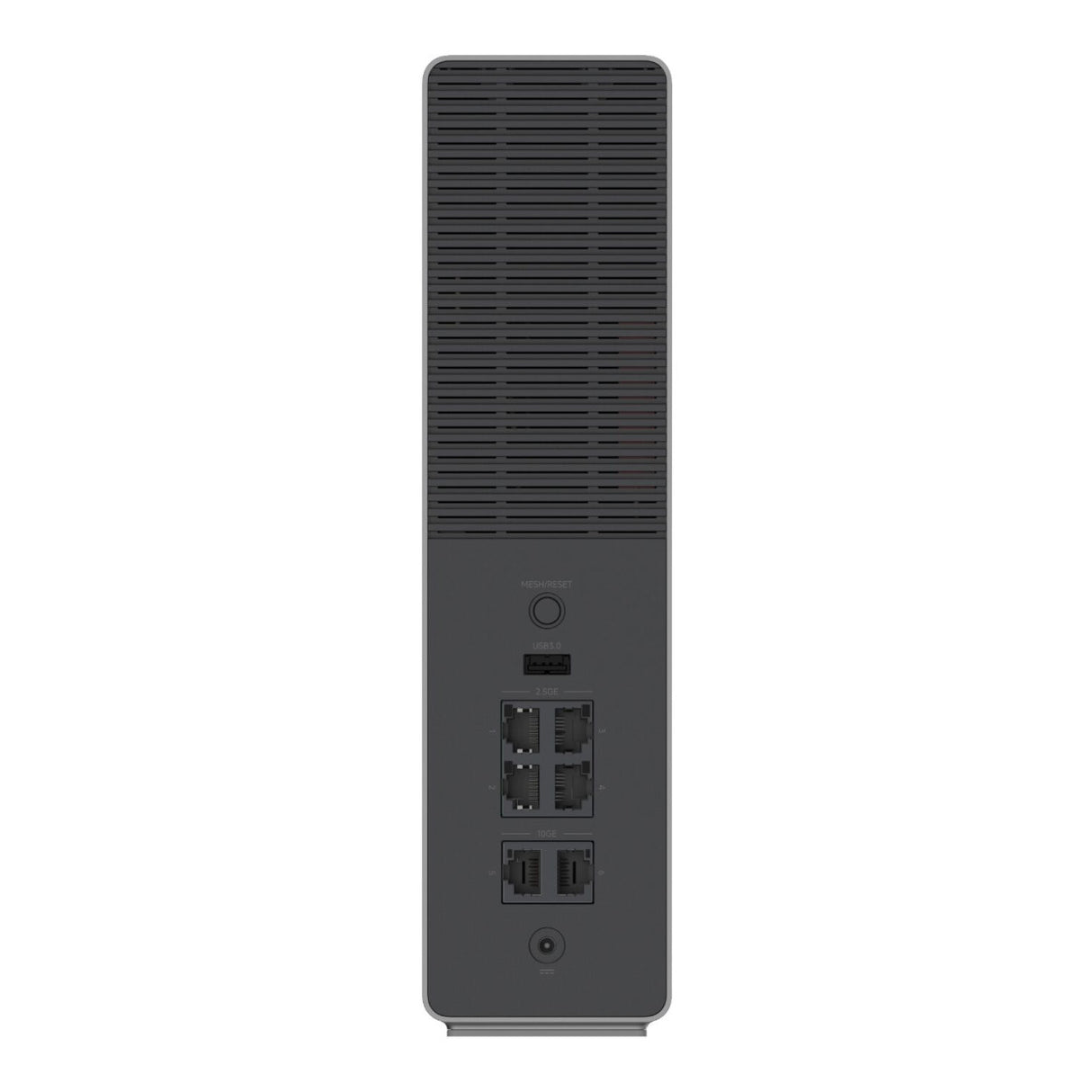

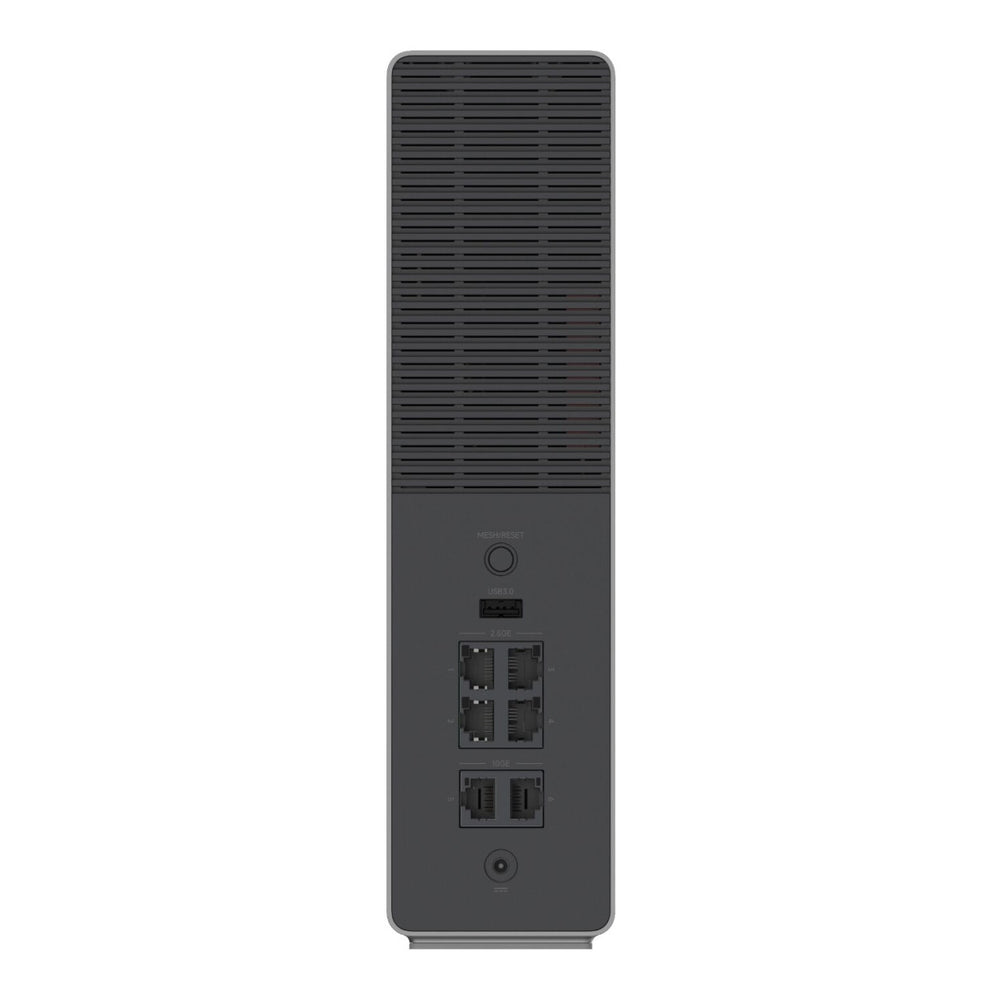

Six adaptive WAN/LAN Ethernet ports provide flexible connections for broadband equipment, workstations, network storage and other wired devices. Two ports support speeds of up to 10Gbps, while four additional ports support speeds of up to 2.5Gbps. WAN/LAN auto-sensing simplifies configuration, and dual LAN port aggregation is available for compatible network equipment.

• Two adaptive Ethernet ports supporting speeds up to 10Gbps.
• Four adaptive Ethernet ports supporting speeds up to 2.5Gbps.
• Up to 30Gbps total aggregated wired bandwidth across all six ports.
• WAN/LAN auto-sensing provides flexible port assignment.
• Dual LAN port aggregation supports compatible high-bandwidth devices.
• Customisable IPTV configuration is supported.

Powerful Networking Platform

The Qualcomm Networking Pro A7 quad-core platform operates at 1.8GHz and is paired with 2GB of memory. Xiaomi’s AI network engine supports intelligent interference management, AI Mesh roaming and power management to help maintain stable performance as network conditions change.

Twelve internal high-gain Wi-Fi antennas are paired with twelve independent signal amplifiers to support wide, multi-directional wireless coverage. Active cooling, multiple heat sinks and an integrated fan help manage heat during sustained network activity.

Flexible Storage Expansion

An integrated M.2 slot and USB 3.0 port allow compatible storage to be added for local network file sharing. The M.2 slot supports separately purchased 2230, 2242, 2260 and 2280-size NVMe SSDs, while Samba sharing makes stored files accessible to compatible devices on the local network.

Storage devices are not included. Using USB or M.2 storage may affect the 2.4GHz wireless signal under some operating conditions.

Mesh and Smart-home Connectivity

Xiaomi Mesh technology allows compatible Xiaomi and REDMI routers to work together as a unified network. AI Mesh roaming can help compatible devices move between BE19000 Pro nodes with less interruption as users travel through the home. A single Mesh network can support up to ten compatible routers, with additional routers sold separately.

The integrated Xiaomi Bluetooth Mesh 2.0 gateway provides a central connection point for compatible Xiaomi smart-home products. It supports up to 200 Bluetooth Mesh devices and 100 Bluetooth devices within the same Bluetooth network coverage area.

Convenient Connection and Management

• NFC tap-to-connect enables password-free Wi-Fi access from a compatible, unlocked Android phone with NFC enabled.
• Web-based management and the Xiaomi Home app provide access to router settings and network controls.
• Parental controls can help manage internet access and online time for family members.
• A guest network provides separate wireless access for visitors.
• IPv6 support provides compatibility with modern network services.
• A dedicated Mesh/reset button simplifies Mesh pairing and factory resets.

Network Security

The router supports WPA-PSK, WPA2-PSK and WPA3-SAE encryption, together with wireless access controls, SSID hiding and protection against unauthorised access. Additional management features include security scanning, a gateway firewall and controls for blocking unwanted devices.

Key Features:

• Tri-band Wi-Fi 7 across the 2.4GHz, 5GHz and 6GHz bands.
• Combined theoretical wireless capacity of up to 18,656Mbps.
• Two 10 Gigabit and four 2.5 Gigabit adaptive WAN/LAN Ethernet ports.
• Qualcomm A7 quad-core 1.8GHz processor with 2GB of memory.
• Twelve internal high-gain antennas with twelve independent signal amplifiers.
• M.2 NVMe SSD slot and USB 3.0 port for compatible storage expansion.
• Xiaomi Mesh, Bluetooth Mesh gateway, NFC connection and WPA3 security support.

Technical Specifications:

Wireless and wired speed figures are theoretical maximums. Actual performance depends on the broadband service, connected devices, compatible network cables, network traffic, local regulations and operating environment. Wi-Fi 7 features require compatible client devices.

Build a faster and more flexible home or studio network with the Xiaomi BE19000 Pro, and add it to your cart today.
