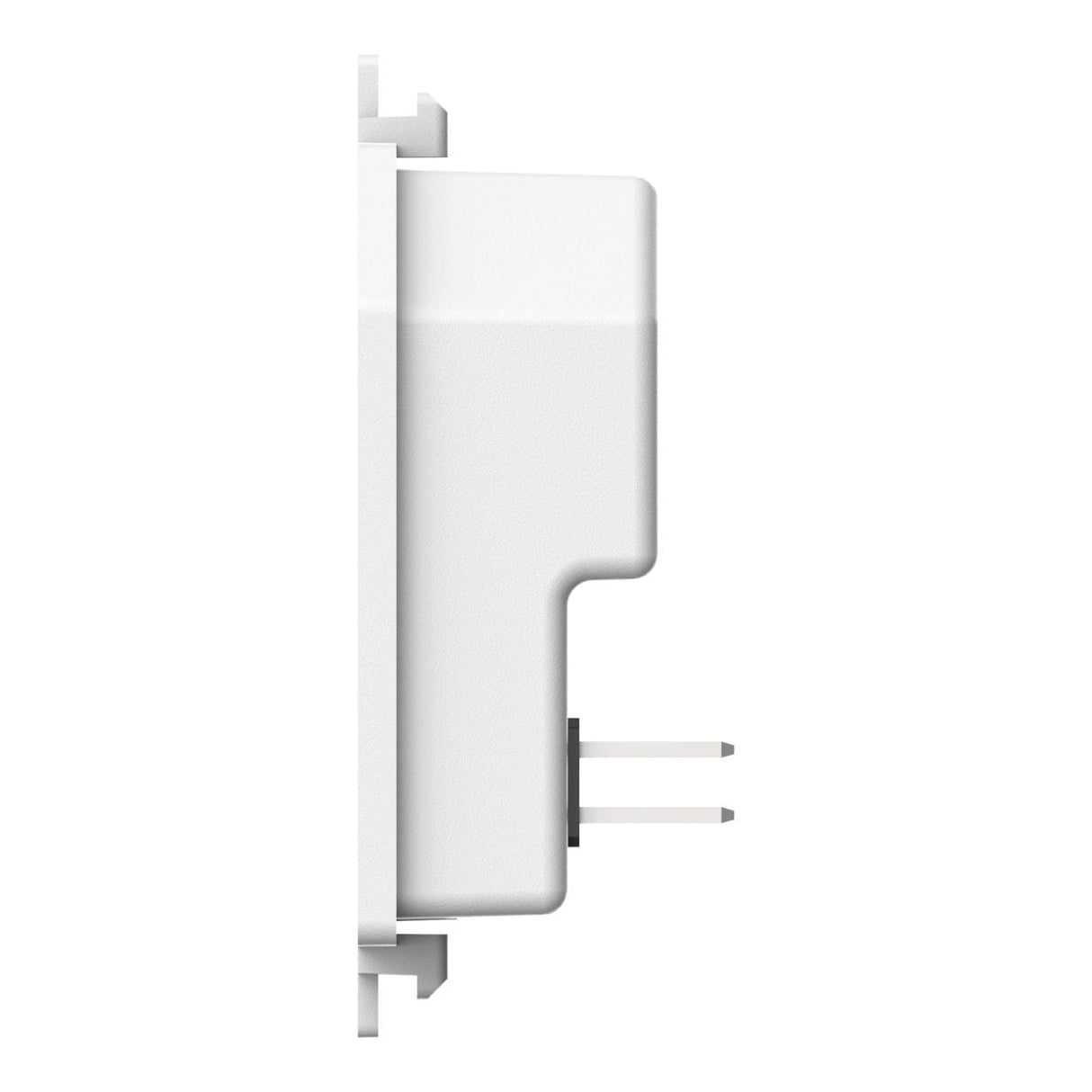

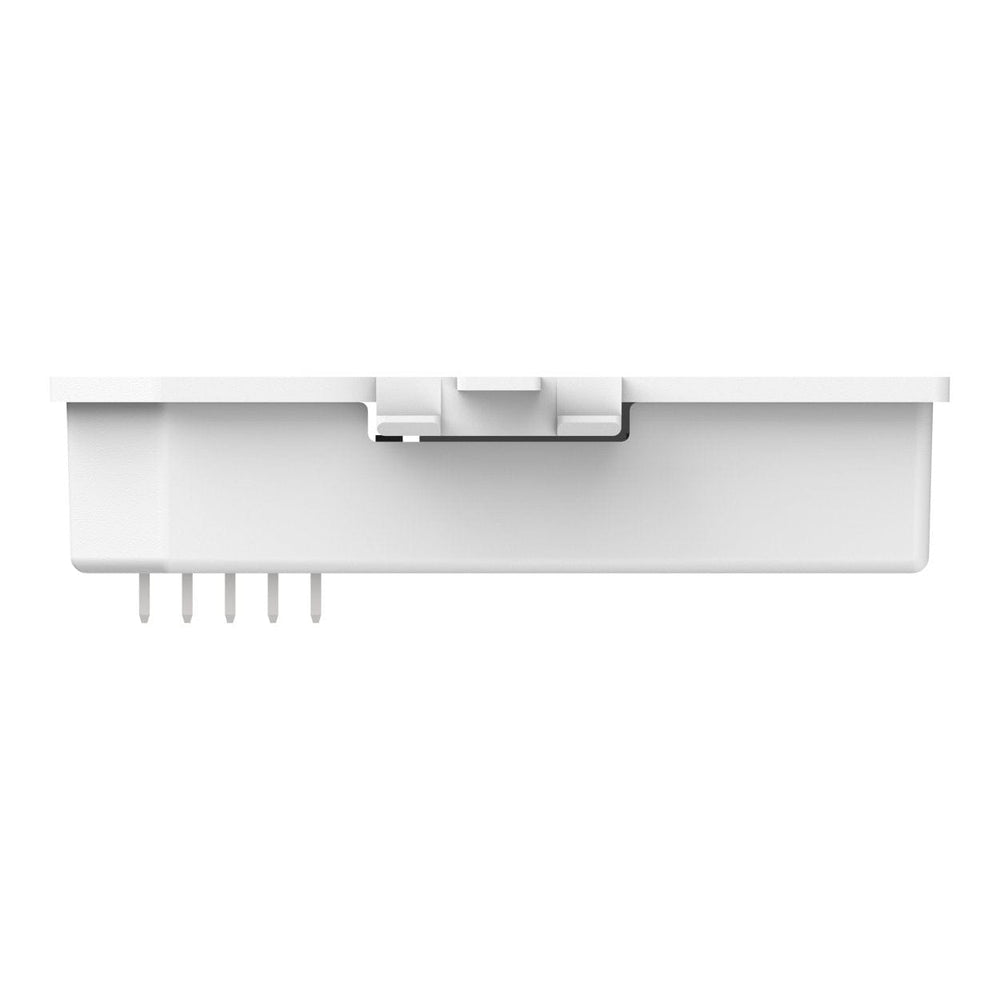

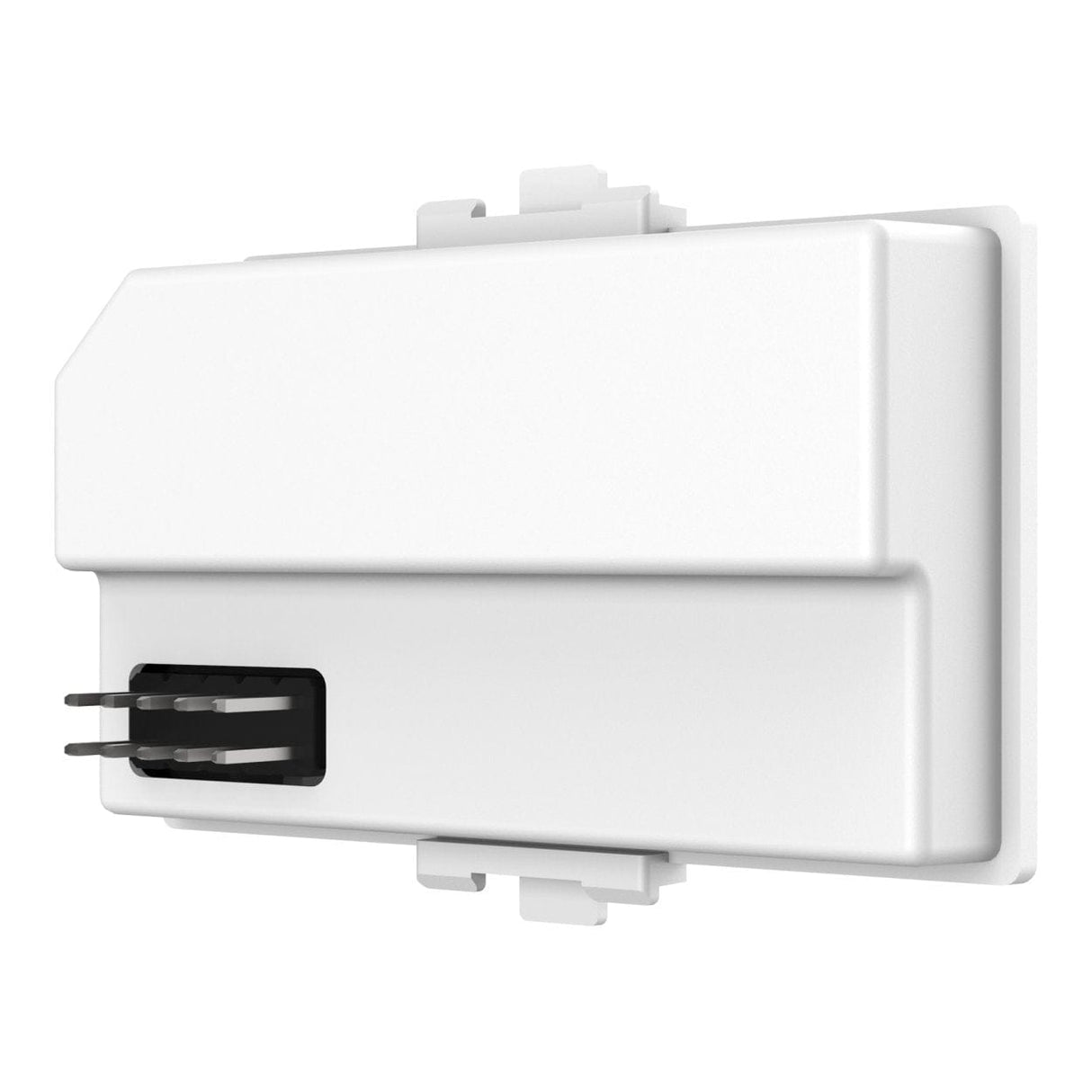

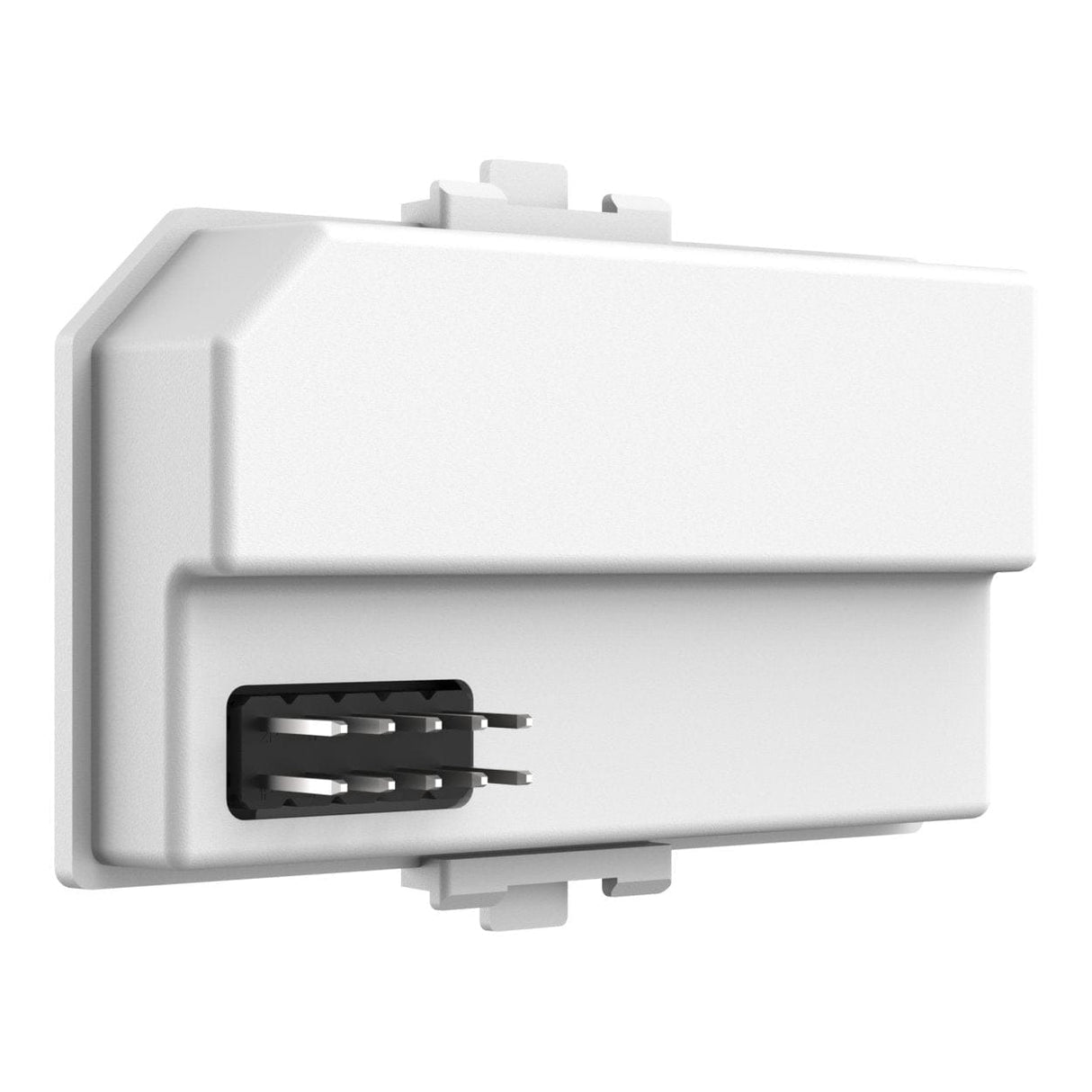

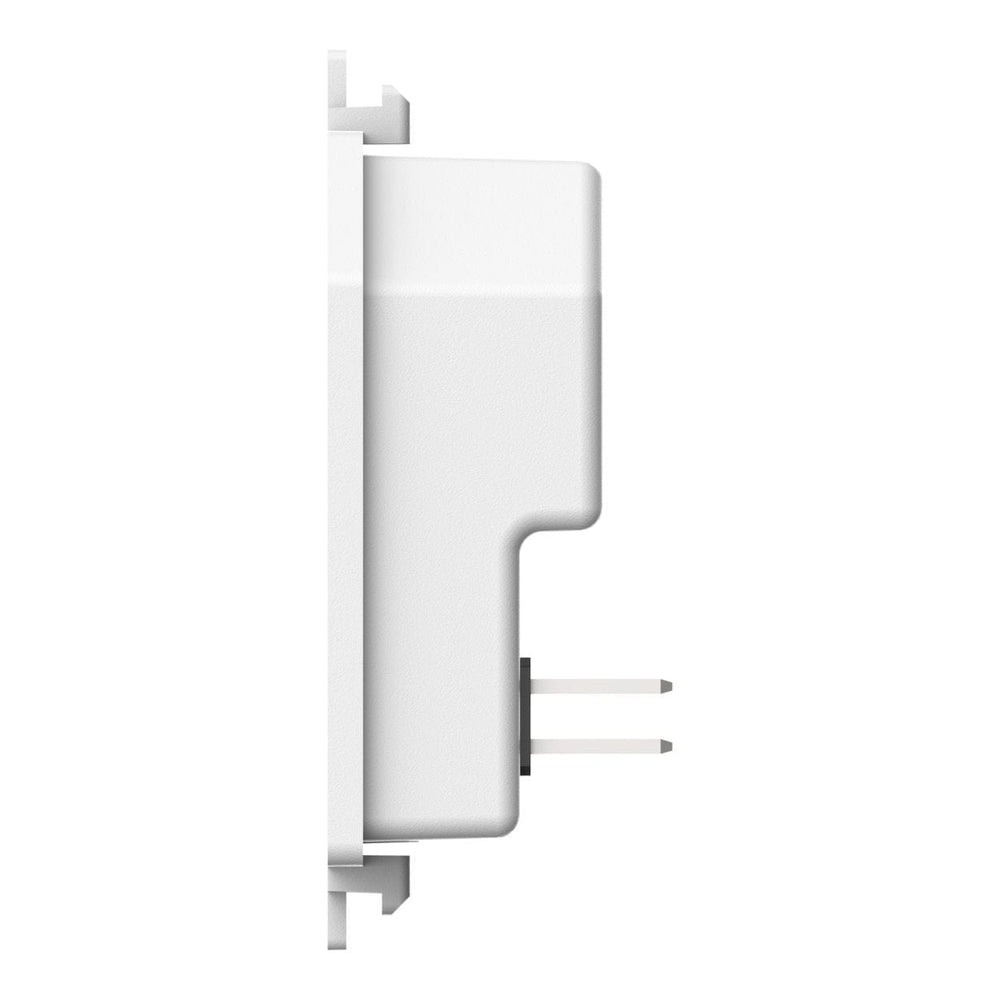

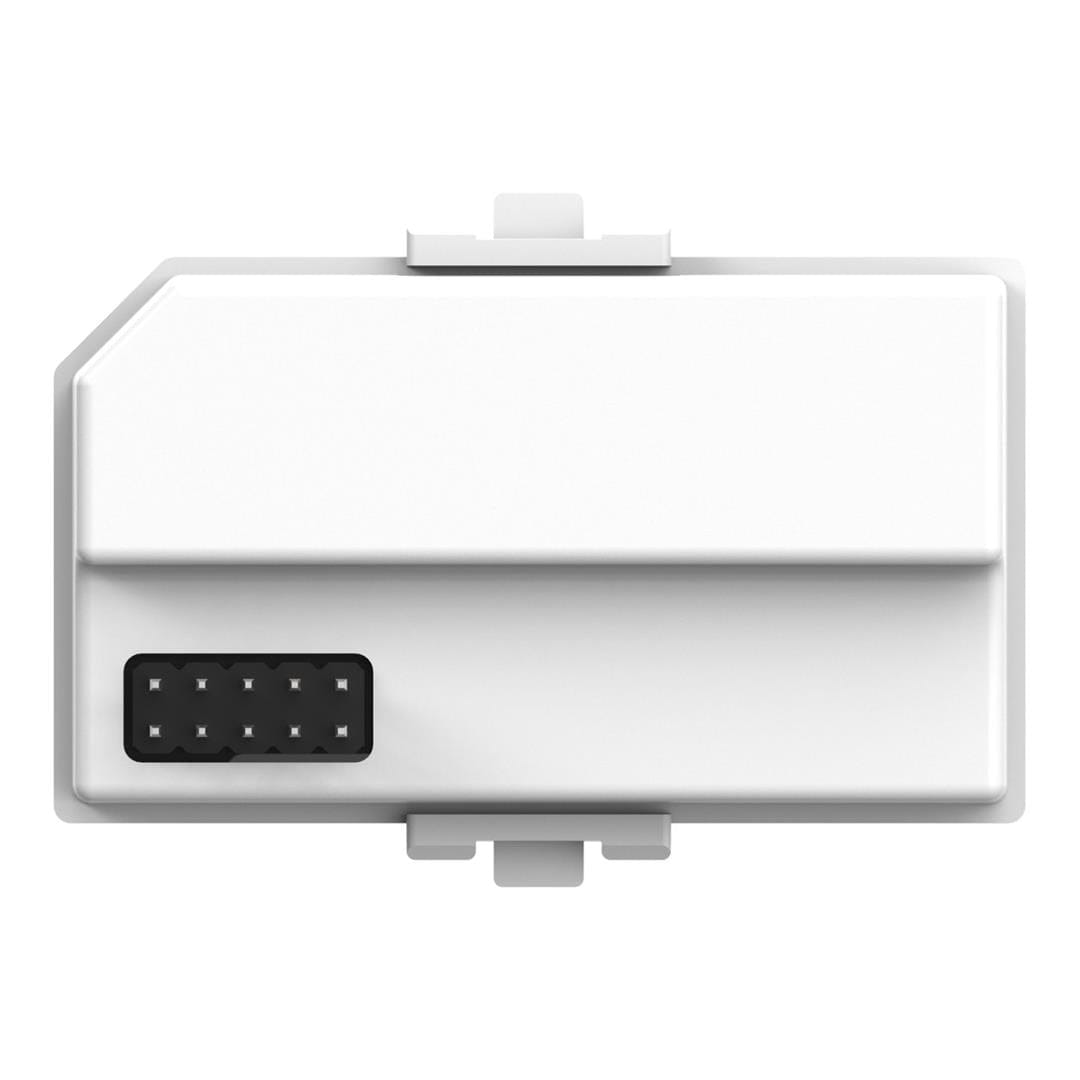

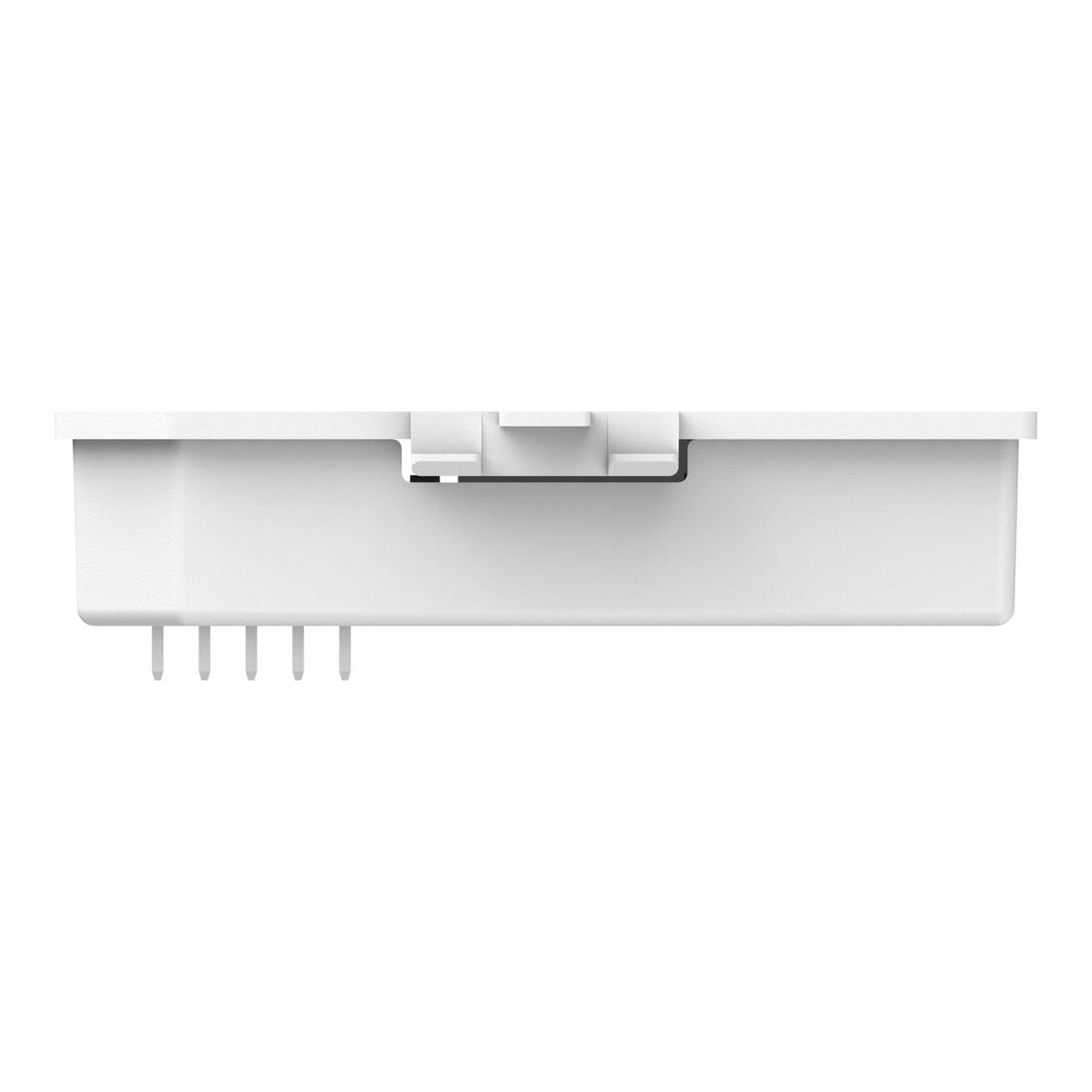

WisuAlarm HY-MRF50-R8 Fire Wireless Interconnected Module

WisuAlarm HY-MRF50-R8 Fire Wireless Interconnected Module

Two-way of lnterconnection

Mains powered smoke alarms and heat alarms can be via hardwire or wirelessly, creating a network of protection within a property.

Powerful Battery Back-up

Both rechargeable battery back-up and 9V replaceable battery back-up are available to serve as a fail-safe power source.

Fewer False Alarms

For the mains smoke alarms, the split-spectrum smoke chamber is used t0 recognize the water vapor and accumulated dust against the real smoke.

Smart IoT

lntegrating with mains powered alarm units, a mains gateway can be installed in the scxial housing to transfer data to management centre.

• Powered from Alarm head
• Simply plug in module design
• RF mesh interconnected architecture
• Wireless interconnected with maximum of 24 WisuLink RF devices
• Compatible with Wisualarm mains powered alarms

Specifications:

RF Range: A minimum of 100 metres in free space

RF Visual Indicator:

• Flashing Red: RF transmission
• Flashing Blue: Successfully interconnected

RF Frequency: 868MHz

Interconnect: Up to 24 WisuLink RF devices

Power Supply: Powered from Alarm

Operating Temperature: -10°C to +55°C

Operating Humidity: ≤95% RH (non condensing)

Colour: White

Casing: PC+ABS

Dimensions: 53.5 mm × 38.2 mm × 11.7 mm

Weight: 11.9 g

Compliance Standard: CE, UKCA listed
