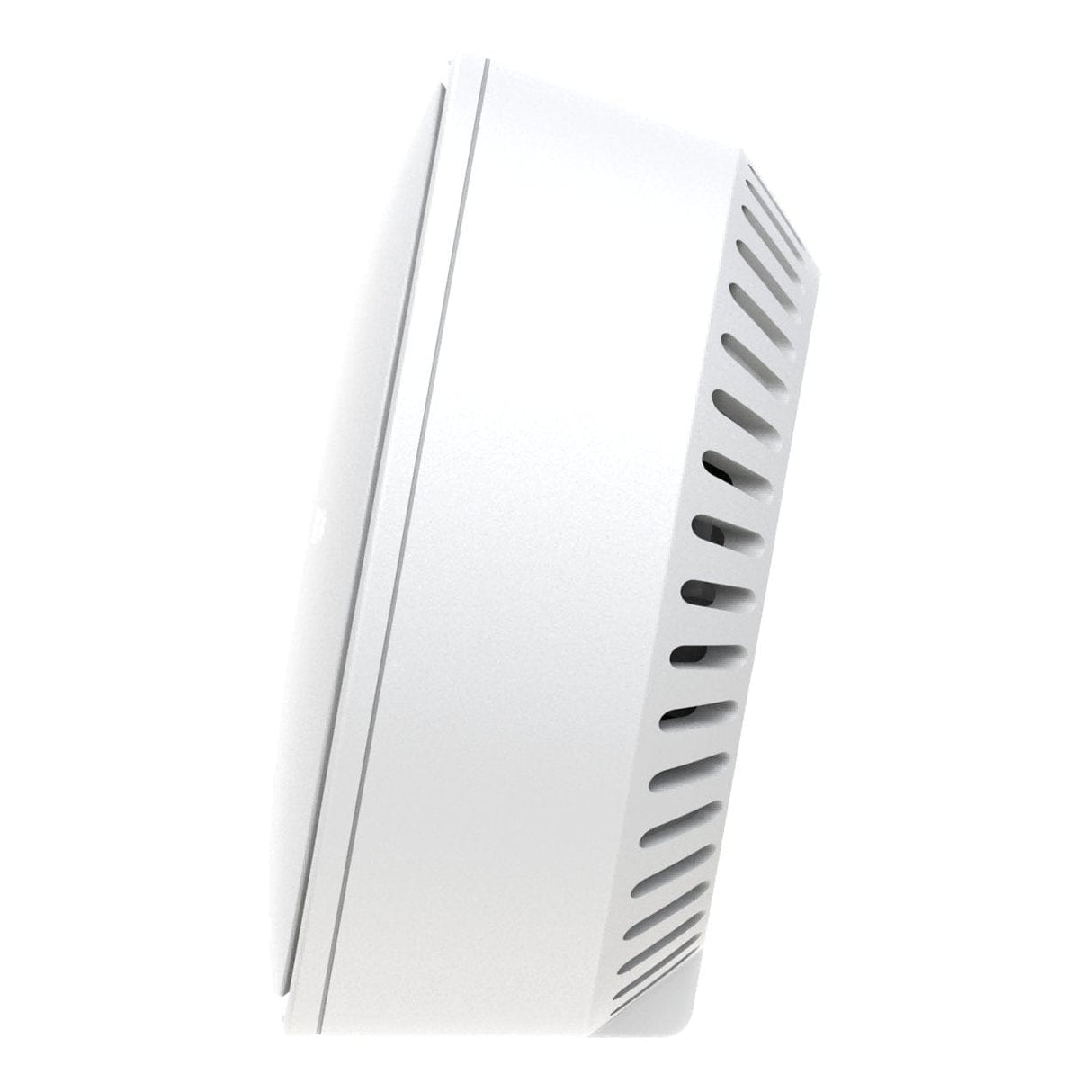

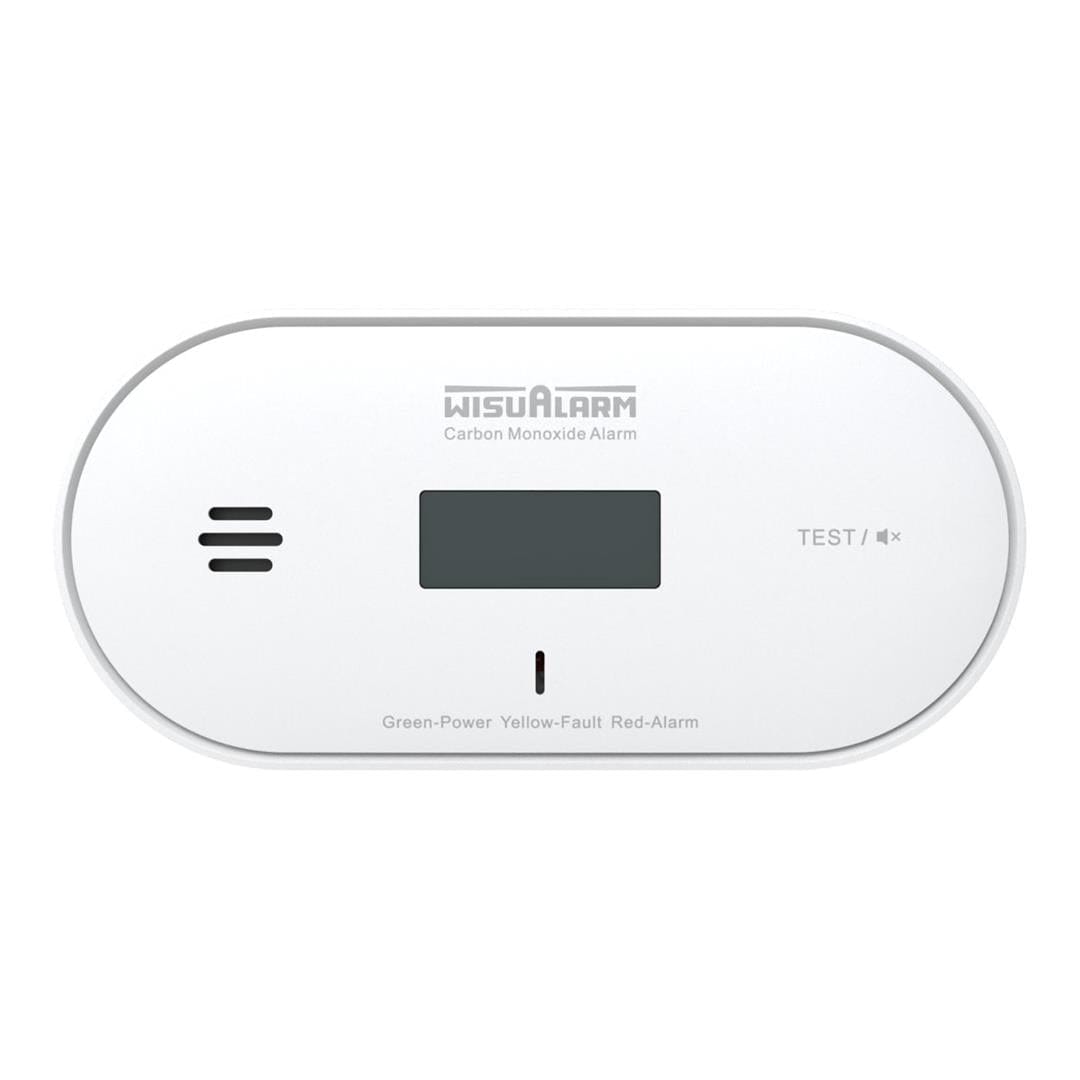

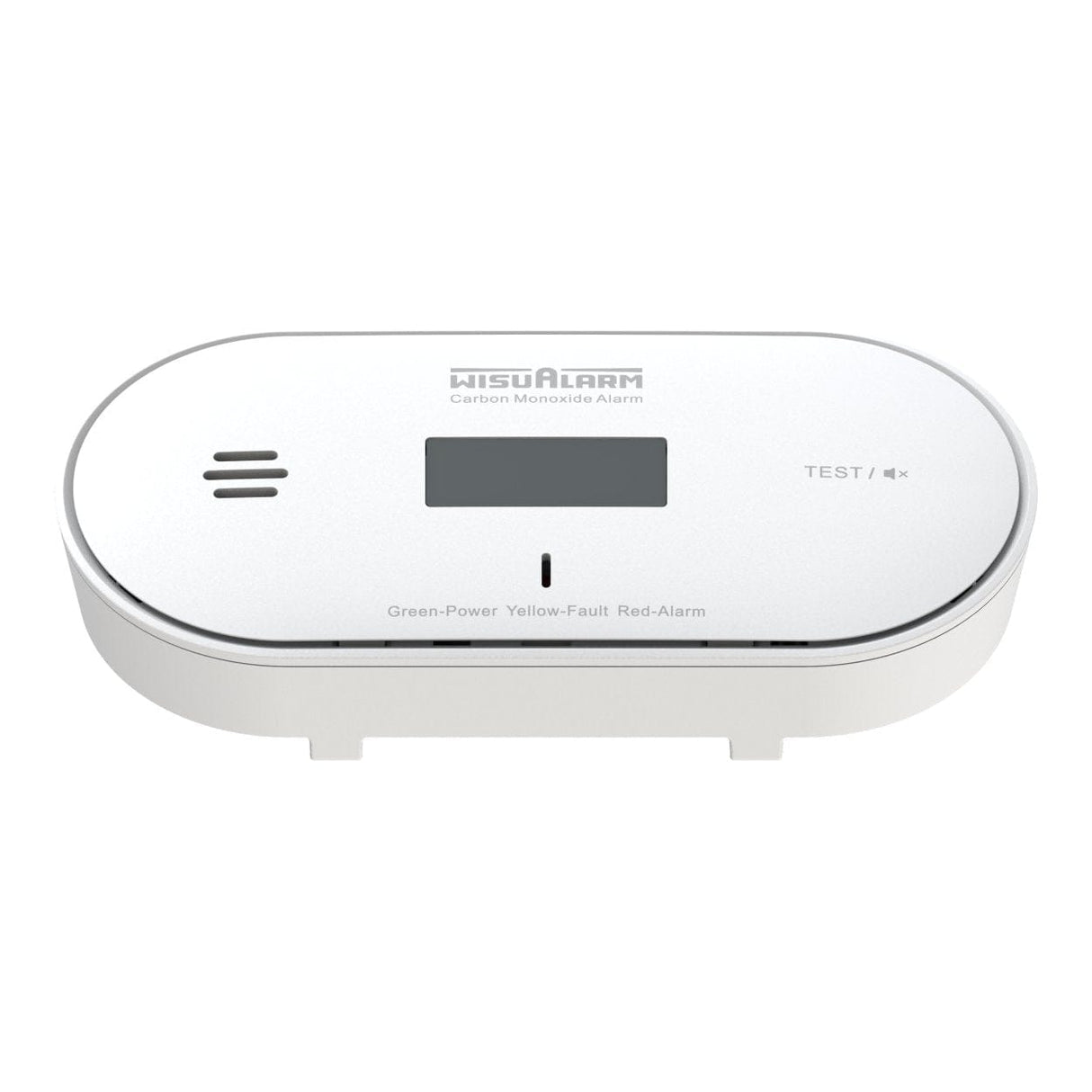

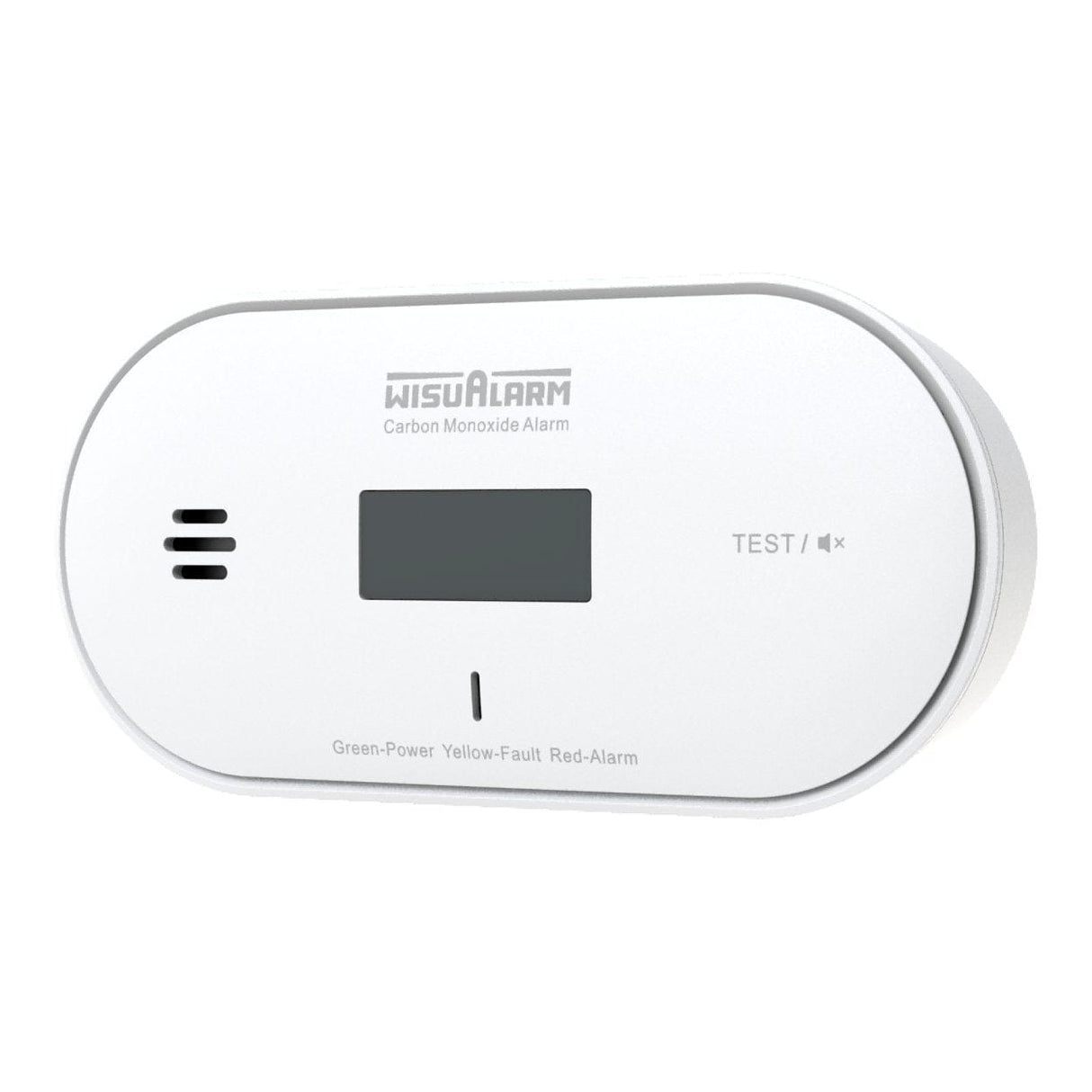

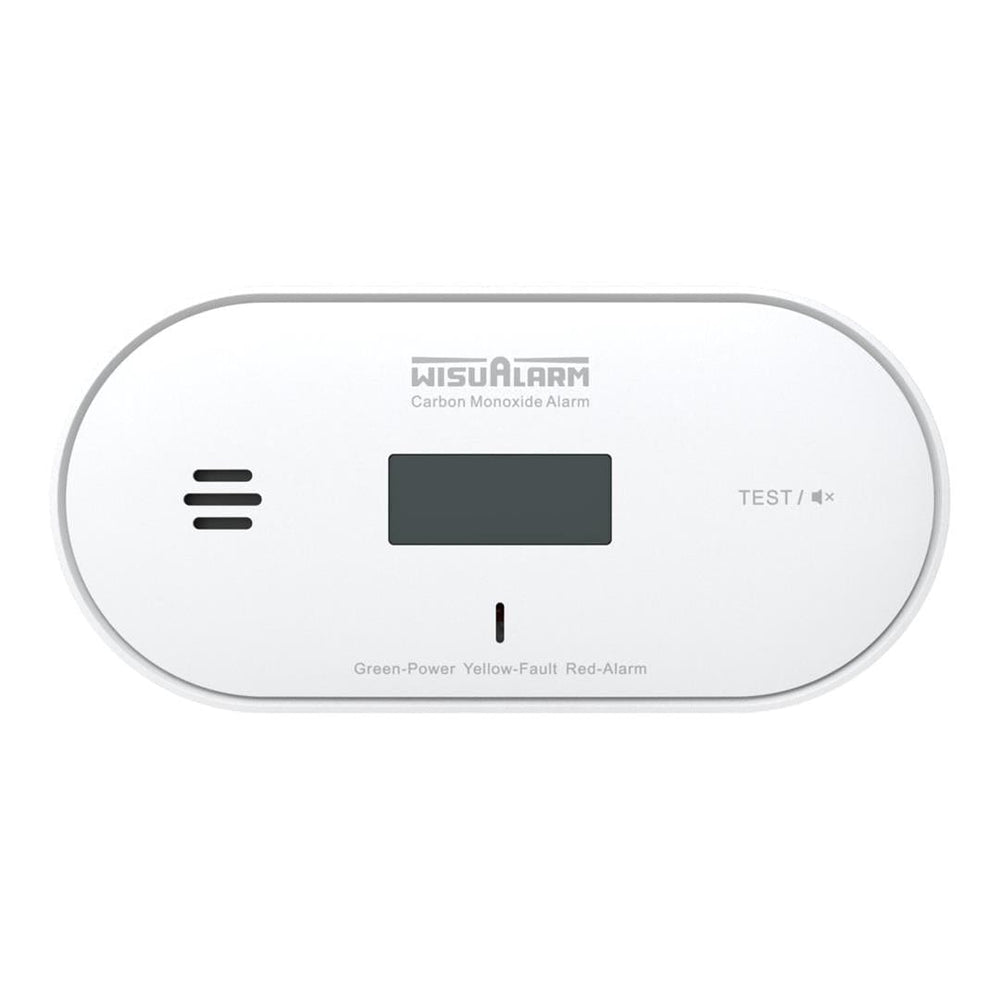

WisuAlarm HY-GC30A Fire Interconnected Carbon Monoxide Alarm

WisuAlarm HY-GC30A Fire Interconnected Carbon Monoxide Alarm

3-in-1 Function

Carbon monoxide alarm also can detect temperature and humidity values at same time to provide comprehensive protection.

• Carbon Monoxide Detection
• Temperature Detection
• Humidity Detection

Wide Range Detection of Carbon Monoxide

Carbon Monoxide alarm sound, ensuring prompt response to dangerous levels.

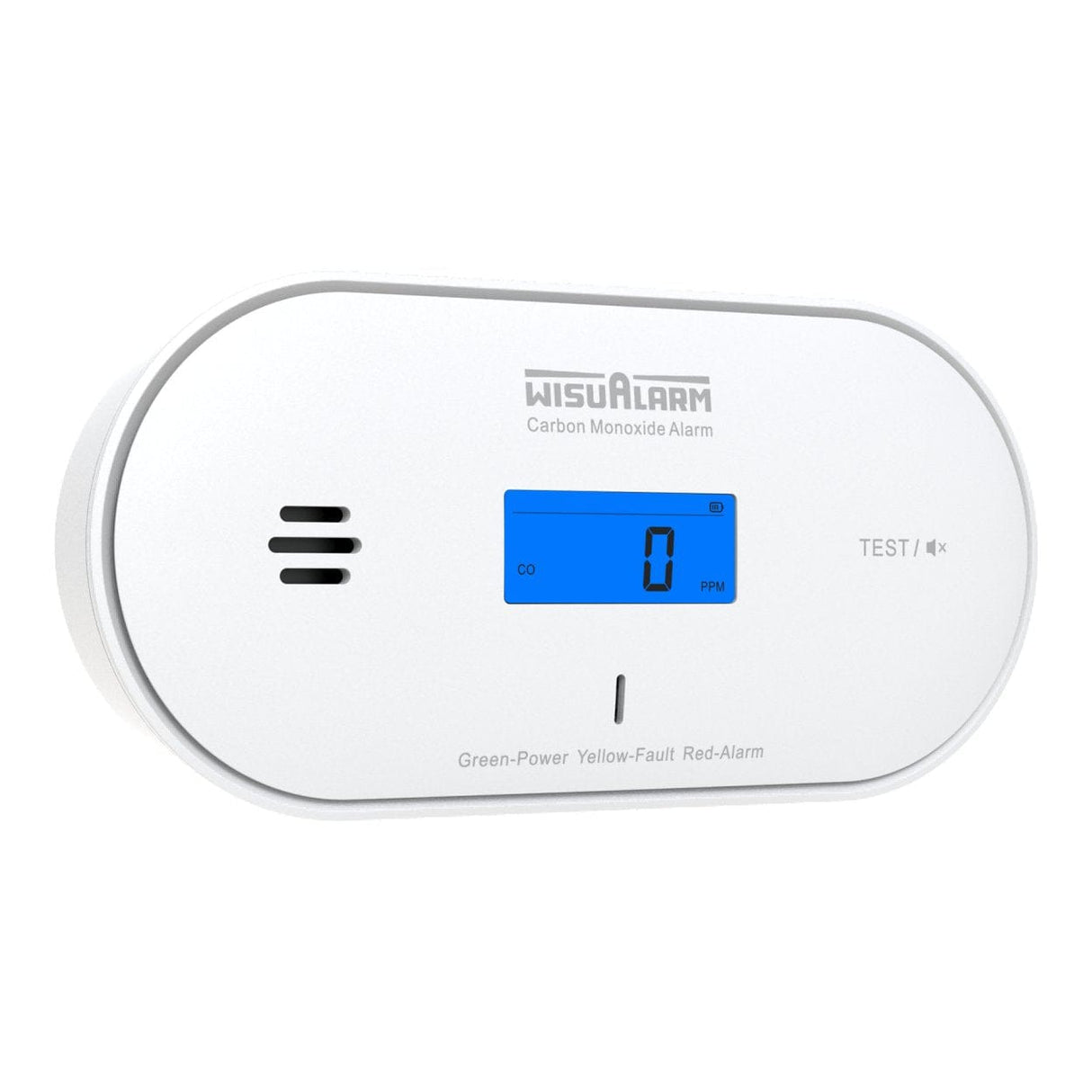

• Informative carbon monoxide concentration display in screen
• Temperature and humidity measurement
• Long standby time, blue backlight function

Specifications:

Collection Type: Carbon Monoxide (CO)

Sensor Type: Electrochemical

Alarm Type: CO alarm, fault warning, low battery warning

Alarm Volume: Over 85 dB (A) at 3 m (9.84 ft)

Alarm Mode: Visual and audible alarm

Silencing Function: Support

Silence Duration: About 9 minutes

Alarm Response Threshold:

• 50 ppm: 60 min–90 min
• 100 ppm: 10 min–40 min
• 300 ppm: < 3 min

Display: LCD

Indicator Light: LED (red/yellow/green)

LED Instructions:

• Alarm: Red indicator
• Fault: Yellow indicator
• Power: Green indicator

Battery Life: 10 years

Power Source: 3V CR123A lithium battery (replaceable)

Operating Current:

• Monitoring Current: ≤ 20uA
• Alarm Current: ≤ 20mA

Operating Environment: Indoor use only

Operating Temperature: –10°C to +40°C

Operating Humidity: ≤ 95% RH (non condensing)

Temperature Accuracy: ±0.1°C typical

Humidity Accuracy: ±1.5%RH typical

Colour: White

Casing: PC+ABS

Dimensions: 133.5 mm × 63.5 mm × 28.9mm

Weight: 125 g

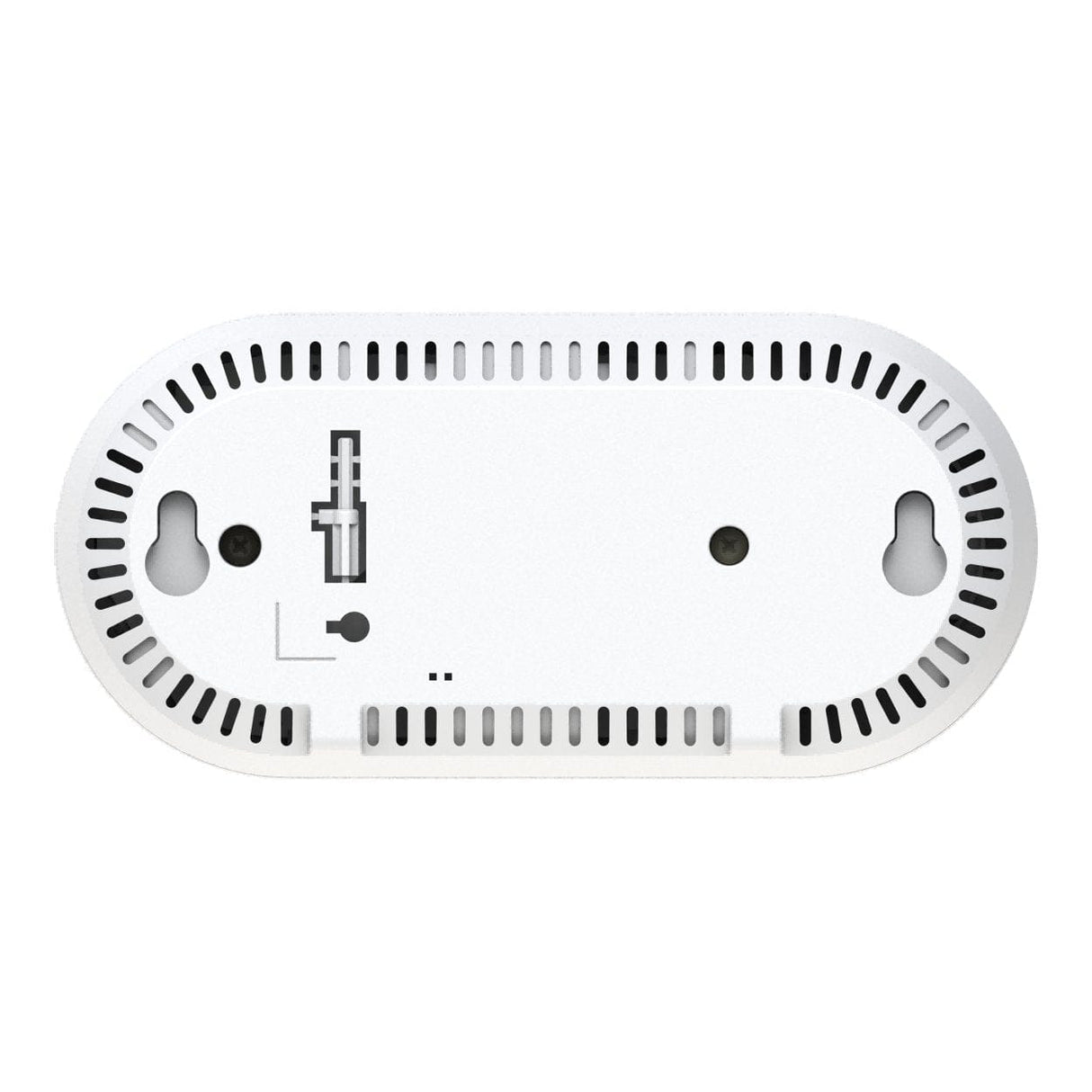

Installation: Wall mount/Free standing

Certifications: TUV, CE and UKCA listed

Compliance Standard: EN 50291-1:2018 and BS EN 50291-1:2018
