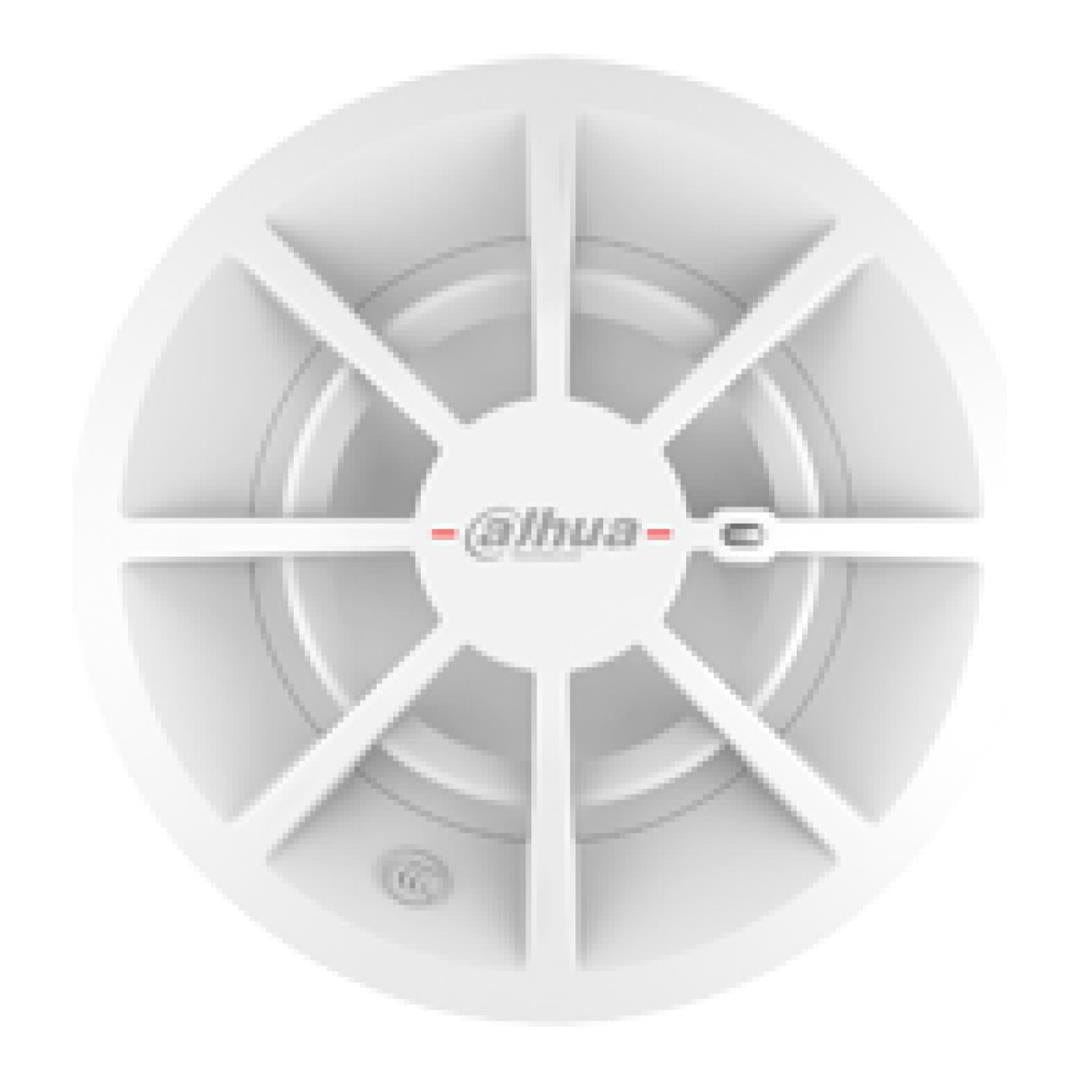

WisuAlarm HY-C132 Fire 2-Wire Conventional Heat Detector

WisuAlarm HY-C132 Fire 2-Wire Conventional Heat Detector

DHI-HY-C132 Conventional Heat Detector is a mated product of the Conventional Fire Alarm Control Panel. Integrated with two-wire and polarity-free technology, this detector analyzes ambient temperature by rate of rise & fixed temperature algorithm to trigger alarms.

Specifications:

Working Voltage: DC16V-DC28V

Rated Power: 3.408mW

Current:

• Standby current: ≤ 120μA
• Alarm current: ≤ 170μA

Alarm Mode: Visual alarm

Coverage Area:

• H ≤ 4 m (13.12   ft): 50 m2
• 4 m(13.12 ft) ≤ H   ≤  12 m(39.37 ft): 30 m2

Operating Temperature: –10°C to +50°C

Operating Humidity: ≤ 95% RH (no condensation)

Dimensions (with base): Φ100 mm × 50 mm

Weight (with base): 81 g

Installation: Ceiling Mount

Compliance Standard: EN 54-5: 2017/A1:2018
