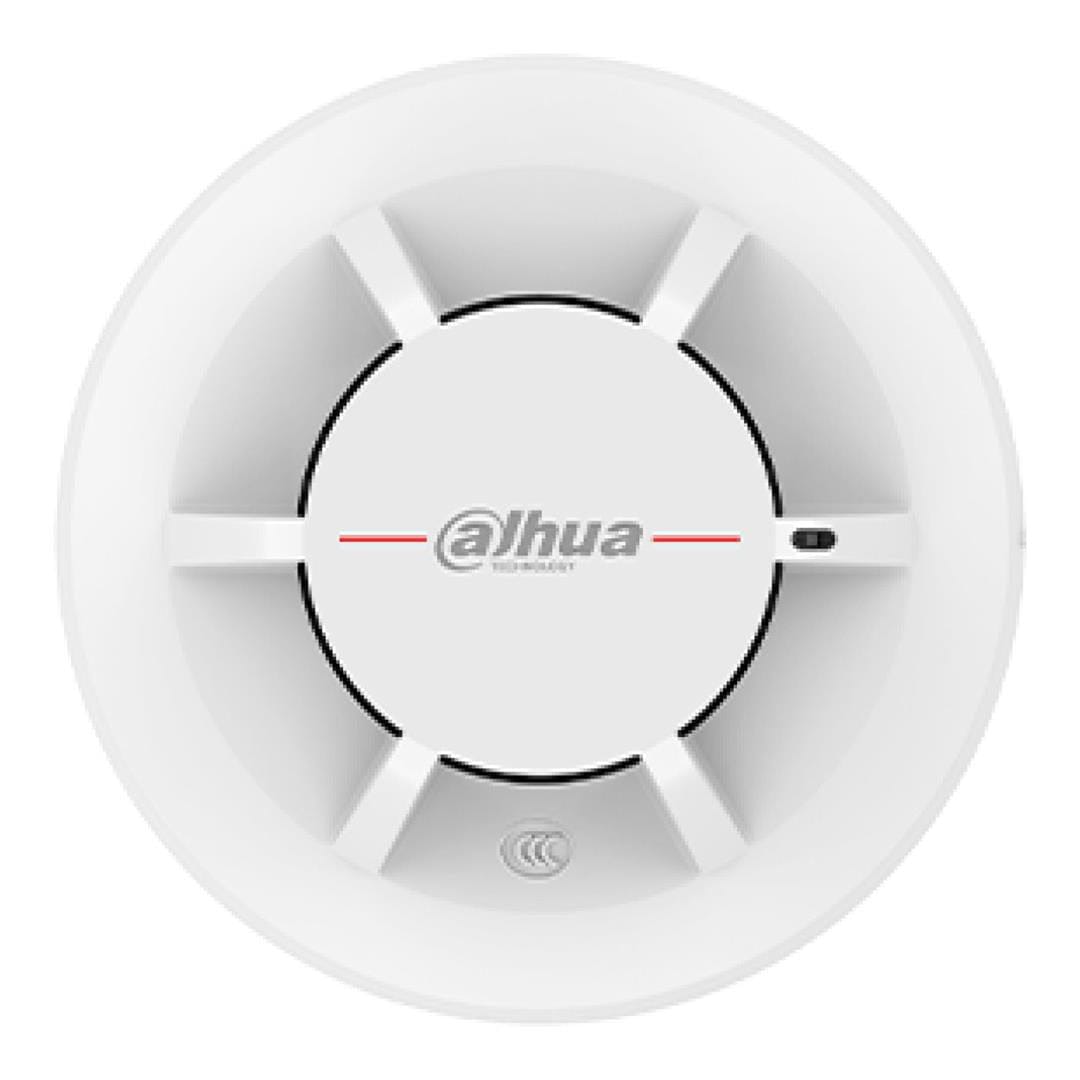

WisuAlarm HY-C131 Fire 2-Wire Conventional Smoke Detector

WisuAlarm HY-C131 Fire 2-Wire Conventional Smoke Detector

DHI-HY-C131 Conventional Smoke Detector is a mated product of the Conventional Fire Alarm Control Panel. Integrated with two-wire and polarity-free technology, this detector analyzes ambient smoke concentration through a dual photoelectric smoke sensing chamber.

Specifications:

Working Voltage: DC16V-DC28V

Rated Power: 5.136mW

Current:

• Standby current: ≤ 350μA
• Alarm current: ≤ 350μA

Alarm Mode: Visual alarm

Coverage Area:

• H ≤ 4 m (13.12 ft): 50 m2
• 4 m(13.12 ft) ≤ H   ≤  12 m(39.37 ft): 80 m2

Operating Temperature: –10°C to +55°C

Operating Humidity: ≤ 95% RH (no condensation)

Dimensions (with base): Φ100 mm × 54 mm

Weight (with base): 102 g (0.22 lb)

Installation: Ceiling Mount

Compliance Standard: EN 54-7:2018
