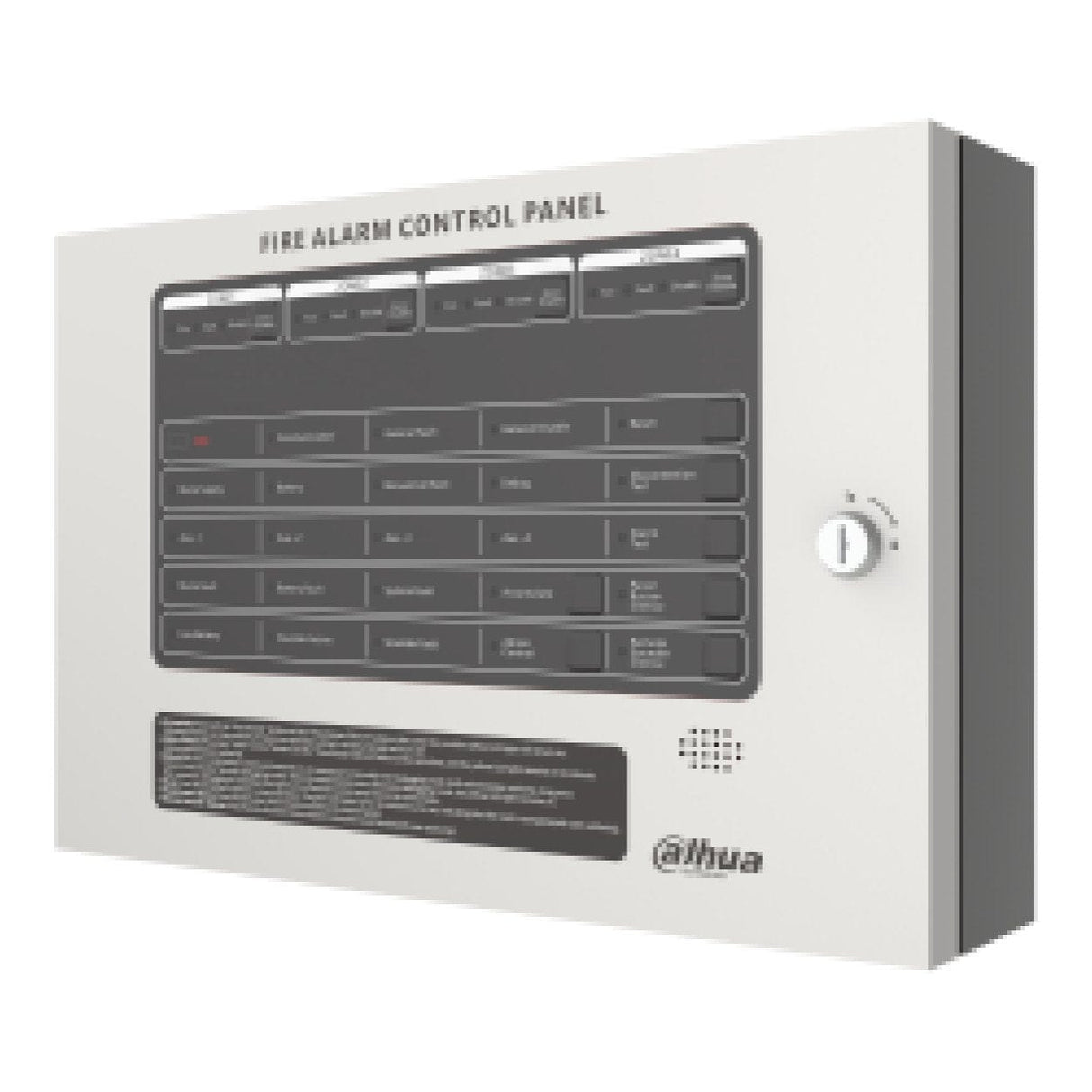

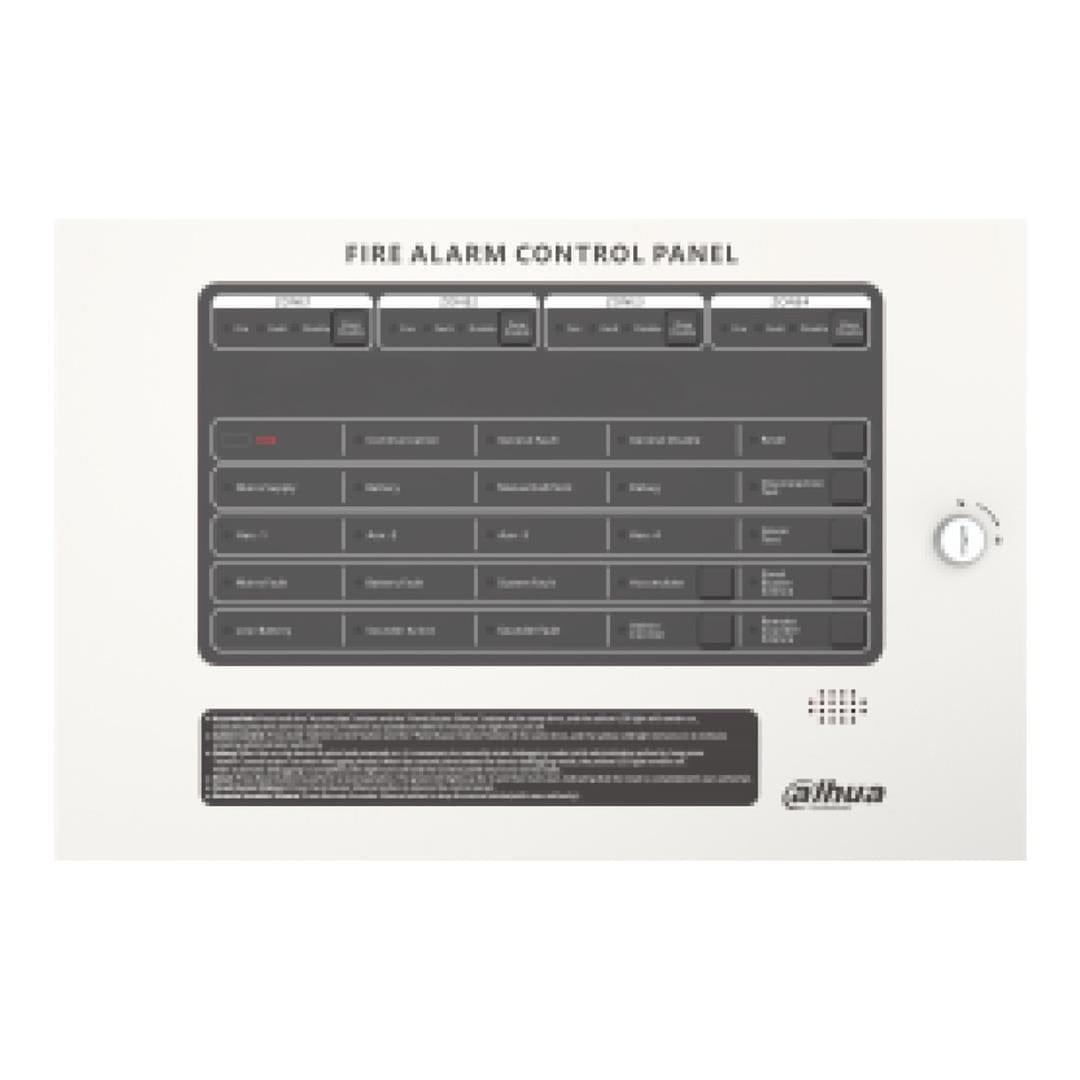

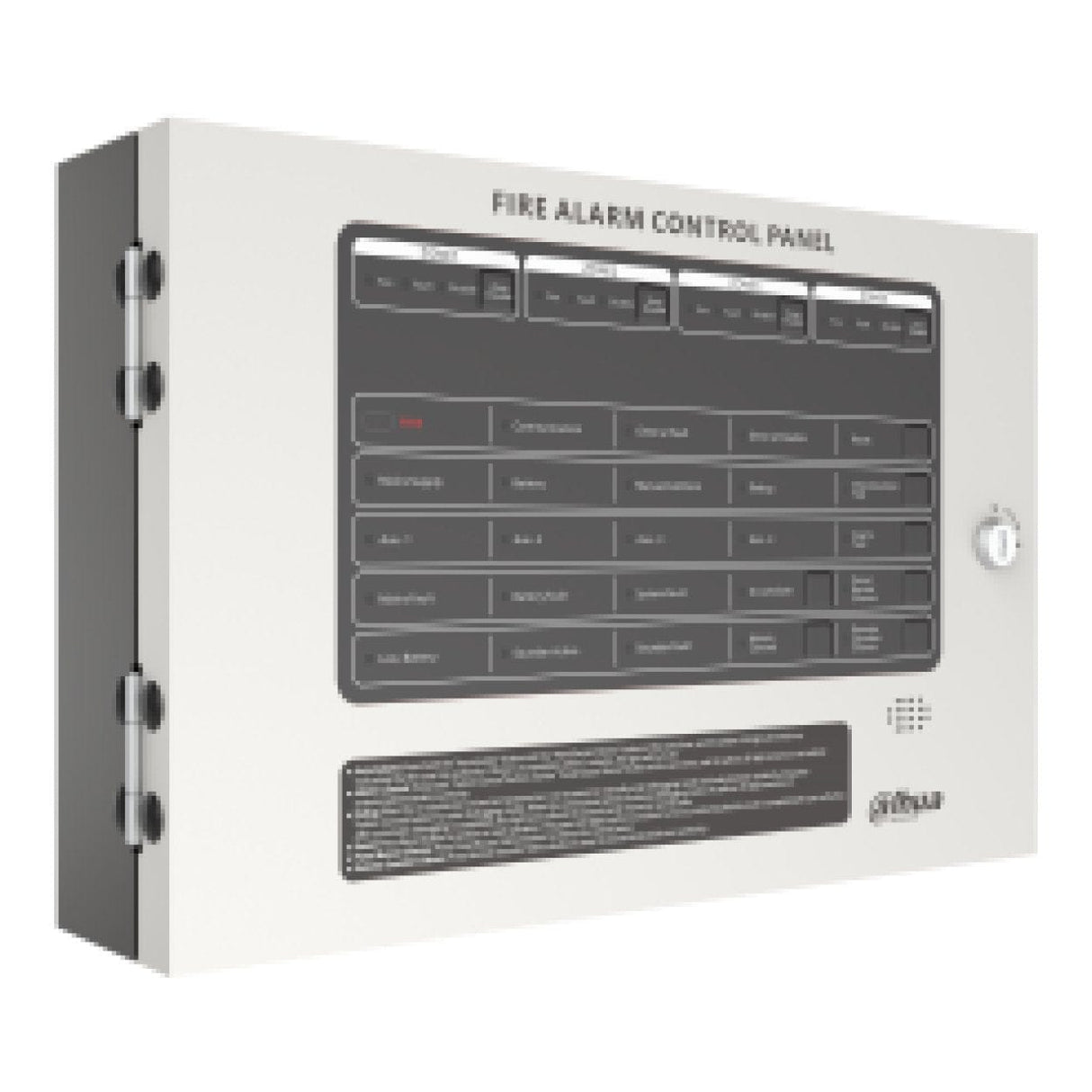

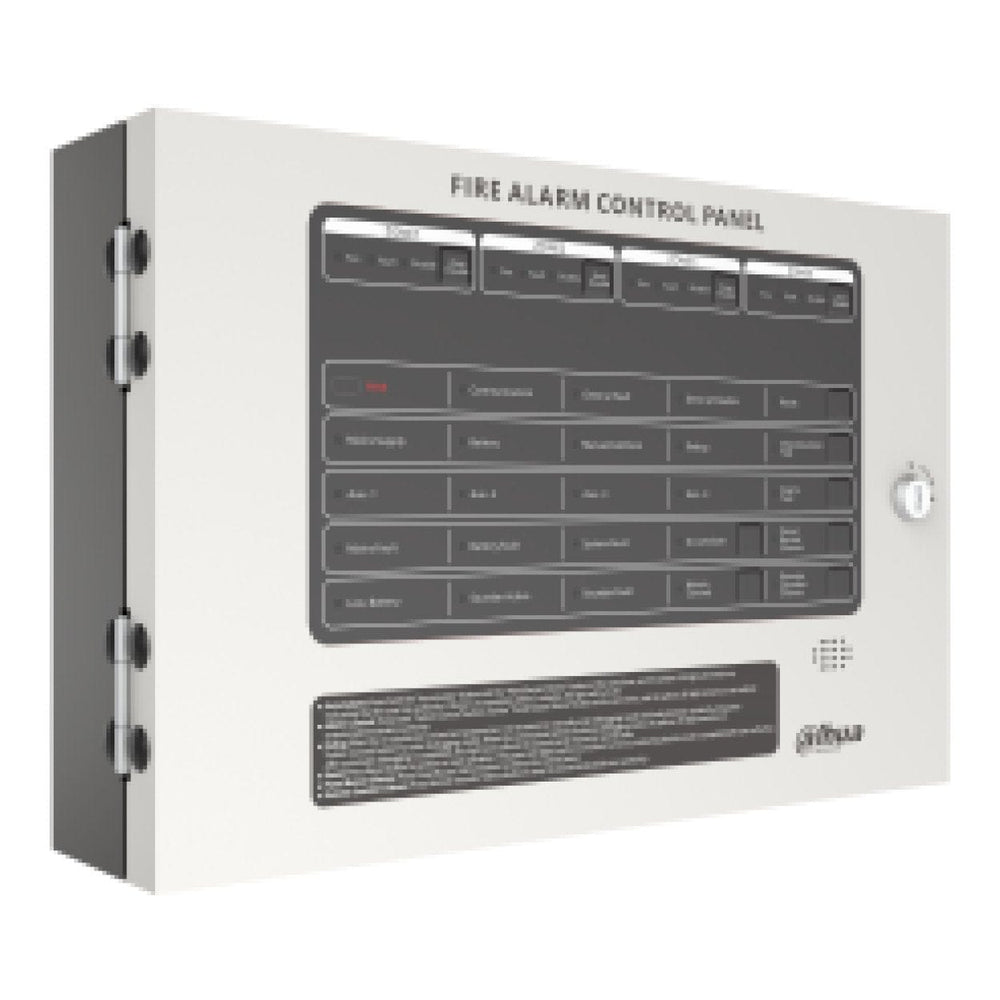

WisuAlarm HY-C102-4L Conventional 4 Zone Fire Alarm Control Panel
Please note: images are for illustrative purposes only.
Specifications:
Number of Zones: 4
Zone Capacity: 25 detectors per zone
Main Power: AC100-240V/50Hz, 60Hz
Backup Power: 2×12V 7Ah battery (optional)
Output Current: 1A
Sounder Output:
- Fault: 50dB
- Alarm: 60dB
Fire Bell Output: DC 28V/500mA
Dimensions: 400.0 mm×92.2 mm×265.0 mm
Weight:
- 3.45 kg
- 7.4 kg (with 2 batteries)
Operating Temperature: –10°C to +50°C
Operating Humidity: ≤ 95% RH (no condensation)
Protection Grade: IP30
Installation: Wall mount
Compliance Standard: EN54-2, EN54-4
