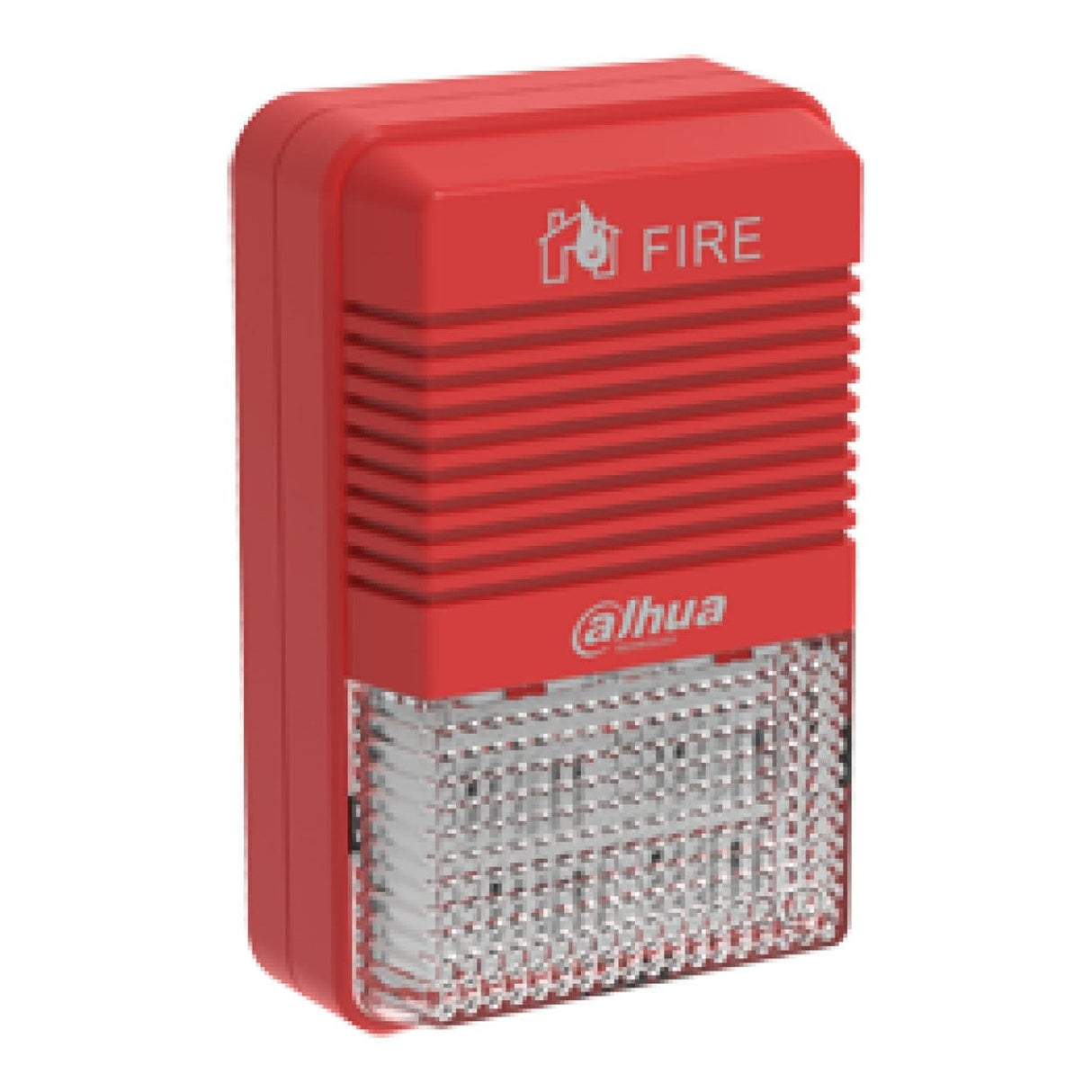

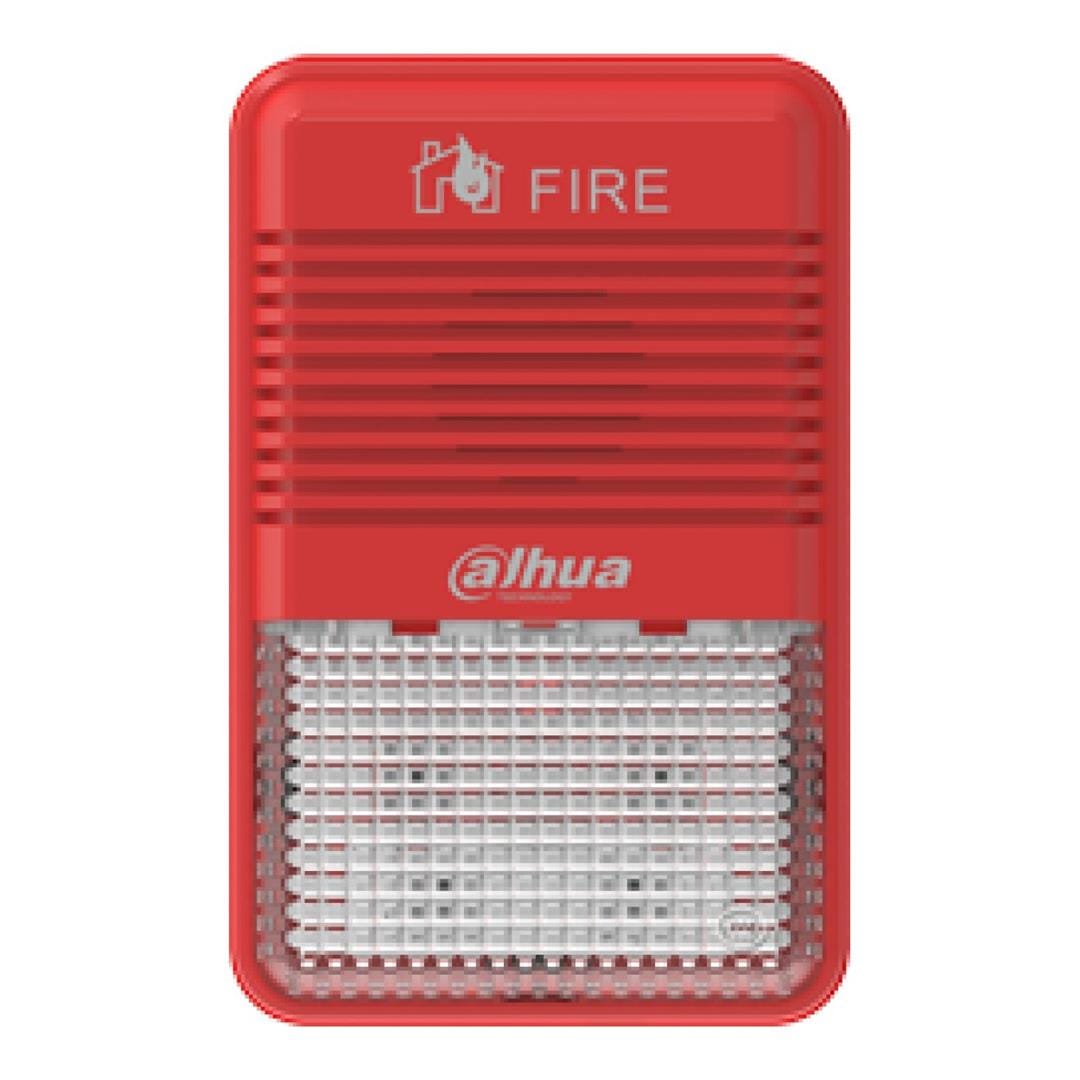

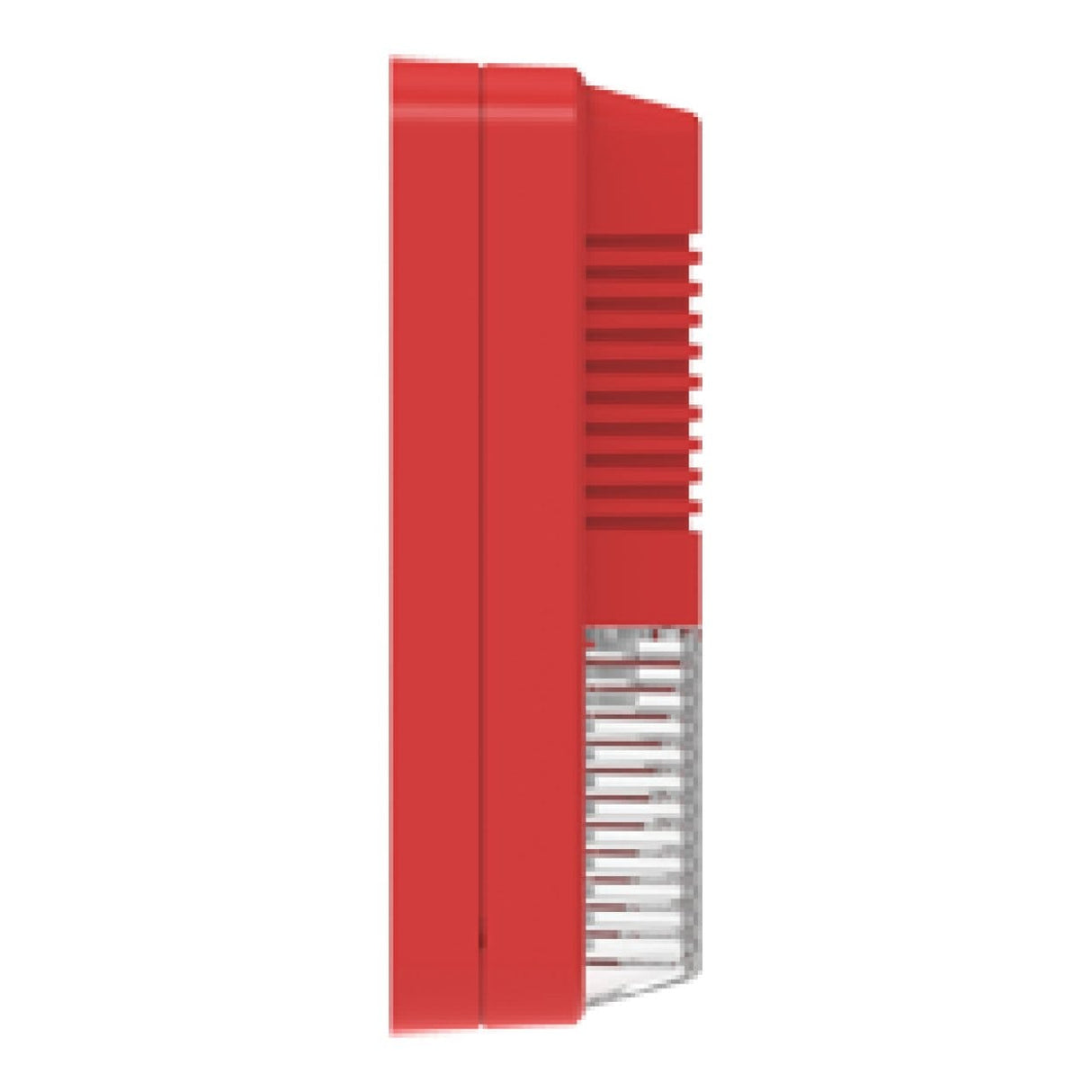

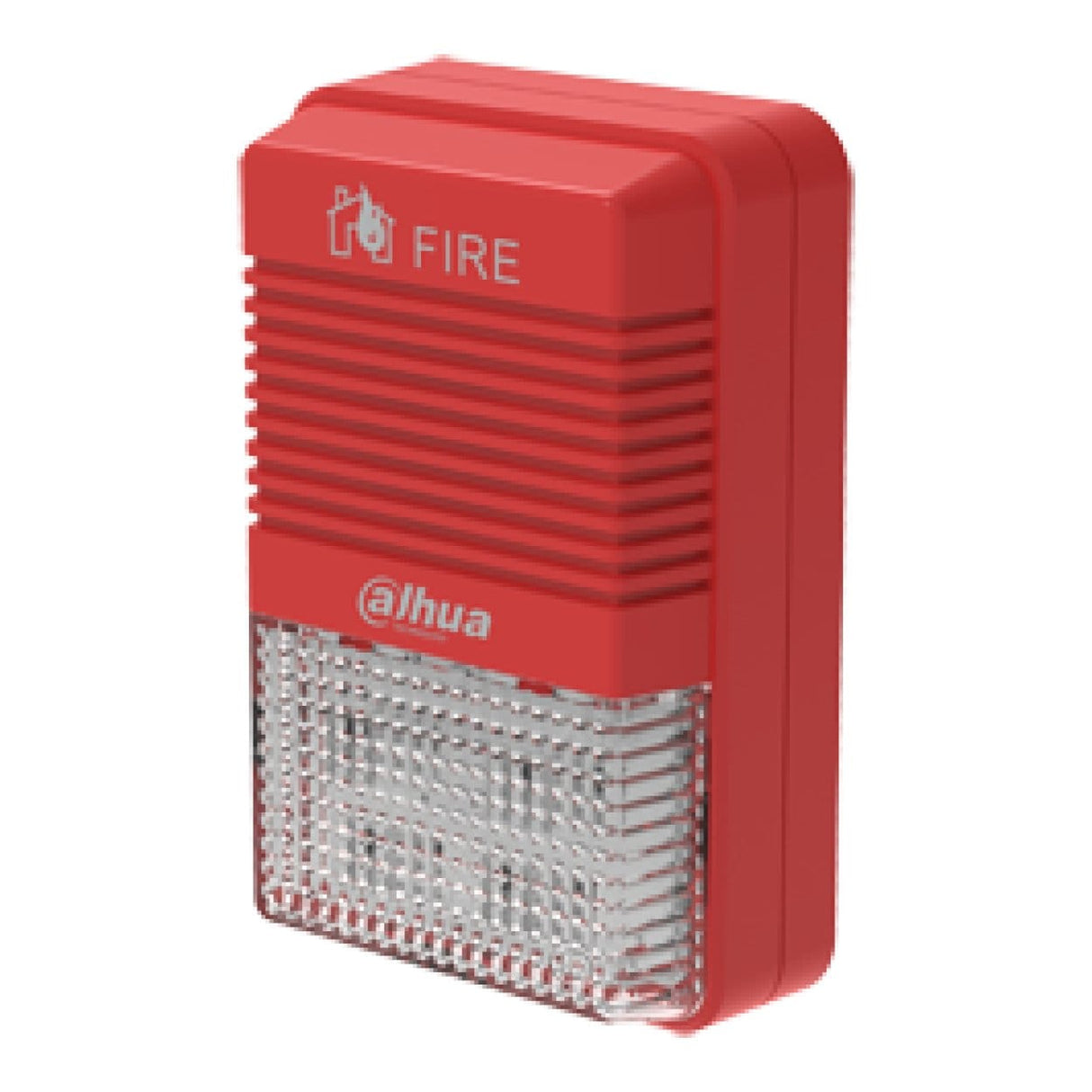

WisuAlarm HY-1500 Addressable Fire Sounder Strobe

WisuAlarm HY-1500 Addressable Fire Sounder Strobe

Please note: Base not included.

DHI-HY-1500 Addressable Sounder Strobe is a mated product of the Addressable Fire Alarm Control Panel, sending out an audible and light alarm signal to remind people on the scene of the accident when fire occurs. It receives activation commands from the Addressable Fire Alarm Control Panel and generates its sound output accordingly.

Specifications:

Model: DHI-HY-1500

Working Voltage: 24V DC

Current:

• Monitoring current: ≤ 120μA
• Maximum operating current: ≤ 7mA

Wiring:

• Two-wire, polarity-free
• Addressing Method
• Electrical encoder

Address Range: 1–254

Alarm Volume: 75 dB–115 dB @ 3 m (A)

Modulation Cycle: 4 s–5 s

Flash Rate: 1.5Hz–2.0Hz

Communication Distance: 1500 m

Operating Temperature: –10°C to +55°C

Storage Temperature: –20°C to +65°C

Operating Humidity: ≤ 95% RH (no condensation)

Colour: Shell: Red / Lampshade: Clear white

Dimensions: 125 mm × 80 mm × 40 mm

Weight (with base): 118 g

Certifications: GB 26851-2011
