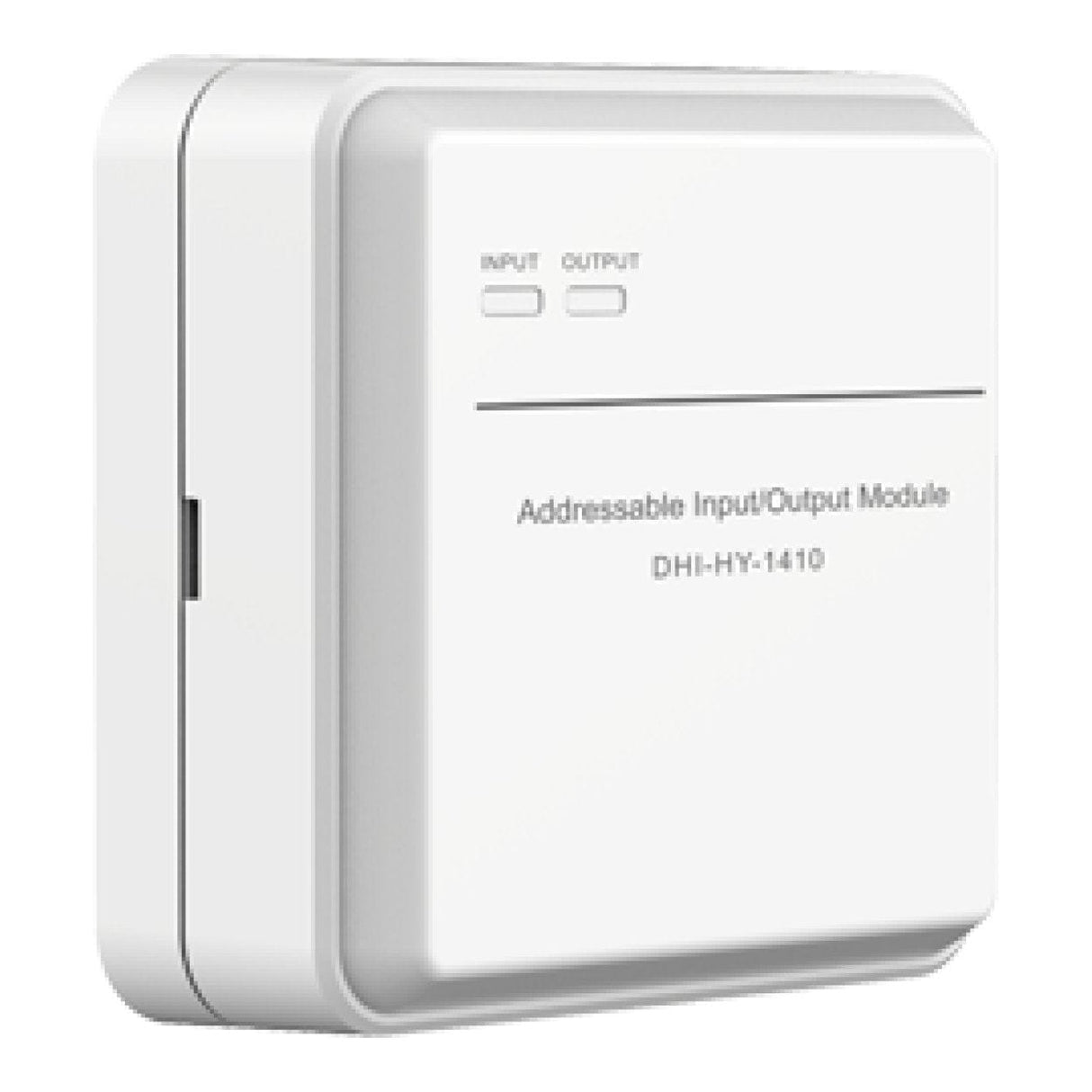

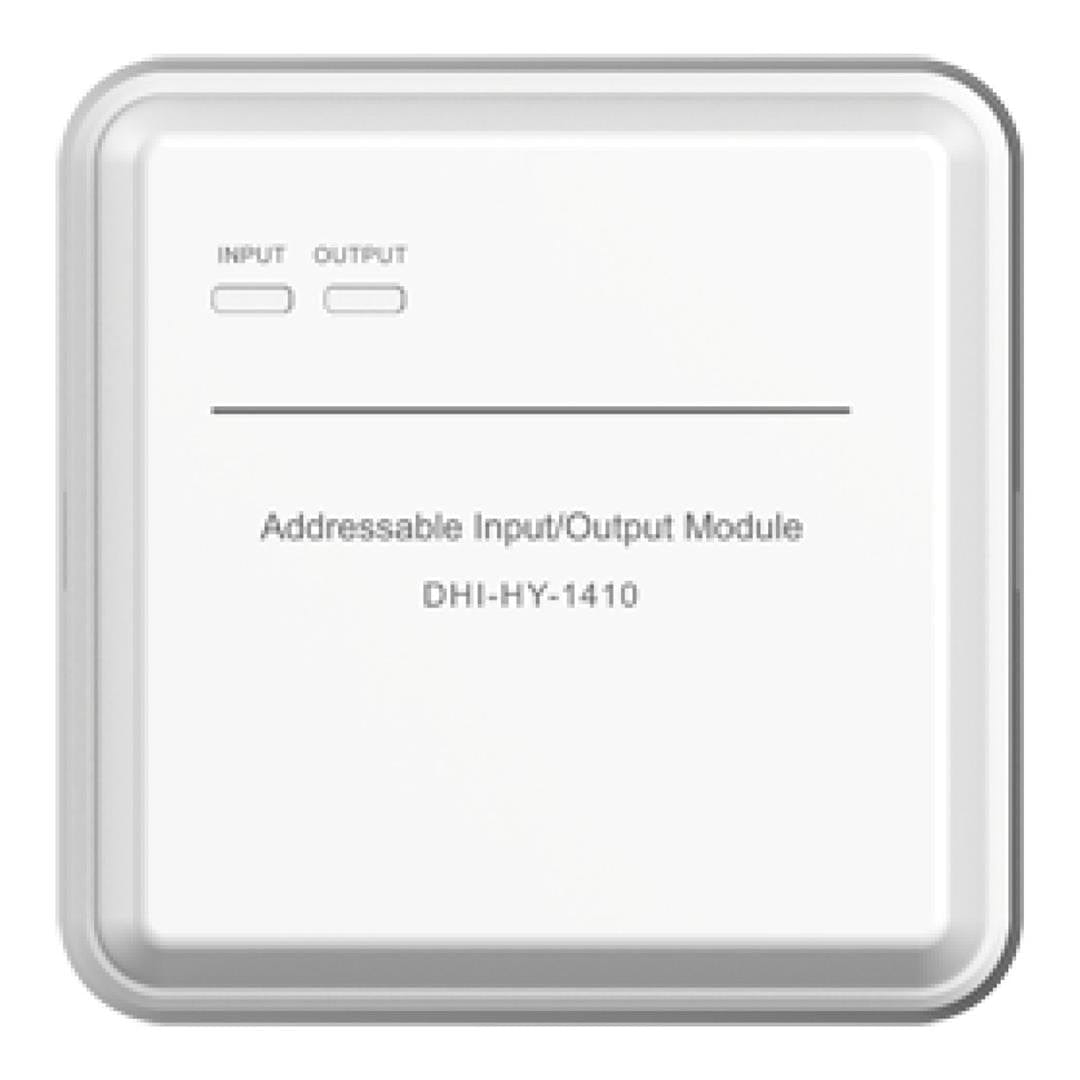

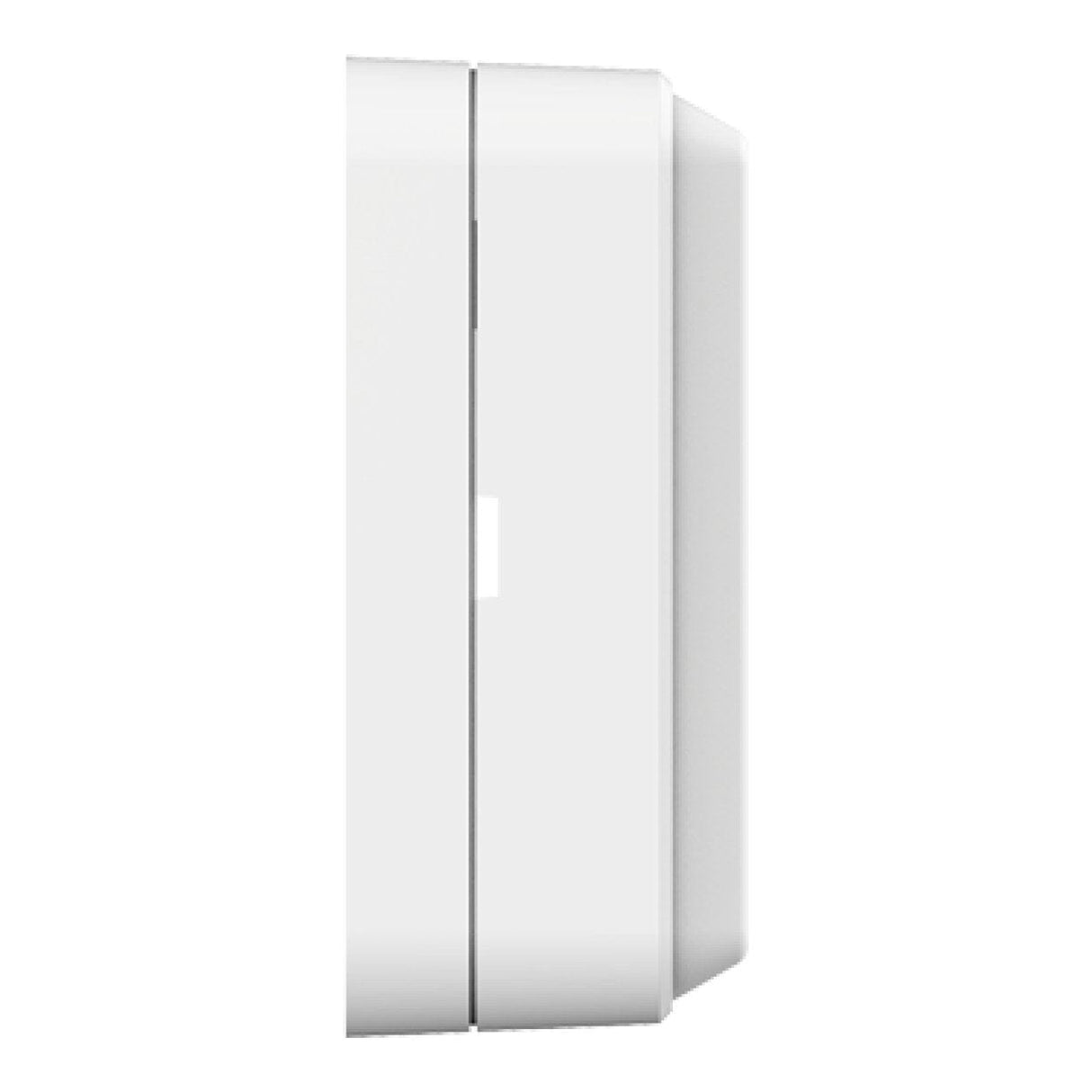

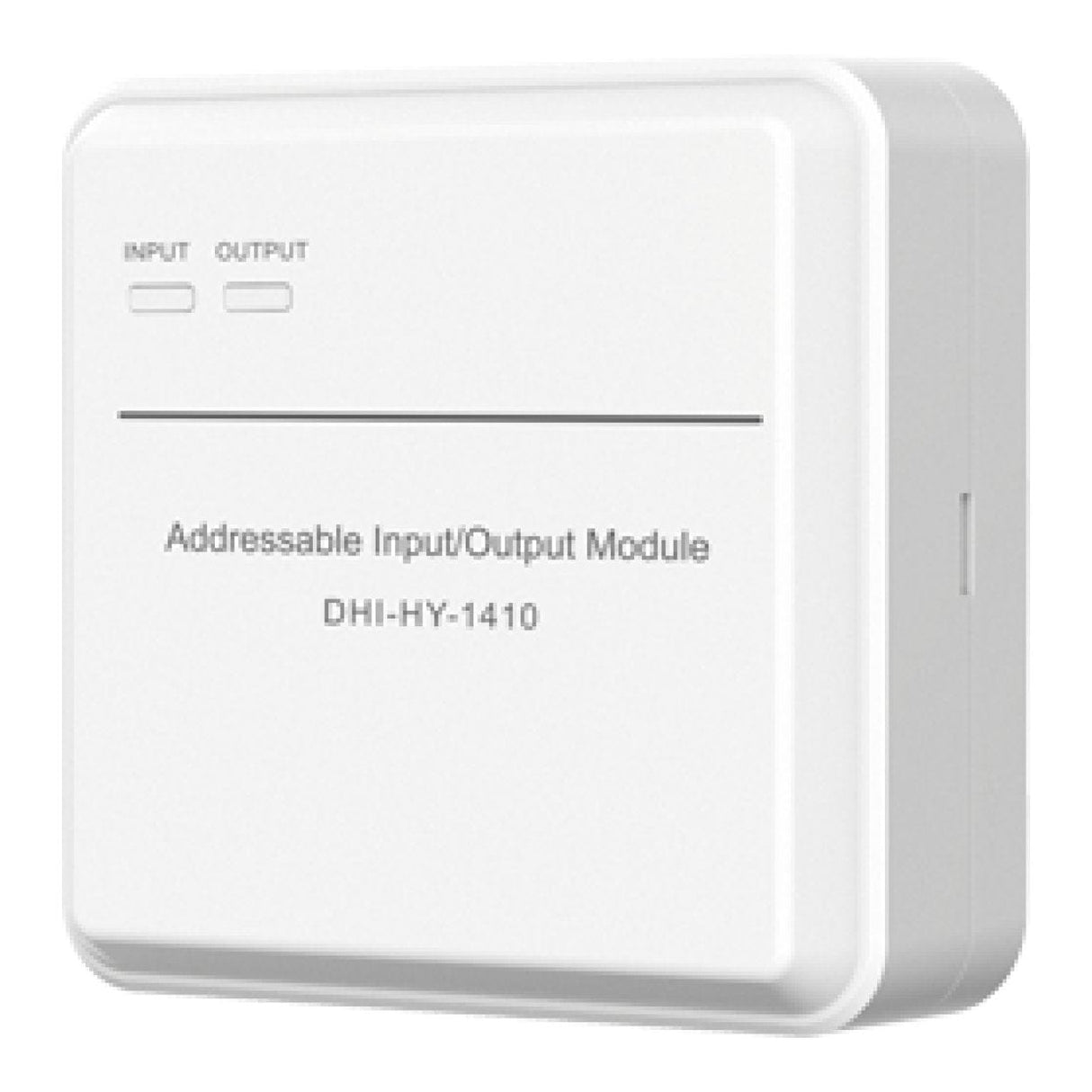

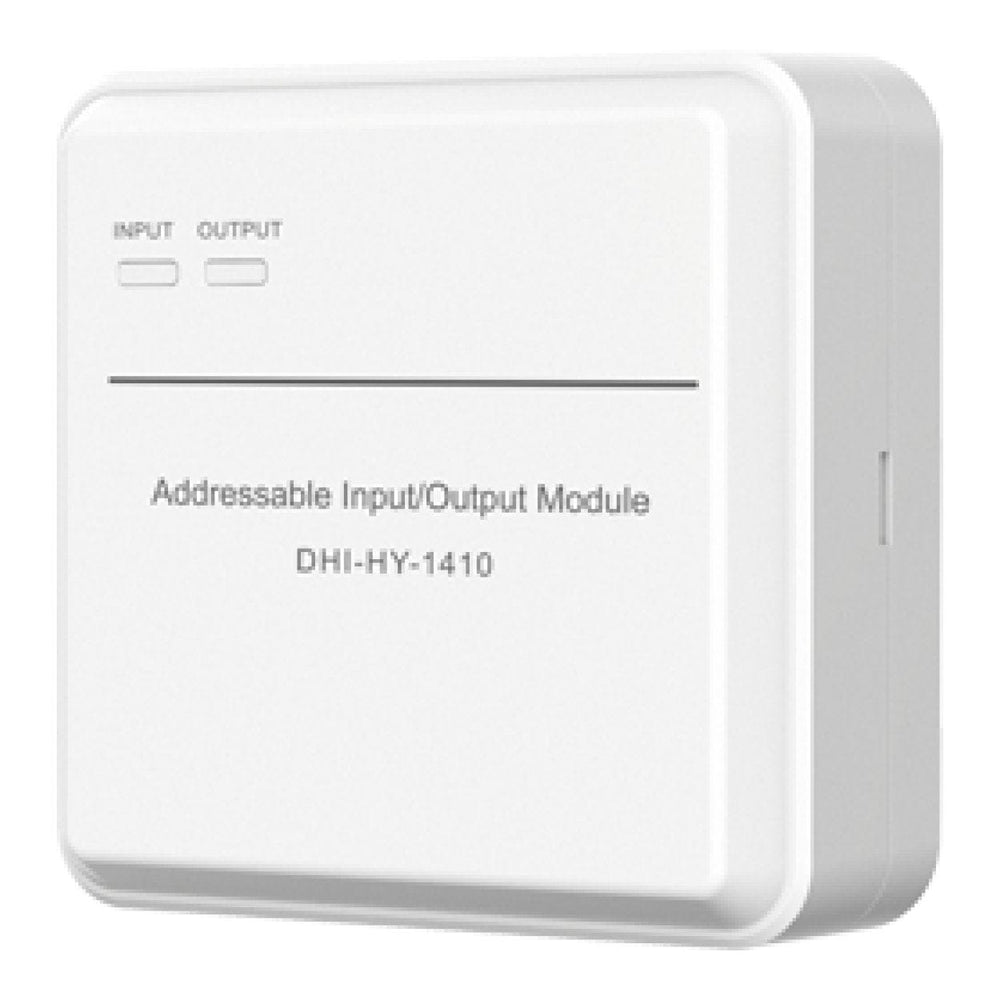

WisuAlarm HY-1410 Addressable Fire Module with Passive Output

WisuAlarm HY-1410 Addressable Fire Module with Passive Output

Please note: Base not included.

Addressable Input/Output Module with Passive Output

DHI-HY-1410 Addressable Input / Output Module is a mated product of the Addressable Fire Alarm Control Panel, regulating the normal operation of external fire protection device. It can realize an output control for fire linkage equipment and receive the feedback signals of the fire linkage equipment to monitor the normal operation of the fire linkage equipment. It can be connected with passivity-based control device such as elevator, fire shutter door.

Specifications:

Model: DHI-HY-1410

Working Voltage: 24V DC

Current:

• Monitoring current: ≤ 150μA
• Operating current: ≤ 9mA

Indicator:

• Input indicator:  Red   LED flashes once every 6 seconds, and flashes once every 2 seconds when   malfunctioned
• Output indicator: Red LED is constantly off when works   normally, and flashes once every 2 seconds when malfunctioned

Wiring: Two-wire, polarity-free

Addressing Method: Electrical encoder

Address Range: 1–254

Communication

Distance: ≤ 1500 m

Operating Temperature: –10°C to +55°C

Storage Temperature: –20°C to +65°C

Operating Humidity: ≤ 95% RH (no condensation)

Colour: White

Dimensions (with base): 90 mm x 90 mm x 37 mm

Weight (with base): 120 g

Certifications: GB16806-2006
