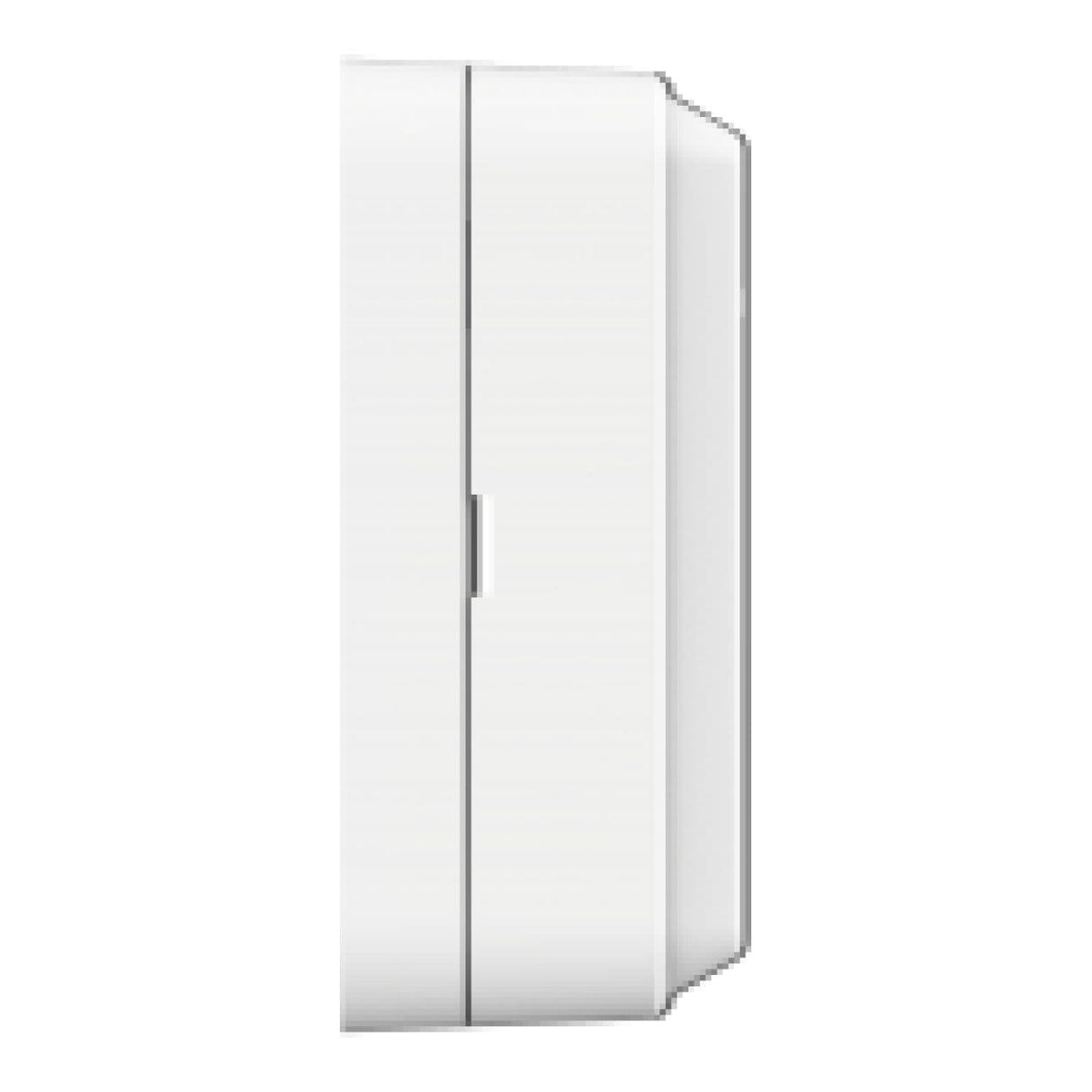

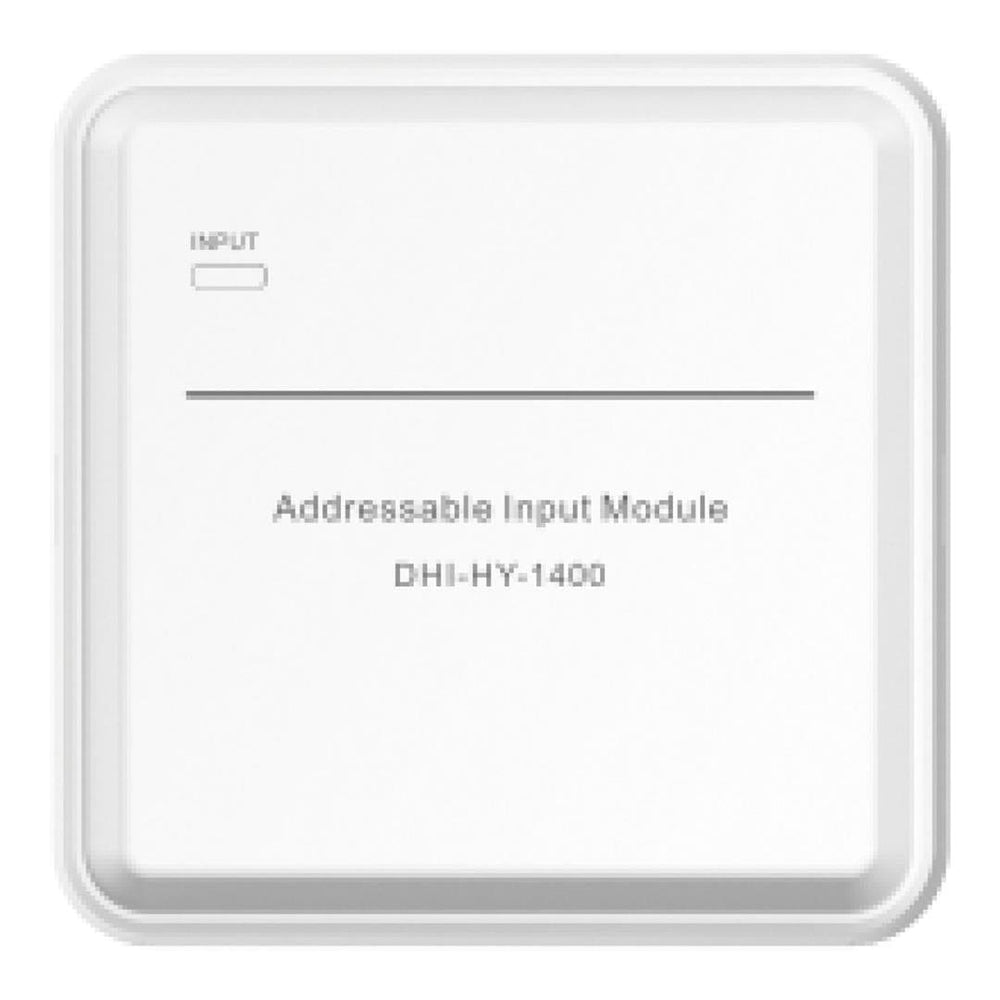

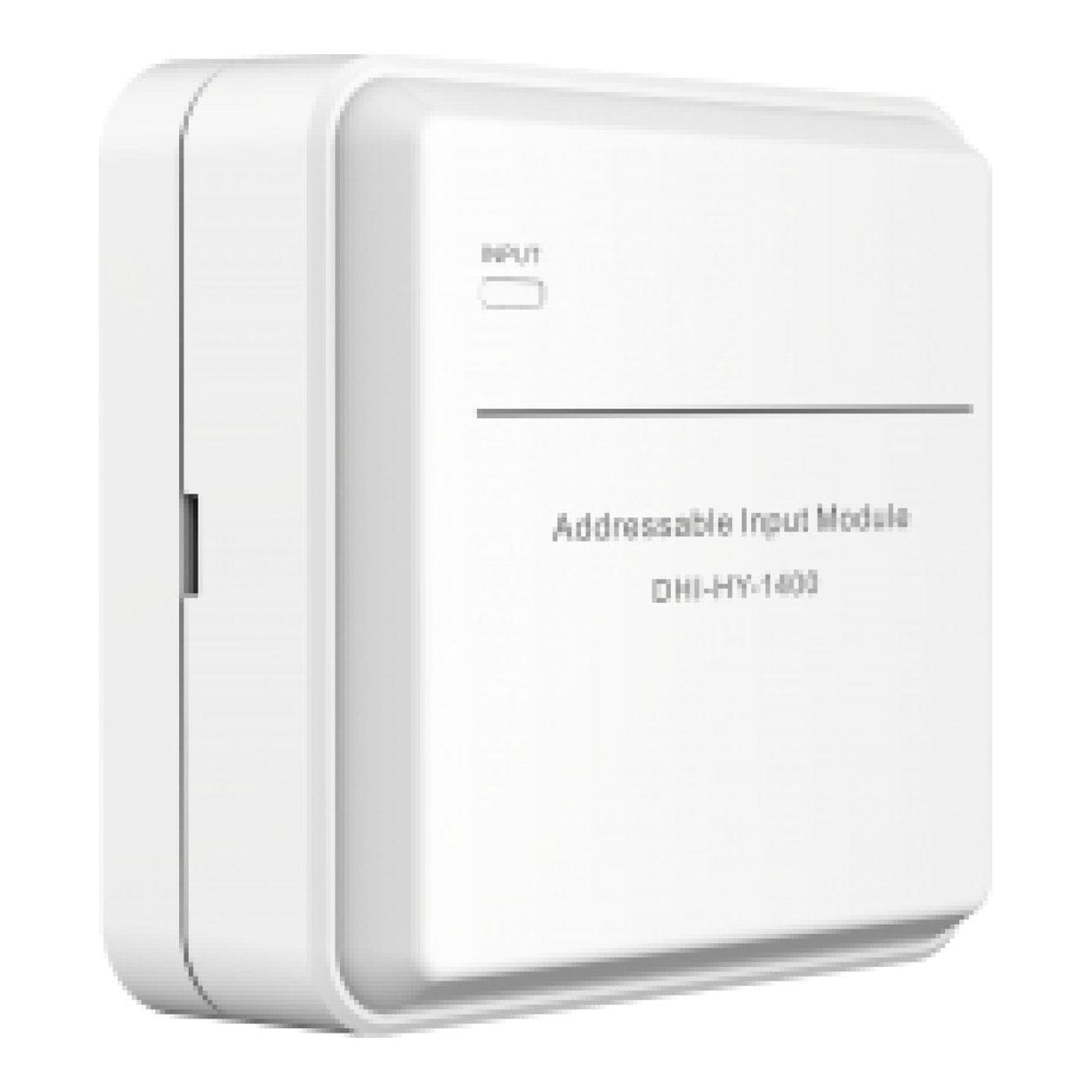

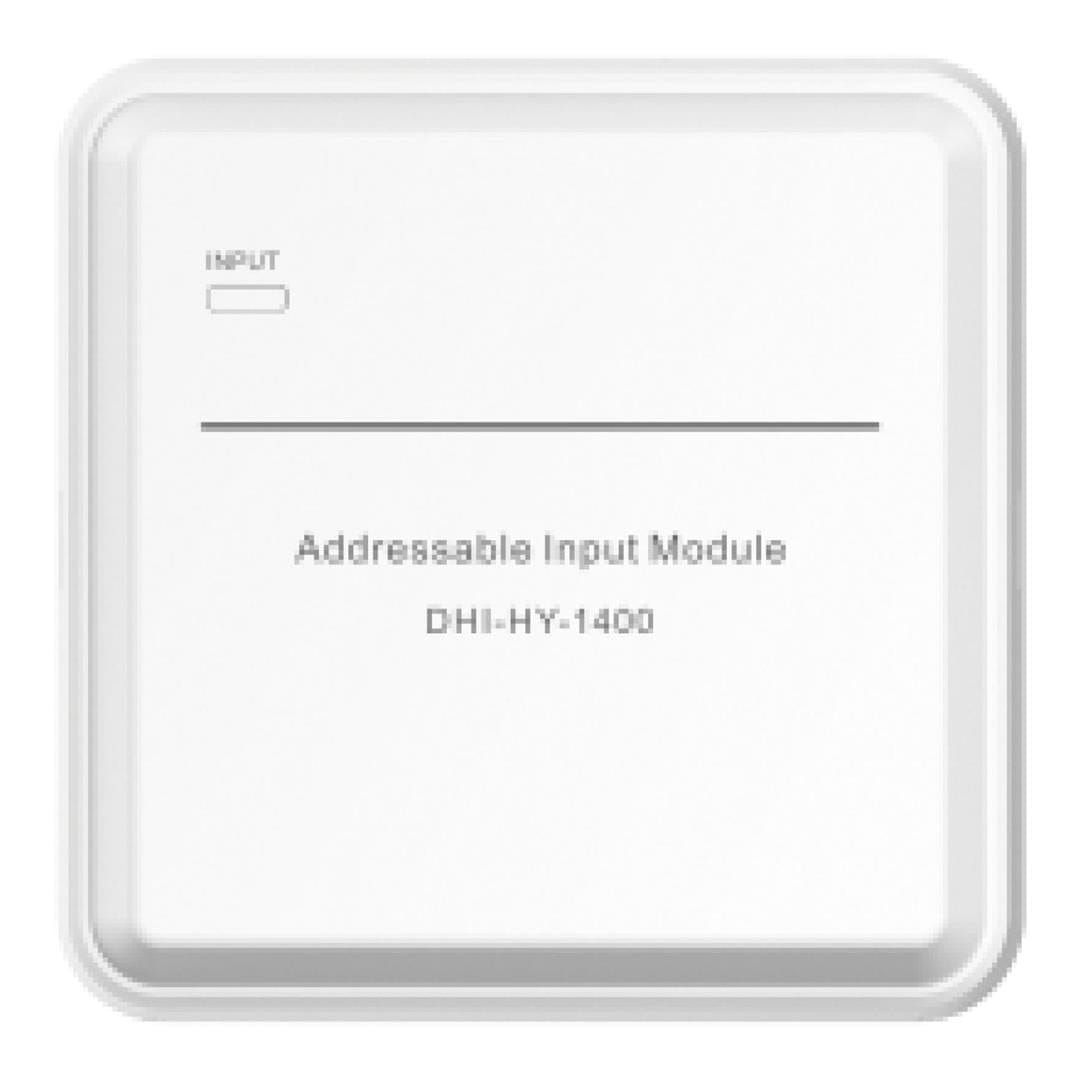

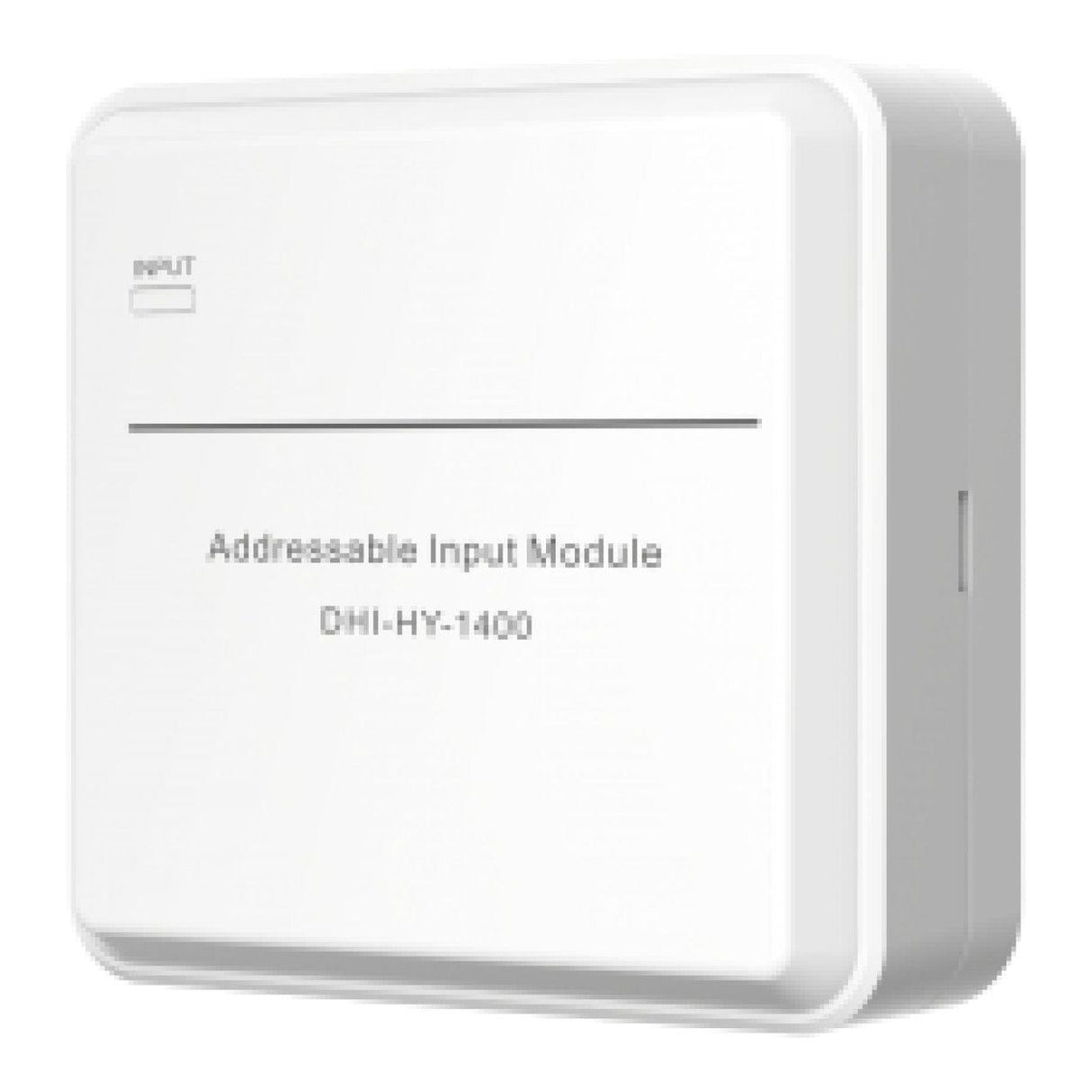

WisuAlarm HY-1400 Addressable Fire Input Module

WisuAlarm HY-1400 Addressable Fire Input Module

Please note: Base not included.

Addressable Input Module

• Convenient wiring: two-wire, polarity-free
• Reliable communication: built-in microprocessor, performance is stable
• Ultra-low power consumption: ultra-low monitoring current and operating current
• Simple installation: with a plug-in structure, easy to install and construct

Specifications:

Working Voltage: 24V DC

Current:

• Monitoring current: ≤ 150μA
• Operating current: ≤ 190μA

Indicator: Red indicator flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned

Communication

Wiring: Two-wire, polarity-free

Addressing Method: Electrical encoder

Address Range: 1–254

Communication

Distance: ≤ 1500 m

Operating Temperature: –10°C to +55°C

Storage Temperature: –20°C to +65°C

Operating Humidity: ≤ 95% RH (no condensation)

Colour: White

Dimensions (with base): 90 mm × 90 mm × 37 mm

Weight (with base): 103 g

Compliance Standard: EN54-18
