WisuAlarm HY-1330 Addressable Fire Repeater Panel

WisuAlarm HY-1330 Addressable Fire Repeater Panel

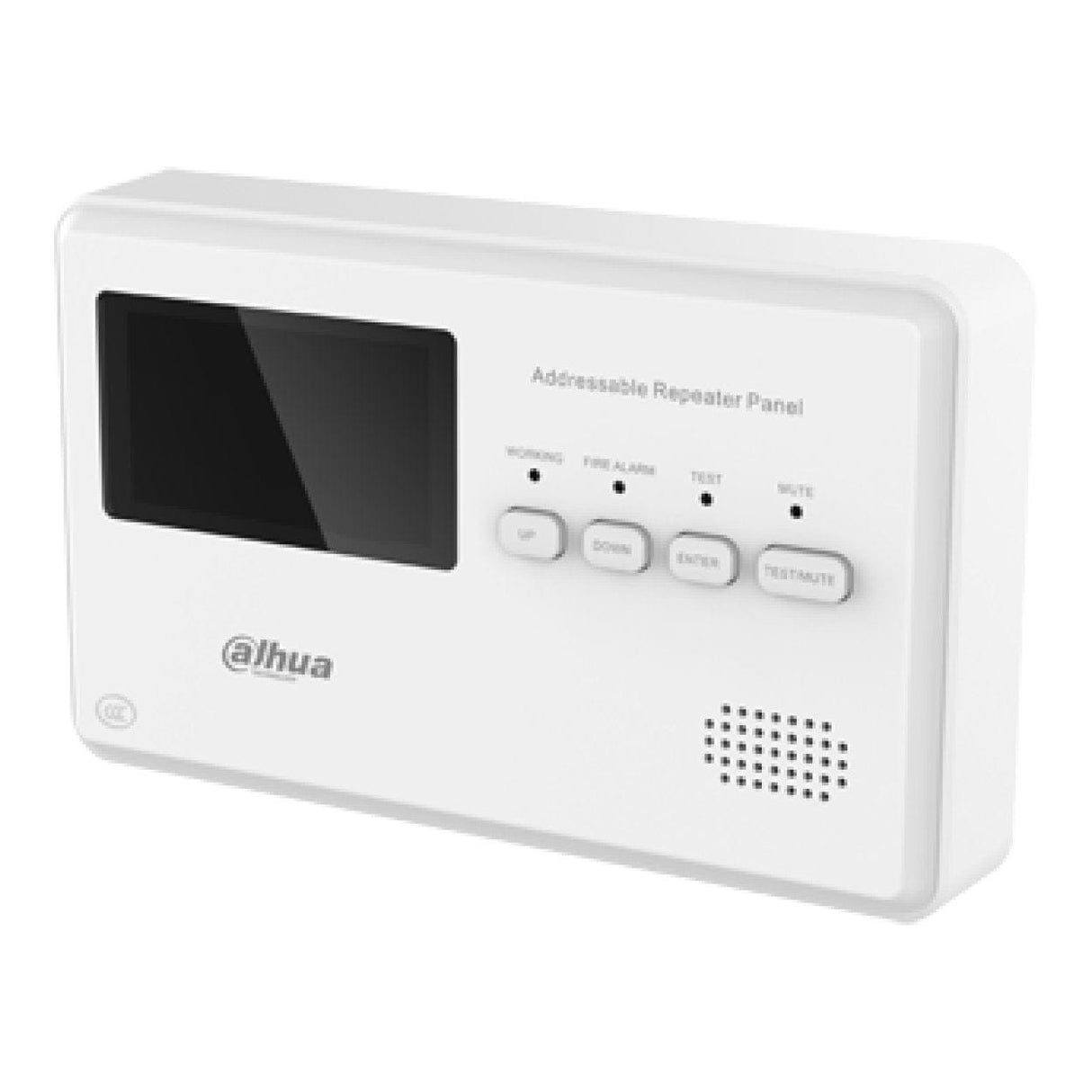

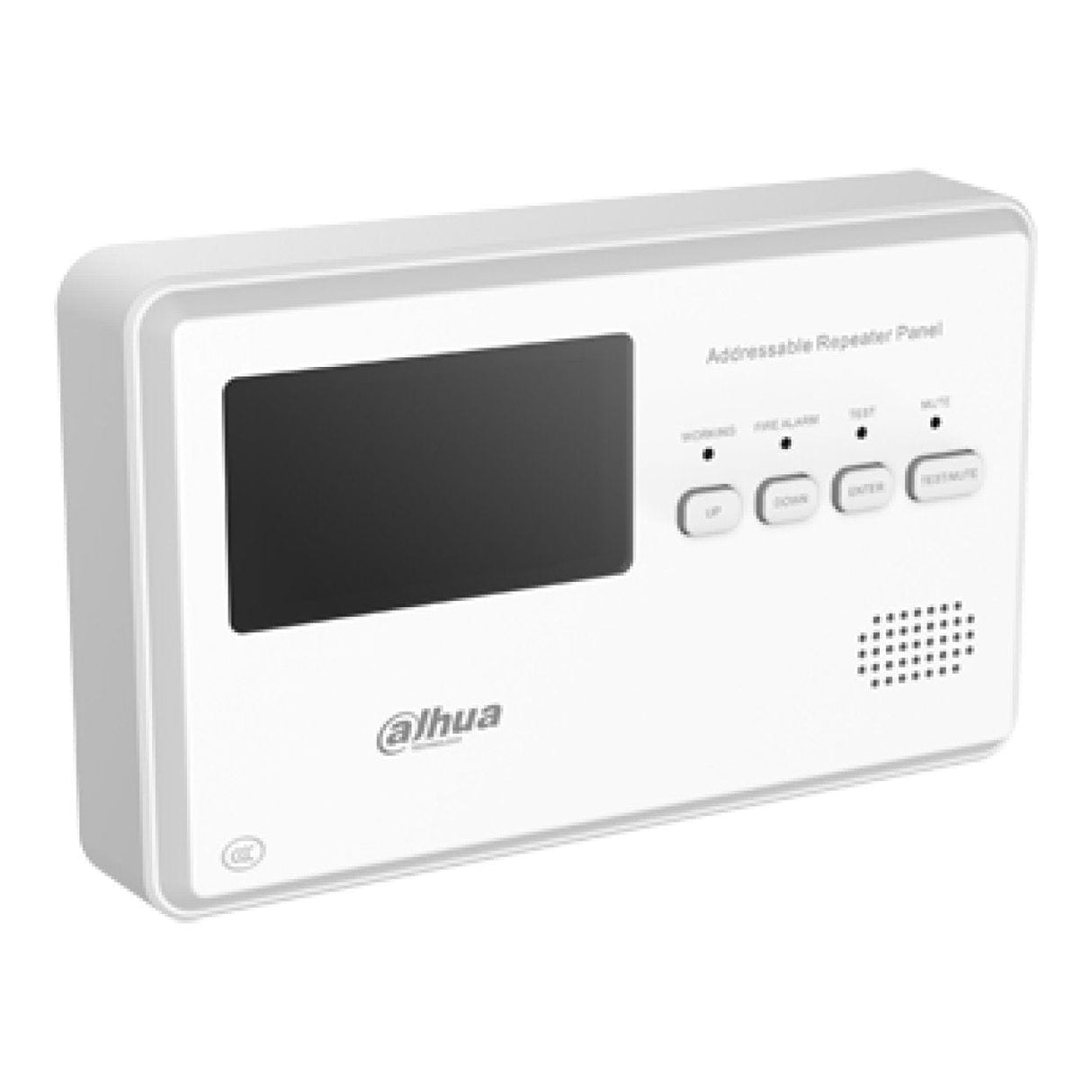

DHI-HY-1330 Addressable Repeater Panel is a mated product of the Addressable Fire Alarm Control Panel, displaying fire alarm information in the building. When a fire occurs, the relevant detailed information of the alarm in the corresponding area will be displayed, and Addressable Repeater Panel will send out an audible alarm signal to notify the personnel to evacuate in time.

Specifications:

Model: DHI-HY-1330

Working Voltage: 24V DC

Current:

• Monitoring current: ≤ 2mA
• Maximum operating current: ≤ 10mA

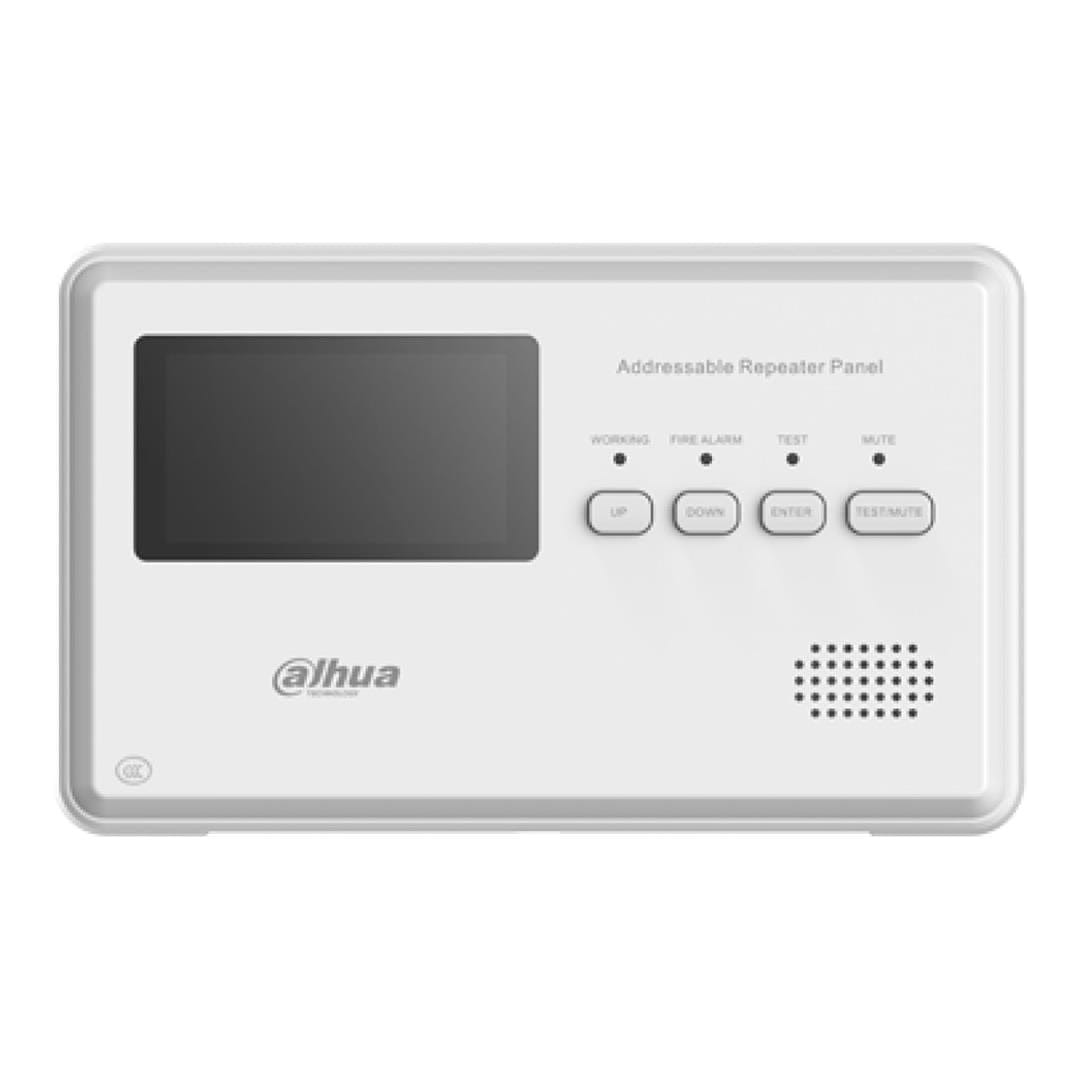

Indicator:

• Working: Green indicator flashes every 6 s during polling,   flashes quickly during malfunctioned
• Alarm: Red indicator remains lit during alarm
• Self-test: Yellow indicator remains lit during self-test      Mute: Yellow indicator remains lit when   Test/Mute Button is pressed

Display Capacity: 999 pieces of alarm information

Display: 64×128 LCD screen

Wiring: Two-wire, polarity-free

Addressing Method: Electrical encoder

Address Range: 1–254

Communication Distance: 1500 m

Alarm Sound Pressure: 65dB–115dB (A) @ 1m

Operating Temperature: –10°C to +40°C

Storage Temperature: –20°C to +65°C

Operating Humidity: ≤ 95% RH (no condensation)

Colour: White

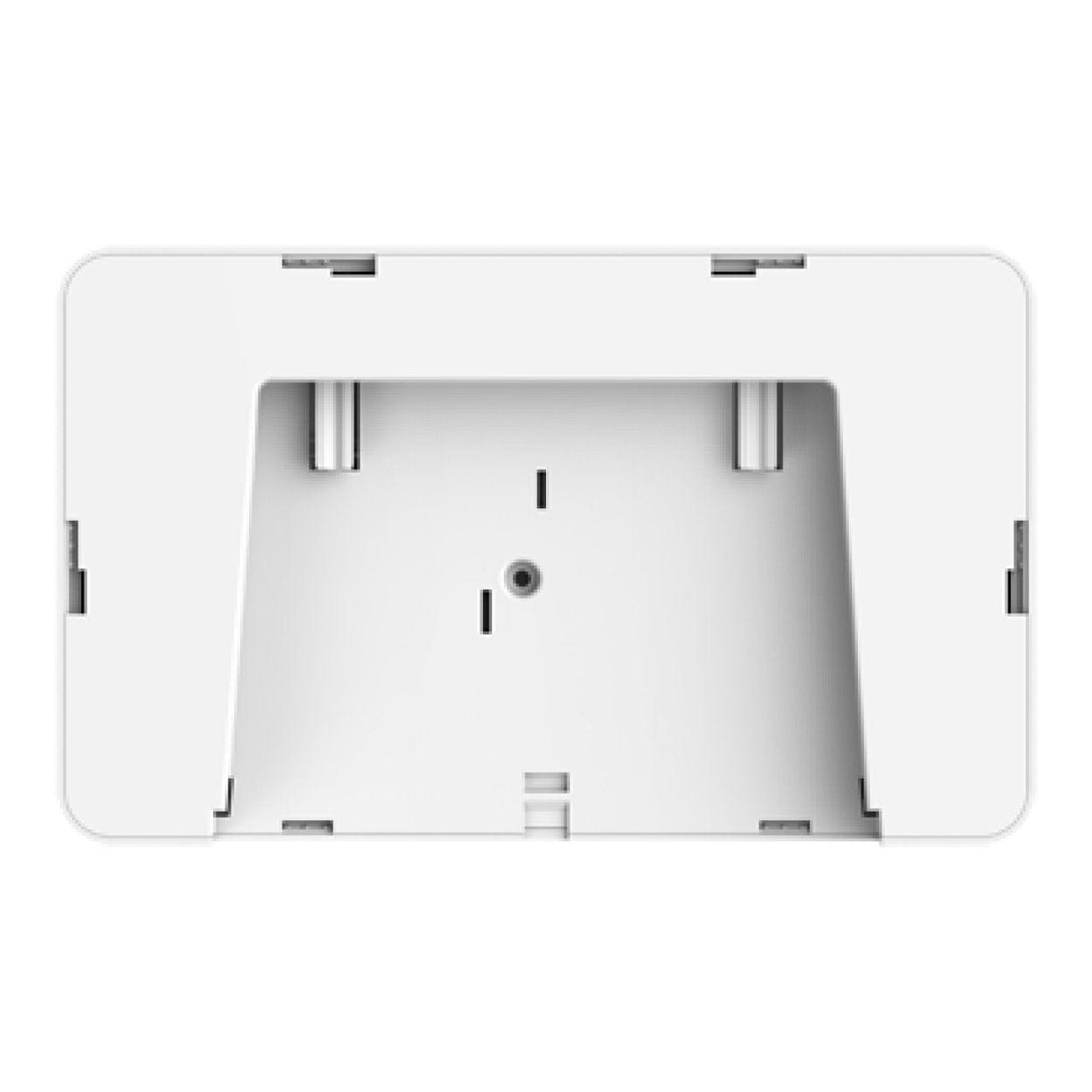

Dimensions (with base): 180.0 mm × 110.0 mm × 32.0 mm *Base Included

Weight (with base): 270 g *Base Included

Certifications: GB 17429-2011
