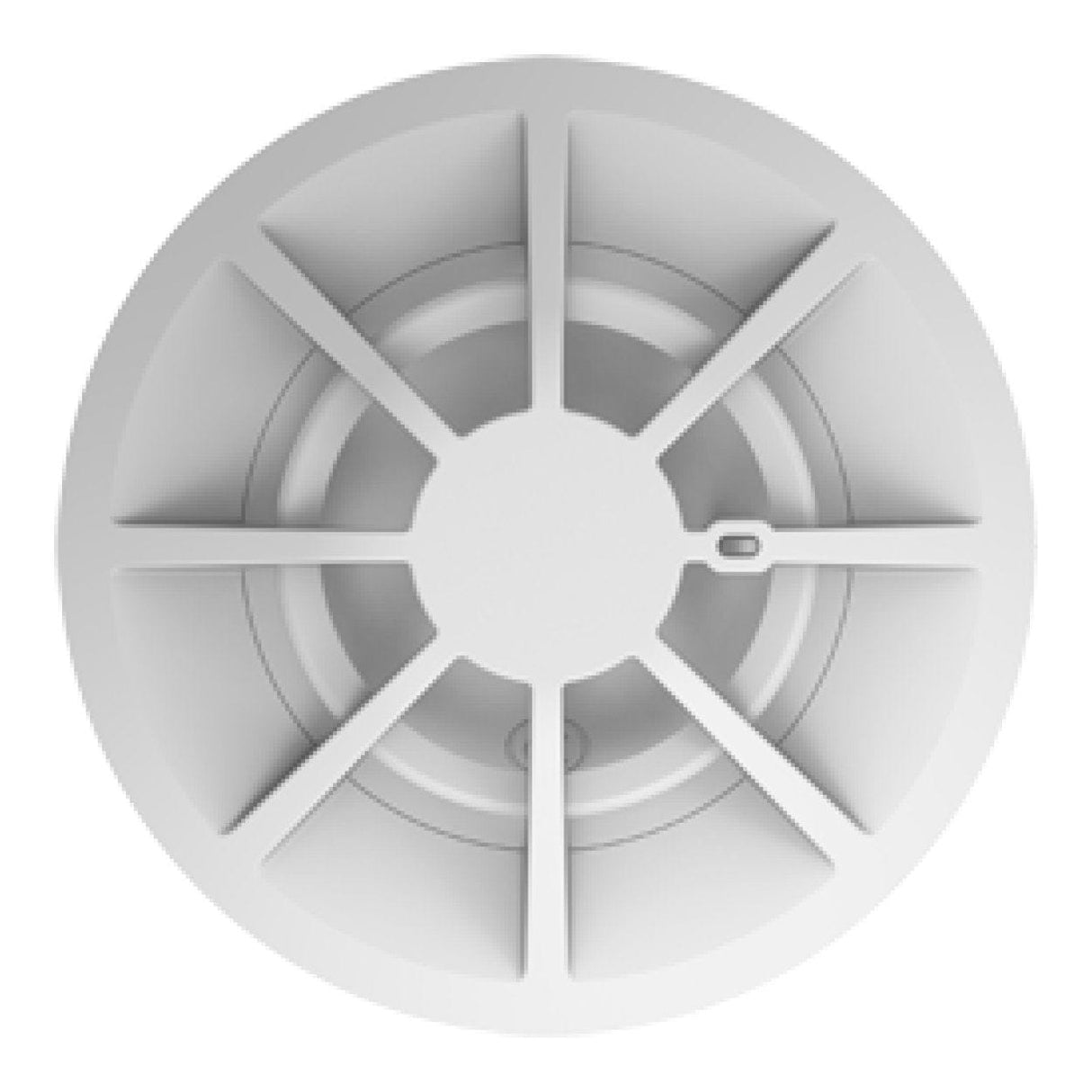

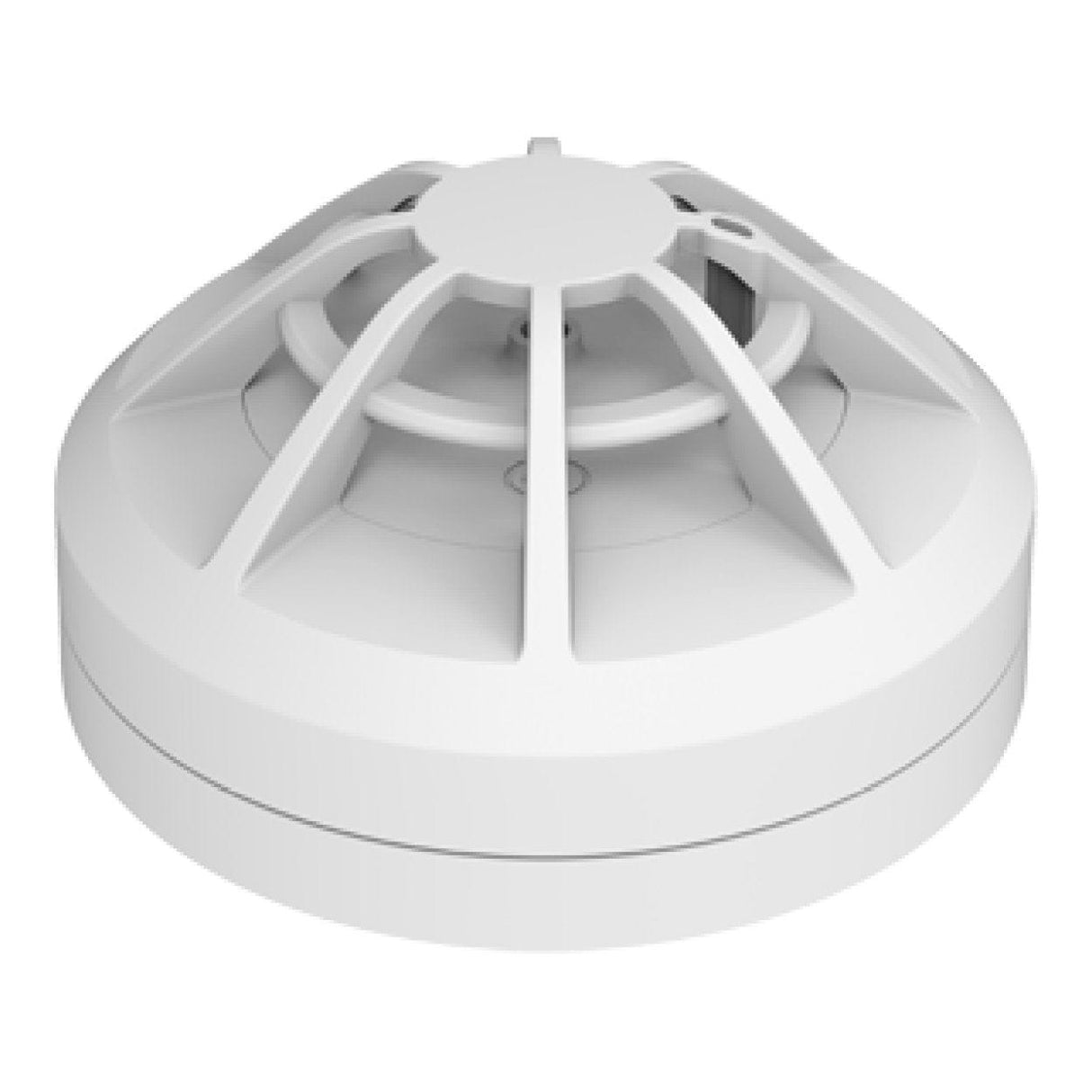

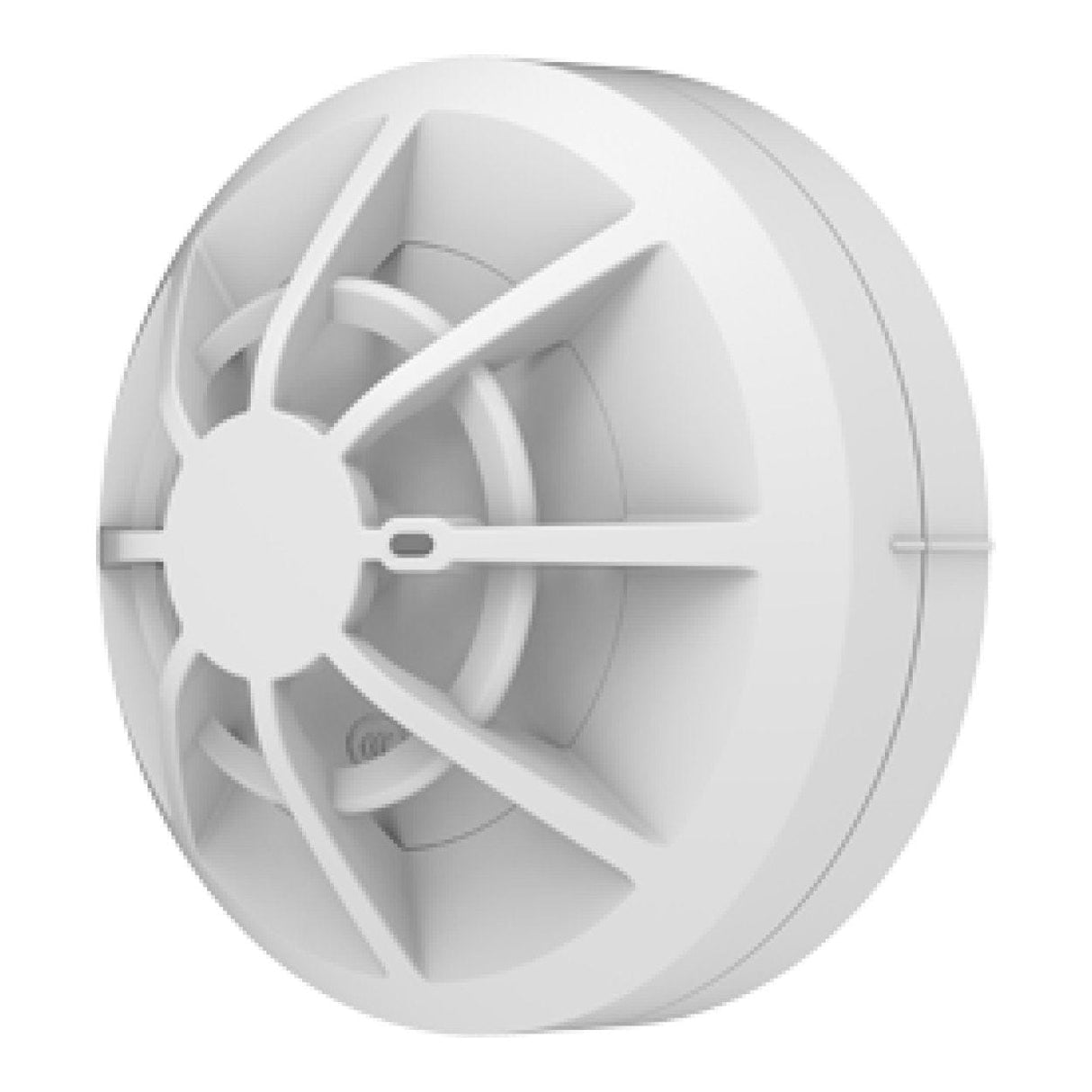

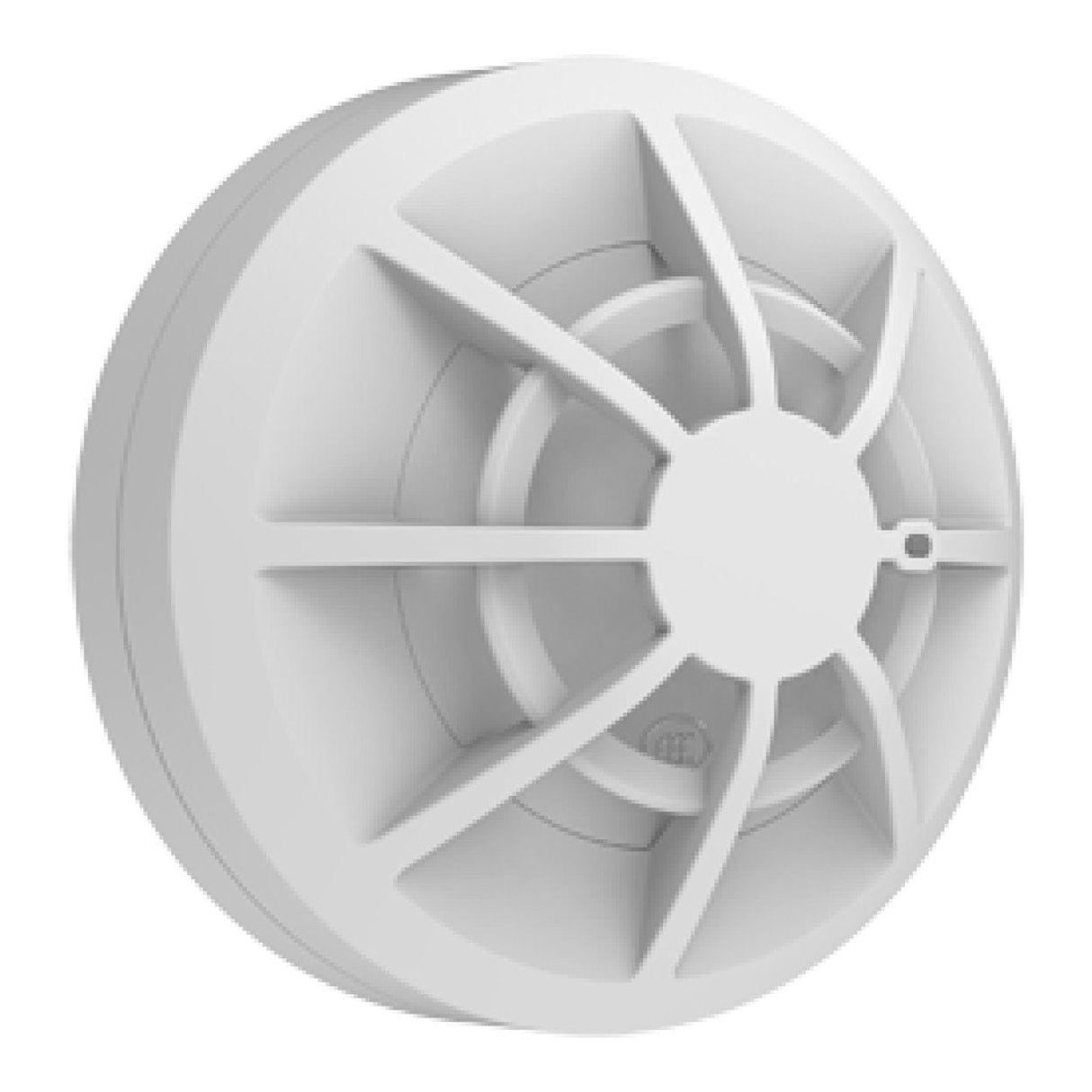

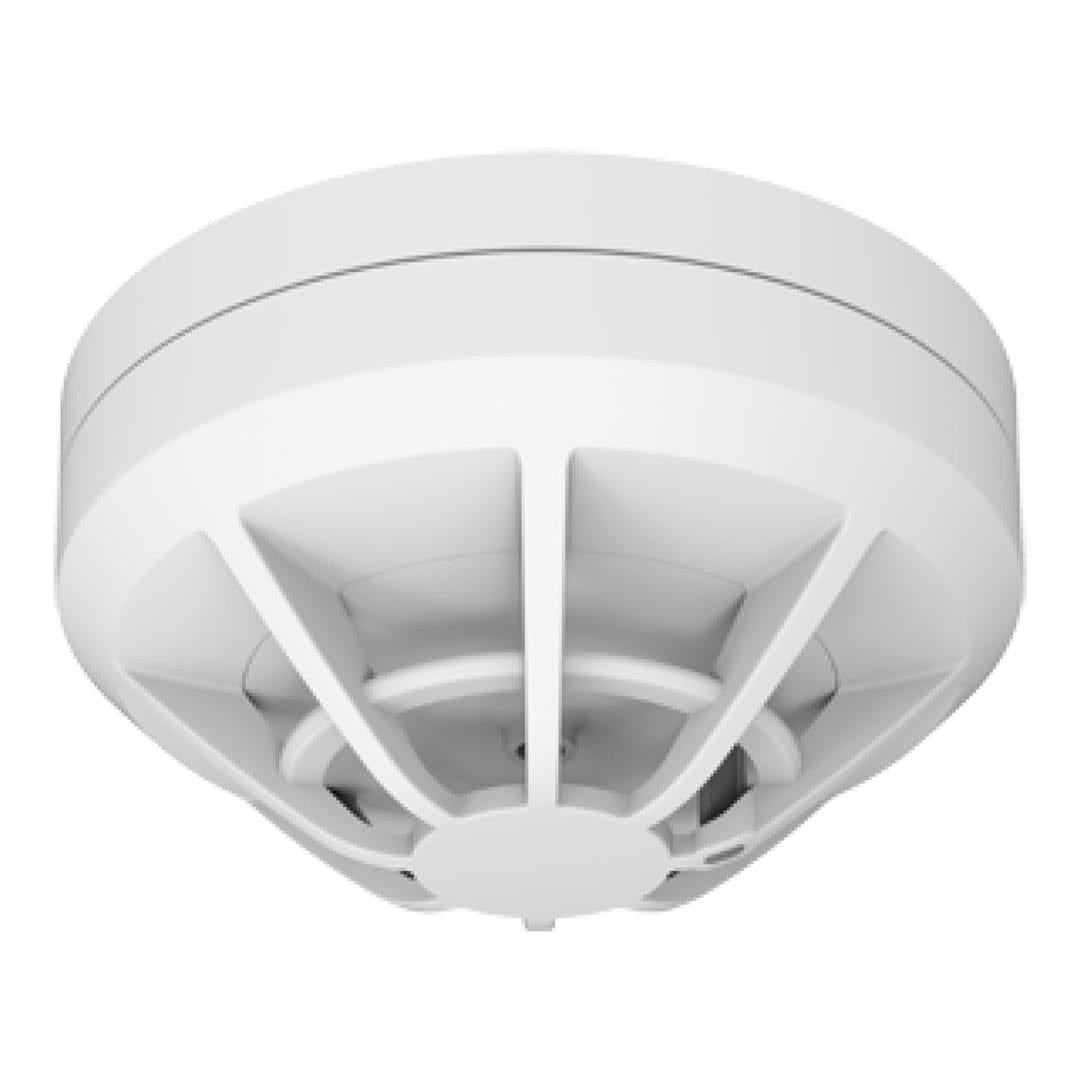

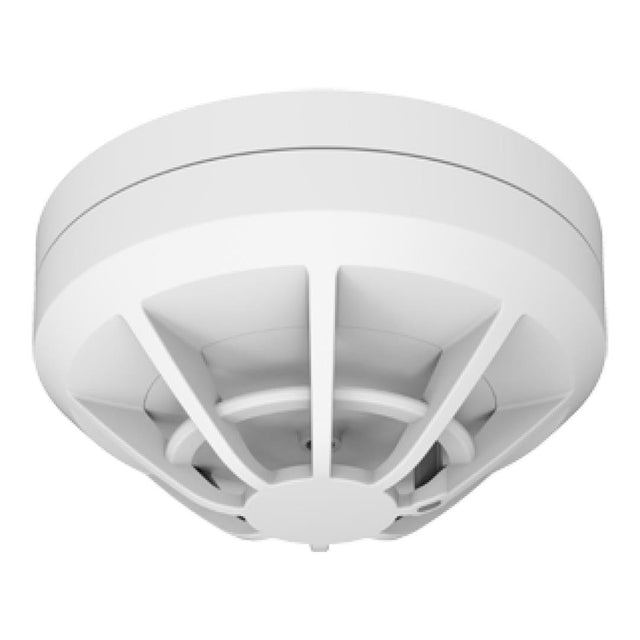

WisuAlarm HY-1310 Addressable Fire Heat Detector

WisuAlarm HY-1310 Addressable Fire Heat Detector

Please note: Base not included.

DHI-HY-1310 Addressable Heat Detector is a mated product of the Addressable Fire Alarm Control Panel. Integrated with non-polarity two wire and temperature sensor, this detector analyzes ambient temperature by intelligent algorithm to trigger alarms. When the temperature has reached the alarm threshold, the Addressable Fire Alarm Control Panel will confirm a fire alarm according to the received message sent from the detector, and the detector indicator will light simultaneously to indicate alarm.

Specifications:

Model: DHI-HY-1310

Working Voltage: 24V DC

Current:

• Monitoring current: ≤ 120μA
• Maximum operating current: ≤170μA

Indicator:

• Red
• Polling: Flash 6 seconds
• Alarm: Remain lit
• Fault: Flash 2 seconds

Alarm Threshold: A2R (54°C to 62°C)

Wiring: Two-wire, polarity-free

Addressing Method: Electrical encoder

Address Range: 1–254

Communication Distance: ≤ 1500 m

Operating Temperature: –10°C to +50°C

Storage Temperature: –20°C to +65°C

Operating Humidity: ≤ 95% RH (no condensation)

Colour: White

Dimensions (with base): Φ 100 mm × 50 mm

Weight (with base): 81 g

Certifications: GB 4716-2005
