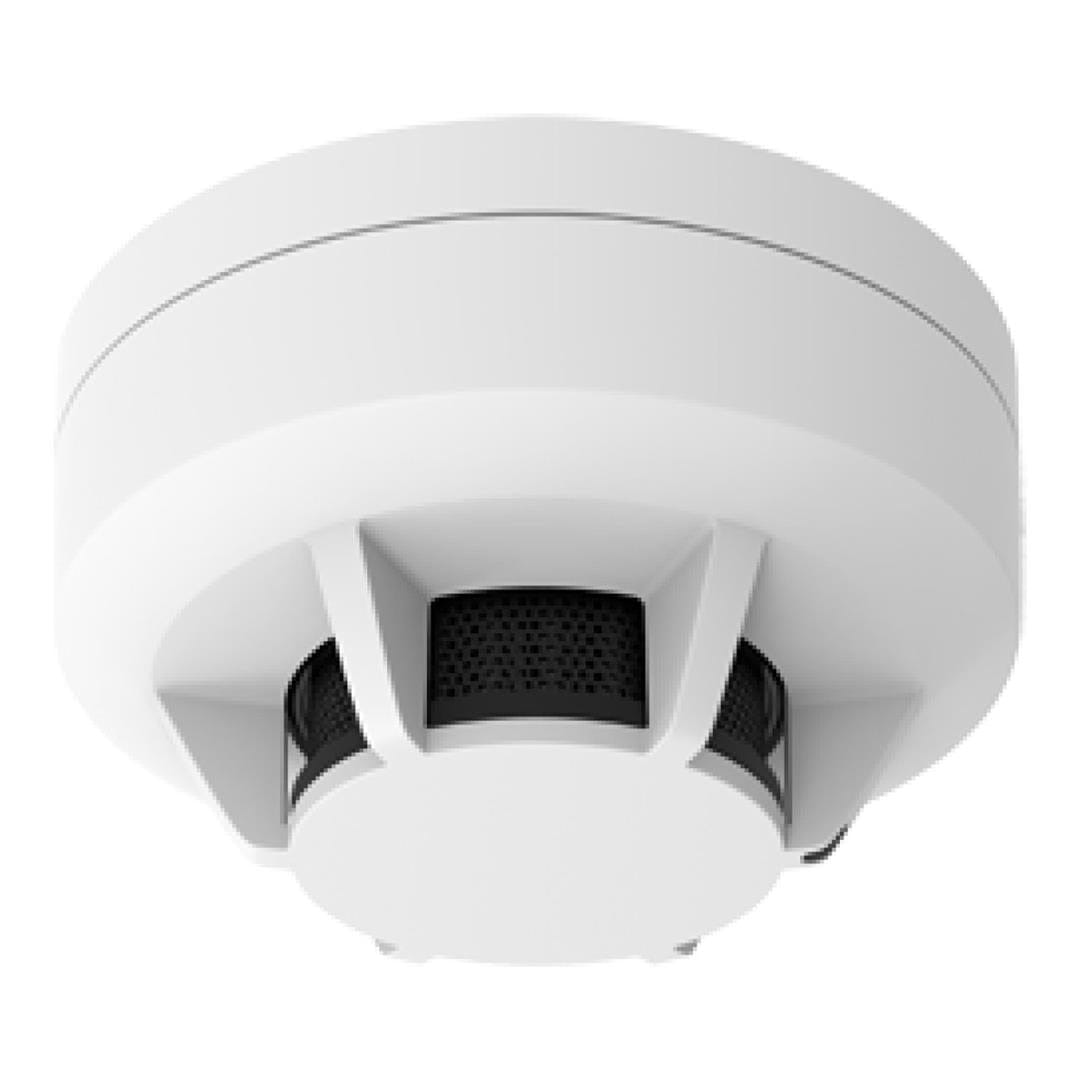

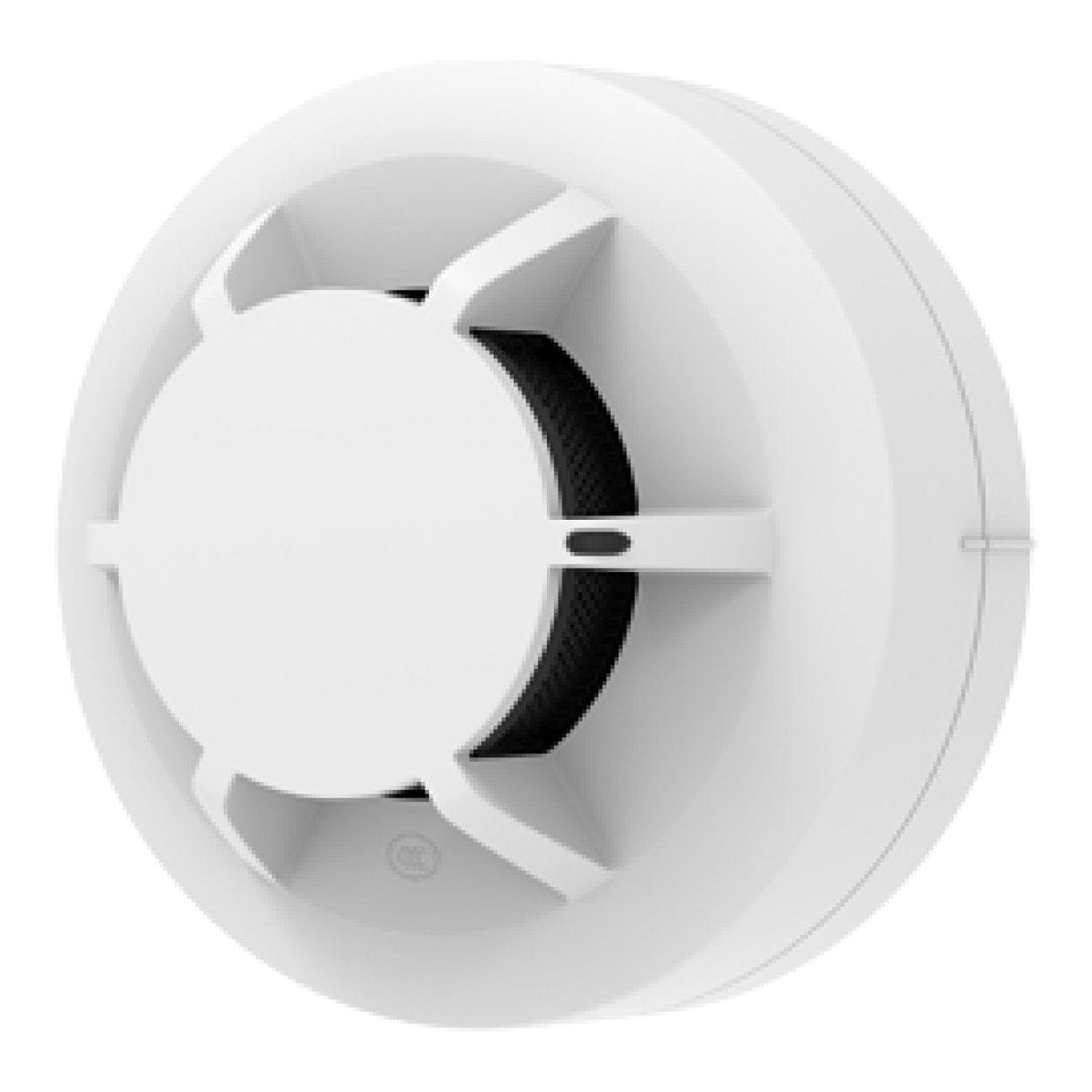

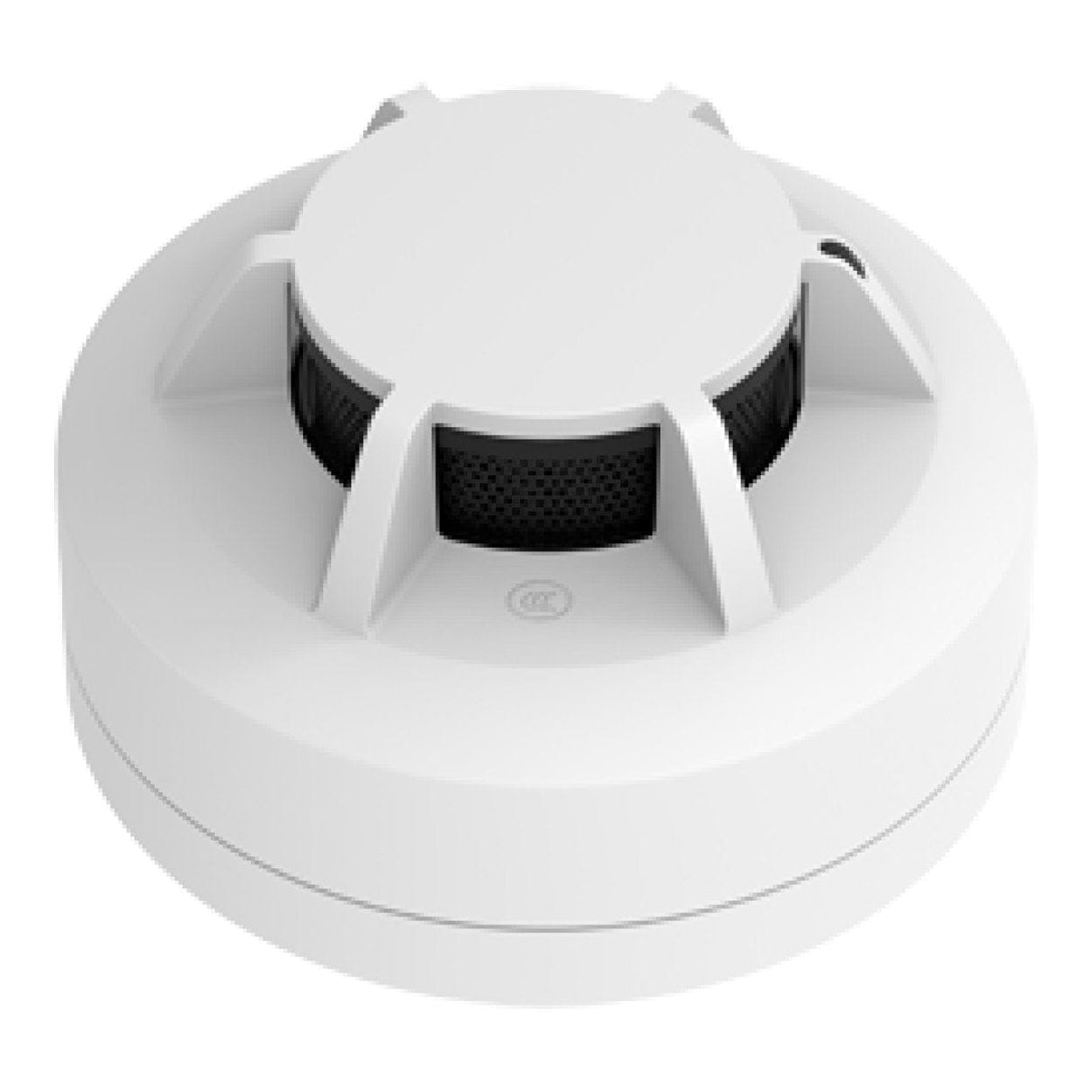

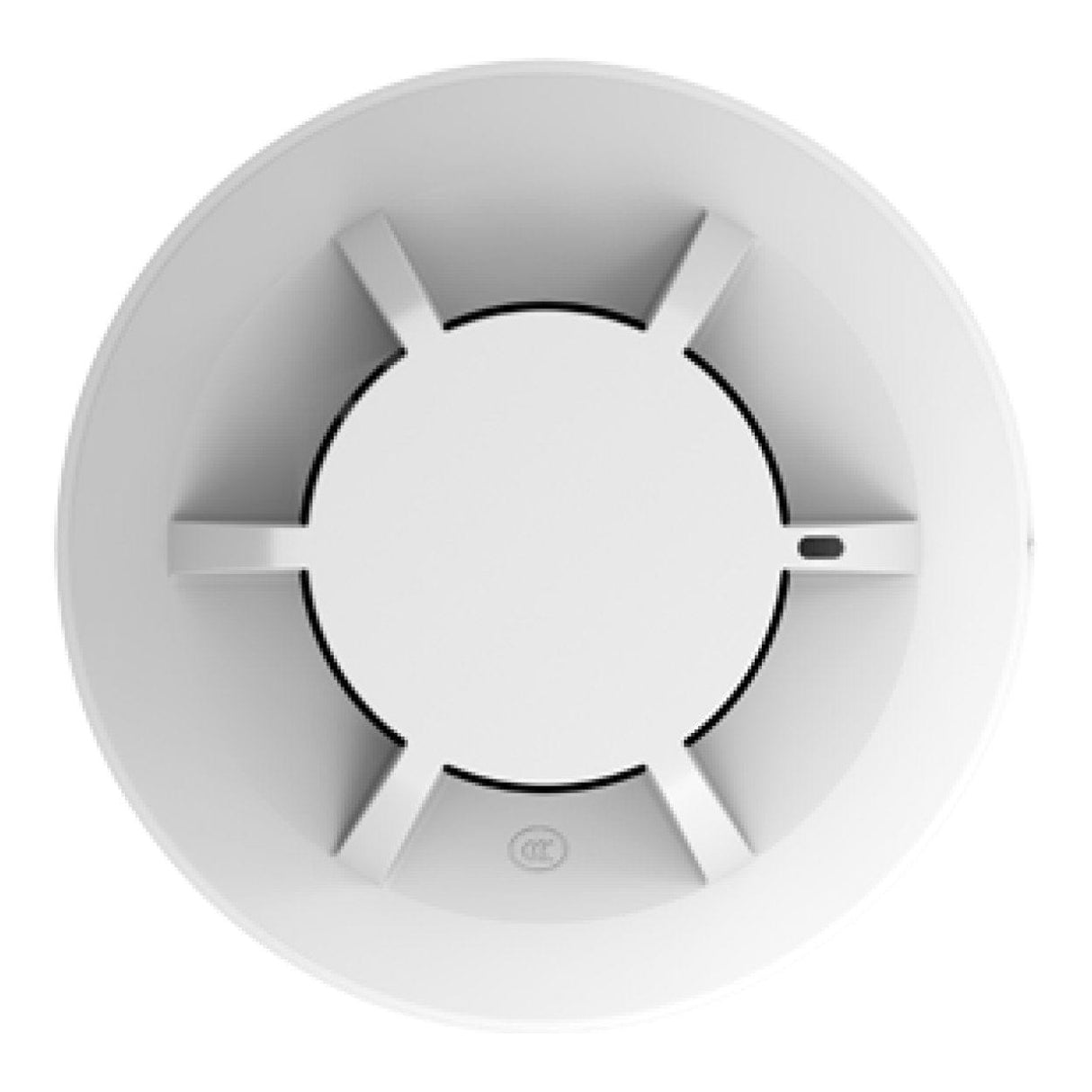

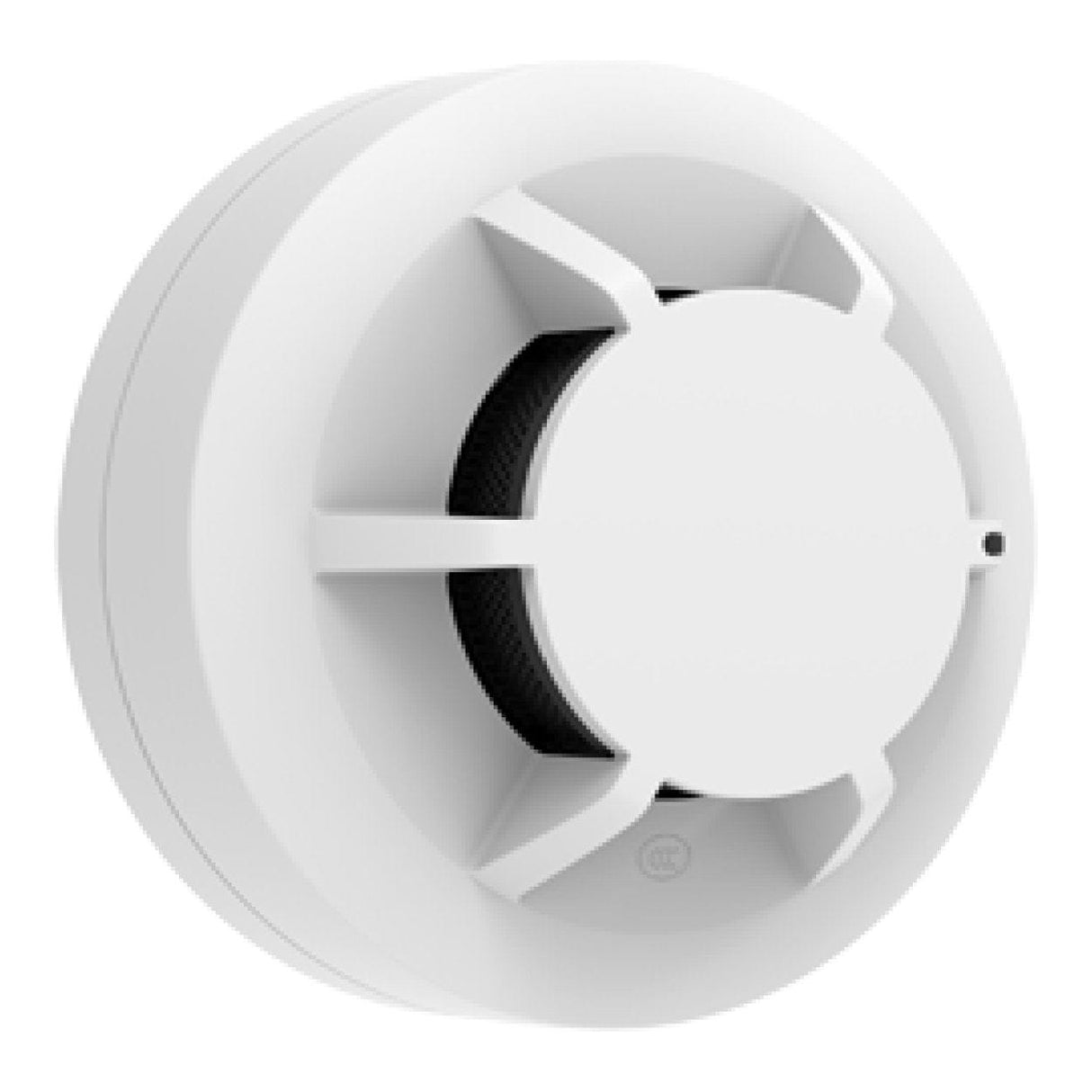

WisuAlarm HY-1301 Addressable Fire Smoke Detector

WisuAlarm HY-1301 Addressable Fire Smoke Detector

Please note: Base not included.

DHI-HY-1301 Addressable Smoke Detector is a mated product of the Addressable Fire Alarm Control Panel. Integrated with non-polarity two wire and smoke sensor, this detector analyzes ambient smoke concentration by intelligent algorithm to trigger alarms. When the concentration has reached the alarm threshold, the Addressable Fire Alarm Control Panel will confirm a fire alarm according to the received message sent from the detector, and the detector indicator will light simultaneously to indicate alarm.

Specifications:

Model: DHI-HY-1301

Working Voltage: 24V DC

Current:

• Monitoring current: ≤ 180μA
• Maximum operating current: ≤ 280μA

Indicator:

• Red
• Polling: Flash 6 seconds
• Alarm: Remain lit
• Fault: Flash 2 seconds

Wiring: Two-wire, polarity-free

Addressing Method: Electrical encoder

Address Range: 1–254

Communication Distance: ≤ 1500 m

Operating Temperature: –10°C to +50°C

Storage Temperature: –20°C to +65°C

Operating Humidity: ≤ 95% RH (no condensation)

Colour: White

Dimensions (with base): Φ100 mm × 50 mm *Base not included.

Weight (with base): 102 g *Base not included.

Certifications: GB 4715-2005
