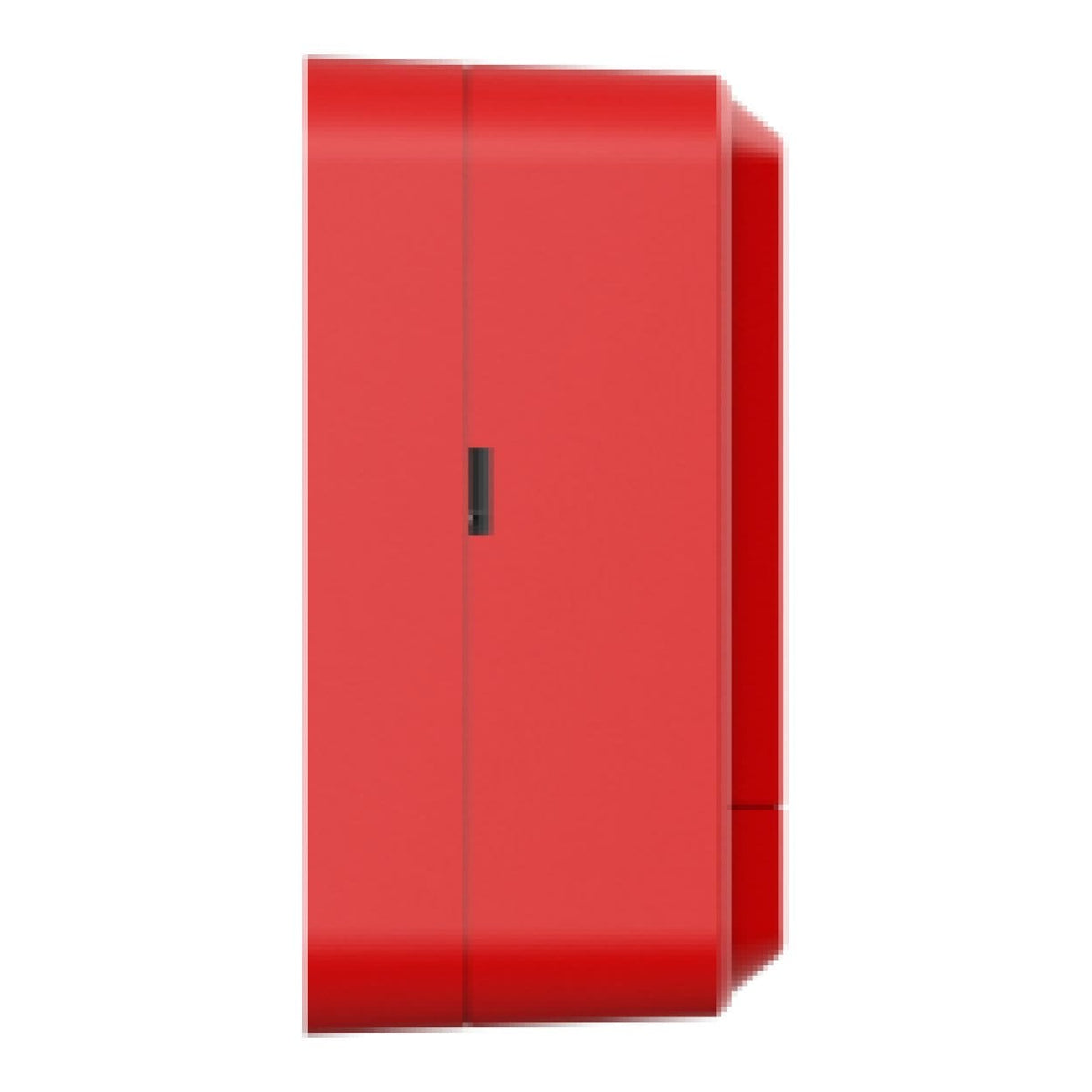

WisuAlarm HY-1200 Addressable Fire Manual Call Point

WisuAlarm HY-1200 Addressable Fire Manual Call Point

Please note: Base not included.

Addressable Manual Call Point

• Convenient wiring: Two-wire, polarity-free
• Reliable communication: Built-in microprocessor, performance is stable
• Ultra-low power consumption: Ultra-low monitoring current and alarm current
• Independent output: A pair of normally open contacts telephone system
• Simple installation: With a plug-in structure, easy to install and construct

Specifications:

Working Voltage: DC24V

Current:

• Monitoring current: ≤ 350μA
• Alarm current: ≤ 400μA

Contacts Capacity: DC30V/100mA

Indicator

Fire Alarm: Red indicator flashes slowly during polling, flashes quickly during malfunction and remains lit during alarm

Phone: Red indicator flashes during polling and communication

Communication

Wiring: Two-wire, polarity-free

Addressing Method: Electrical encoder

Address Range: 1–254

Distance: 1500 m

Operating Temperature: –10°C to +55°C

Storage Temperature: –20°C to +65°C

Operating Humidity: ≤ 95% RH (no condensation)

Colour: Red

Dimensions (with base): 90 mm × 90 mm × 44 mm

Weight (with base): 136 g *not included

Compliance Standard: EN54-11
