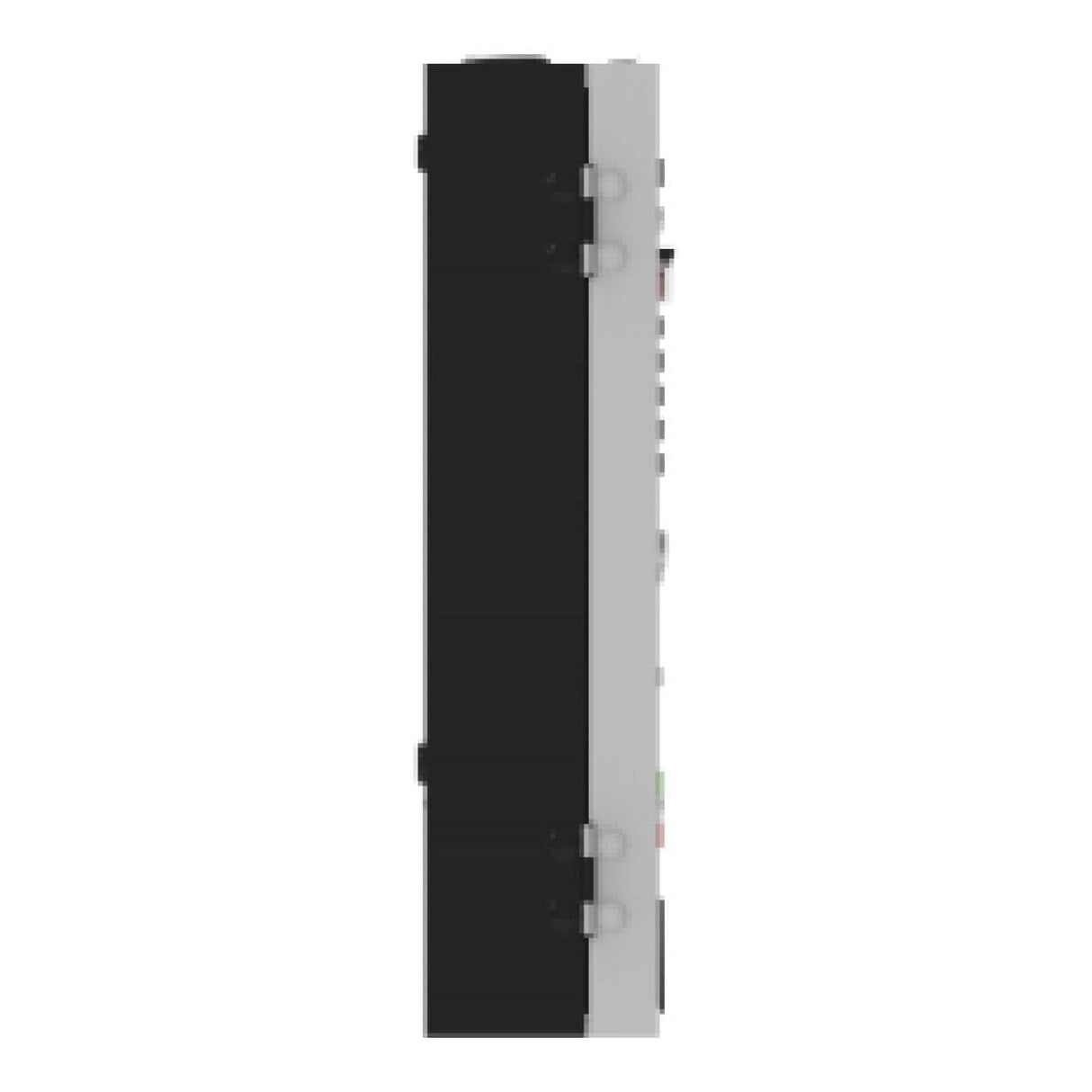

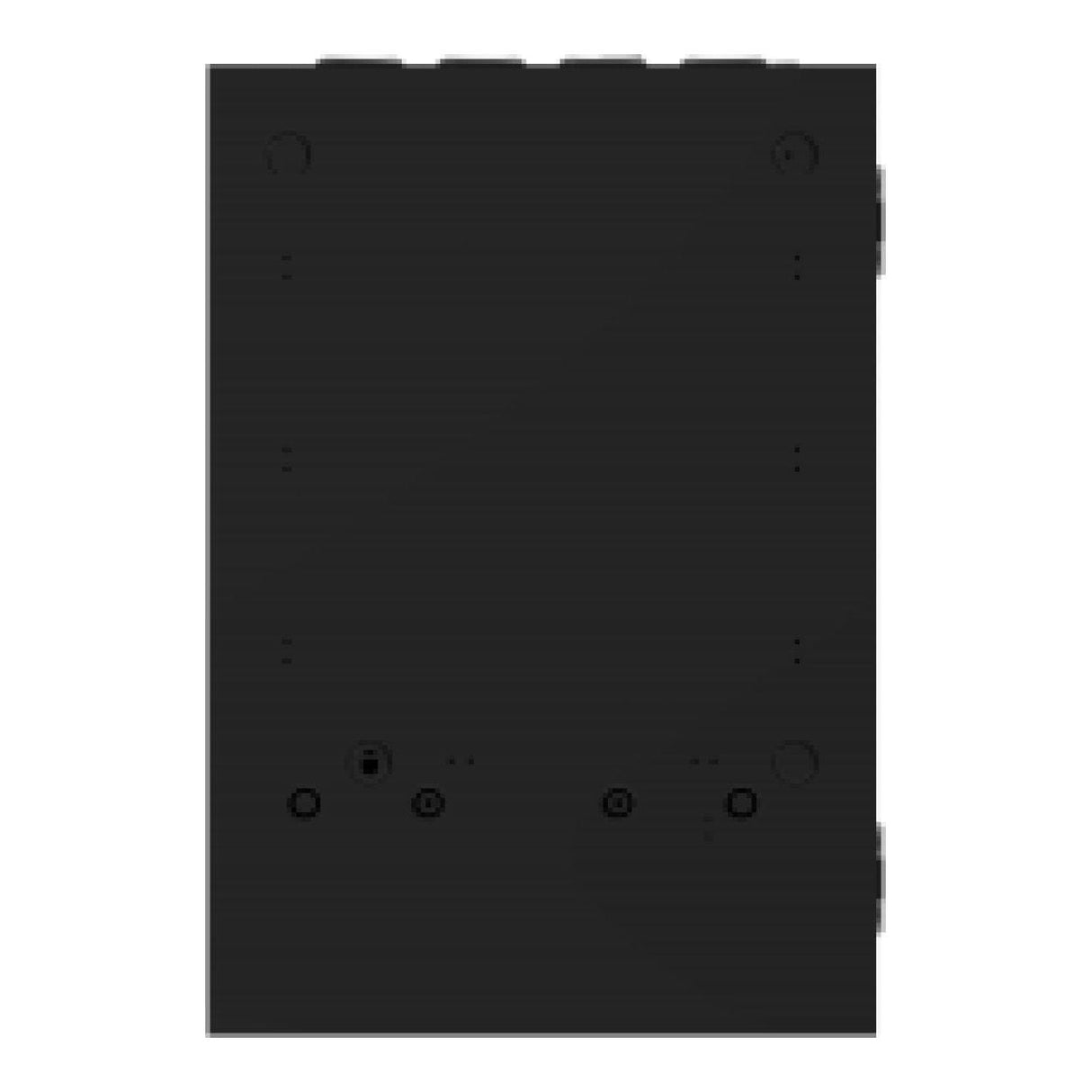

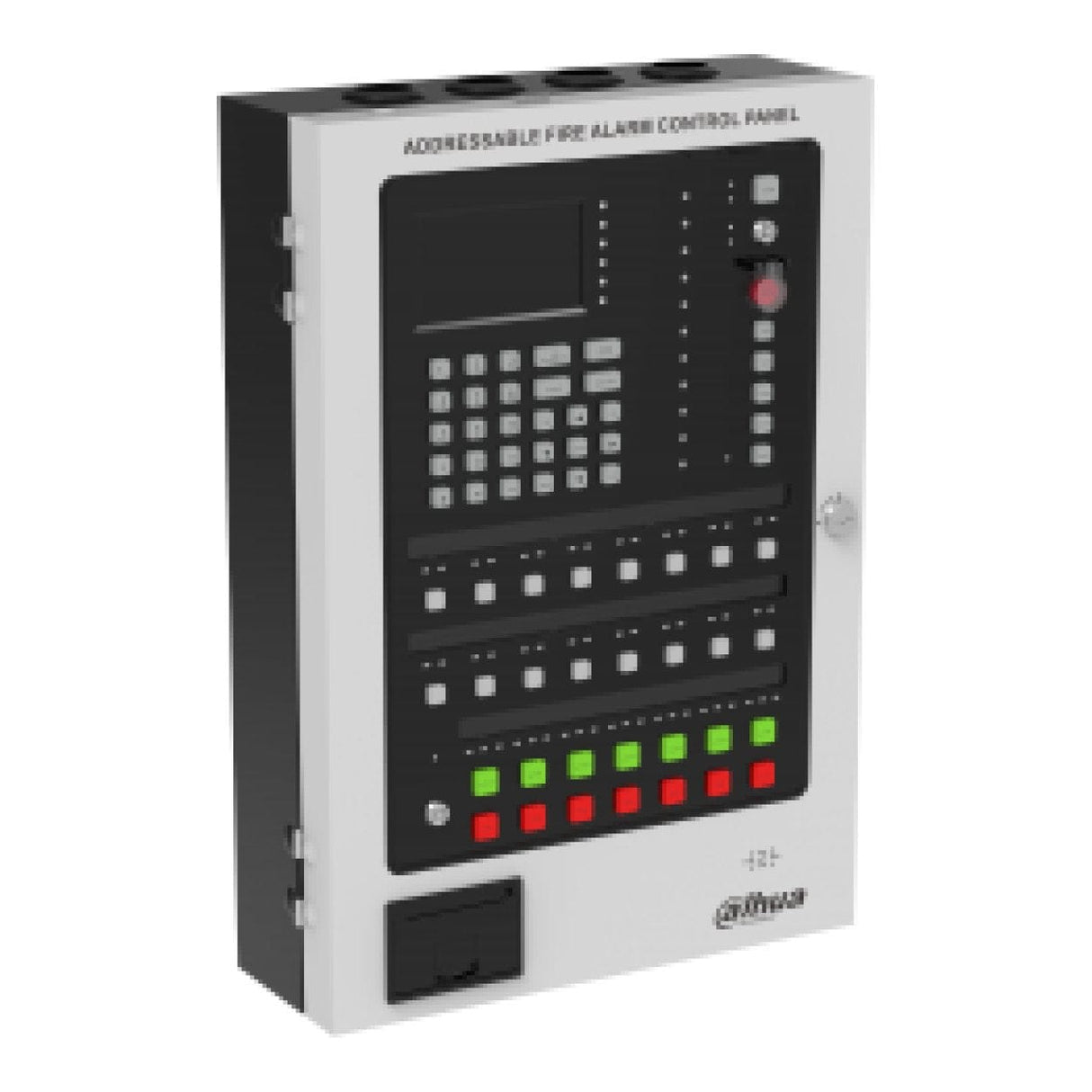

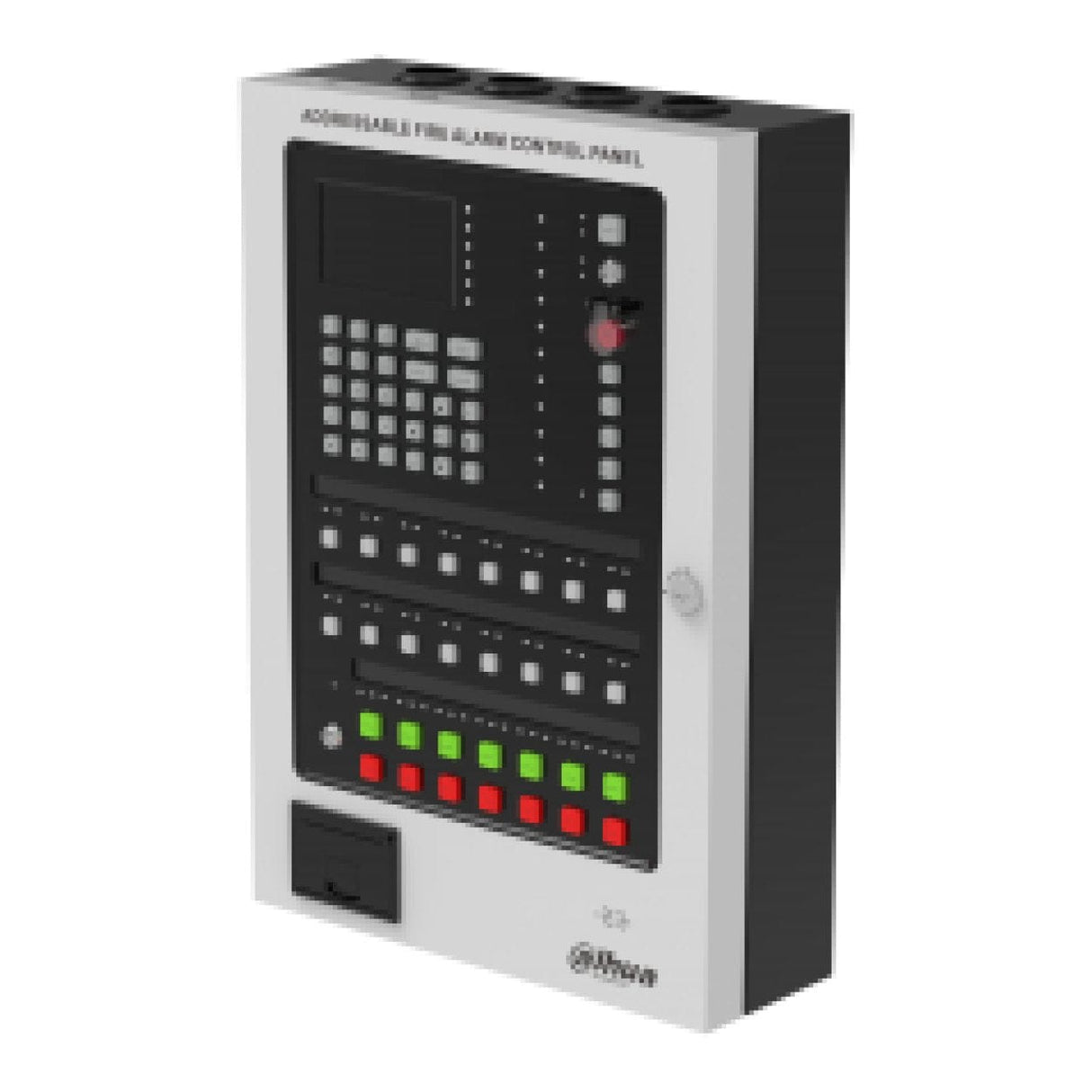

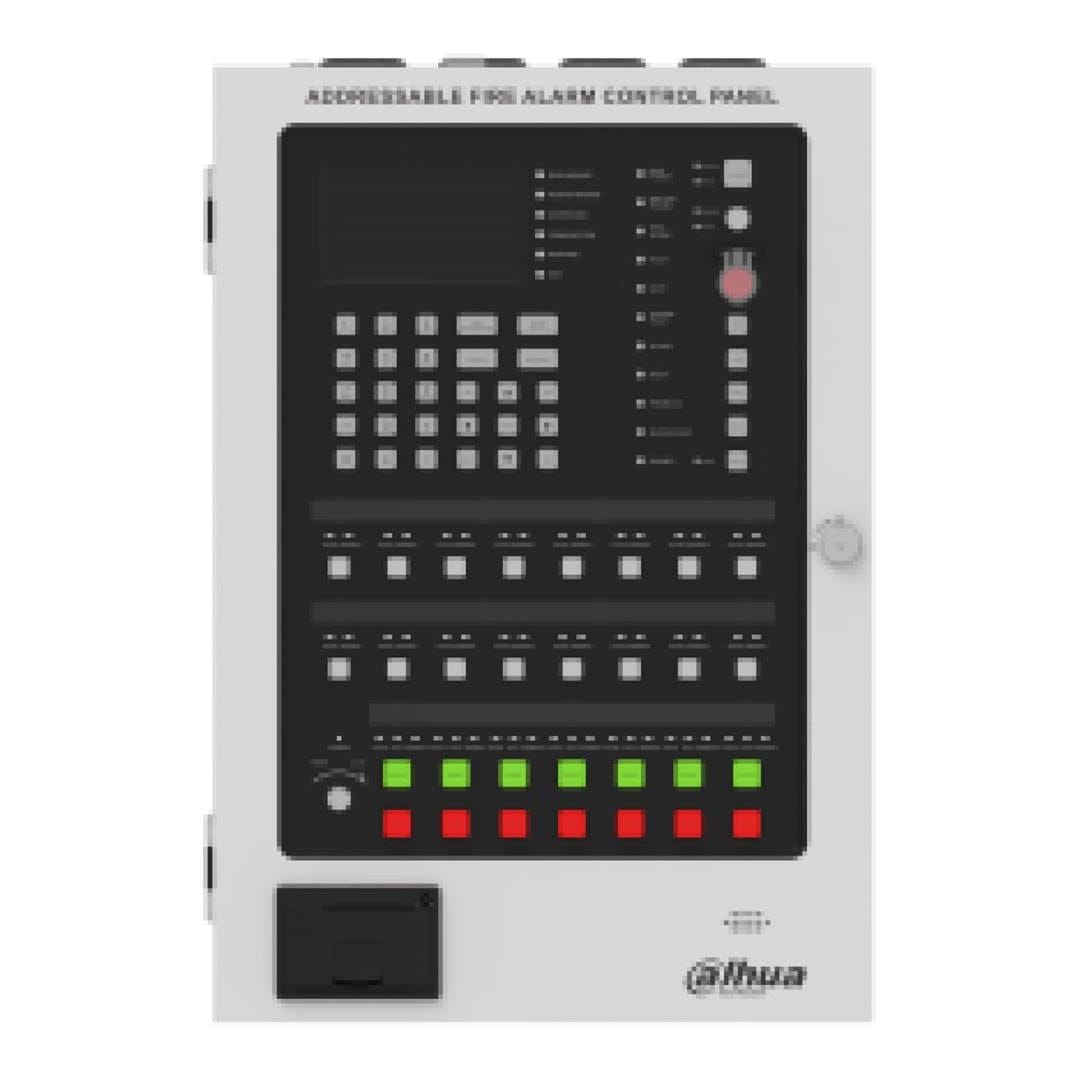

WisuAlarm HY-1022R Fire Addressable 254 Device Alarm Control Panel

WisuAlarm HY-1022R Fire Addressable 254 Device Alarm Control Panel

Addressable fire alarm control panel with optional printer

• Class A Topology: Reduce wiring costs and enhance circuit stability.
• Two-Wire, Polarity-Free Communication: The system uses a two-wire, polarity-free technology, eliminating the need for an external power source. This enhances reliability, simplifies wiring, reduces costs, and facilitates maintenance.
• User-Friendly Display: The 4.3-inch LCD screen (480 × 272) offers an intuitive interface for complete system setup without external tools.
• Extended Event Logging: Historical events are securely saved and can be queried and printed by time and type.
• Intelligent Power Management: Automatic switching between main and backup power ensures a stable supply, enhancing system reliability.
• Comprehensive Protection: Includes short circuit, open circuit, and overcurrent protection for stable operation.

Specifications:

Working Voltage: 16V DC–28V DC

System Capacity: Max. 254 devices for one loop

Main Power: AC90-240V/50Hz, 60Hz

Backup Power: 2×12V/5Ah lead-acid battery

Log Record: Max. 2048

Fire Alarm Terminal: NO/NC

Fire Fault Terminal: NO/NC

Communication Distance: Max. 1500m

Max Cascade: 128 Panels By RS-485

Cable Specs: 2×1.5 mm²

Display: 480 × 272 4.3’’ LCD screen

Printer (optional): Micro thermal printer

Dimensions: 333.0 mm×115.0 mm×480.0 mm

Operating Temperature: –10°C to +40°C

Operating Humidity: ≤ 95% RH (no condensation)

Protection Grade: IP30

Weight: 7 kg / 10 kg (with 2 batteries)

Compliance Standard: EN54-2, EN54-4
