Wharfedale EZ-15A 15-inch Portable Trolley Speaker WHAR-EZ 15A

Wharfedale EZ-15A 15-inch Portable Trolley Speaker WHAR-EZ 15A

EZ-15A is a portable, battery or mains powered PA system built for events, performers, presenters, and anyone who needs dependable sound on the move. With a 15″ LF driver and 140 W peak amplification, it delivers fuller low-end and higher output, reaching 118 dB @ 1 m.

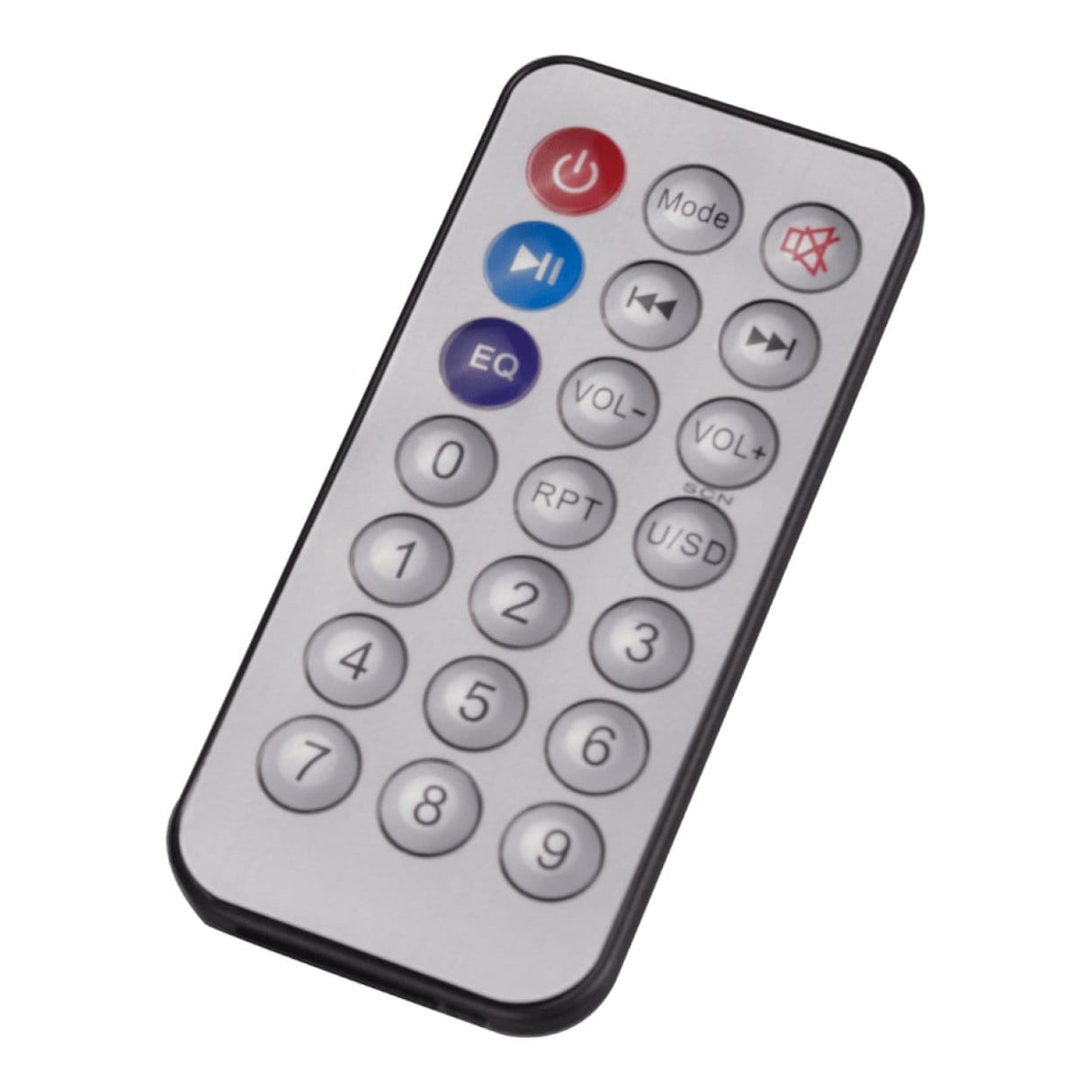

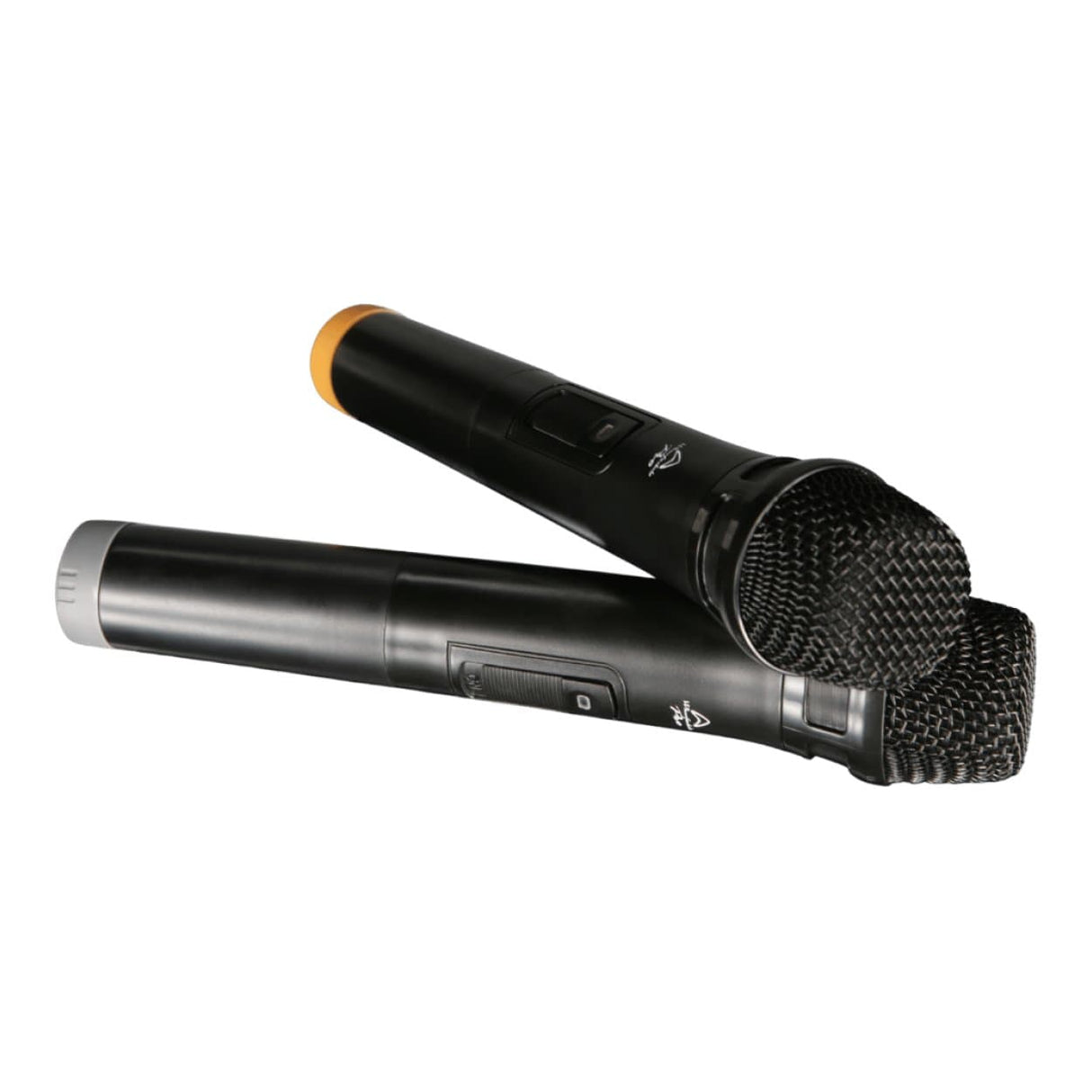

Supplied with two wireless microphones, the system also includes wired mic inputs, an internal MP3 player with USB / TF card support, Bluetooth, IR remote control, and onboard Echo processing for vocals.

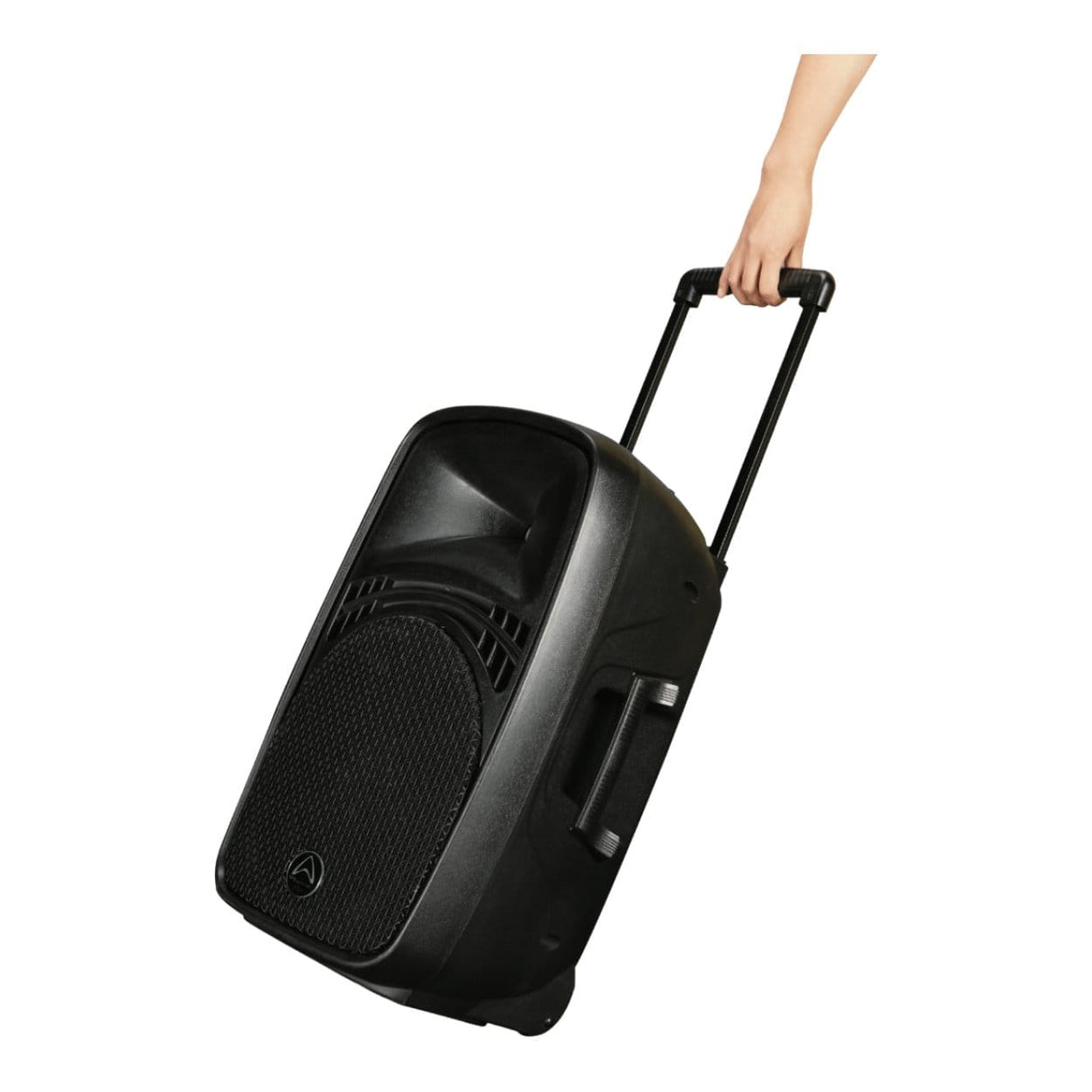

Thanks to its trolley handle and integrated wheels, the EZ-15A is quick to transport and even quicker to set up. Available in 600–606 MHz or 863–865 MHz versions, it’s a versatile all-in-one PA that’s ready for any location.

Specifications:

Active or Passive: Active

System Type: Full-Range

Configuration: 2-way

System Continuous Power: 70 W

System Peak Power: 140 W

Max SPL @ 1m: 118 dB

Freq Response (+/-3 dB): 65 Hz – 18 kHz

Freq Range (-10 dB): 55 Hz – 18 kHz

Bi-amp Mode Switch: No

Bluetooth: Yes

IP Certification: None

Driver Brand: Wharfedale Pro

LF Driver Size: 15"

LF Voice Coil Size: 1.5"

LF Rated Impedance: 4 Ω

LF Power (RE:AES2-2012): 120 W

HF Driver Type: Compression Driver

HF Voice Coil Size: 1"

HF Diaphragm Material: Resin Film

HF Exit Size: 1"

HF Power (RE:AES2-2012): 15 W

HF Rated Impedance: 8 Ω

Preset Library: No

Input Connector: XLR and 1/4” Jack, L/R RCA Connector

Waveguide Type: Square

Enclosure Material: Polypropylene

Grille Material and Finish: Steel Black

Finish: Black Polypropylene

Handles: 2

Deployment: Ground, Pole

Pole Mount: 35 mm With Lock Screw

Brackets Included: No

Rigging: No

Nominal Coverage (H x V): 90° x 50°

Sensitivity 2.83 V / 1 m: n/a dB

System Rated Impedance: n/a

Crossover Frequency: 2.6 KHZ

Transformer (T): No

Transformer Taps (70 V): No

Transformer Taps (100 V): No

Input Connectors (T): No

Amplifier design: Class D

Clip Limiter: No

EQ Type: 5-Band Graphic EQ

Line output: L/R RCA Connector

Main Power: Up to 5 hours. (6 hours charge time). 12 v, 7.5 Ah lead acid battery

Included Accessory: Two Wireless Mics, IR Remote Control, User Manual, AC Cable

Unpacked - Height (mm): 740

Unpacked - Width Front (mm): 490

Unpacked - Width Rear (mm): 490

Unpacked - Depth (mm): 400

Packed - Height (mm): 757

Packed - Width Front (mm): 410

Packed - Width Rear (mm): 410

Packed - Depth (mm): 410

Weight - Nett (kg): 13.8

Weight - Gross (kg): 16.06
