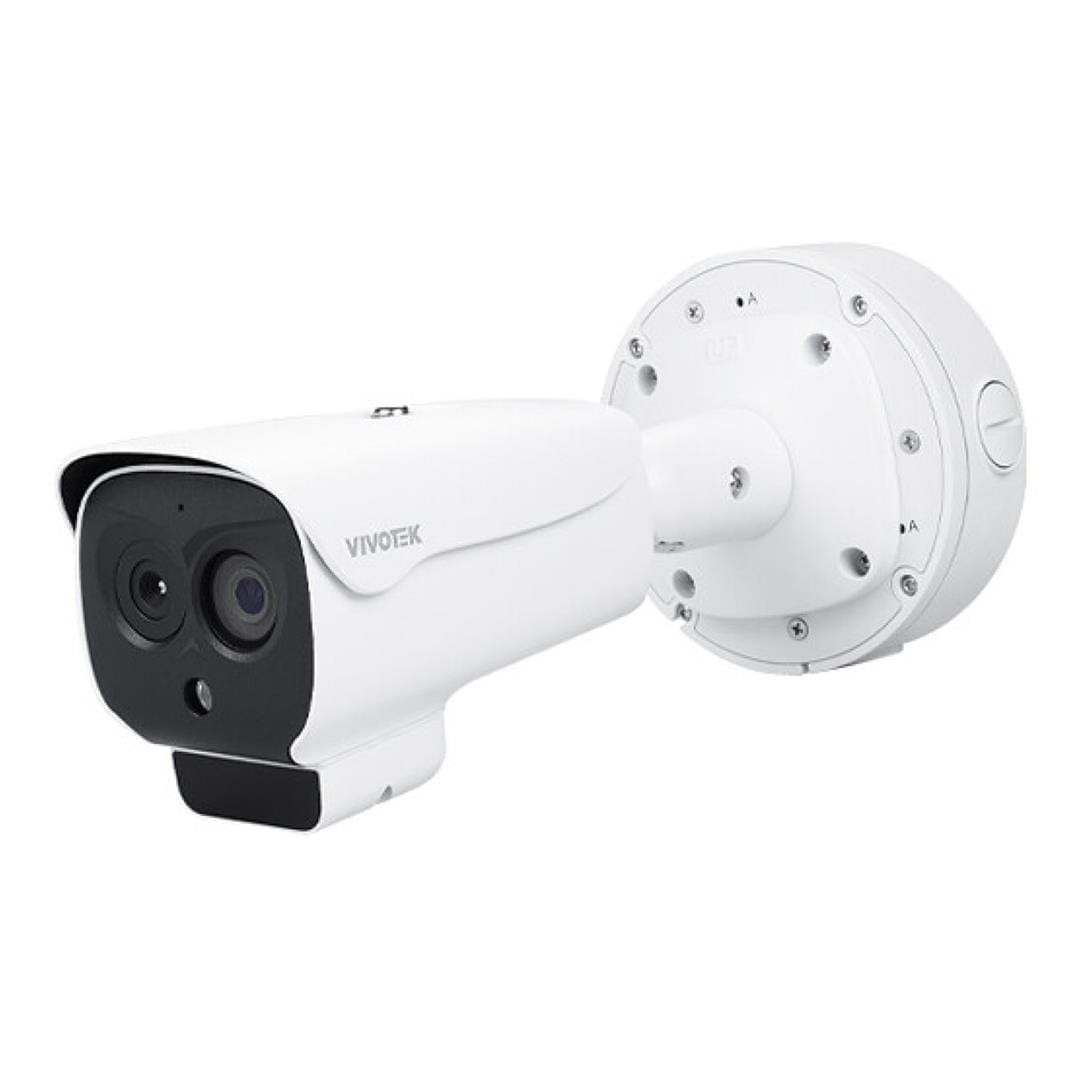

Vivotek TB9333-E Thermal Bullet Network Camera

Vivotek TB9333-E Thermal Bullet Network Camera

Implement fire detection, temperature measurement alarms, and perimeter protection in potentially combustible, flammable, or hazardous areas with the TB9333-E Thermal Bispectrum Network Bullet Camera from Vivotek. This dual-sensor camera uses an uncooled VOx microbolometer sensor to capture thermal images that can be upscaled to 704 x 576 resolution at 25 fps, along with a 1/2.7" progressive scan CMOS sensor to capture 2880 x 1620 resolution video at 25 fps.

Features:

• For Fire Detection/Perimeter Protection
• Temperature Measurement Alarms
• 704 x 576 Upscaled Thermal Resolution
• 2880 x 1620 Optical Resolution
• 7mm Fixed Thermal Lens
• 8mm Fixed Optical Lens
• Two-Way Audio
• RJ45 Ethernet with PoE Technology
• Complies with ONVIF Profiles G, S & T
• IP66 Rated for Outdoor Use

The camera's 7mm thermal lens delivers a 24° horizontal angle of view, while the 8mm optical lens delivers a 40° horizontal angle of view. Two-way audio is possible thanks to a built-in speaker, along with an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated enclosure that is suitable for safe outdoor use.

Delivers temperature measurement alarms (difference, threshold, section, rise)

Early fire detection (fire spot, smoking detection, smoke and flame detection)

Video content analytics (VCA) include intrusion, single line crossing, double line crossing, loitering, wrong way, and enter/leave

Supports VCA alarm triggers via person, car, and temperature alarms via ignoring person or car

Built-in IR illuminator for up to 164' of visibility in low-light conditions

White light for strobe light warning

Smart motion detection

Event triggers include motion detection, I/O alarm, disk alarm, VCA alarm, and temperature alarm

Multimedia SoC CPU

Dual simultaneous streaming per sensor

ePTZ with 4x digital zoom

Image settings include video title and time stamp overlay, video orientation (flip, mirror, rotation), white balance, image adjustment (brightness, contrast, sharpness), and privacy masking (scheduled profile settings)

Live viewing for up to 10 clients

System power and status indicator

Compatible with Microsoft Windows 10, 8, and 7, macOS 10.12 (Chrome only), Chrome 58.0 or higher, Internet Explorer 10/11, and VLC 1.1.11 or higher

Temperature Measurement

Range: -4 to 302°F

Measurement rules include point, line, and polygon (up to 20 rules in total)

Temperature alarms include threshold, temperature difference, temperature rise, and section

Temperature measurement range for objects up to 76.4' away (0.2 x 0.2m)

±2% accuracy

VCA Detection Range

Human: 213.3' (1.8 x 0.5m)

Vehicle: 472.4' (4 x 1.5m)

Fire Detection

1368' (object at 1 x 1m), 273' (object at 0.2 x 0.2m)

Smoking detection up to 82'
