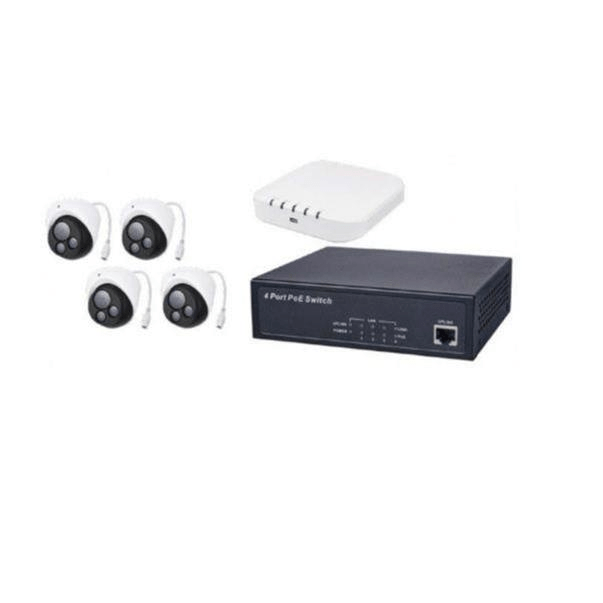

Vivotek Dome Security Kit UD5381 KIT

Vivotek Dome Security Kit UD5381 KIT

Wired connections between the cameras and the network video recorder using a Cat 5 / 6 network cable
Supports 3.5" hard drive (hard drive not included)
Remote viewing

Camera Specs:
- 1080P 2MP
- 1/2.9" Progressive CMOS
- f = 2.8 mm
- Fixed iris
- 109° (Horizontal), 59° (Vertical), 129° (Diagonal)
- Built-in IR Illuminators, Effective up to 30 meters with Smart IR, IR LED*2
- Pan range: 360°
- Tilt range: 70°
- LED indicator: System Power & Status Indicator
- Power input: IEEE 802.3af PoE Class 2
- Power consumption: Max. 6 W (IR on), Max. 3.31 W (IR off)
- Casing: IP66, IK10 (Metal Housing)

Switch Specs:
5-Port FE Switch 4-Port PoE+m

Standard Compliance
- 5 ports FE Auto-MDIX, 4 ports PoE/PoE+
- IEEE 802.3 10-BASE-T (Ethernet)
- IEEE 802.3u 100-BASE-TX (Fast Ethernet)
- IEEE 802.3x Flow Control (full-duplex flow control)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet Plus

What's in the box
1 x 4ch NVR
1 x 4 port POE switch
4 x dome IP cameras
