Description
Description

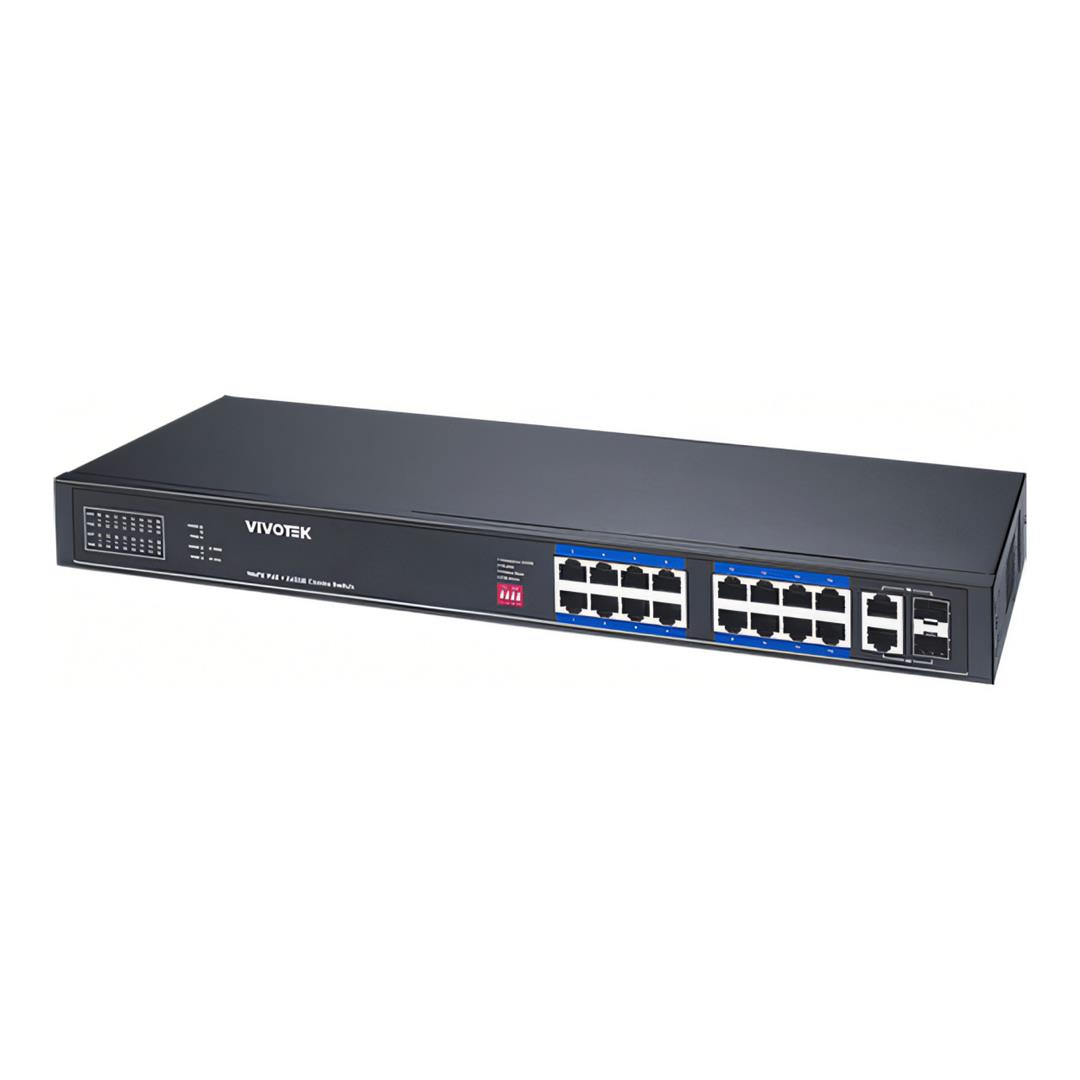

Vivotek 16-port 100Mb PoE+ Unmanaged Network Switch AW-FGT-180P-250
The VIVOTEK AW-FGT-180P-250 is an 18-port unmanaged PoE switch designed for IP surveillance and other powered network-device deployments. It combines 16 Fast Ethernet PoE ports with two Gigabit RJ45/SFP combo uplinks and provides a substantial 250W total PoE budget. Surveillance-focused features including Adaptive Extended PoE, Video QoS, VLAN segmentation and PD Alive help simplify reliable camera installations, including deployments requiring Ethernet and PoE transmission at distances of up to 250m.
Key Features
- 16 × 10/100Mbps PoE ports plus 2 × Gigabit RJ45/SFP combo uplink ports.
- 250W total PoE power budget with up to 30W available per PoE port.
- IEEE 802.3af and 802.3at PoE support.
- Adaptive Extended Mode supports transmission distances up to 250m.
- Video QoS prioritises video traffic for surveillance applications.
- PD Alive automatically restarts PoE power to unresponsive powered devices.
- VLAN segmentation and 6kV surge protection for surveillance deployments.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | VIVOTEK |
| Model | AW-FGT-180P-250 |
| Product Type | Unmanaged PoE Network Switch |
| Total Ports | 18 |
| PoE Ethernet Ports | 16 × 10/100Mbps Fast Ethernet |
| Uplink Ports | 2 × Gigabit RJ45/SFP Combo Ports |
| PoE Ports | 16 |
| PoE Standards | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output per Port | 30W |
| Total PoE Power Budget | 250W |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| Adaptive Extended Mode | Up to 250m at 10Mbps |
| Extended Mode Behaviour | Under 100m: 100Mbps / Over 100m: 10Mbps |
| VLAN Segmentation | Supported |
| Video QoS | Supported |
| PD Alive | Supported – Automatically Restarts Power to Unresponsive Powered Devices |
| Switching Bandwidth | 7.2Gbps |
| Forwarding Rate | 5.4Mpps |
| MAC Address Table | 16K |
| Jumbo Frames | 1,536 Bytes |
| Surge Protection | 6kV |
| Maximum Power Consumption | 260W |
| Power Input | 100–240V AC |
| Input Frequency | 50–60Hz |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions (L × W × H) | 440 × 210 × 44mm |
| Weight | 2.4kg |
| Mounting | Rack Mount |
| Certifications | CE / FCC / UKCA / LVD / VCCI / BSMI |
| What's in the Box: |
|
Build a reliable surveillance network with the VIVOTEK AW-FGT-180P-250, combining a 250W PoE budget, Gigabit uplinks and intelligent features for extended IP camera deployments.
