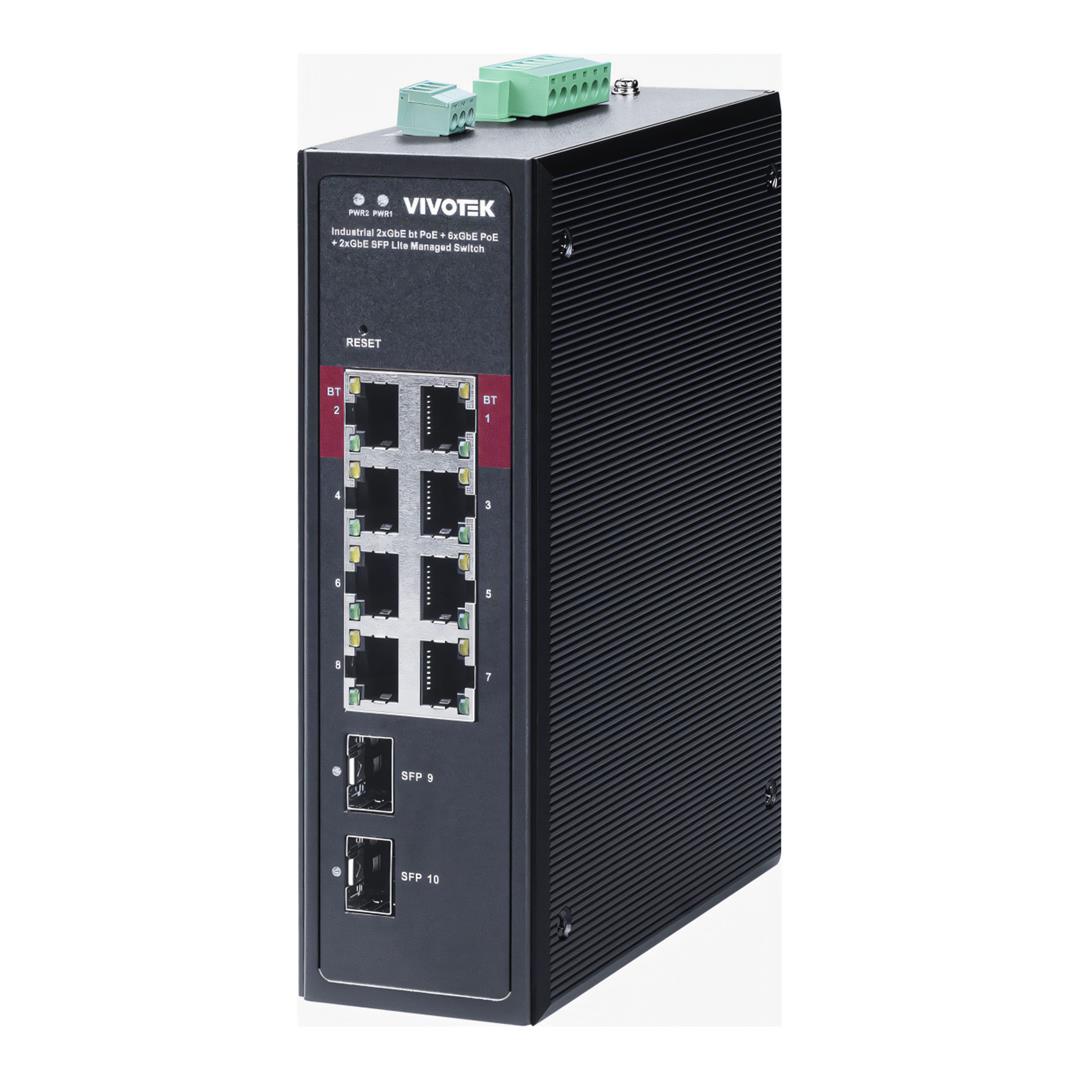

Vivotek 10-port Lite Gigabit PoE++ Industrial Managed Switch AW-IHB-1040

Vivotek 10-port Lite Gigabit PoE++ Industrial Managed Switch AW-IHB-1040

The VIVOTEK AW-IHB-1040 is a 10-port lite-managed industrial PoE switch designed for surveillance and network installations operating in demanding environments. It combines eight Gigabit Ethernet PoE ports with two Gigabit SFP uplinks and provides a substantial 300W total PoE budget. Two high-power IEEE 802.3bt ports can deliver up to 90W each, while six additional PoE+ ports provide up to 30W each for cameras and other powered network devices.

Key Features

• 8 × Gigabit Ethernet PoE ports plus 2 × Gigabit SFP uplink ports.
• Ports 1–2 support IEEE 802.3bt PoE++ with up to 90W output per port.
• Ports 3–8 support IEEE 802.3at PoE+ with up to 30W output per port.
• 300W total PoE power budget for demanding powered-device deployments.
• Lite-managed VLAN, STP/RSTP, LACP, port isolation, mirroring and bandwidth-control features.
• PoE management with auto checking, Non-Stop PoE and 250m Extend PoE Mode.
• Industrial -40°C to 75°C operating range with redundant DC power support.

Technical Specifications

Build resilient industrial and surveillance networks with the VIVOTEK AW-IHB-1040, combining Gigabit connectivity, high-power 90W PoE++, a 300W PoE budget and wide-temperature operation.
