Viisan DL8 13MP A3 Visualizer Document Camera Scanner

Viisan DL8 13MP A3 Visualizer Document Camera Scanner

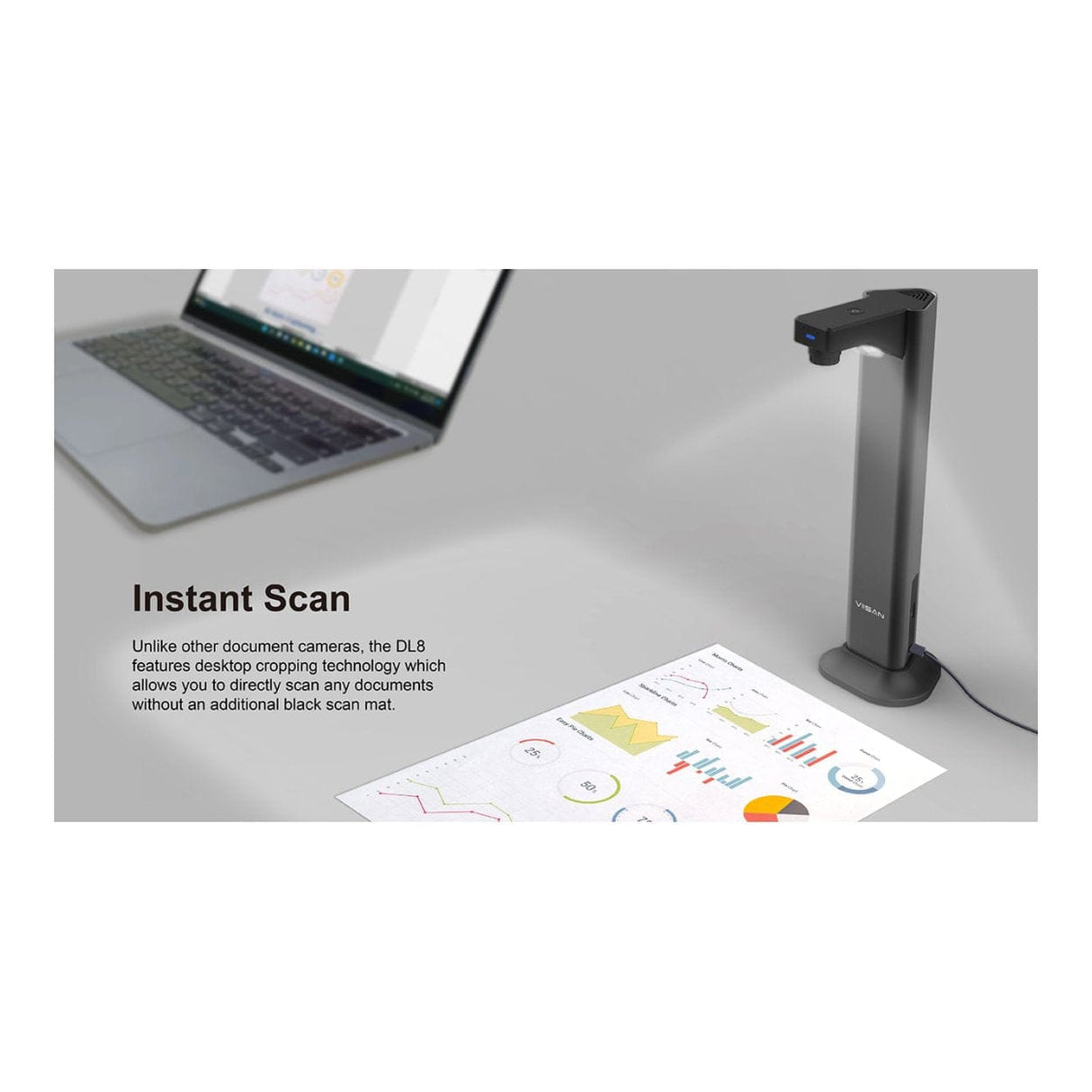

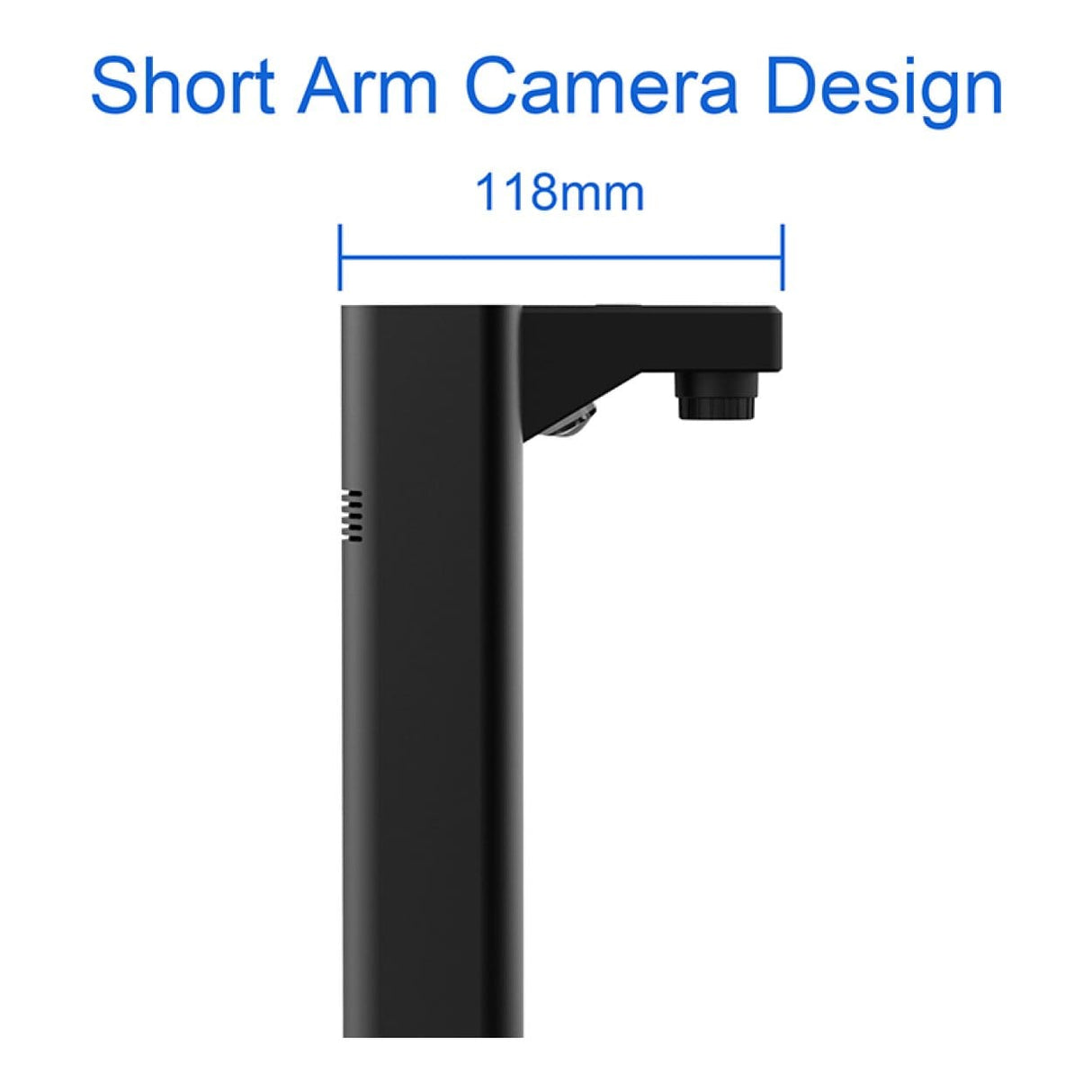

The brand-new DL8 is an innovative document camera with asymmetric lighting technology, plus an unique short-arm design. Streamlined to include only essential functionality, it features an ultra-high resolution camera with 1080P video output and a high-brightness LED. Unlike other document cameras, the DL8 features desktop cropping technology that enables the pick-up of content materials up to A3 landscape size without an additional black scan mat.

VIISAN DL8 A3 Document Camera Scanner

Compact A3 document camera designed for book scanning, home offices, education, and professional digitization.

Technical Specifications:

Camera

Max. Output Resolution

• Optical: 3264 (H) × 2448 (V) pixels (8MP)
• Software Interpolation: 4208 (H) × 3156 (V) pixels (13MP)

F. No.
F4.0

Max. Video Frame Rate

• 1920 × 1080 @ 25fps
• 1600 × 1200 @ 30fps

Focus
Fixed focus

Zoom
3× digital zoom via software

Max. Shooting Area
A3, 420 × 297 mm (16.5 × 11.7 inch)

Color Bit Depth
24-bit

Lighting

Built-in LED

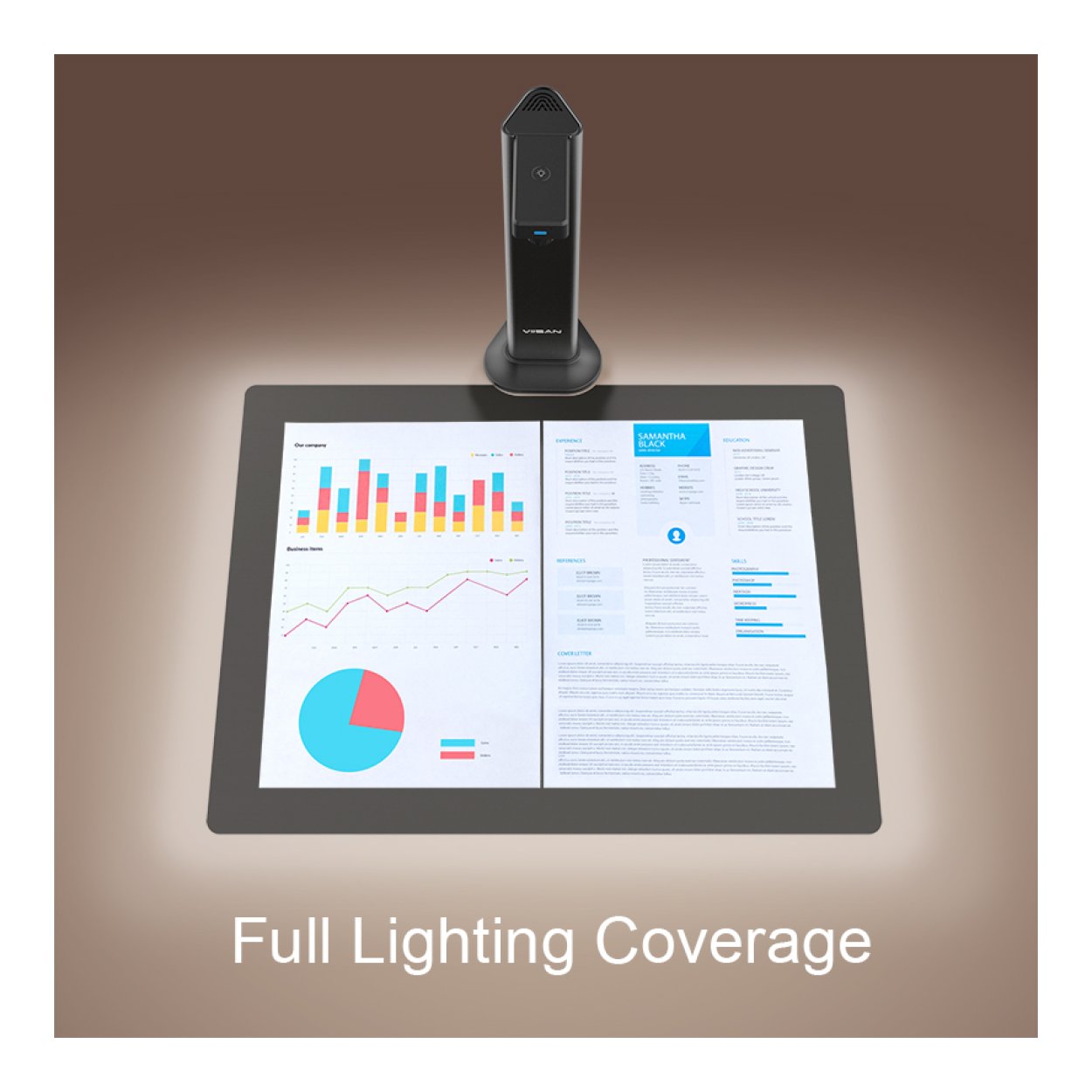

3-level control LED light using asymmetrical lighting technology

Status LED
Power on: Blue light

Video & Image

Video Compression
MJPG, YUY2

Output Formats

• Picture: JPG, TIFF, BMP, PNG

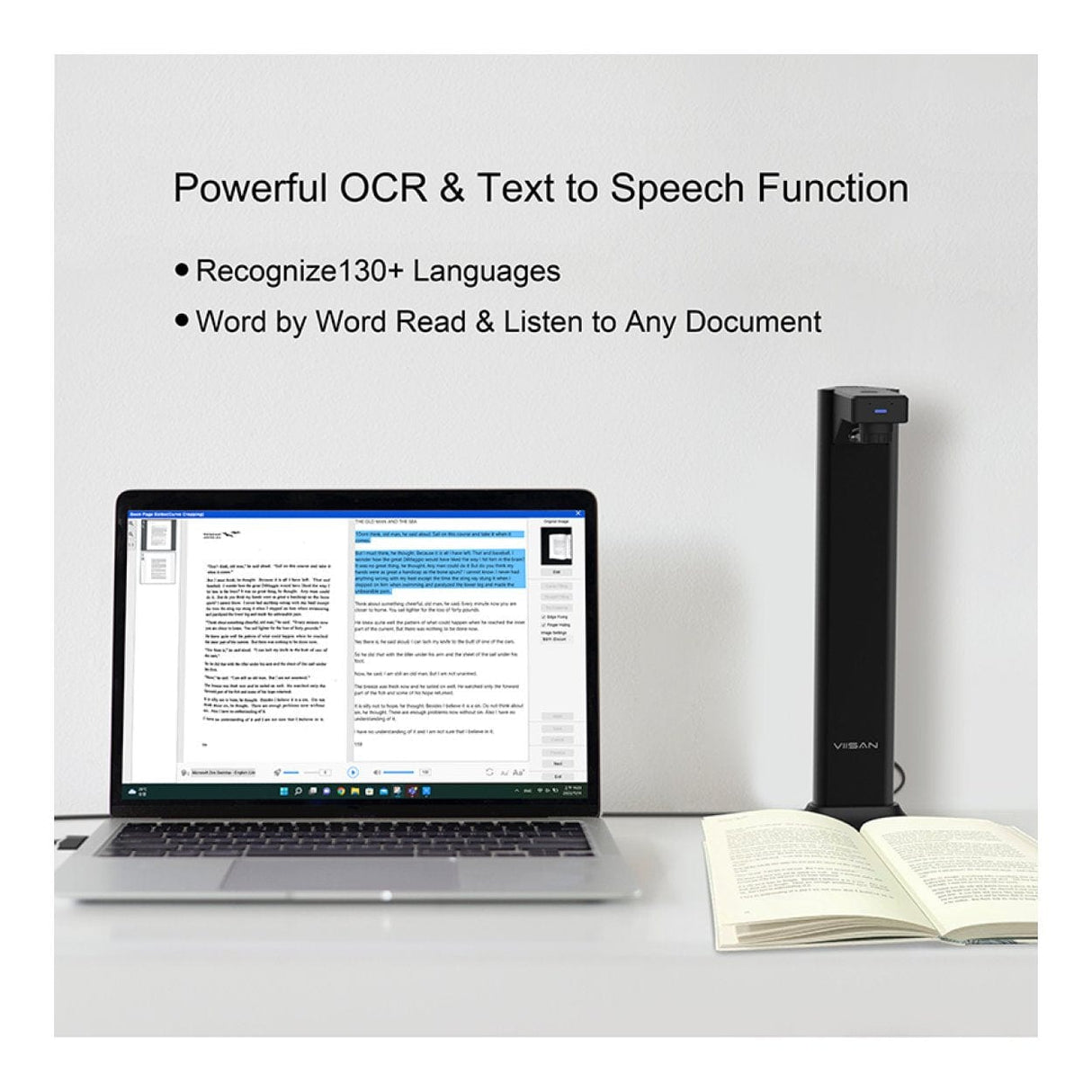

• Document: PDF (Image), PDF (Searchable), PDF (Text), Excel, Word, Text, MP3
• Video: AVI, MPEG, FLV, WMV

Audio

Microphone
Built-in

Interface

Ports

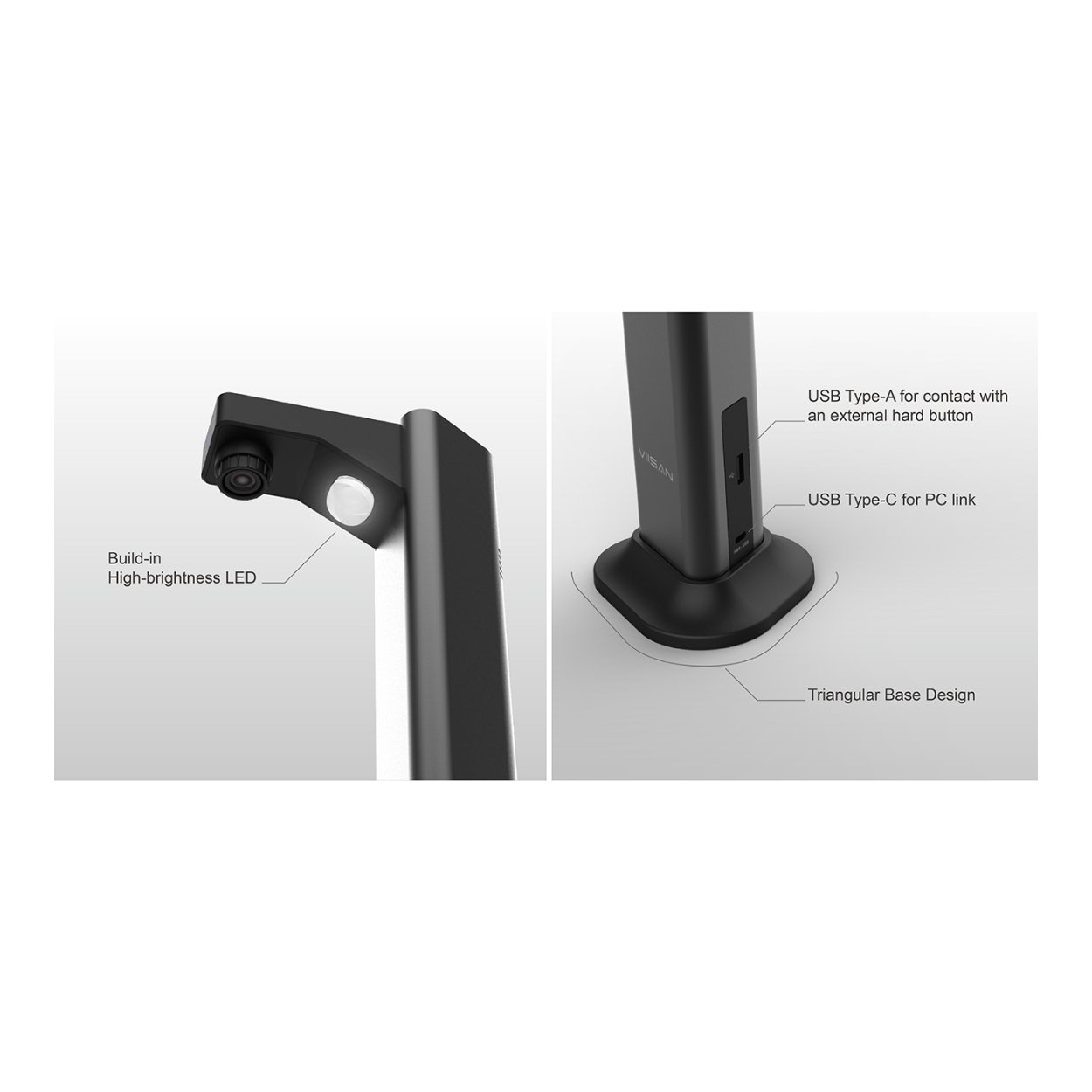

• USB 2.0 Type-C ×1 (PC connection)

• USB 2.0 Type-A ×1 (USB extension)

Power

Power Supply
5V via USB

Physical

Dimensions
118 (L) × 98 (W) × 305 (H) mm

Net Weight
Approx. 1 kg
