ViewSonic PS502X 4000 Lumens XGA Short Throw Projector

ViewSonic PS502X 4000 Lumens XGA Short Throw Projector

The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers.

Features

• 4,000 ANSI Lumens offering clear images in any environment
• 0.616 Short throw ratio for minimal space consumption
• Up to 300" ultra large screen with lower cost-per-inch
• Easy and flexible connection: dual HDMI ports, USB Type-A port
• Convenient software updates for projectors via USB connection

High Brightness for Business & Education Environments

Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.

Big Screen for Small Spaces

The PS502X’s 0.616 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

Ultra-Large Screen with Lower Cost-per-inch

The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.

Easy and Flexible Connection

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.

Vibrant Colors for Captivating Presentations

Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.

USB Type A Power Supply

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.

Audio Right Out of the Box

The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speaker.

Technical Specification

Projection System: 0.55" XGA
Native Resolution: 1024 x 768
Brightness: 4000 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 15000:1
Display Color: 1.07 Billion Colors
Light Source Type: 240W UHP Lamp
Light Source Life (hours) with Normal Mode: 4000
Light Source Life (hours) with SuperEco Mode: 12000
Lens: F=2.7, f=7.15mm
Projection Offset: 130%+/-10%
Throw Ratio: 0.616
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 60"-300"
Throw Distance: 0.75m-3.76m (77"@0.96m)
Keystone: +19°/-19° (V)
Audible Noise (Normal): 34dB
Audible Noise (Eco) : 25dB
Input Lag: 33.2ms
Resolution Support: VGA (640 x 480) to FullHD (1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz

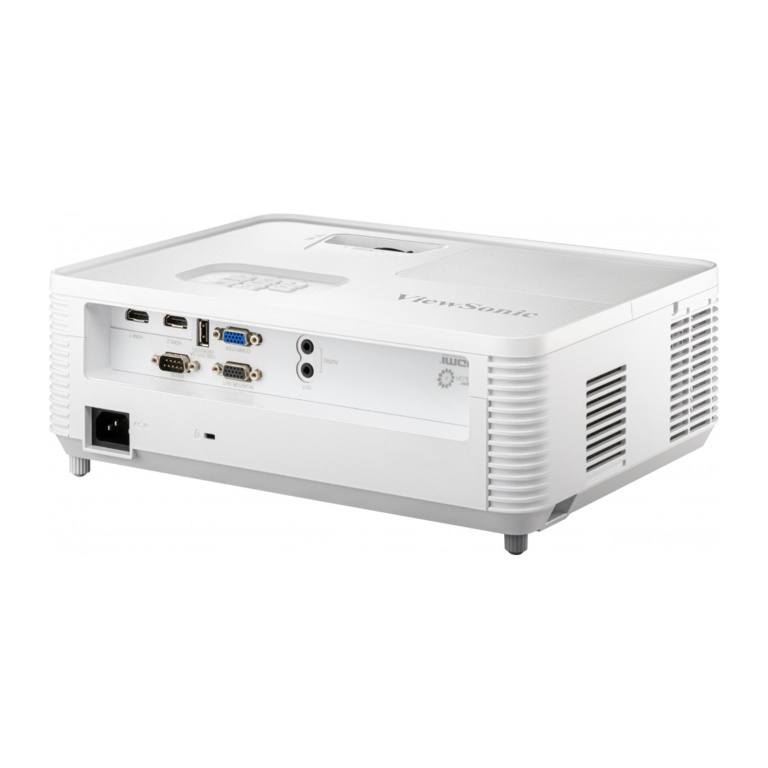

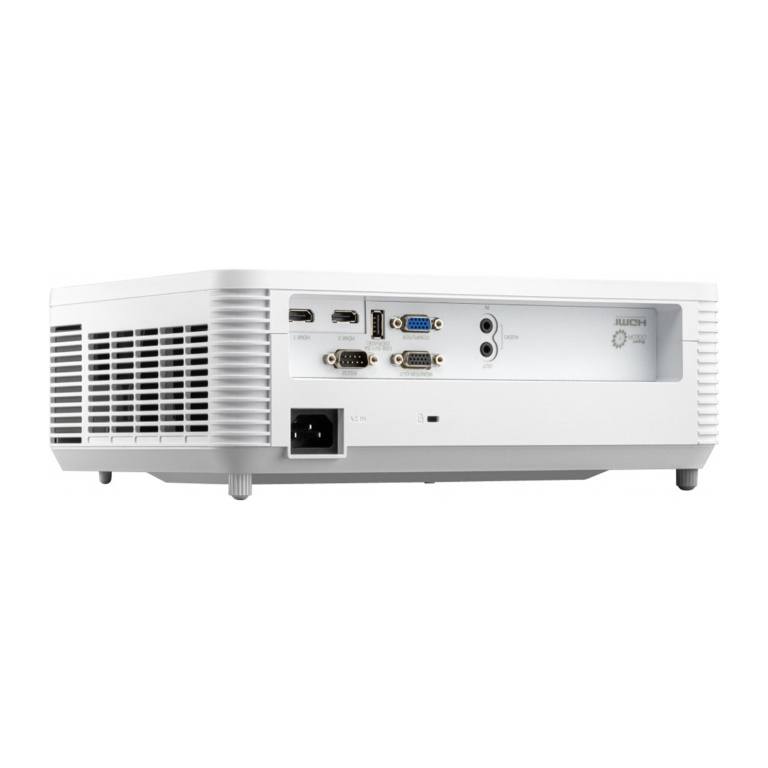

Inputs

• Computer in (share with component): 1
• HDMI: 2 (HDMI 1.4/ HDCP 1.4)
• Audio-in (3.5mm): 1

Outputs

• Monitor out: 1
• Audio-out (3.5mm): 1
• Speaker: 16W
• USB Type A (Power): 1 (5V/1.5A)

Control

• RS232 (DB 9-pin male): 1
• USB Type A (Services): 1 (share with USB A Output)
