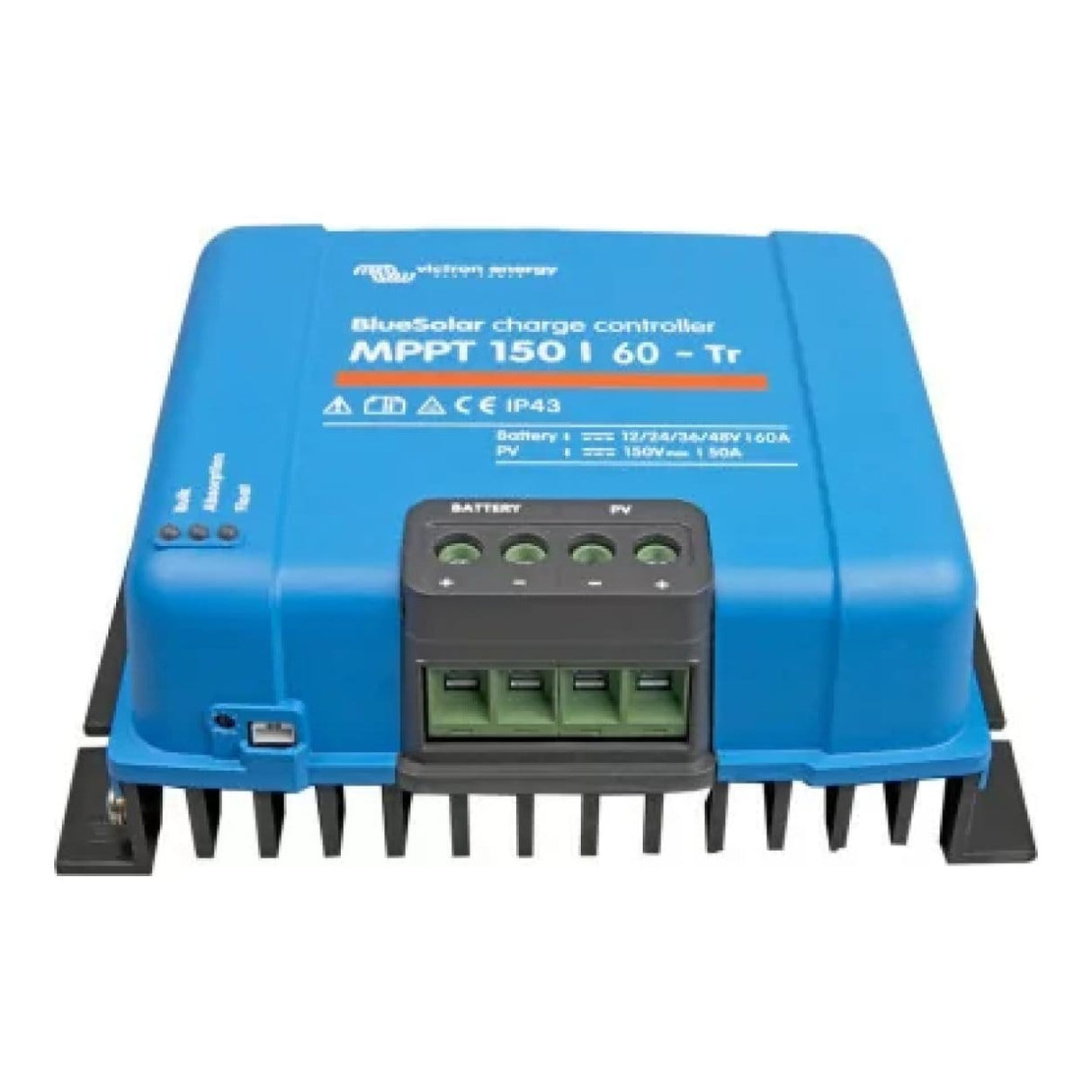

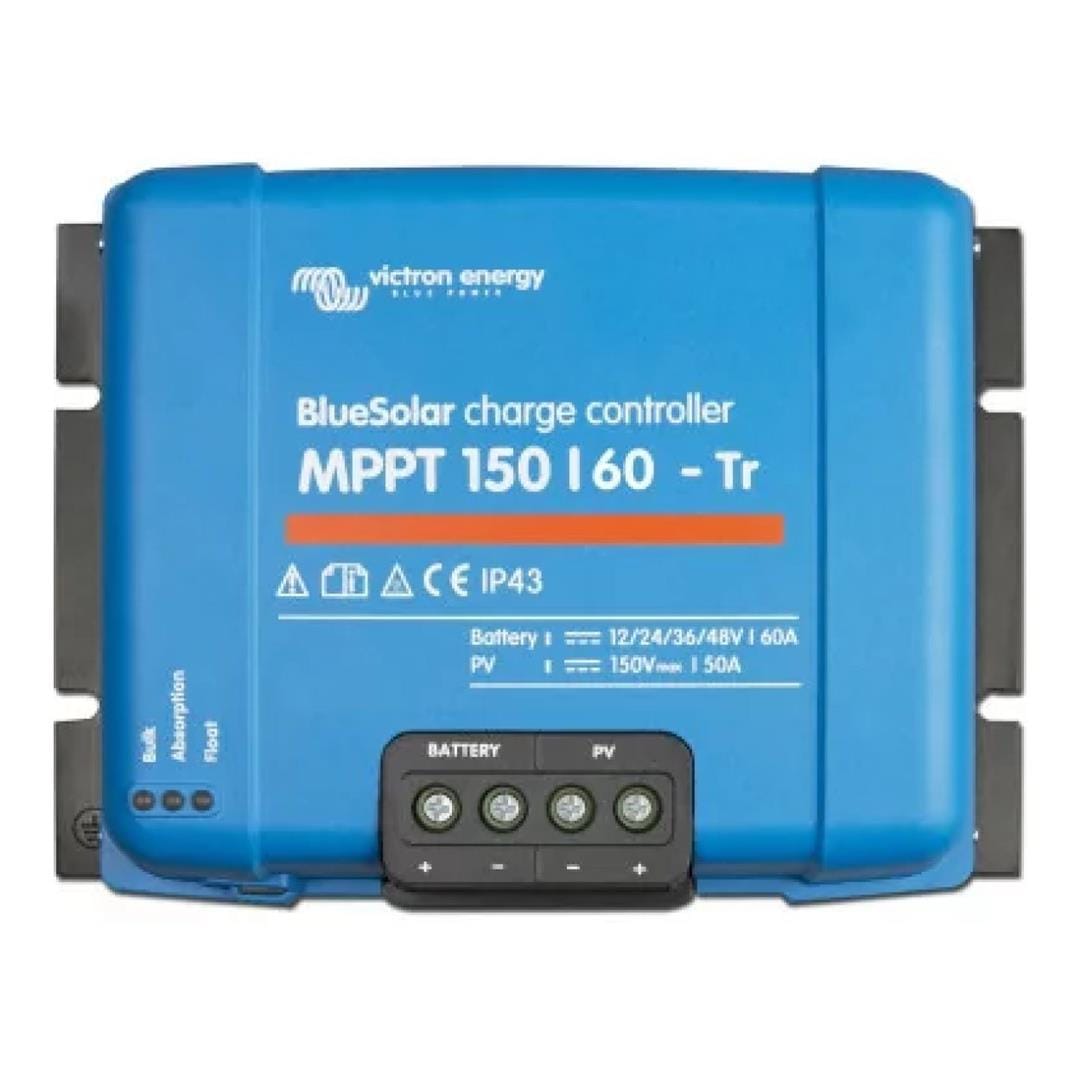

Victron BlueSolar MMPPT 150/60 Charge Controller BSC15060-MPPT-TR

Victron BlueSolar MMPPT 150/60 Charge Controller BSC15060-MPPT-TR

Boost your solar system with the Victron Blue Solar MPPT 150/60. With ultra-fast MPPT tracking and advanced battery management, it delivers optimal energy conversion and long-term performance for off-grid solutions. Featuring Battery Voltage 12/24/48V Auto Select, 60A Charge Current, 98% Max Efficiency and IP43.

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature

Optional external battery voltage and temperature sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Remote on-off

To connect for example to a VE.BUS BMS

Programmable relay

Can be programmed to trip on an alarm, or other events.

Specifications:

Battery voltage: 12 / 24 / 48V Auto Select (software tool needed to select 36V)

Rated charge current: 60A

Nominal PV power, 12V 1a,b): 860W

Nominal PV power, 24V 1a,b): 1720W

Nominal PV power, 36V 1a,b): 2580W

Nominal PV power, 48V 1a,b): 3440W

Max. PV short circuit current 2): 50A (max 30A per MC4 conn.)

Maximum PV open circuit voltage: 150V absolute maximum coldest conditions, 145V start-up and operating maximum

Maximum efficiency: 98%

Self-consumption: Less than 35mA @ 12V / 20mA @ 48V

Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)

Charge voltage 'float: Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth)

Charge voltage 'equalization: Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable)

Charge algorithm: multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm

Temperature compensation: -16 mV / -32 mV / -64 mV / °C

Protection: PV reverse polarity / Output short circuit / Over temperature

Operating temperature: -30 to +60°C (full rated output up to 40°C)

Humidity: 95%, non-condensing

Maximum altitude: 5000m (full rated output up to 2000m)

Environmental condition: Indoor, unconditioned

Pollution degree: PD3

Data communication port: VE.Direct or Bluetooth

Remote on/off: Yes (2 pole connector)

Programmable relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC

Parallel operation: Yes (notsynchronized)

PV terminals 3): 35 mm² / AWG2 (Tr models), Two pairs of MC4 connectors (MC4 models)

Battery terminals: 35mm² / AWG2

Protection category: IP43 (electronic components), IP22 (connection area)

Weight: 3 kg
