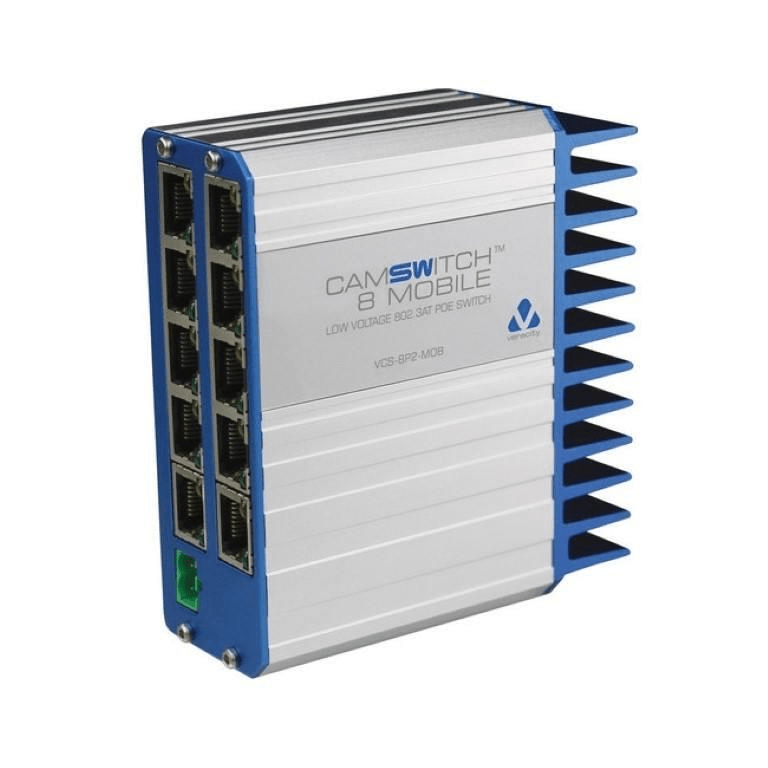

Veracity CamSwitch 8 Mobile 10-port Low-Voltage 802.3at PoE Switch VCS-8P2-MOB
The Veracity CAMSWITCH 8 Mobile is a low-voltage PoE network switch designed for mobile and vehicle-based IP camera installations. It accepts a wide 8.5V to 40V DC input and converts it to PoE levels, allowing compatible PoE cameras and network devices to be powered from a vehicle battery or similar low-voltage DC source.
Key Features
- Designed for mobile applications such as larger buses, rail carriages and vehicle-based surveillance systems.
- 8 PoE ports support compatible 802.3af PoE and 802.3at PoE Plus devices.
- 2 additional uplink ports can be used for devices such as an NVR, time server or external communications equipment.
- Accepts 8.5V to 40V DC input and converts it to the 48V output required for PoE.
- Up to 80W total PoE power budget for connected devices, subject to installation conditions.
- Auto-configuring 10/100 Ethernet switch supports straightforward network setup.
- Rugged enclosure with adjustable mounting brackets supports secure installation in mobile environments.
PoE from Vehicle Power
CAMSWITCH 8 Mobile is designed to operate from a 12V to 24V DC source, such as a vehicle battery. It converts the low-voltage DC input into PoE output, allowing compatible IP cameras and PoE devices to be powered without needing separate PoE injectors at each device.
Built for Mobile Surveillance
The unit is suited to transport and mobile CCTV applications where cameras, recording equipment and communications devices need to operate from a shared low-voltage power system. The two uplink ports can connect to equipment such as a mobile NVR, NTP time server or 4G modem.
Rugged Network Switching
The unmanaged 10/100 Ethernet switch auto-configures for connected network devices, helping simplify installation. Its rugged enclosure and adjustable mounting brackets make it practical for vehicle and mobile equipment cabinets where vibration and space constraints need to be considered.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Veracity |
| Model | CAMSWITCH 8 Mobile |
| Product Code | VCS-8P2-MOB |
| Product Type | Low-voltage PoE network switch for mobile applications |
| PoE Ports | 8 x PoE ports |
| Uplink Ports | 2 x non-PoE uplink ports |
| Ethernet | 10/100 Ethernet, auto-configuring |
| PoE Standards | IEEE 802.3af PoE and IEEE 802.3at PoE Plus compatible outputs |
| Input Voltage | 8.5V to 40V DC |
| PoE Output | 48V PoE output for compatible PoE devices |
| Total PoE Power Budget | Up to 80W |
| Typical Power Source | 12V to 24V DC vehicle battery or external DC power source |
| Mounting | Rugged enclosure with adjustable mounting brackets |
| Dimensions | 110 x 100 x 40 mm |
| Weight | 350 g |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | Up to 85%, non-condensing |
| Compliance | CE, FCC, RoHS |
Power and connect compatible mobile IP cameras with the Veracity CAMSWITCH 8 Mobile PoE switch, and add it to your cart today.
