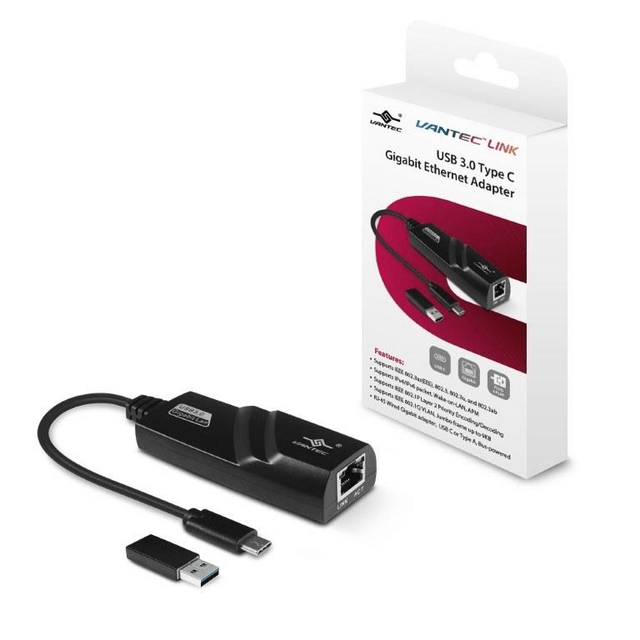

Vantec Link USB 3.0 Type C Gigabit Ethernet Adapter CB-CU310GNA

Vantec Link USB 3.0 Type C Gigabit Ethernet Adapter

The Vantec Link USB 3.0 Type C Gigabit Ethernet Adapter enables you to add a wired network port using an existing USB C or USB Type-A port (with provided C to A adapter) to your laptop or desktop. It connects to the USB C or USB Type-A port and provides an RJ-45 connector that supports 10/100/1000BASE-T network faster when wireless connectivity is unreliable or inconsistent. It is packed with features and is perfect for laptops with USB C or USB Type-A ports such as the latest MacBook Pro, Chromebook Pixel with Thunderbolt 3 (USB C) ports.

Features

• Supports IEEE 802.3az(EEE), 802.3, 802.3u, and 802.3ab
• Supports IPv4/IPv6 packet, Wake-on-LAN, APM
• Supports IEEE 802.1P Layer 2 Priority Encoding/Decoding
• Supports IEEE 802.1Q VLAN, Jumbo frame up to 9KB
• RJ-45 Wired Gigabit adapter,  USB C or Type A, Bus-powered

Gigabit Ethernet Controller:

• Integrated 10/100/1000M transceiver
• Auto-Negotiation with Next Page capability
• Supports USB 3.0, 2.0; Supports CDC-ECM
• Supports LPM (Link Power Management) Supports pair swap/polarity/skew correction Crossover Detection & Auto-Correction
• Supports Wake-On-LAN, ‘RealWoW!Â’, Wake-On-WAN
• Supports ECMA-393 ECMA ProxZzzy
• Supports power down/link down power saving

Software Offload:

• Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP)
• Segmentation Task-offload (Large send v1 and Large send v2) support
• Supports jumbo frame to 9K bytes

IEEE:

• Supports Full Duplex flow control (IEEE 802.3x); Fully compliant with IEEE 802.3 and IEEE 802.3u
• Supports IEEE 802.1P Layer 2 Priority Encoding; Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE); Microsoft AOAC (Always On Always Connected)
• Supports 16-set 128-byte Wake-Up Frame pattern exact matching
• Supports link change wake up; Supports Microsoft WPD (Wake Packet Detection)
• Supports Protocol Offload (ARP & NS); Intel CPPM (Converged Platform Power Management)
• Supports L1 with 3ms BESL (USB 2.0) Dynamic LTM messaging (USB 3.0) Supports U1/U2 (USB 3.0)
• Supports selective suspend
