V-SOL V2801SC Single Port xPON ONU

V-SOL V2801SC Single Port xPON ONU

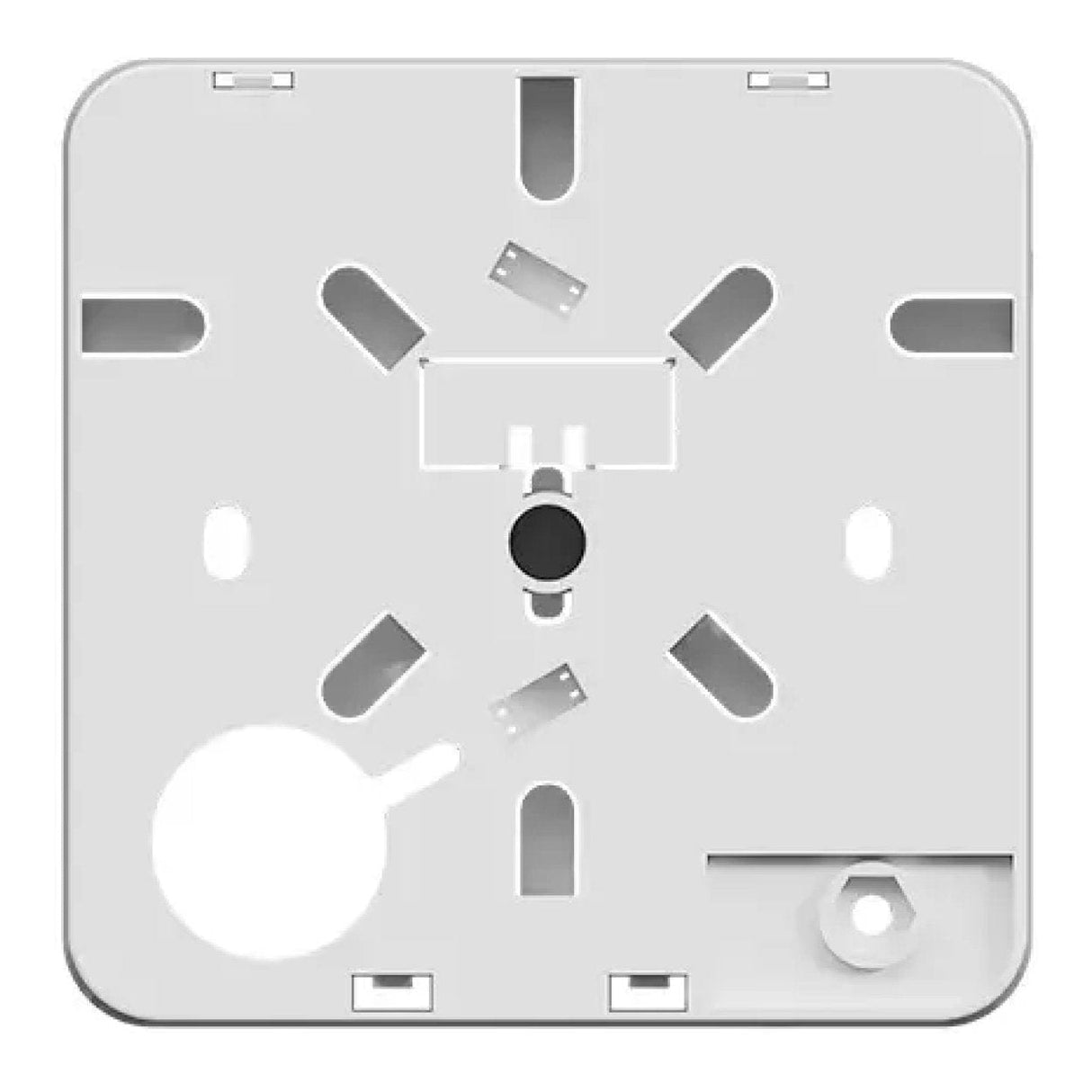

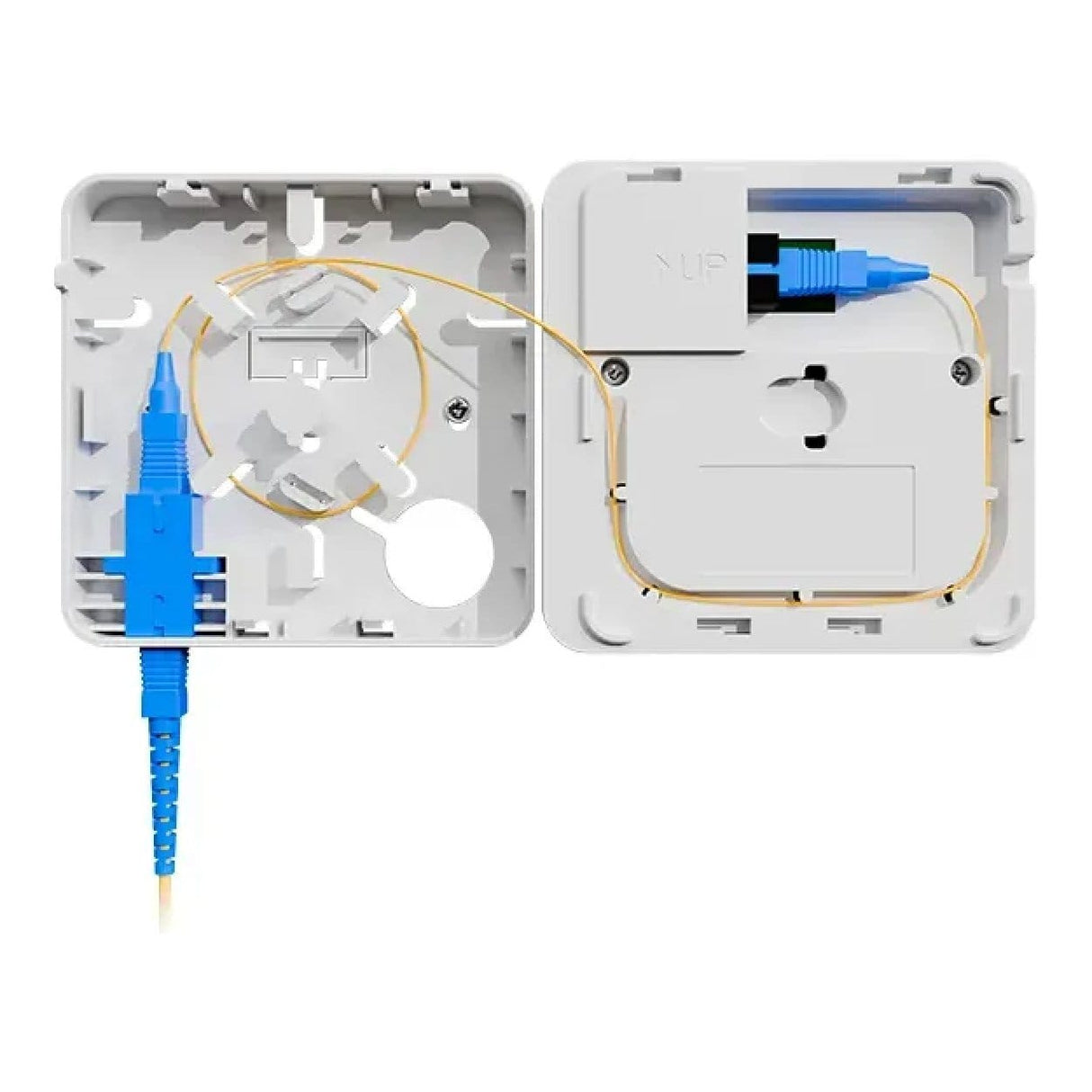

1*XPON+1GE ONT with Tray-mounted Fiber Structure

V2801SC-A is a single gigabit port ONT with tray-mounted fiber structure is a new type of fiber terminal equipment. It features anoptimizeddesign, which enhances its transmission performance and reduces fiber loss due to its structure. It also supports single gigabit port access,catering to different access needs. With its exquisite craftsmanship and materials, the ONU appears elegant and stylish, providingstablecommunication services to home networks. This user-friendly ONU is an ideal choice for home broadband networks.. The ONT has high reliability and can be applied to a wide temperature environment; and has a powerful firewall function, whichiseasytomanage and maintain. It can provide QoS guarantee for different services. The ONT complies with international technical standardssuchasIEEE802.3ah and ITU-T G.984.

Technical Specifications:

Hardware Parameters
Dimension: 91 mm × 91 mm × 41 mm (L × W × H)
Net Weight: 170 g
Operating Condition: Temperature -10 ~ +55°C, Humidity 5 ~ 95% (non-condensing)
Storing Condition: Temperature -40 ~ +70°C, Humidity 5 ~ 95% (non-condensing)
Power Adapter: DC 12V, 0.5A, external AC-DC power adapter
Power Consumption: ≤ 4W
Interface: 1 GE
Button: RST

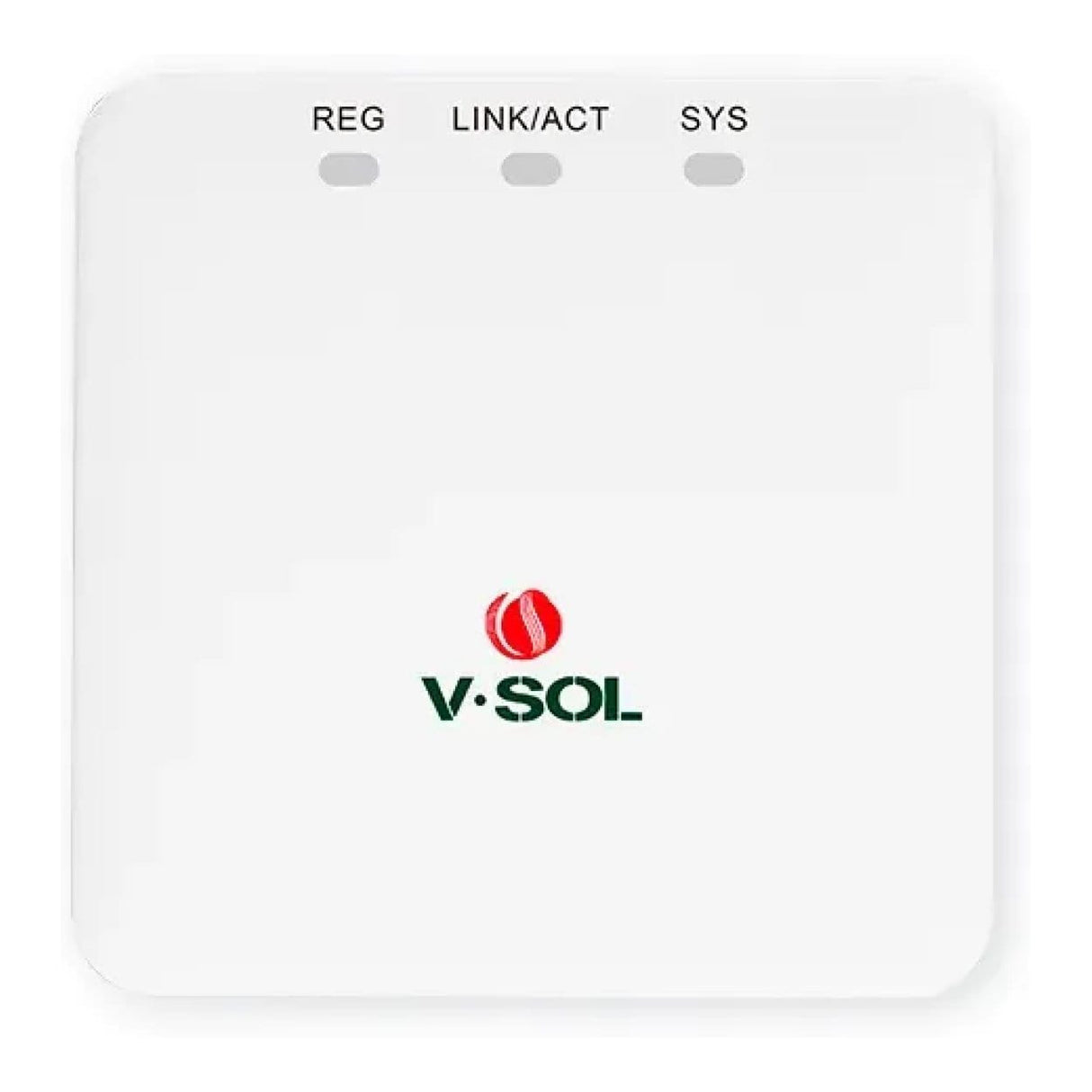

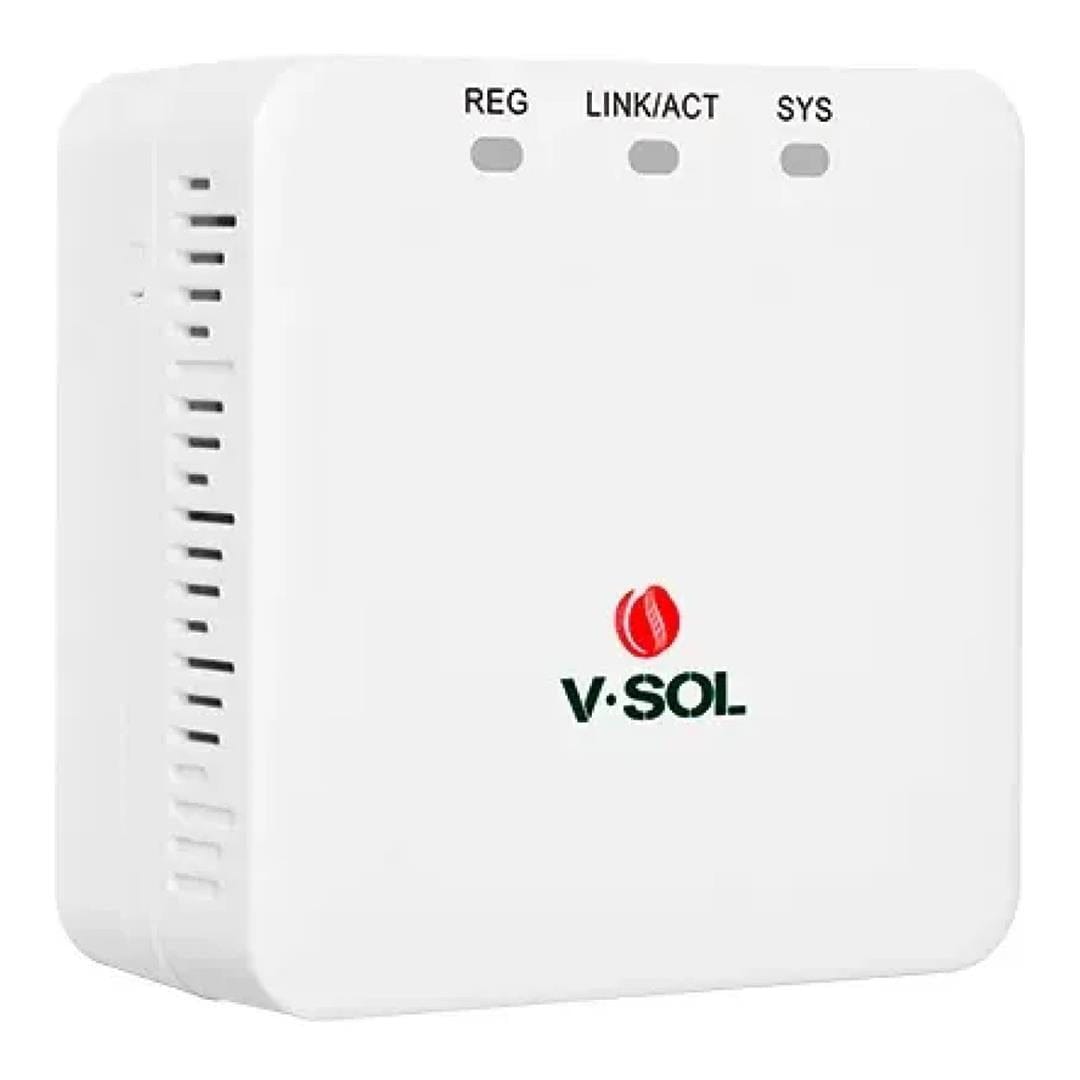

Indicators: REG/LOS, LINK/ACT, SYS

Interface Parameters

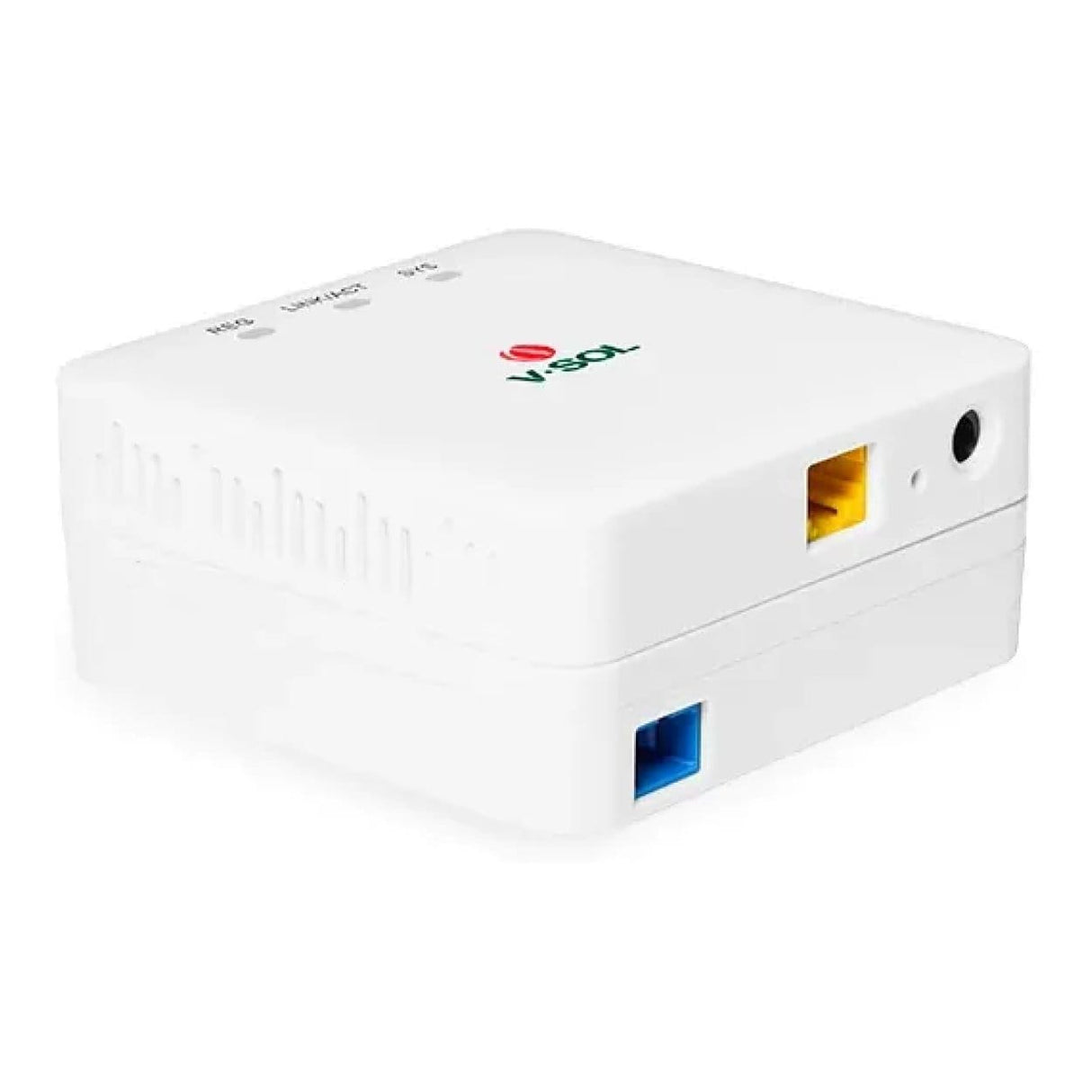

PON Interface: 1 XPON port (EPON PX20+ & GPON Class B+), SC single mode, SC/UPC connector, TX Optical Power 0–+4 dBm, RX Sensitivity -27 dBm, Overload Optical Power -3 dBm (EPON) / -8 dBm (GPON), Transmission Distance 20 km, Wavelength TX 1310 nm, RX 1490 nm

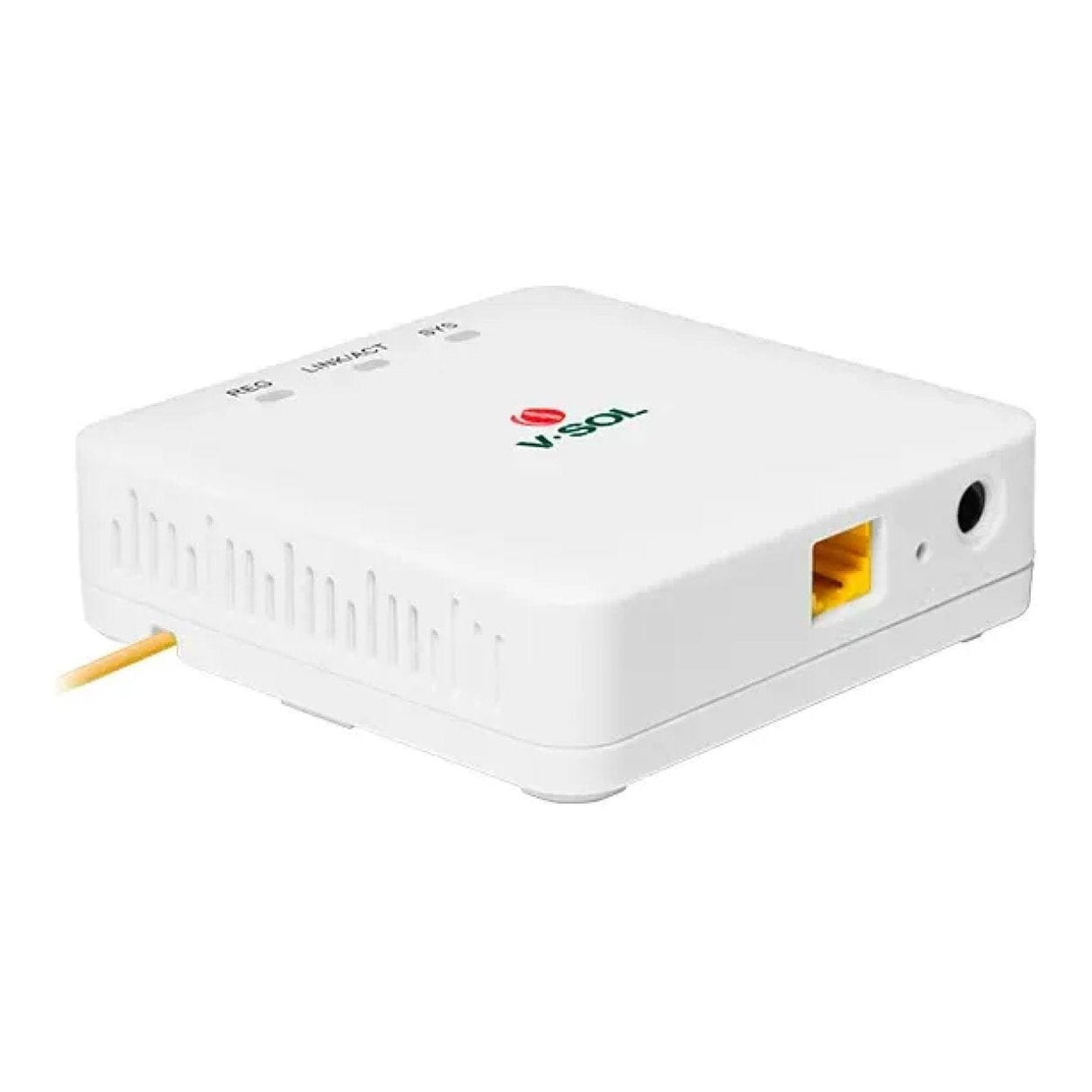

User Interface: 1 GE, Auto-negotiation RJ45 connector

Function Data
XPON Mode: Dual mode, auto-access to EPON/GPON OLT
Uplink Mode: Bridging and Routing Mode
Abnormal Protection: Detects Rogue ONU, Hardware Dying Gasp
Firewall: DDOS, filtering based on ACL/MAC/URL
Basic Features: Supports MPCP discover & register, authentication Mac/Loid/Mac+Loid, Triple Churning, DBA bandwidth, auto-detecting, auto-configuration, auto firmware upgrade, SN/Psw/Loid/Loid+Psw authentication
Alarm: Supports Dying Gasp, Port Loop Detect, Eth Port LOS
LAN: Supports Port rate limiting, Loop detection, Storm control
VLAN: Supports VLAN tag mode, VLAN transparent mode, VLAN trunk mode (max 8 VLANs)
Multicast: Supports IGMP v1/v2/Snooping, Max Multicast VLANs 8, Max Multicast Groups 64
QoS: Supports 4 queues, 802.1P
L3: Supports IPv4/IPv6, DHCP/PPPoE/Static IP, Static route, NAT
Management: Supports CTC OAM 2.0 and 2.1, ITU-T G.984.x OMCI, WEB, TELNET, CLI
