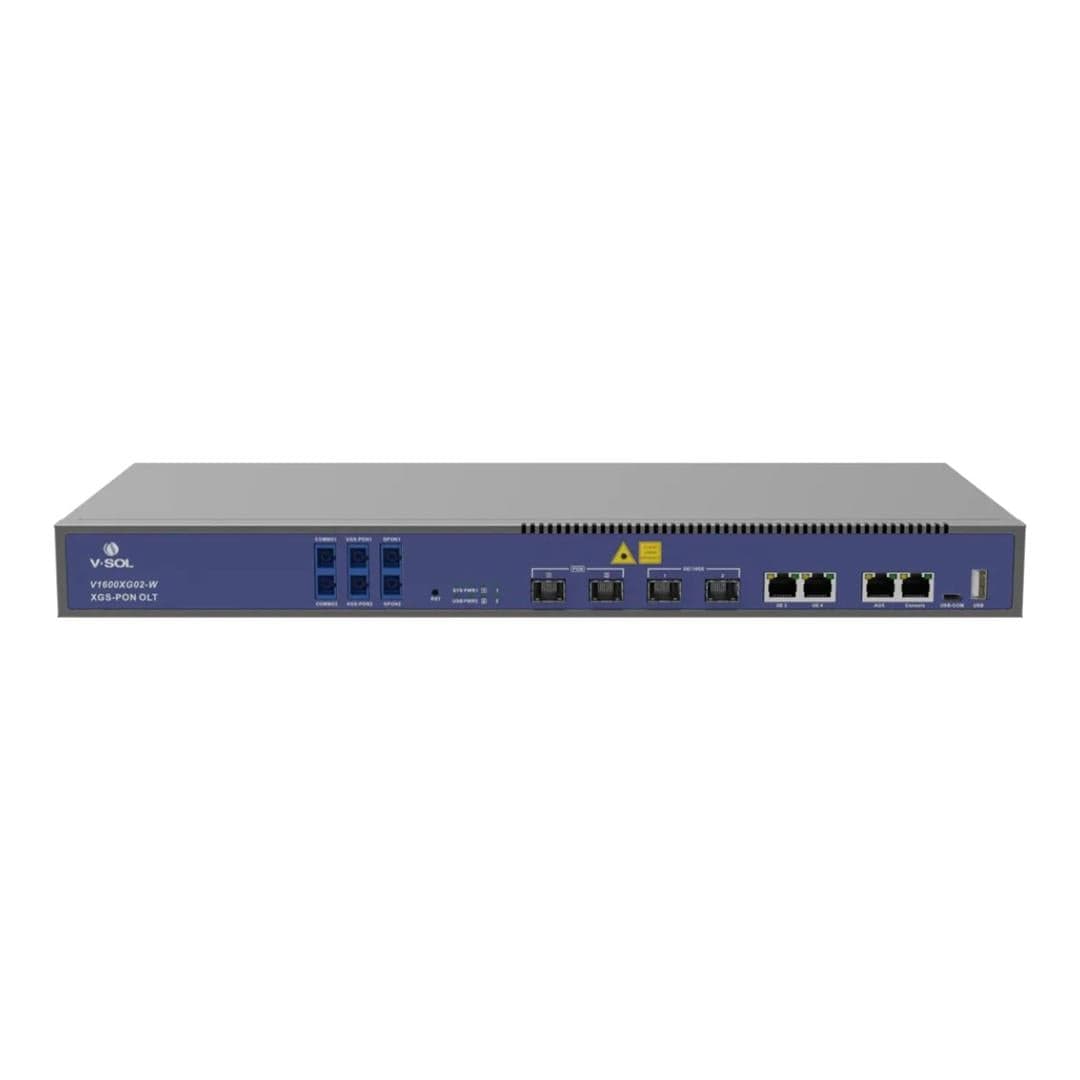

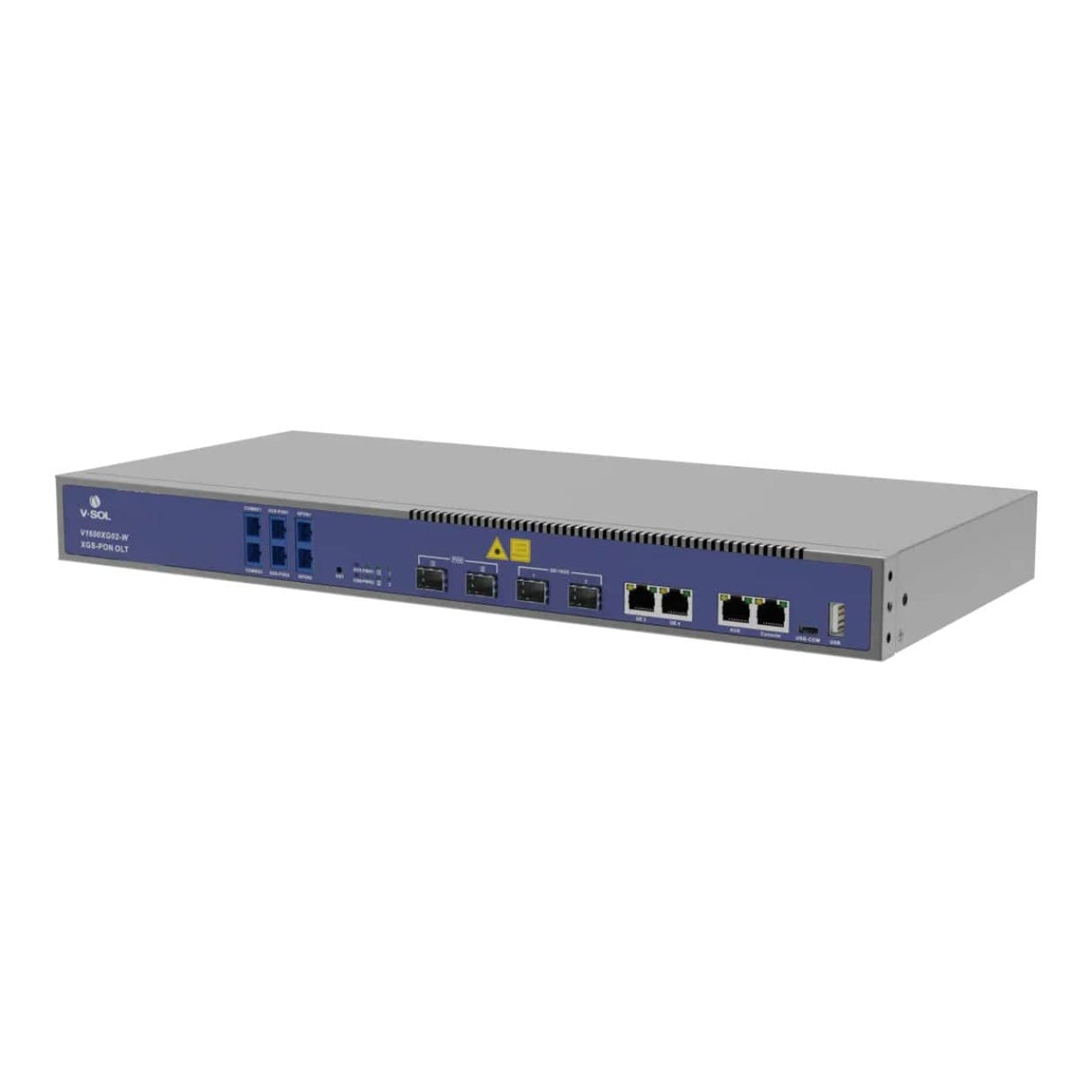

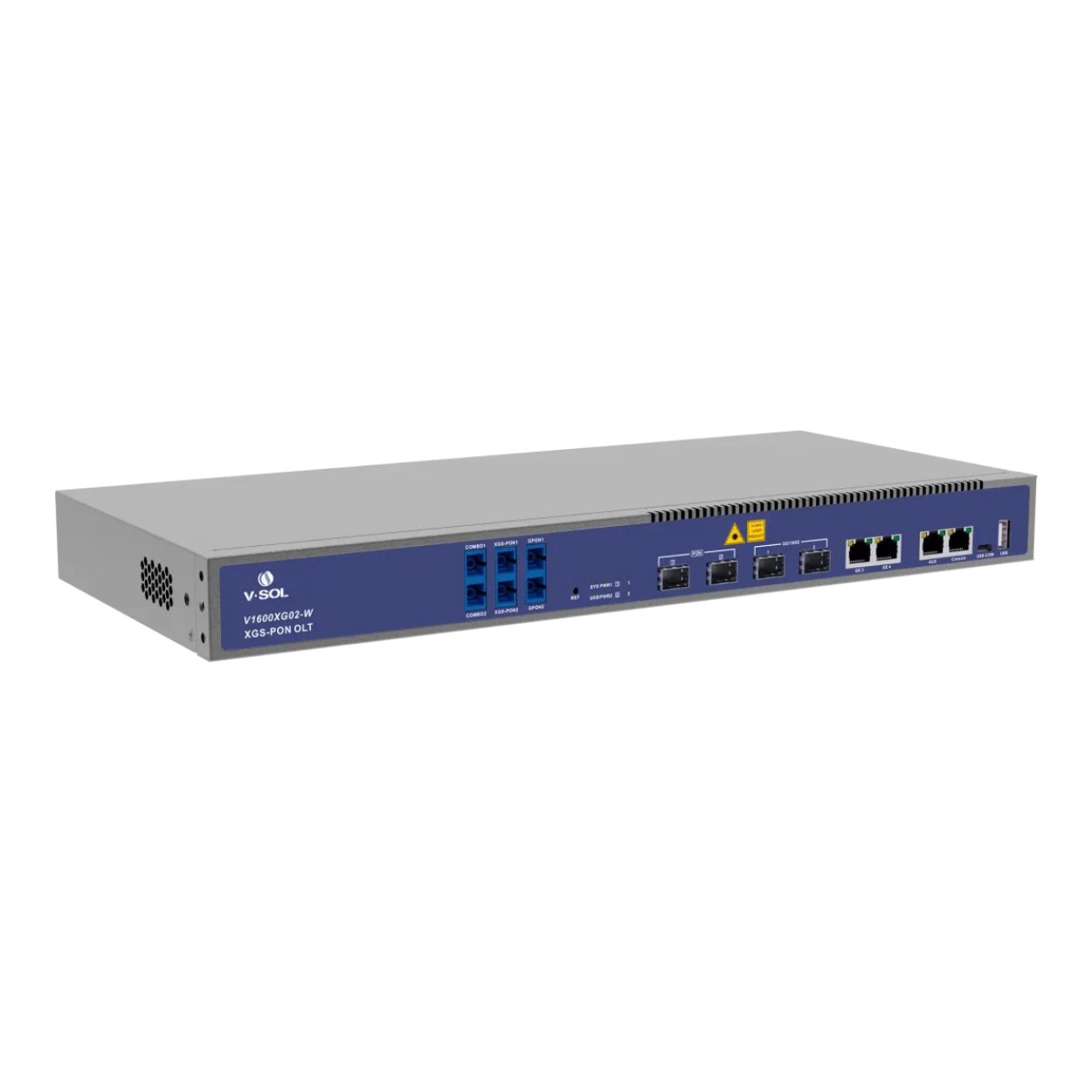

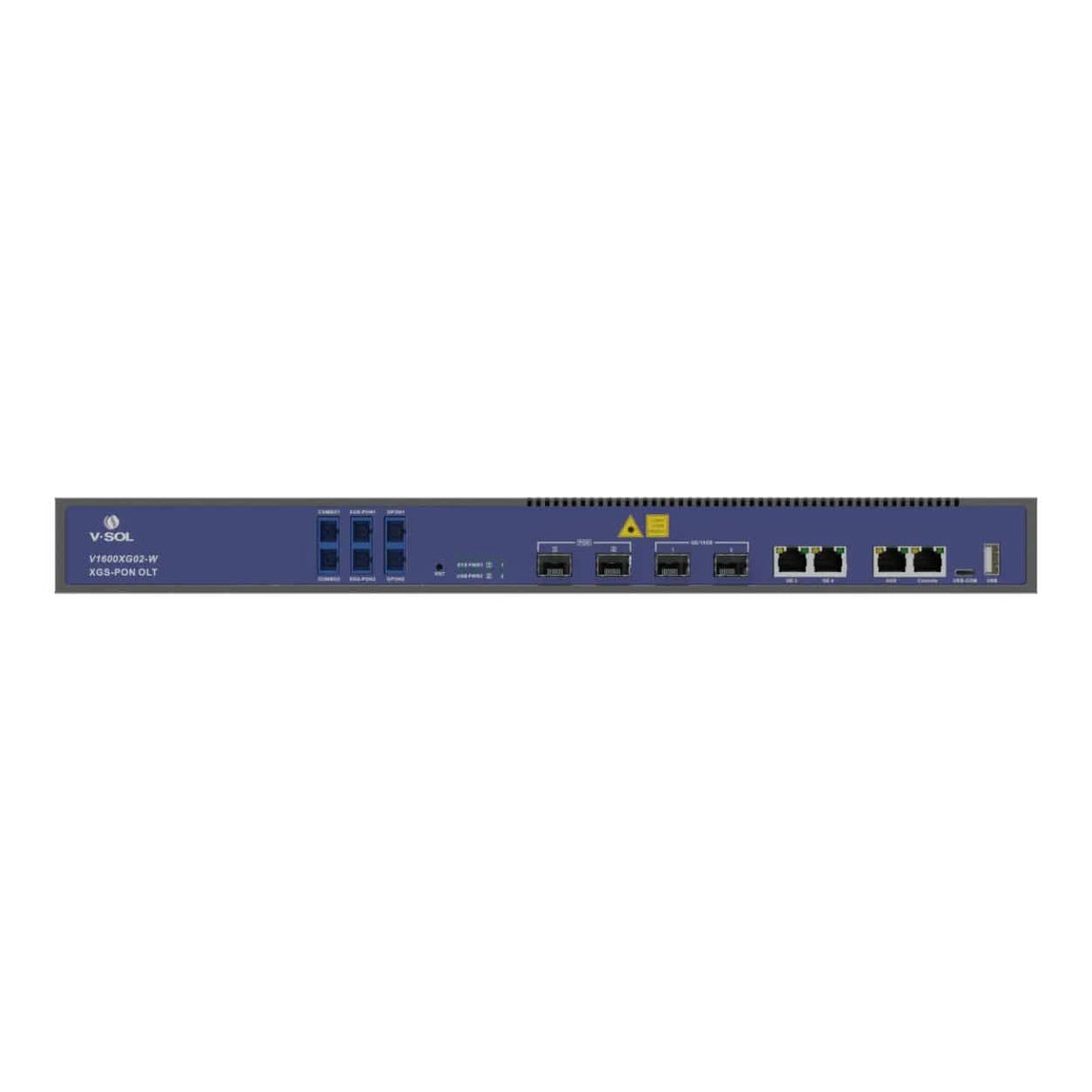

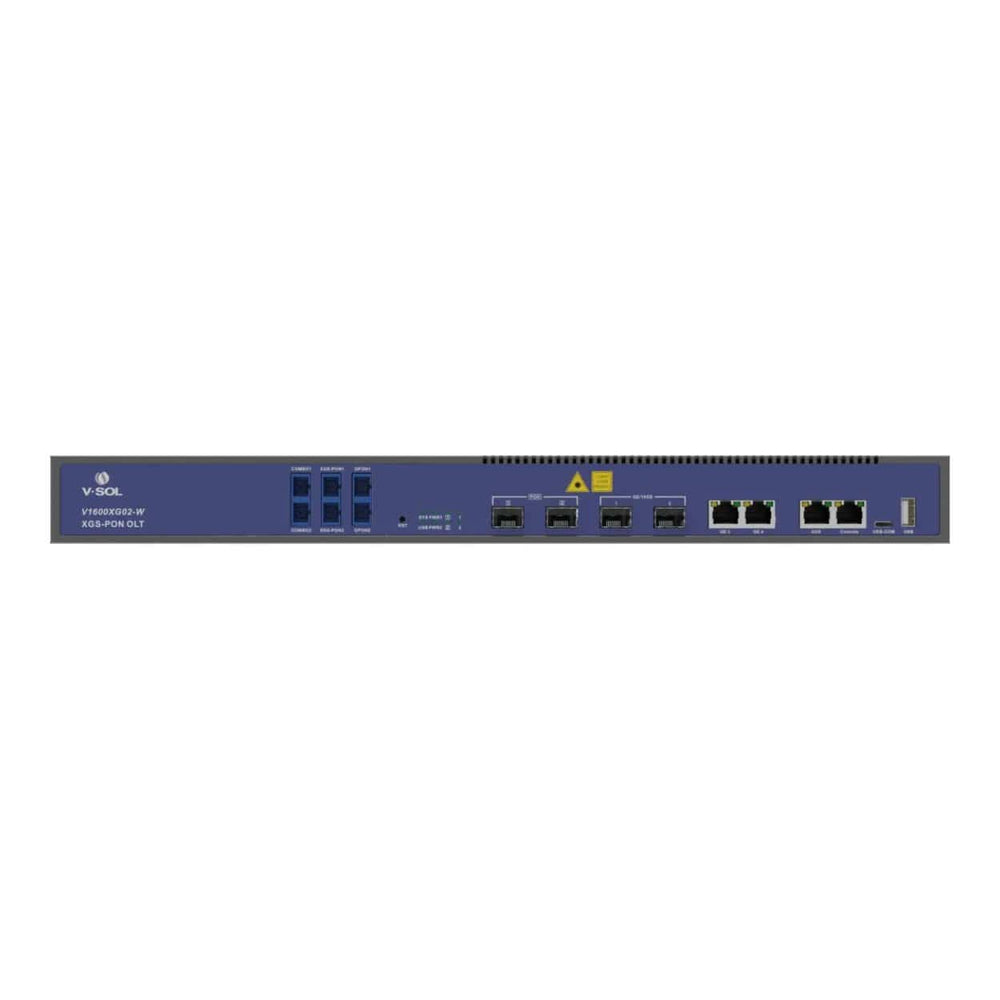

V-SOL V1600XG02-W 2-port XG/XGS PON OLT with built-in WDM

V-SOL V1600XG02-W 2-port XG/XGS PON OLT with built-in WDM

The VSOL V1600XG02-W is a 2-port Optical Line Terminal (OLT) designed for high-performance fibre-to-the-premises (FTTP) networks. It provides two XG/XGS-PON ports, supporting both asymmetric XG-PON and symmetric XGS-PON (10G/10G) capabilities. With a high splitting ratio of up to 1:256, this OLT can serve a large number of subscribers efficiently. The integrated WDM (Wavelength Division Multiplexing) allows for the coexistence of multiple PON services on the same fibre infrastructure, simplifying network upgrades. For high-speed connectivity, it includes two 25GE/10GE SFP28/SFP+ ports and two 10GE/GE SFP+/SFP uplink ports. The device supports multiple management methods, including WEB, CLI, Telnet, and SNMP for flexible administration. Its compact 1U design is suitable for standard rack installation, making it an effective solution for ISPs and network operators building high-speed fibre access networks.

Technical Specifications:

Chassis
Rack
1U 19-Inch Standard Box

Uplink Ports
Quantity: 4
RJ45 (GE): 2
SFP (GE) / SFP+ (10GE): 2

XG-PON / XGS-PON Ports
Quantity: 2

Physical Interface
SFP+ Slots
Optical Splitting Ratio: 1:256 (Maximum), 1:128 (Recommended)
Management Ports: 1 × 10/100/1000M BASE-T out-of-band LAN port, 1 × Console port, 1 × USB-COM, 1 × USB2.0

Backplane
Bandwidth: 208 Gbps
Port Forwarding Rate: 124.992 Mpps

PON Port Specifications
Transmission Distance: 20 km
GPON Port Speed: Upstream 1.244 Gbps, Downstream 2.488 Gbps
XG-PON Port Speed: Upstream 2.488 Gbps, Downstream 9.953 Gbps
XGS-PON Port Speed: Upstream 9.953 Gbps, Downstream 9.953 Gbps
Wavelengths: GPON: TX 1490 nm, RX 1310 nm; XG-PON / XGS-PON: TX 1577 nm, RX 1270 nm
Connector: SC/UPC
Fiber Type: 9/125 μm SMF

Power Supply
AC: Working Voltage Range 100–240 V, Rated Voltage 110/220 V
DC: Working Voltage Range -36 ~ -75 V, Rated Voltage -48/-60 V

Management Mode
WEB, Telnet, CLI
