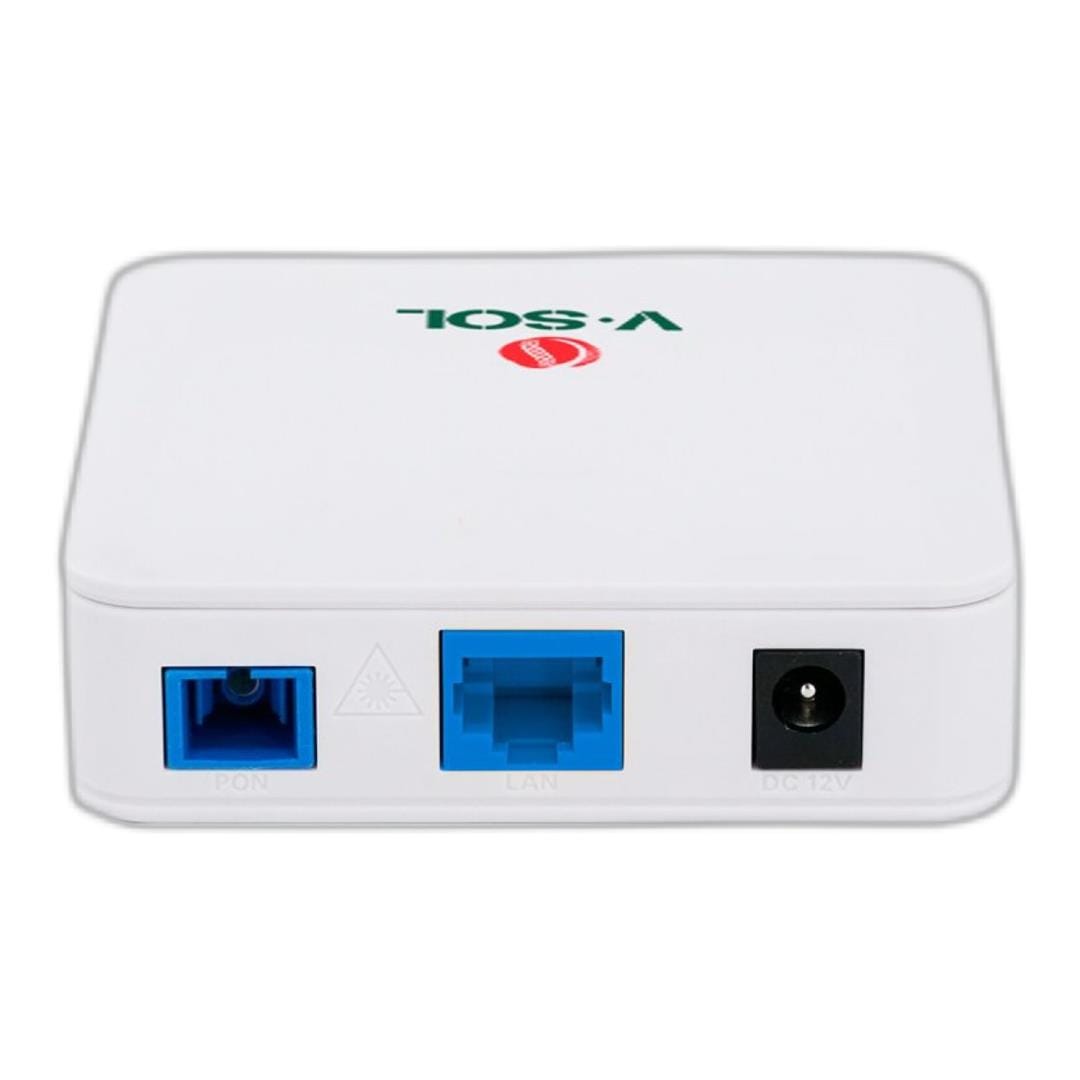

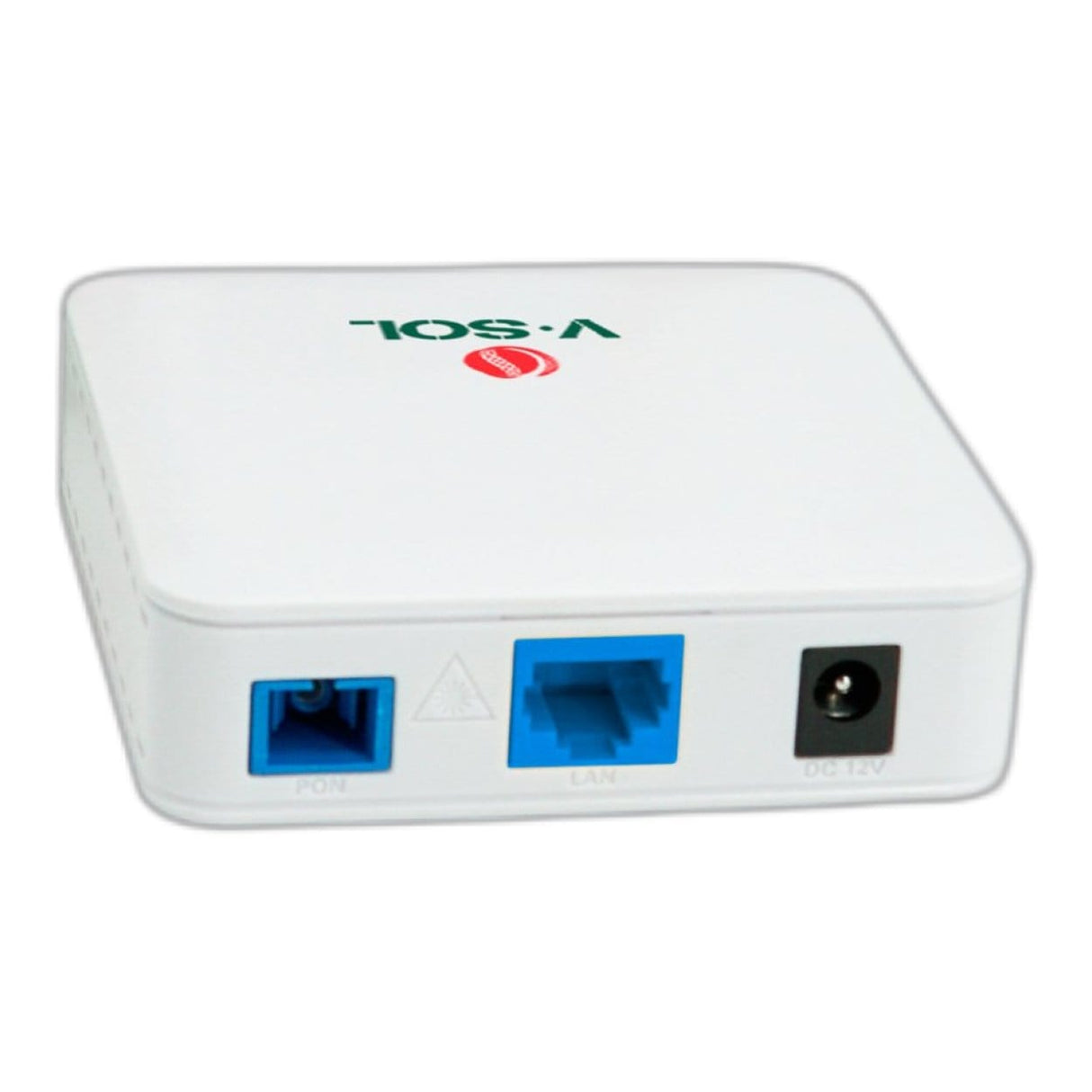

V-SOL Single xPON with 2.5GE ONU V2801Q

V-SOL Single xPON with 2.5GE ONU V2801Q

V2801Q( XPON 2.5GbE ONU ) is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop), FTTH(home), SOHO broadband access, video surveillance, etc. This ONU is based on a high-performance chip solution and has a2.5GbEport,which can provide users with a high-speed network experience and truly realize Gigabit to the desktop.

The ONT has high reliability and can be applied to a wide temperature environment; and has a powerful firewall function, whichiseasytomanage and maintain. It can provide QoS guarantee for different services. The ONT complies with international technical standardssuchasIEEE802.3ah and ITU-T G.984.

Technical Specifications:

Hardware Parameters
Dimension: 82 x 82 x 25 mm (L x W x H)
Net Weight: 0.085 kg

Operating Conditions
Operating Temperature: -10 °C to +55 °C
Operating Humidity: 5% to 95% (Non-Condensing)

Storage Conditions
Storage Temperature: -40 °C to +70 °C
Storage Humidity: 5% to 95% (Non-Condensing)

Power
Power Adapter: DC 12 V, 0.5 A, External AC-DC Power Adapter
Power Supply: ≤4 W

Interfaces
Interfaces: 2.5GbE

Indicators

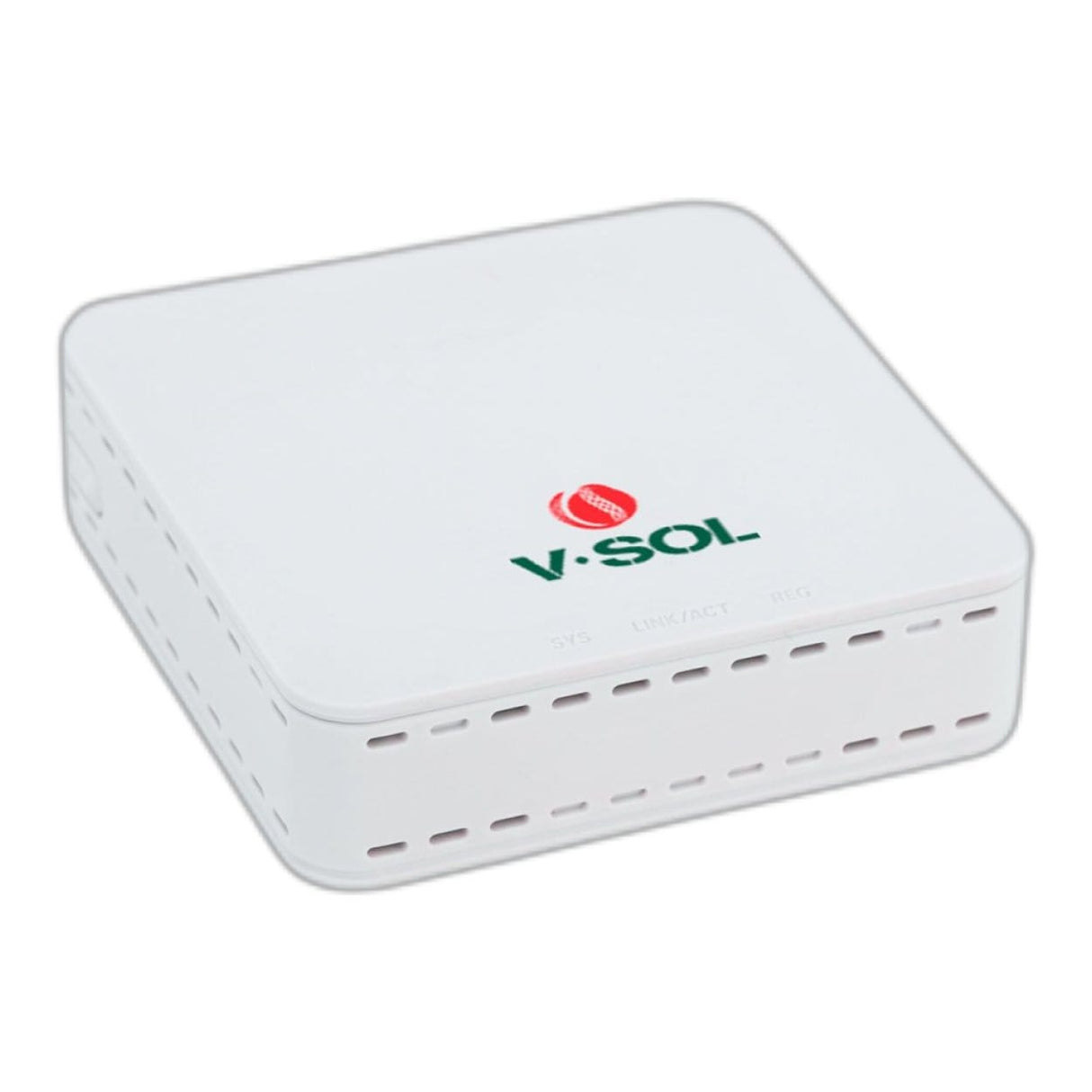

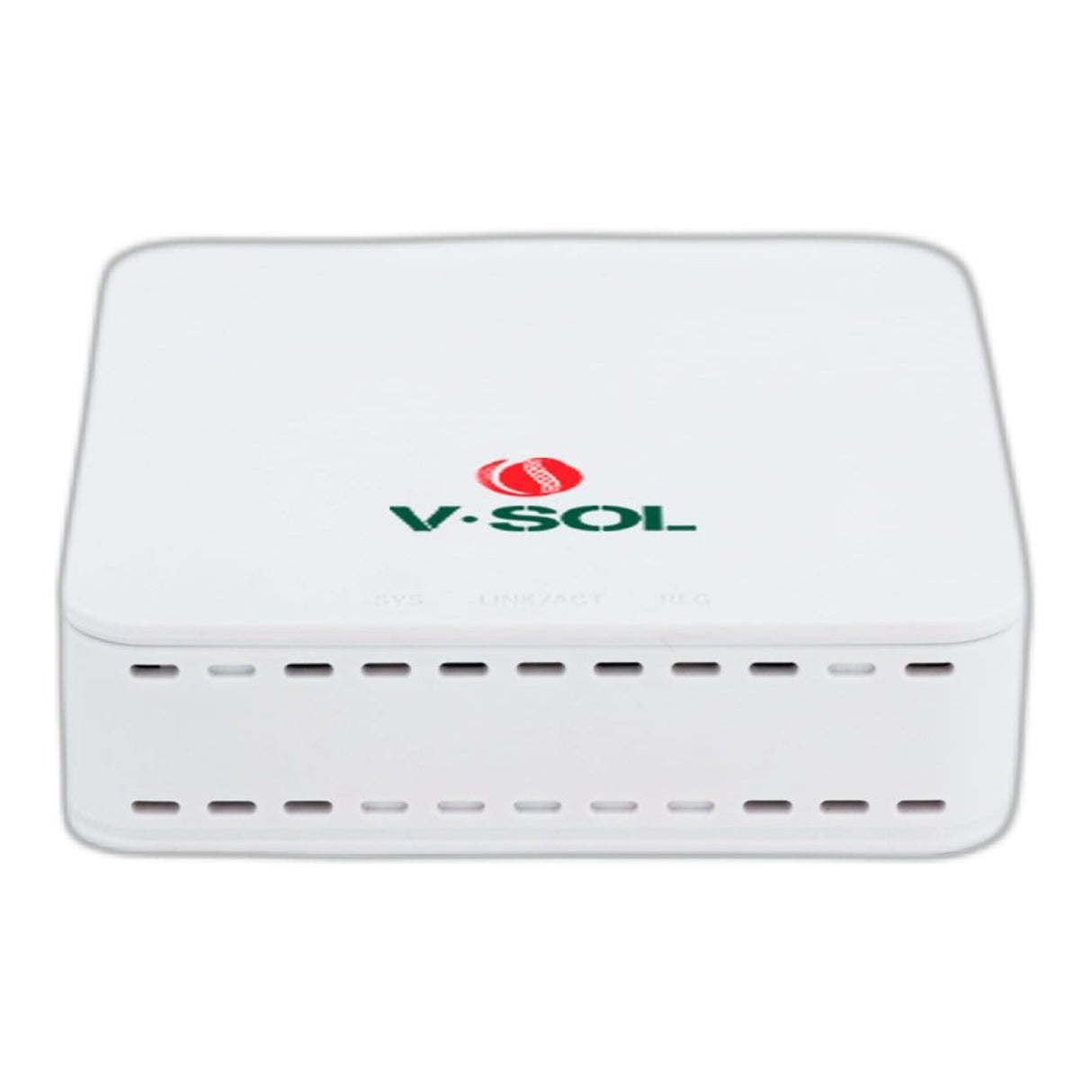

Indicators: SYS, LINK/ACT, REG

PON Interface
PON Interface: 1 × XPON Port (EPON PX20+ and GPON Class B+)
Connector: SC Single-Mode, SC/UPC Connector
TX Optical Power: 0 to +4 dBm
RX Sensitivity: -27 dBm
Overload Optical Power: -3 dBm (EPON), -8 dBm (GPON)
Transmission Distance: 20 km
Wavelength: TX 1310 nm, RX 1490 nm

LAN Interface
LAN Interface: 1 × 2.5GbE, Auto-Negotiation RJ45 Connector

Function Data
XPON Mode: Dual Mode, Auto-Access to EPON/GPON OLT
Uplink Mode: Bridging and Routing Mode
Abnormal Protection: Detecting Rogue ONU, Hardware Dying Gasp

Firewall
Firewall Features:

• DDOS Protection
• Filtering Based on ACL
• Filtering Based on MAC
• Filtering Based on URL

Basic Features
Basic Features:

• Support MPCP Discovery/Register
• Support Authentication MAC/LOID/MAC+LOID
• Support Triple Churning
• Support DBA Bandwidth
• Support Auto-Detecting, Auto-Configuration and Auto Firmware Upgrade
• Support SN/Password/LOID/LOID+Password Authentication

Alarm Features
Alarm Features:

• Support Dying Gasp
• Support Port Loop Detection
• Support Ethernet Port LOS

LAN Features
LAN Features:

• Support Port Rate Limiting
• Support Loop Detection
• Support Flow Control
• Support Storm Control

VLAN
VLAN Features:

• Support VLAN Tag Mode
• Support VLAN Transparent Mode
• Support VLAN Trunk Mode (Max. 8 VLANs)
• Support VLAN 1:1 Translation Mode (≤8 VLANs)

Multicast
Multicast Features:

• Support IGMPv1/v2/Snooping
• Max Multicast VLAN: 8
• Max Multicast Group: 64

QoS
QoS Features:

• Support 4 Queues
• Support SP and WRR
• Support 802.1P

Layer 3
Layer 3 Features:

• Support IPv4/IPv6
• Support DHCP/PPPoE/Static IP
• Support Static Route
• Support NAT

Management
Management Features:

• Support CTC OAM 2.0 and 2.1
• Support ITU-T G.984.x OMCI
• Support Web Management
• Support TR-069
• Support Telnet
• Support CLI
