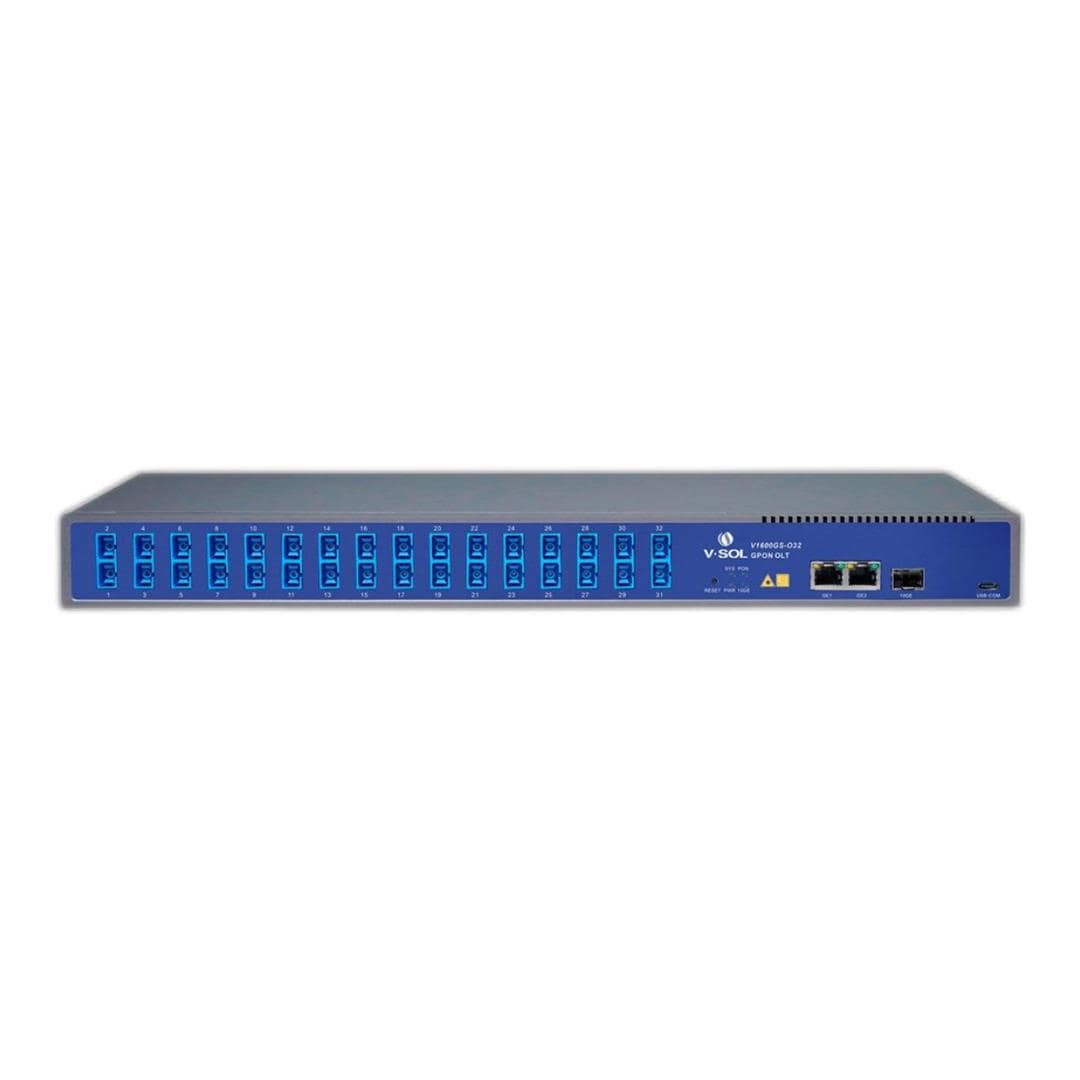

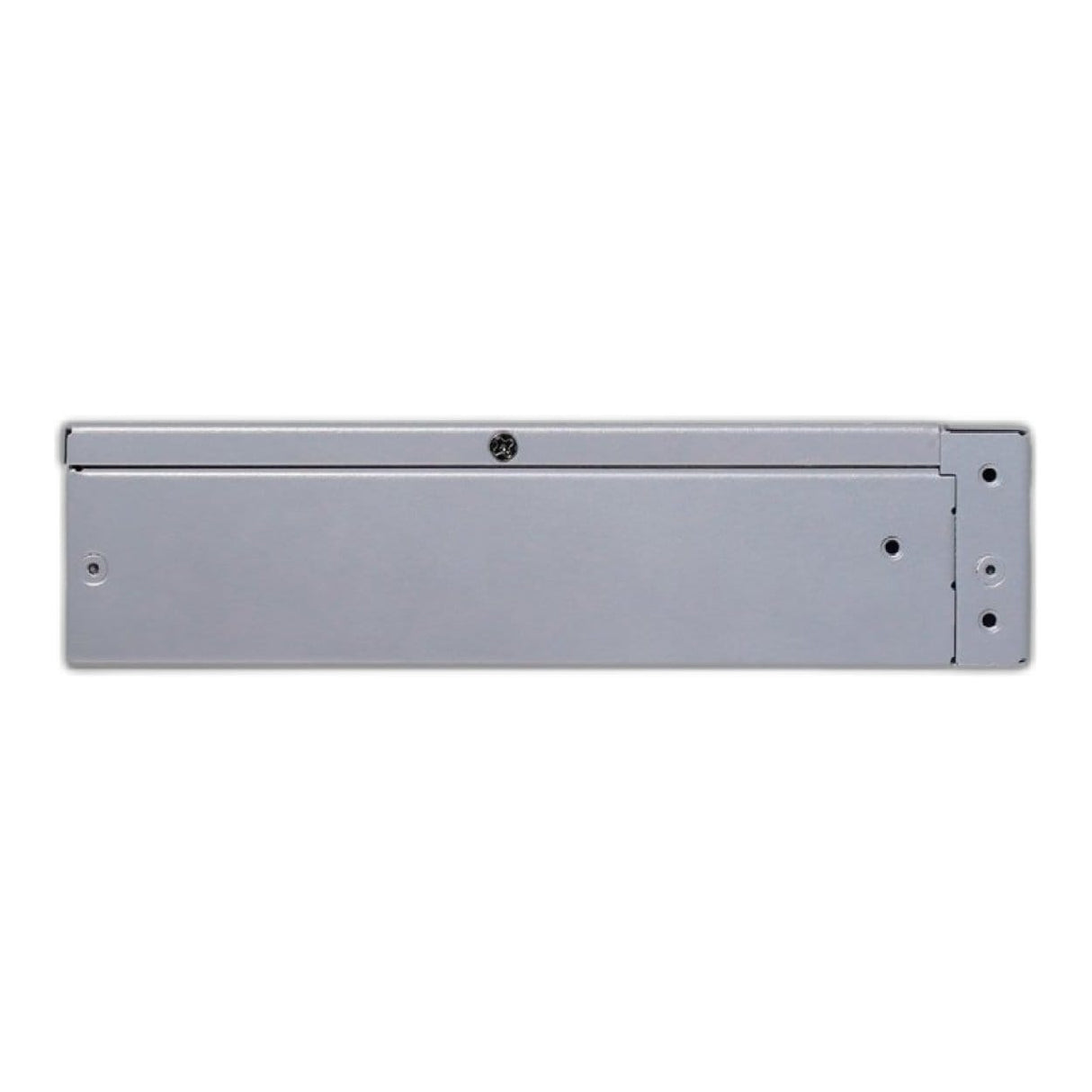

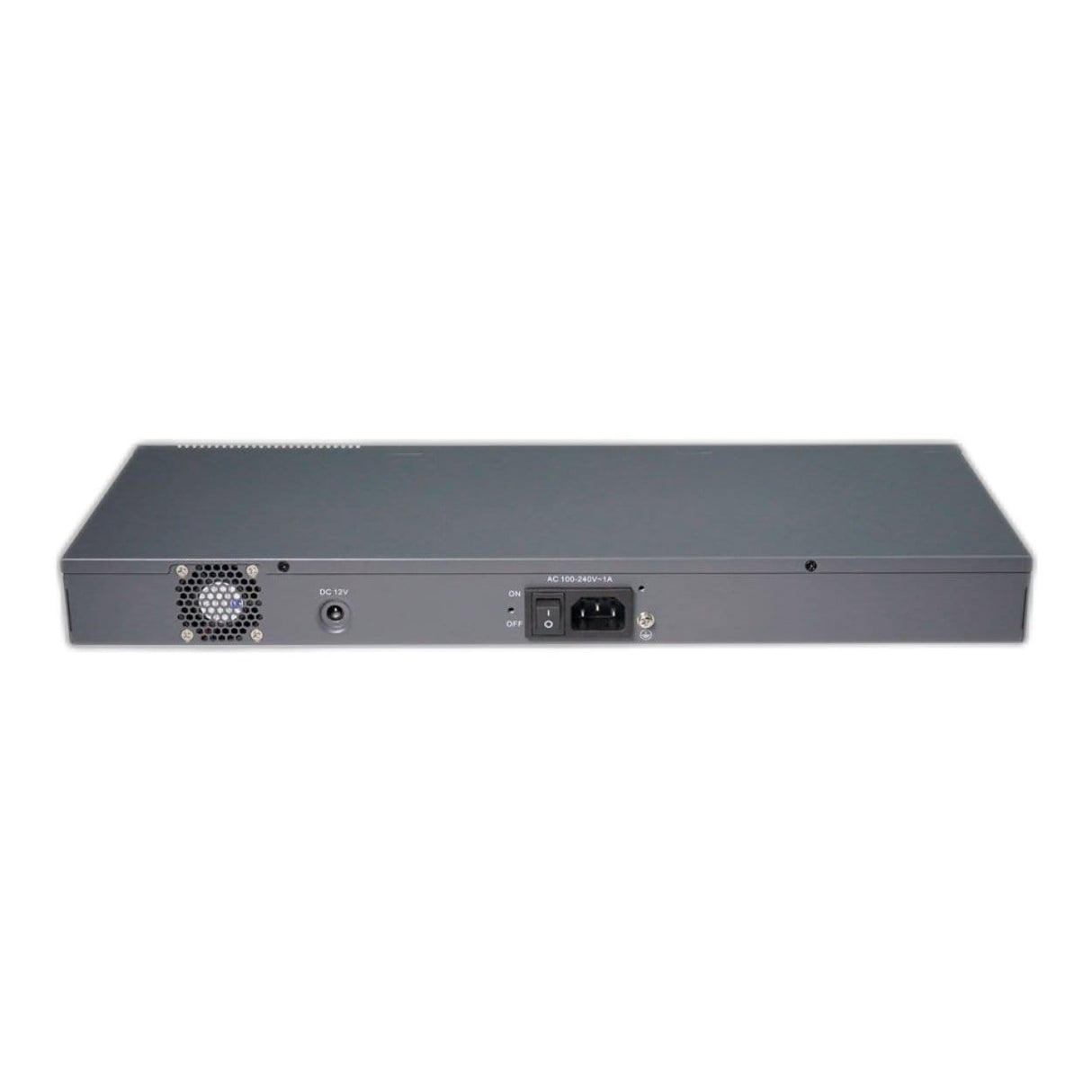

V-SOL Single PON with 1x32 Splitter GPON OLT V1600GS-O32

V-SOL Single PON with 1x32 Splitter GPON OLT V1600GS-O32

The V-SOL V1600GS-O32 is a compact, 1U rack-mountable Optical Line Terminal (OLT) designed for Gigabit Passive Optical Network (GPON) applications. It provides a single GPON port to connect multiple Optical Network Units (ONUs), making it a cost-effective solution for small-scale Fibre-to-the-Home (FTTH) deployments. Its 19-inch rack-mountable design allows for easy integration into existing network infrastructure. This OLT is suitable for internet service providers (ISPs) and network operators deploying fibre optic services in residential buildings, small business parks, or rural areas. The device supports standard GPON protocols, ensuring compatibility and reliable performance for high-speed data, voice, and video services.

Technical Specifications:

Chassis
Rack: 1U

GE/10GE Uplink Ports
QTY: 3
RJ45 (GE): 2
SFP (GE)/SFP+ (10GE): 1

GPON Port Specification
QTY: 1
Fiber Type: 9/125 μm SM
Connector: SC/UPC, TX: 8 dBm, Sensitivity: -32 dBm, Optical Power per Port After 1 × 32 Splitting: ≥ -10 dBm
GPON Port Speed: Upstream 1.244 Gbps, Downstream 2.488 Gbps
Wavelength: TX 1490 nm, RX 1310 nm
Built-In Splitter: 1 × 32
Transmission Distance: 20 km

Optical Splitter
Optical Splitter: 1 × 32, Built-In

Management Ports
Management Ports: 1 × USB-COM Port

Performance
Backplane Bandwidth (Gbps): 29
Port Forwarding Rate (Mpps): 21.576

Management
Management Mode: Console, Web, Telnet, CLI

Power Supply
AC: Working Voltage Range: 100~240 V, Rated Voltage: 110 V/220 V
DC Power Adapter: DC 12 V / 2 A

Lightning Protection
Power Supply Protection Level: 4 kV
Device Interface Protection Level: 1 kV
