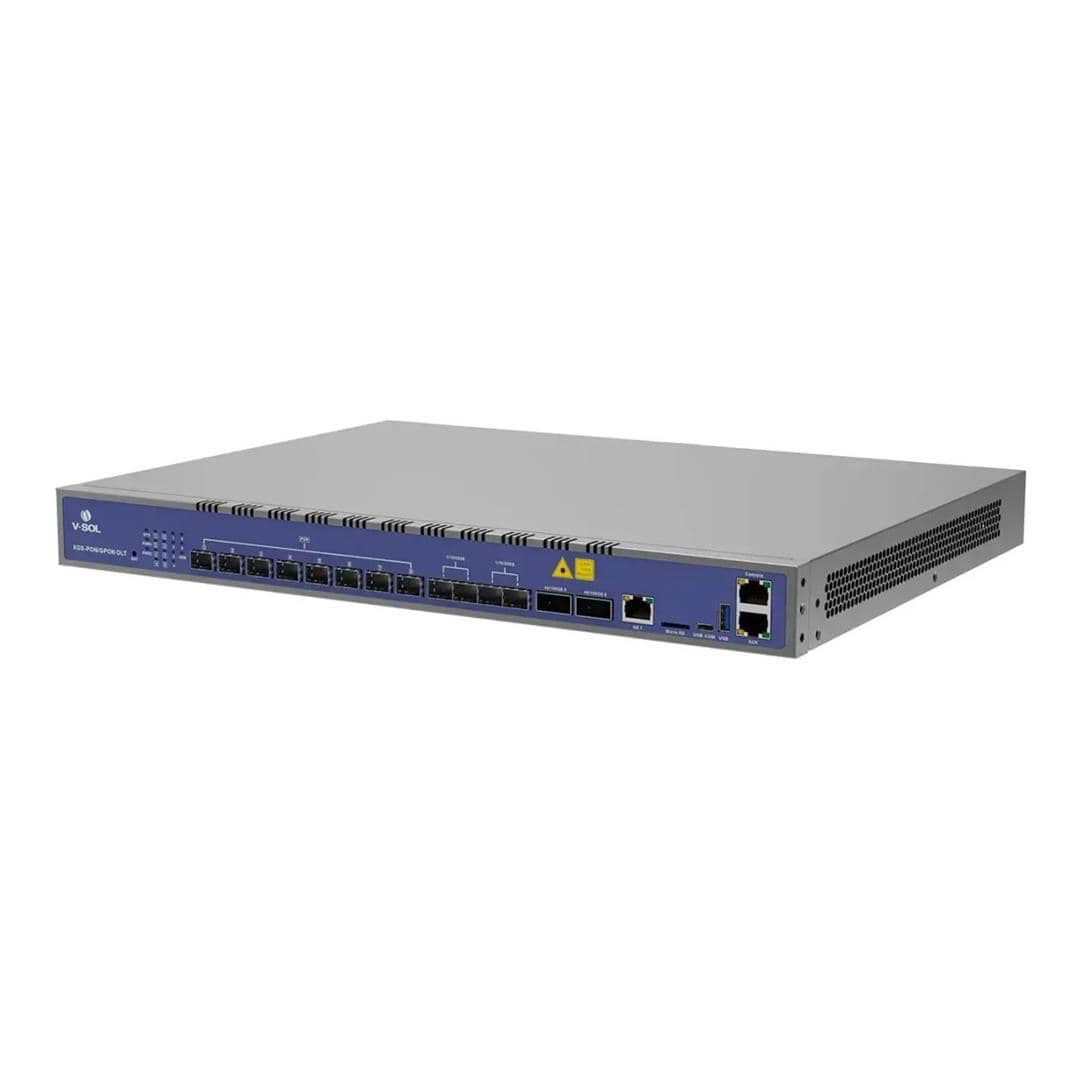

V-SOL 8-port XGS Combo PON OLT

V-SOL 8-port XGS Combo PON OLT

Industry-leading Compact 8-Port 10G Combo PON OLT

Why V3600G1-C?

Flexible Switching of PON Port Modes

Smooth Evolution from GPON to 10G PON

Unprecedented 10G PON Experience

One-stop 10G GPON Combo PON Solution

Specifications:

Chassis

Rack: 1U 19Inch Standard Box

Uplink Port

• QTY: 8
• RJ45(GE): 1
• SFP28(25GE): 4
• QSFP28: (25GE/50GE/100GE); 2

XG(S)-PON/GPON Port

QTY: 8

Physical Interface: SFP+ Slots

Connector Type: XG(S)-PON & GPON Combo Mode: N2_C+

Single GPON mode: Class B+/C/C+/C++/C+++/C++++

Optical Splitting Ratio: 1:256 (maximum), 1:128 (recommended)

Management Ports:

• 1*10/1000/1000BASE-T out-band port,
• 1*CONSOLE port, 1*USB3.0,
• 1*Type-C USB console, 1*MicroSD port

Backplane Bandwidth (Gbps): 1960

Port Forwarding Rate (Mpps): 566.928

XG(S)-PON&GPON Combo Port Specification

Transmission Distance: 20KM

XG(S)-PON Port Speed

• GPON: Uplink: 1.244Gbps, downlink: 2.488Gbps
• XG-PON: Uplink: 2.488Gbps, downlink: 9.953Gbps
• XGS-PON: Uplink: 9.953Gbps, downlink: 9.953Gbps

Wavelength

• GPON: Uplink: 1310nm, downlink: 1490nm
• XG(S)-PON: Uplink: 1270nm, downlink: 1577nm

Supports PON ports: PON 1~8 (8 PON ports are in XG(S)-PON&GPON Combo mode by default)

GPON Port Specification

Transmission Distance: 20KM

GPON Port Speed: Upstream: 1.244Gbps, Upstream: 2.488Gbps

Wavelength: Upstream: 1310nm, Upstream: 1490nm

Supports PON ports: PON 1~8 (Each PON port can be manually hot-switched to GPON mode)
