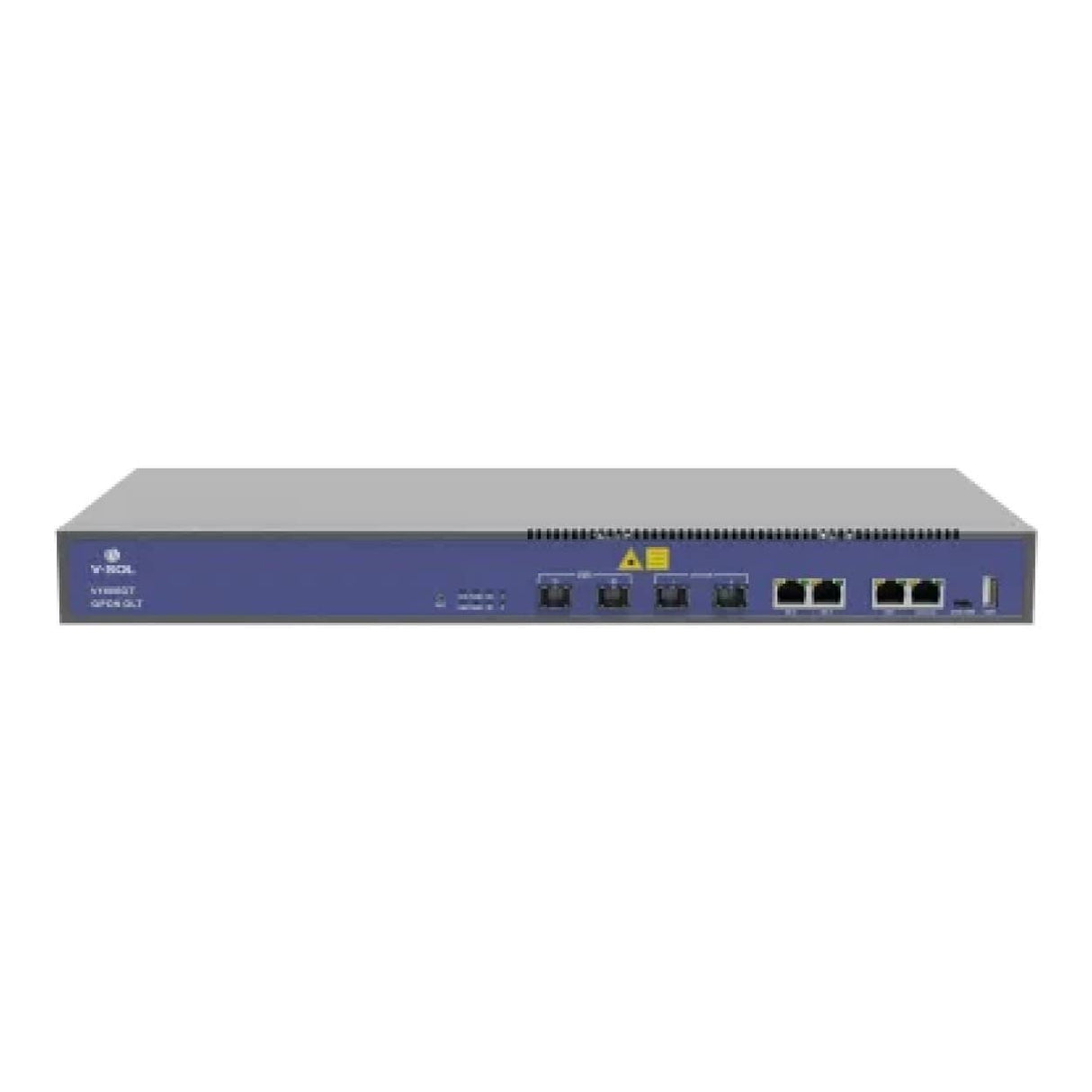

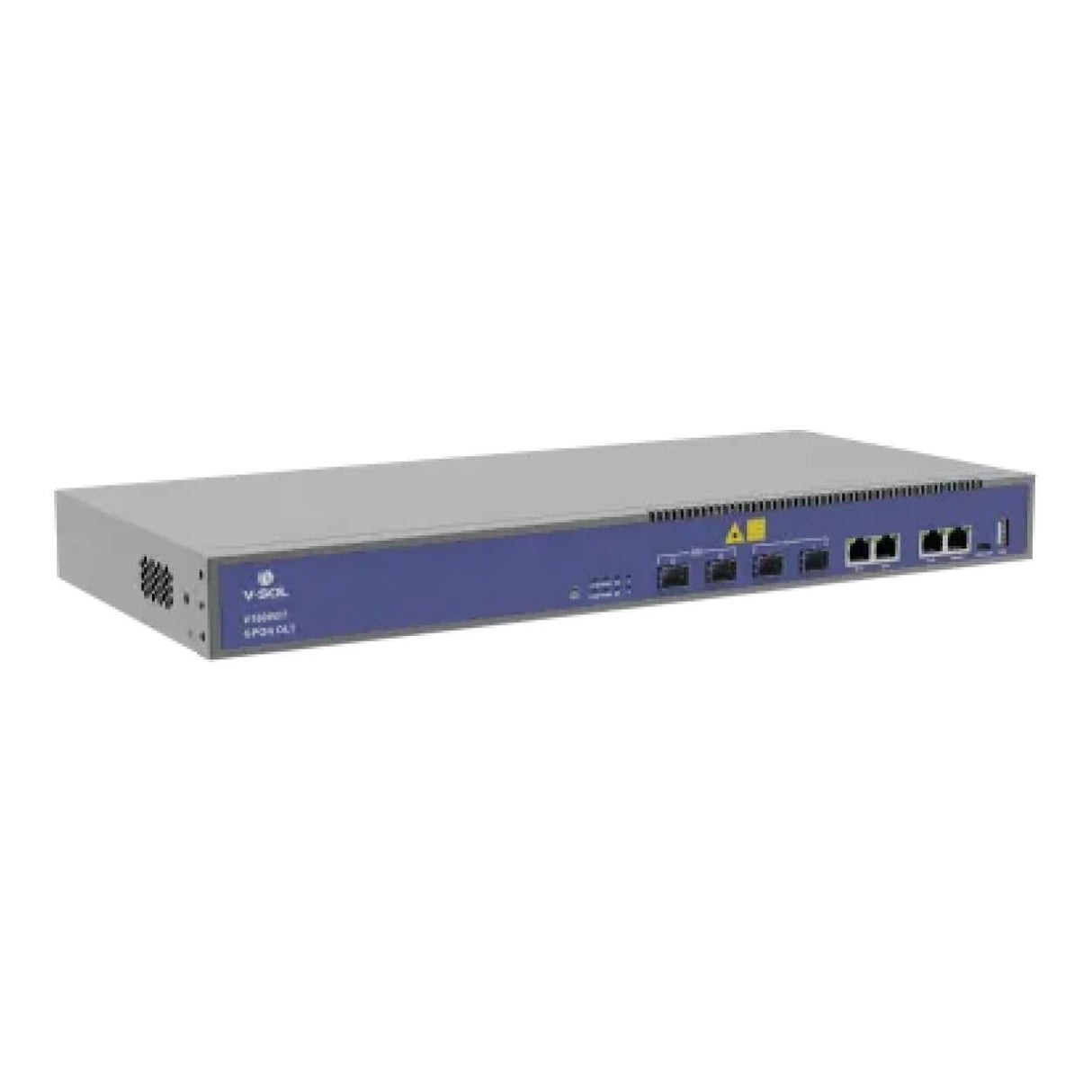

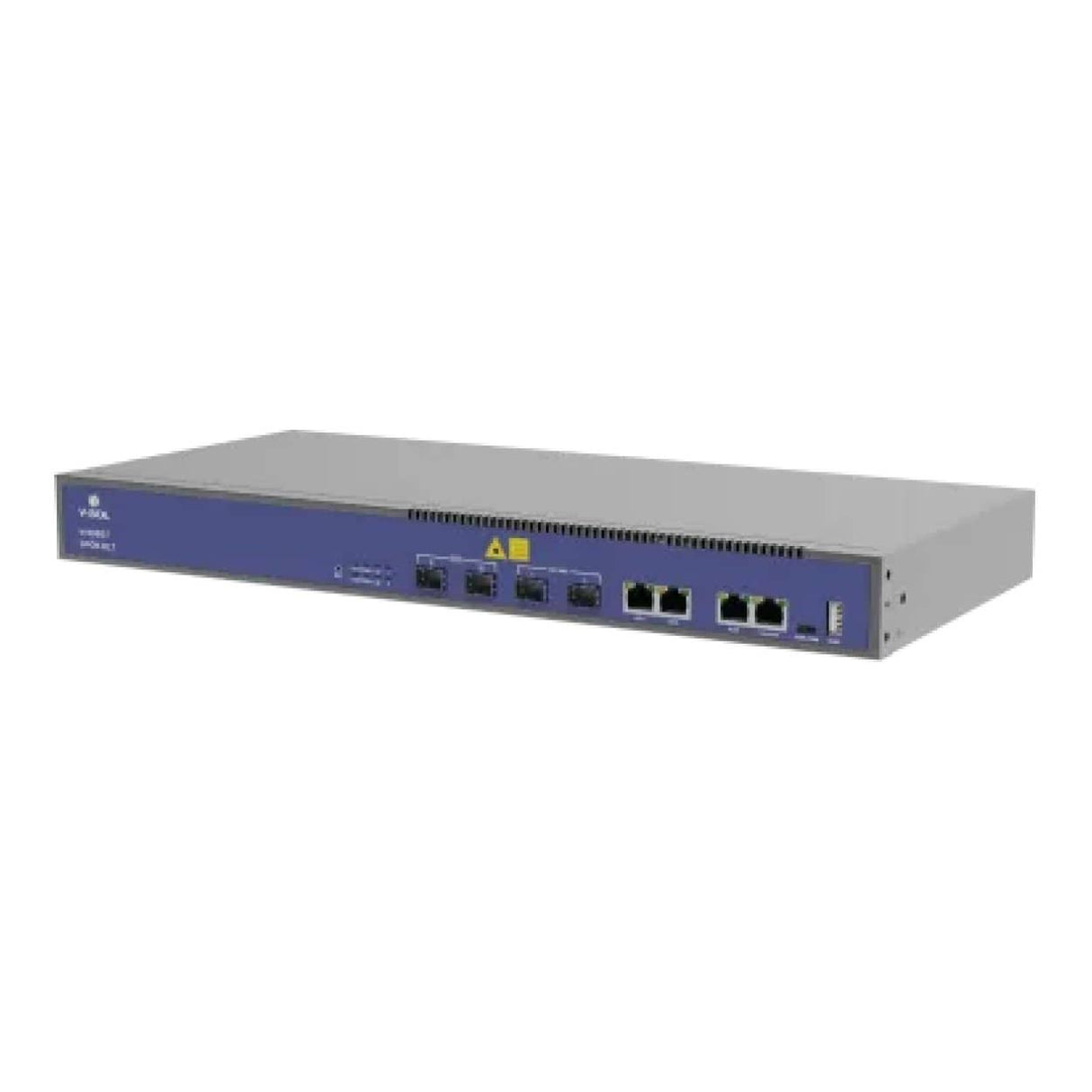

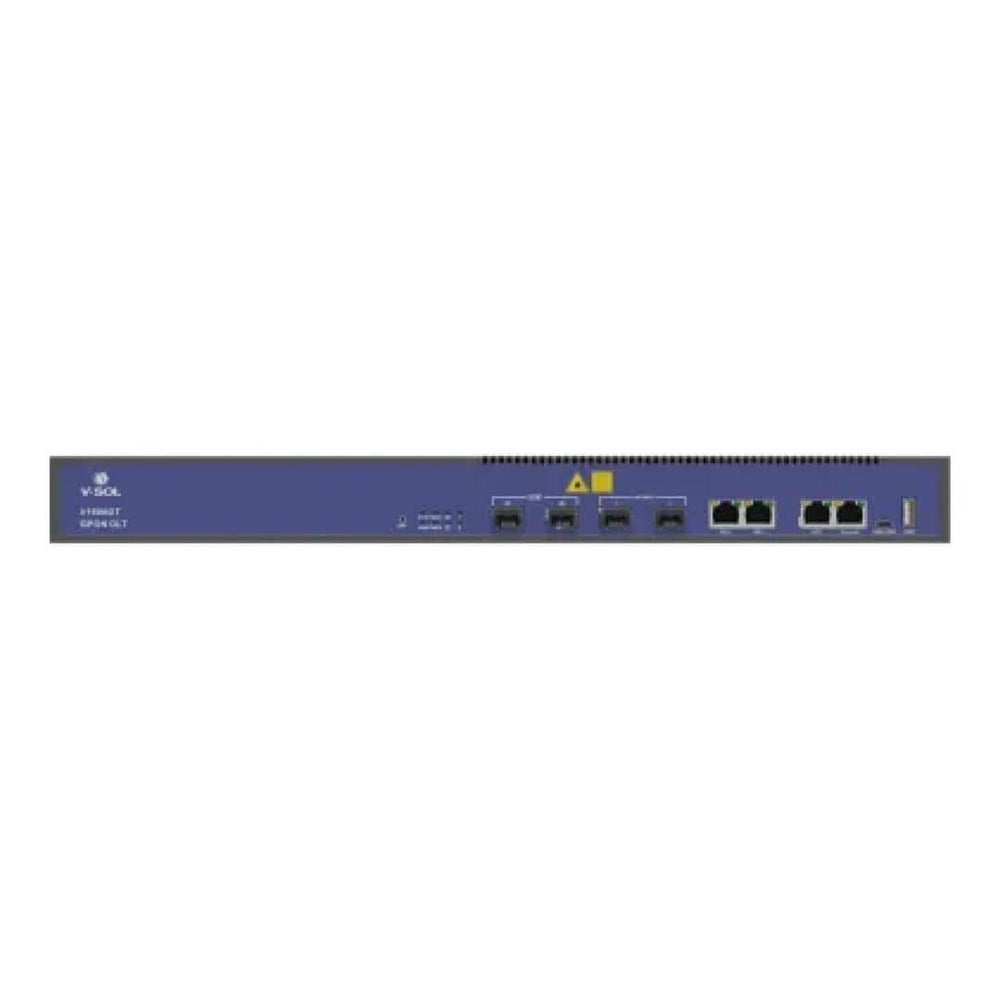

V-SOL 2-port GPON OLT V1600GT

V-SOL 2-port GPON OLT V1600GT

Minimalist OLT Designed for Small-scale Applications

Comprehensive Technical Support

For Small-scale Applications

Significant TCO Optimization

Telecom-grade Security

Various Deployment Scenarios

Specifications:

Chassis

• Rack: 1U 19Inch Standard Box

Uplink Port

• QTY: 4
• RJ45(GE): 2
• SFP(GE) / SFP+(10GE): 2

GPON Port

• QTY: 2
• Physical Interface: SFP+ Slots
• Supported PON module level: Class C++ / Class C+++ / Class C++++
• Max splitting ratio: 1:128

Management Ports: 1*10/100/1000BASE-T out-band port, 1*CONSOLE port,1*USB-COM, 1*USB2.0

Backplane Bandwidth (Gbps): 208

Port Forwarding Rate (Mpps): 40.176

PON Port Specification (Class C+++)

Transmission Distance: 20KM

PON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength: TX 1310nm, RX 1490nm

Connector: SC/UPC

Fiber Type: 9/125μm SMF

TX Power: +4.5 ~ +10dBm

Rx Sensitivity: ≤ -30dBm

Saturation Optical Power: -12dBm
