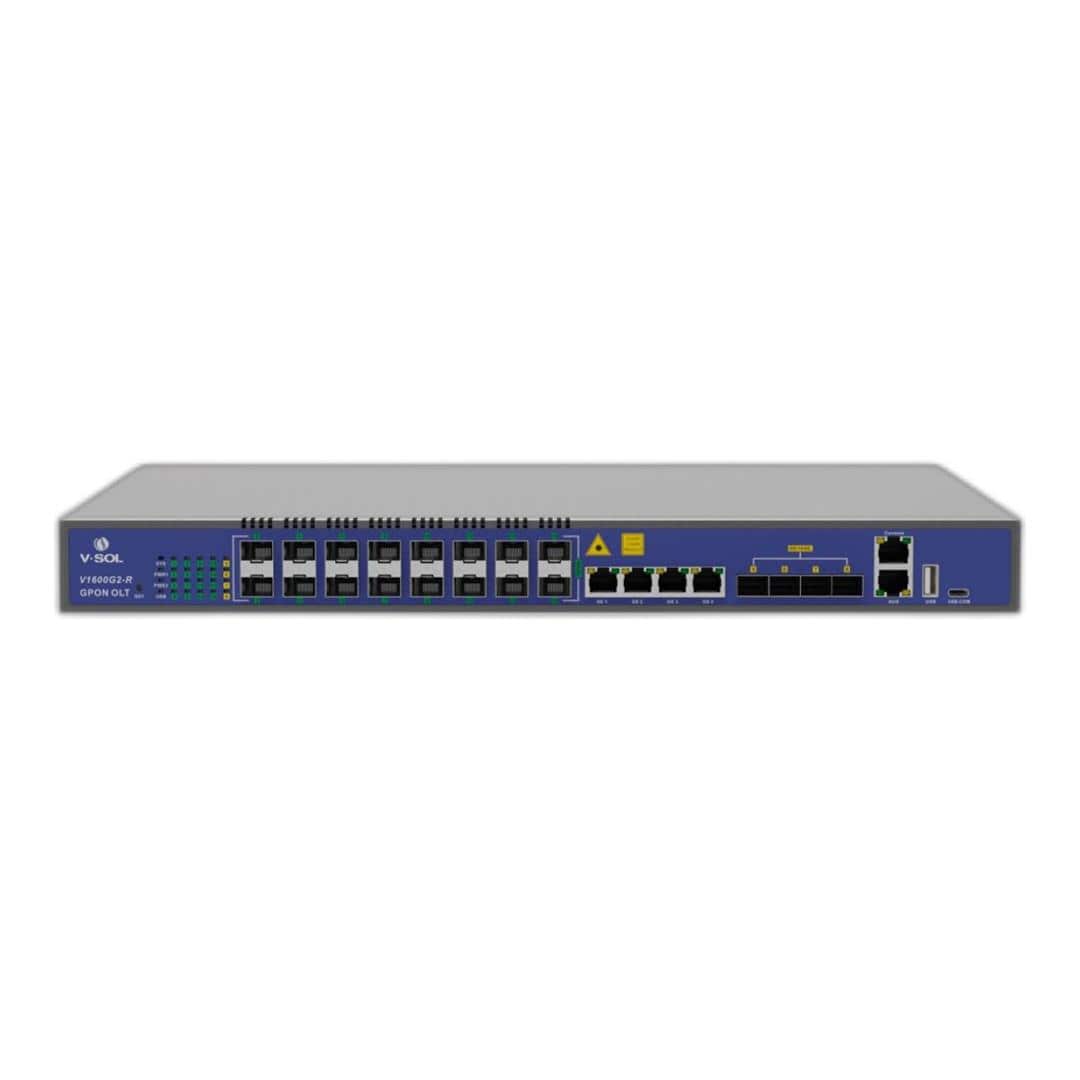

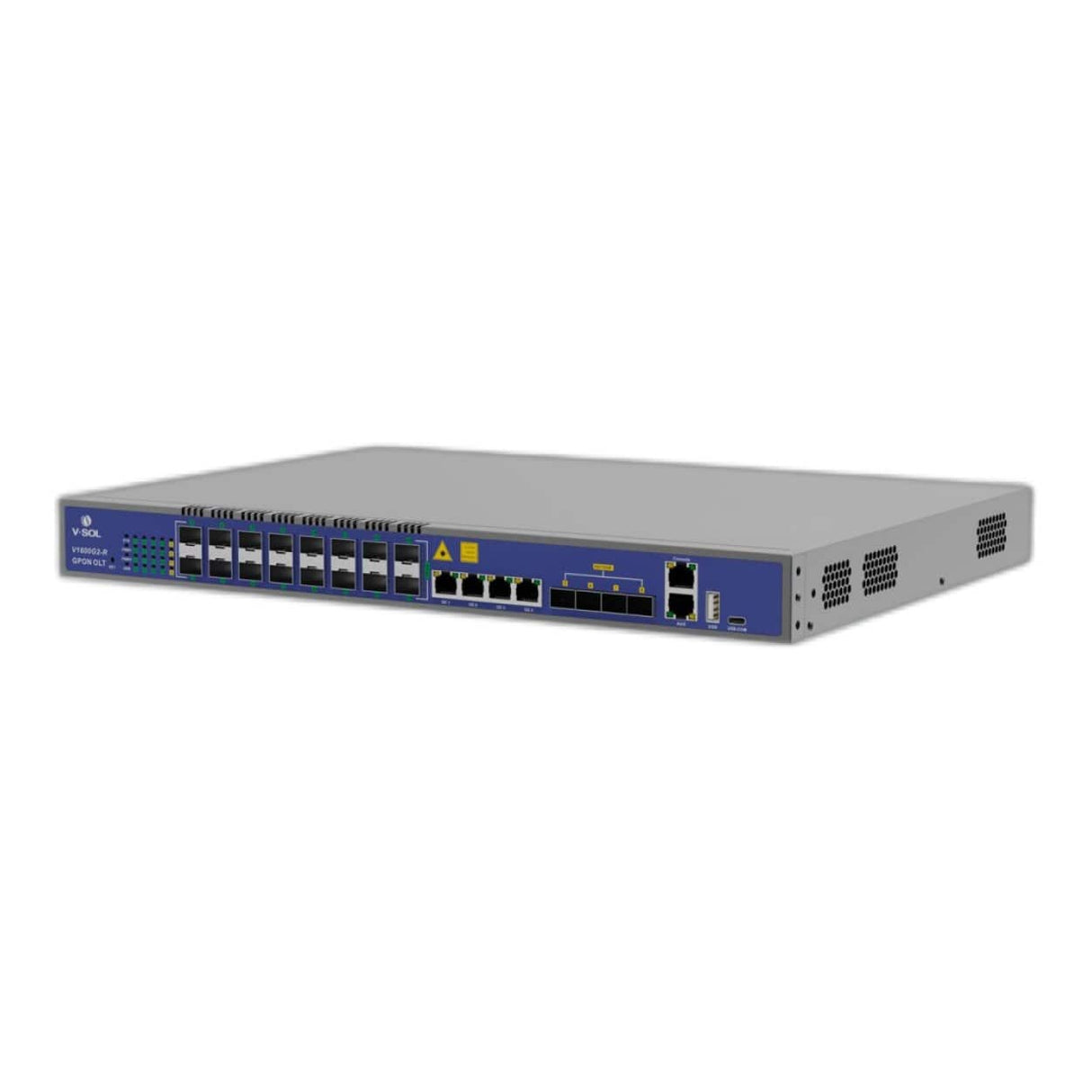

V-SOL 16 Port GPON OLT Network Terminal V1600G2-R
The V1600G2-R is a pizza-box GPONOLTwith16 GPON ports that meets flexible andfast FTTx access, suiting the scenarios suchas sparse/ remote/cost-sensitive area,smart industrial park, commercial building andFTTM, etc.
Compact design, meets various application scenarios Supports the deployment in diverse scenarios including low density areas, remote areas, sparsely-populated areas and industry parks. Supports FTTM and sharing site/rack with wireless base stations.
Small size and lightweight, easier to delivery and install Small size and lightweight, easy to transport and install. Supports multiple installation modes, like limited room space,basement, low-voltage room and small rack or cabinet.
Carrier-class security protection, support dynamicrouting protocol RIP&OSPF, ensure the safe operationof network Supports uplink redundancy protection including LACPSTP,RSTPand MSTP, and support RIP&OSPF protocol. Supports link protection.
Lower TCO Dramatically saves on investment fees in trunk fibers, pipeengineering, and facilities. Effectively reduce CapEx and OpEx.
Technical Specifications:
Chassis
Rack: 1U 19-Inch Standard Box
Uplink Ports
QTY: 8
RJ45 (GE): 4
SFP (GE)/SFP+ (10GE): 4
GPON Ports
QTY: 16
Physical Interface: SFP Slots
Max Splitting Ratio: 1:128
Management Ports
Management Ports:
- 1 × 10/100/1000BASE-T Out-of-Band Port
- 1 × Console Port
- 1 × USB 2.0
- 1 × Type-C USB (For Console)
Performance
Backplane Bandwidth (Gbps): 240
Port Forwarding Rate (Mpps): 124.992
PON Port Specification
Transmission Distance: 20 km
GPON Port Speed: Upstream 1.244 Gbps, Downstream 2.488 Gbps
Wavelength: TX 1490 nm, RX 1310 nm
Connector: SC/UPC
Fiber Type: 9/125 μm SMF
Supported PON Module Level: Class B+, C, C+, C++, C+++, C++++
Power Supply
AC: Working Voltage Range: 100~240 V, Rated Voltage: 110 V/220 V
DC: Working Voltage Range: -36~-75 V, Rated Voltage: -48 V/-60 V
Management
Management Mode: EMS, Web, SNMP, Telnet, CLI
