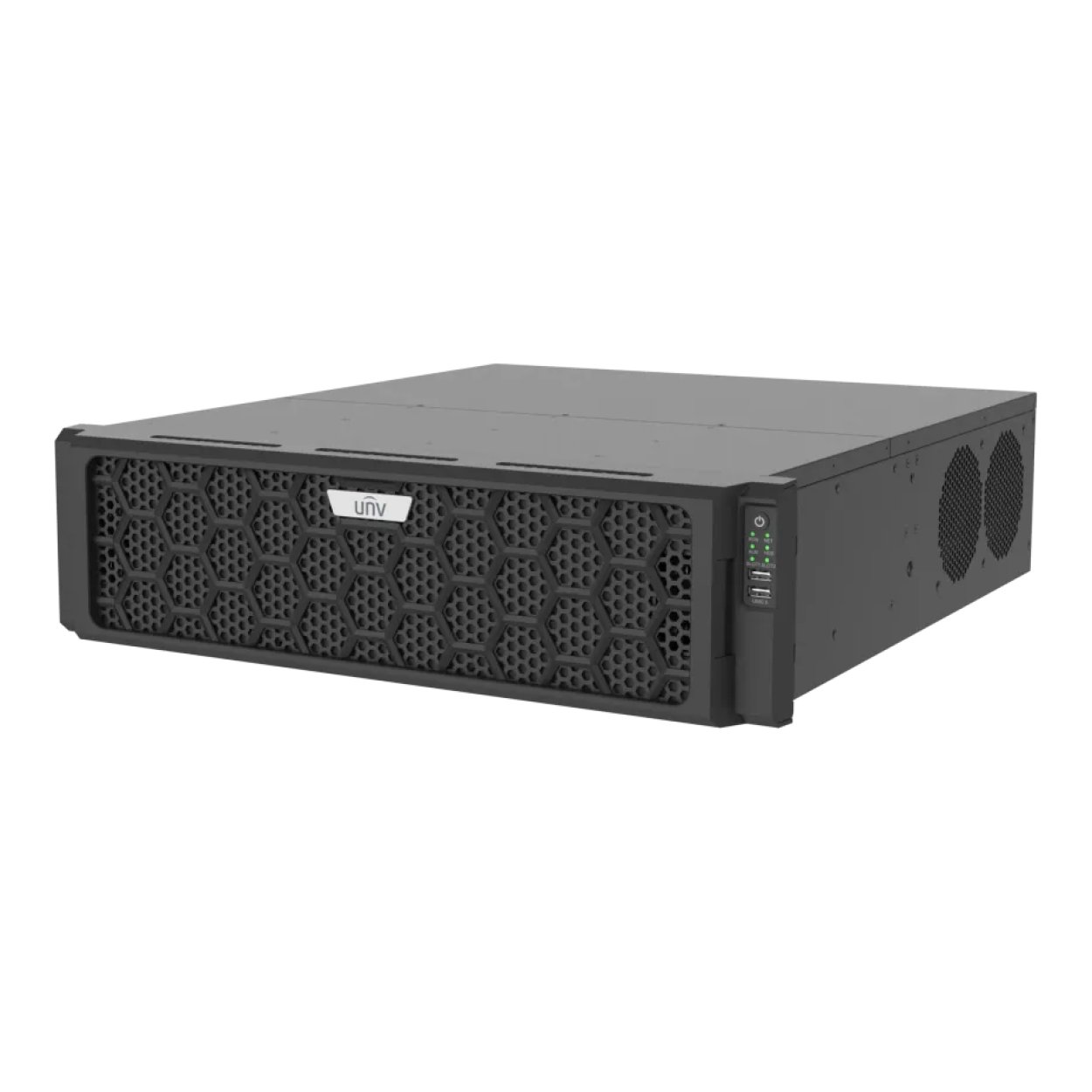

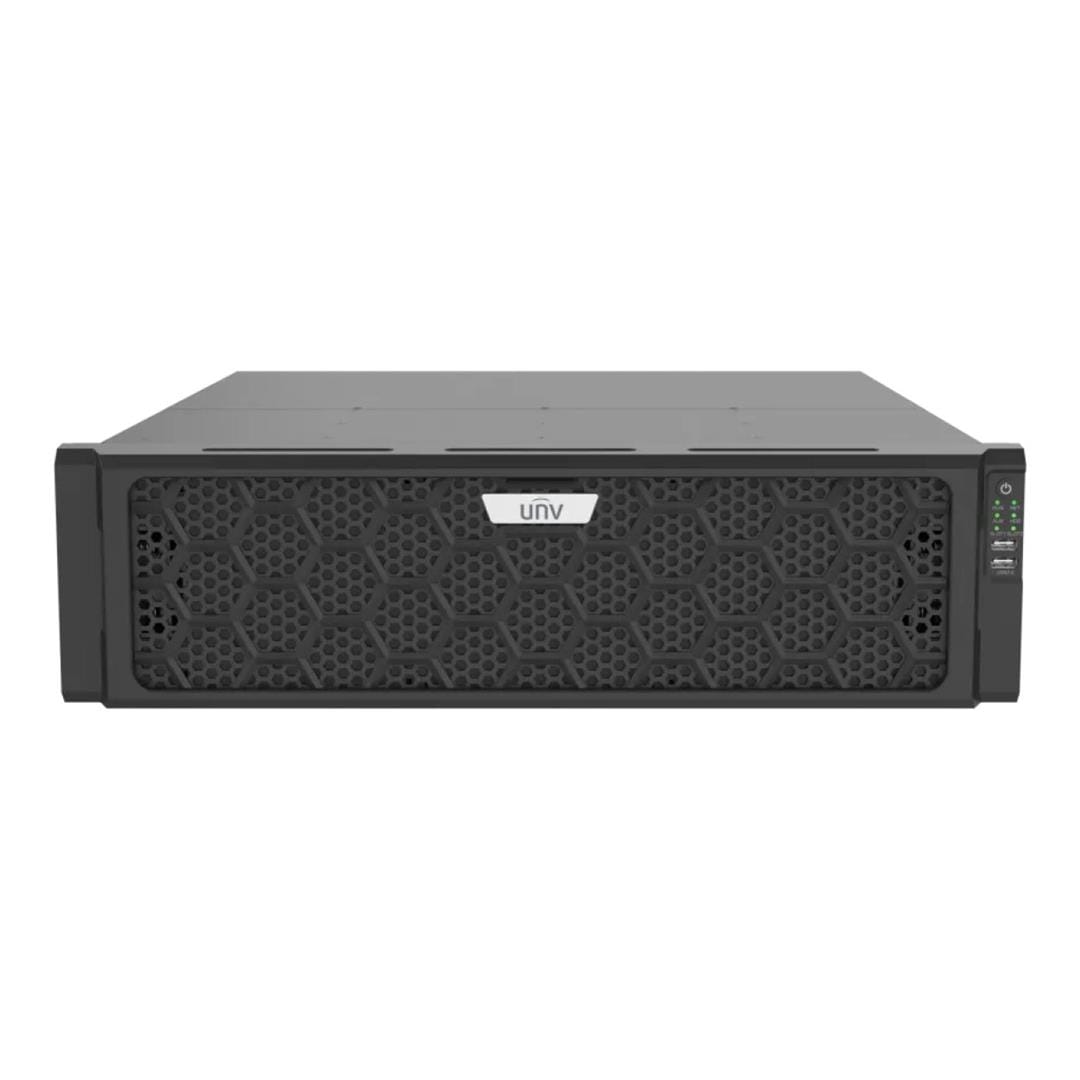

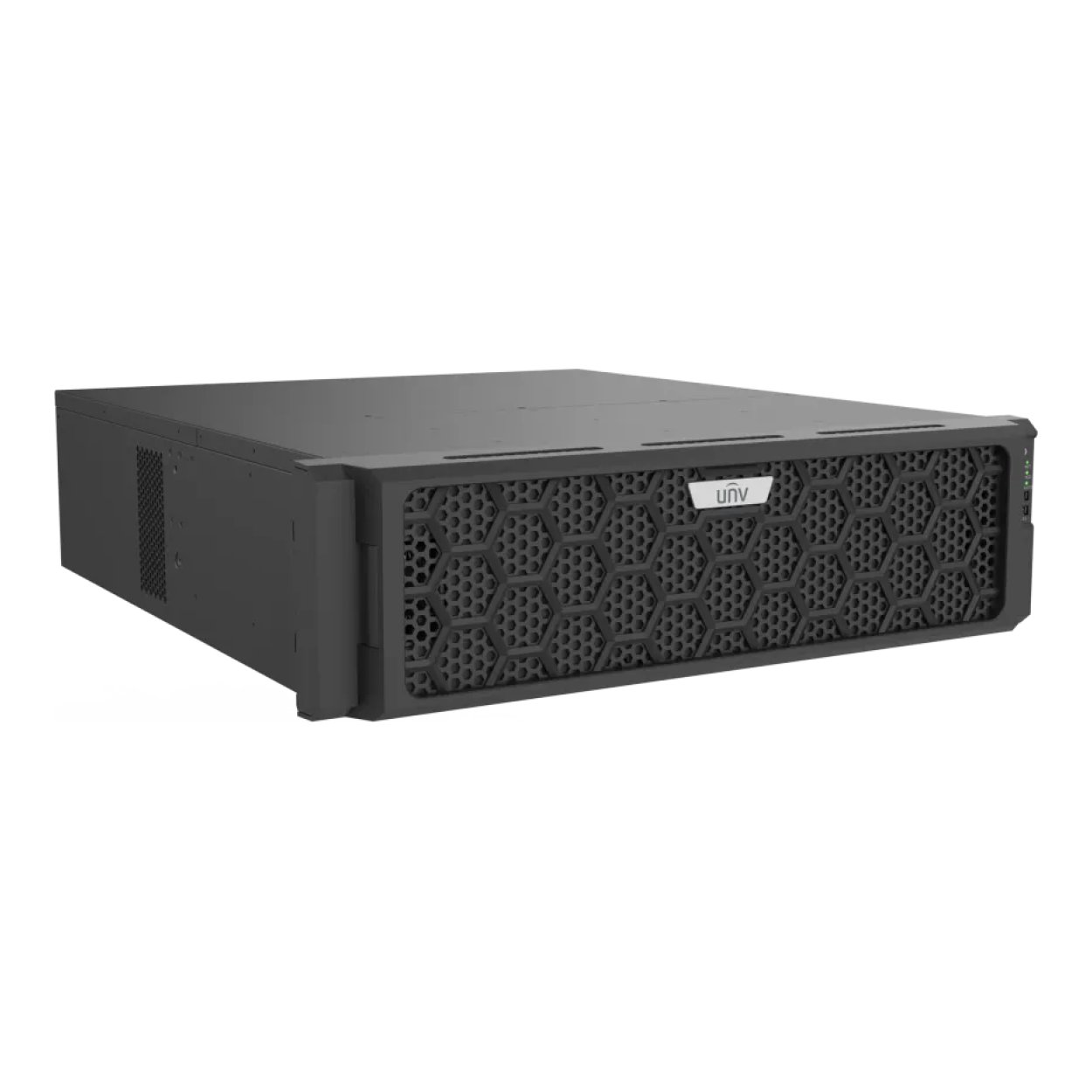

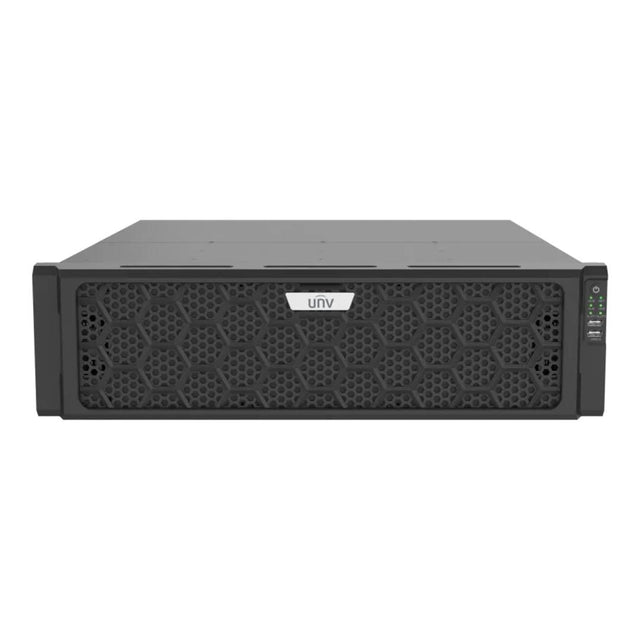

Uniview UNV PRO Series Ultra H.265 128 Channel NVR with 16 Hard Drive Slots NVR516-128E-R

Uniview UNV PRO Series Ultra H.265 128 Channel NVR with 16 Hard Drive Slots NVR516-128E-R

The Uniview NVR516-128E-R is a high-performance 128-channel network video recorder designed for large-scale surveillance deployments. Built for enterprise, commercial and critical infrastructure applications, it supports Ultra 265 compression, up to 16 hard drives, RAID data protection and high-bandwidth recording. With advanced video management capabilities and extensive storage scalability, it provides a reliable central recording solution for demanding IP surveillance systems.

Key Features

• Supports up to 128 IP camera channels.
• Ultra 265, H.265 and H.264 video compression.
• 640 Mbps incoming bandwidth.
• 16 SATA hard drive bays.
• Supports up to 16TB per hard drive.
• Maximum storage capacity of up to 256TB.
• RAID 0, 1, 5, 6 and 10 support.
• Dual HDMI and dual VGA video outputs.
• 16 alarm inputs and 4 alarm outputs.
• ONVIF compliant with redundant power supply support.

Enterprise-Class Recording Performance

The NVR516-128E-R supports up to 128 IP cameras while delivering an impressive 640 Mbps incoming bandwidth, making it suitable for large enterprise surveillance systems, campuses, industrial facilities and city-wide monitoring applications.

Large-Scale Storage Expansion

Featuring sixteen SATA drive bays supporting hard drives of up to 16TB each, the recorder offers a maximum raw storage capacity of up to 256TB. RAID support provides improved data redundancy and storage reliability for mission-critical recording environments.

Advanced Video Management

Support for Ultra 265, H.265 and H.264 compression technologies significantly reduces storage requirements while maintaining excellent image quality. Multiple HDMI and VGA outputs allow simultaneous local monitoring and management of surveillance footage.

Built for Professional Surveillance

Designed for continuous operation, the recorder integrates seamlessly with Uniview IP cameras and ONVIF-compliant devices. Alarm interfaces, redundant power supply support and comprehensive management functions make it an ideal solution for professional security installations.

Technical Specifications

The Uniview NVR516-128E-R delivers enterprise-grade recording performance with support for 128 IP cameras, advanced Ultra 265 compression, extensive RAID storage protection and scalable 256TB capacity. Its high-bandwidth architecture, redundant power support and comprehensive management features make it an ideal recording platform for large and mission-critical IP surveillance deployments.
