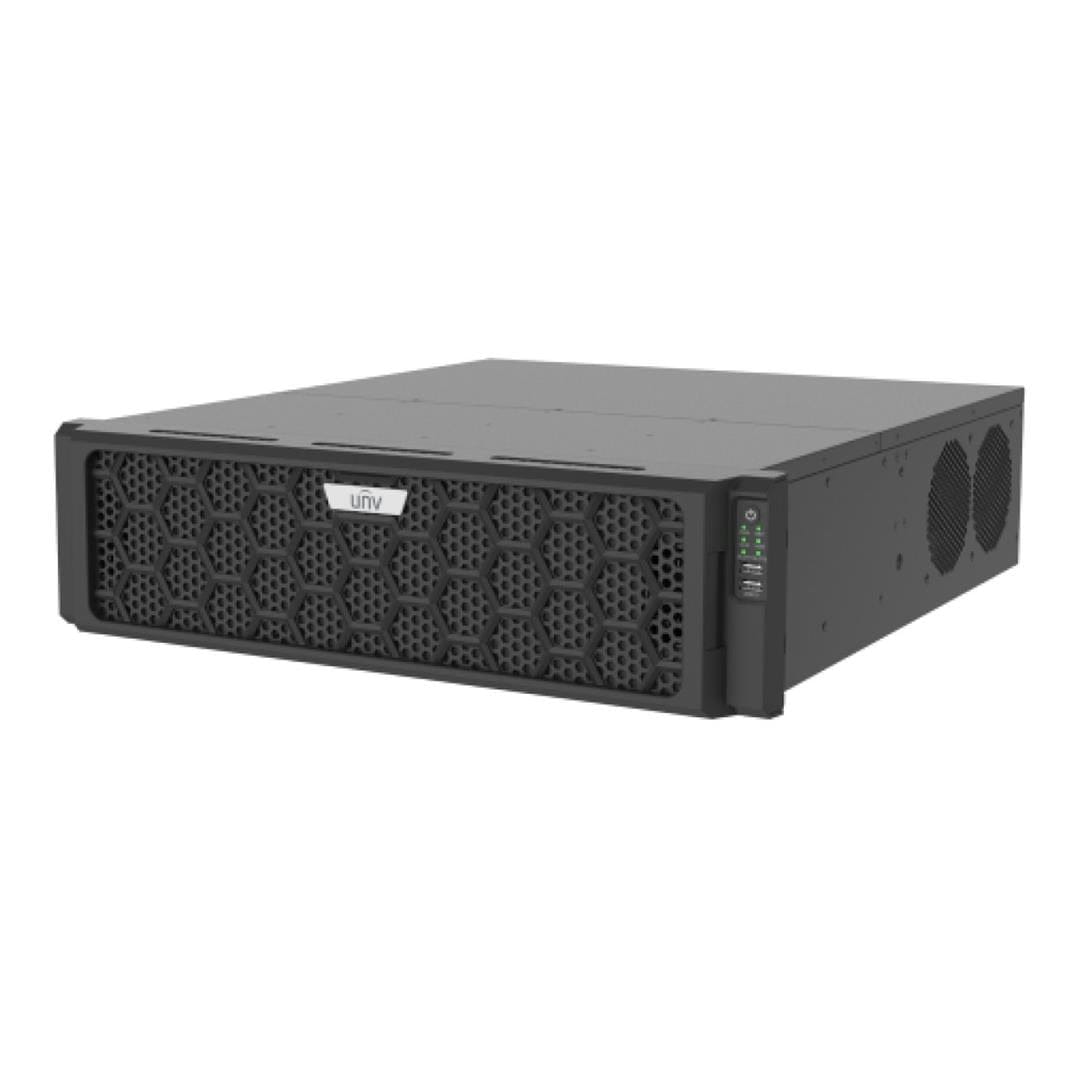

Uniview UNV Pro NVR516-E Series 16 HDD slot 64-Channel Network Video Recorder NVR516-64E-R

Uniview UNV Pro NVR516-E Series 16 HDD slot 64-Channel Network Video Recorder NVR516-64E-R

16 HDDs 64-ch 3U Network Video Recorder

Features:

• Support Ultra 265/H.265/H.264 video formats
• 64/128-channel input
• Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680x4320) resolution, HDMI2 at up to 4K(3840x2160) resolution
• VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
• Up to 32 Megapixels resolution recording
• Redundant power supply optional
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• Support 12V power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare

Technical Specifications:

Decoding
Decoding Format: Ultra 265, H.265, H.264
Decoding Capability:

• H264: 2 × 32MP@30, 4 × 16MP@30, 6 × 12MP@30, 9 × 4K@30, 14 × 5MP@30, 18 × 4MP@30, 24 × 3MP@30, 36 × 1080P@30, 64 × 720P@30

• H265: 3 × 32MP@30, 6 × 16MP@30, 8 × 12MP@30, 12 × 4K@30, 19 × 5MP@30, 24 × 4MP@30, 32 × 3MP@30, 48 × 1080P@30, 64 × 720P@30
  Decoding Capability Description: The resolution of each channel cannot exceed 8640 pixels in length or width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
  Audio Compression: G.711A, G.711U

Network
Incoming Bandwidth: 640 Mbps
Outgoing Bandwidth: 640 Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input
IP Video Input: 64 channels
RCA Audio Input: 1 channel

Video/Audio Output
HDMI Output:

• HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

• HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  VGA Output: 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  RCA Audio Output: 2 channels
  Liveview Display: 1/4/6/8/9/16/25/36/64
  Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
  Two-way Audio: 1-ch, RCA (using the audio input and output)
  Snapshot (FTP/Schedule/Event): 16-channel snapshot (max. 8 MP video resolution, with 1080P snapshot resolution)

Recording
Recording Resolution: 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local: 16 channels

Smart Features
Smart by IPC: All channels (up to 32 images/s in total), Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Alarm
General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

Hard Disk
SATA: 16 SATA Interfaces
Capacity: Up to 24 TB for each HDD (maximum capacity varies with environment temperature and hard disk size; environment temperature should not exceed 40°C)
Disk Group: Support
Redundant Storage: Support
Disk Array Type: RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap: Support

External Interface
Network Interface: 2 × RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB: Front panel: 2 × USB2.0; Rear panel: 2 × USB3.0
RS485: 1
RS232: 1
Alarm In: 16 channels
Alarm Out: 10 channels
Power Output: 12 V
Power Supply: AC 100 to 240 V
Power Switch: Support
Redundant Power Supply: Support

Working Environment
Working Temperature: -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 50 W

Dimensions & Weight
Weight (without HDD): ≤ 6.5 kg (14.3 lb)
Height: 3U
Dimensions: 482 × 533 × 131 mm (19.0 × 21.0 × 5.1 in)

Certification
Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part15 Subpart B

GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Korean, Japanese, Latvian, Lithuanian, Persian
