Description
Description

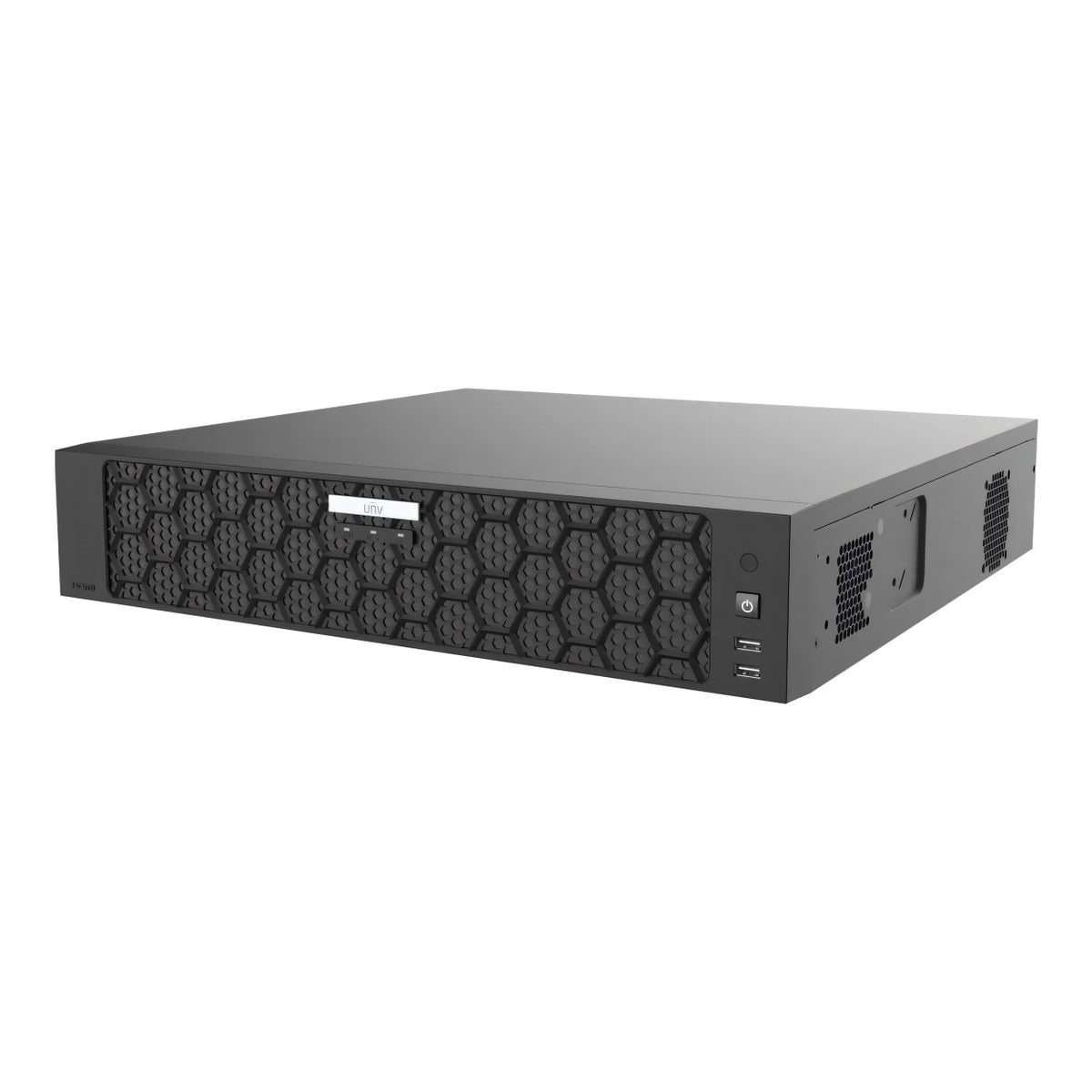

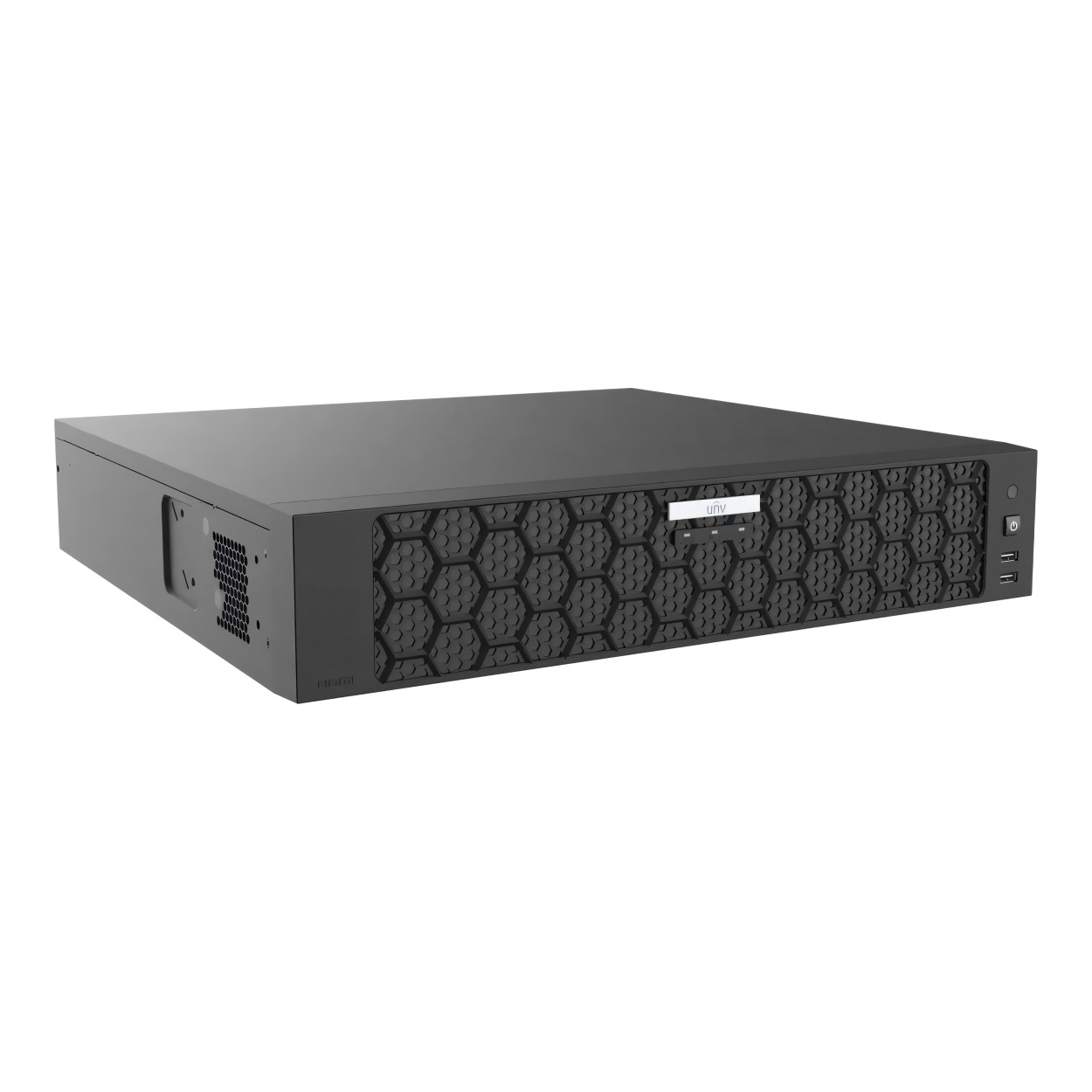

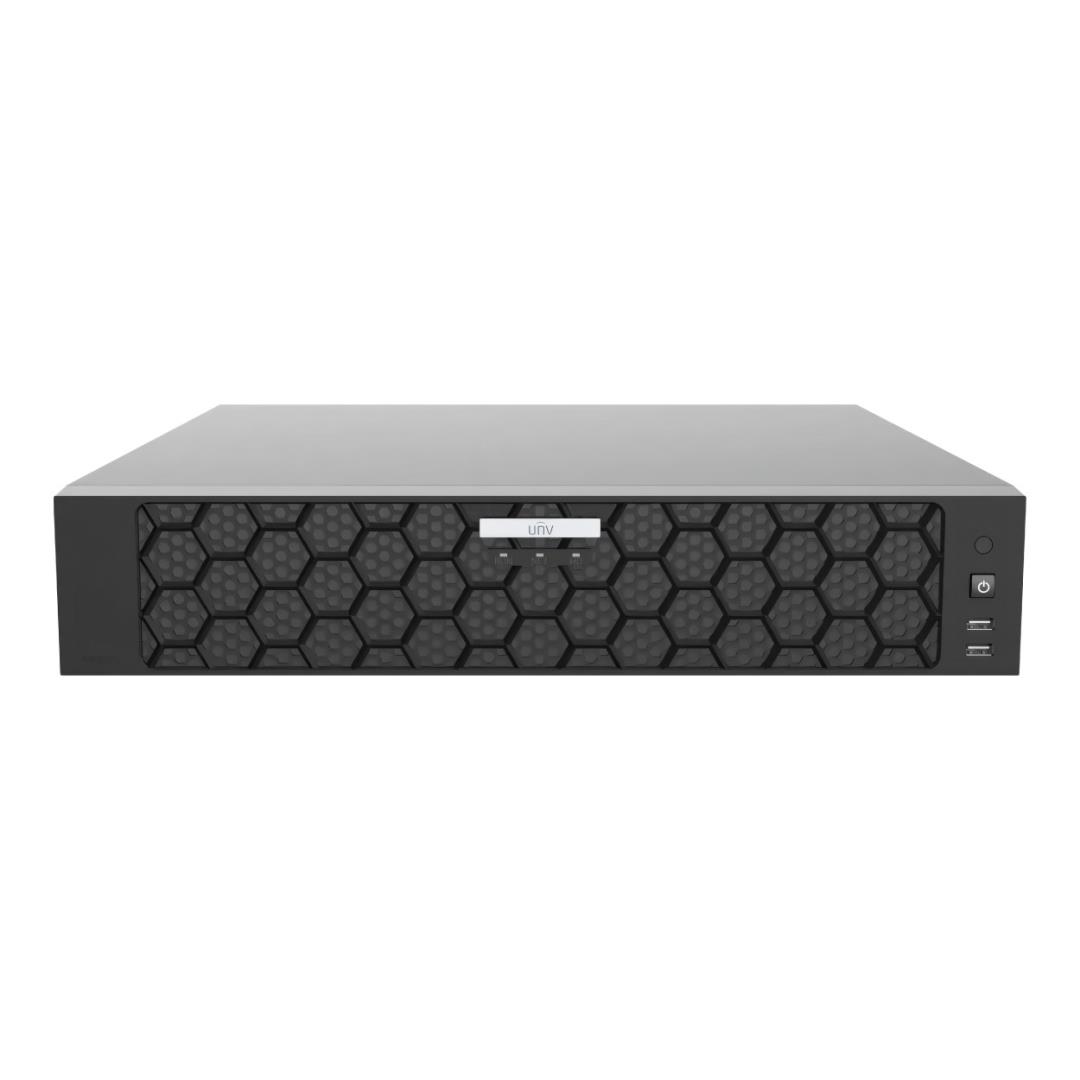

Uniview UNV Prime Series 4 HDD slots 64-Channel Network Video Recorder NVR504-64E-IQ
The Uniview NVR504-64E-IQ is a 64-channel network video recorder for larger surveillance installations. Its four SATA drive interfaces, RAID support and dual Gigabit Ethernet ports provide flexible recording and storage options. Intelligent search tools help operators locate relevant footage when used with compatible cameras.
Key Features
- 64 IP camera channels: Centralise recording across an extensive surveillance system.
- Efficient compression: Supports Ultra 265, H.265 and H.264 video formats.
- Flexible storage: Four SATA interfaces with RAID 0, 1 and 5 support.
- Multiple display outputs: Two HDMI and two VGA connections provide two independently controlled output groups.
- Intelligent footage retrieval: AcuSearch and AcuTrack support all channels with compatible Uniview SIP/UMD cameras.
- Dual network connections: Gigabit Ethernet interfaces support multi-access, load balancing and network fault tolerance.
Technical Specifications
| Model | NVR504-64E-IQ |
|---|---|
| IP Video Inputs | 64 channels |
| Recording Resolution | Up to 32 MP |
| Video Compression | Ultra 265, H.265, H.264 |
| Incoming / Outgoing Bandwidth | Each up to 384 Mbps with Smart Off; 200 Mbps with Smart On |
| Local Synchronous Playback | 16 channels |
| Video Outputs | 2 × HDMI, up to 3840 × 2160 at 60 Hz; 2 × VGA, up to 1920 × 1080 at 60 Hz |
| Display Operation | HDMI1/VGA1 mirror each other; HDMI2/VGA2 mirror each other; the two groups operate independently |
| Internal Storage Interfaces | 4 × SATA; up to 24 TB per HDD, subject to drive size and ambient temperature. Ambient temperature must not exceed 40°C for maximum-capacity use. |
| RAID Support | RAID 0, 1, 5 |
| Network Interfaces | 2 × RJ45 10/100/1000 Mbps |
| USB Ports | Front: 2 × USB 2.0; rear: 2 × USB 3.0 |
| Audio | 1 × RCA input, 2 × RCA outputs; one-channel two-way audio |
| Alarm Connections | 16 inputs, 10 outputs |
| Additional Interfaces | 1 × eSATA, 1 × RS485, 1 × RS232 |
| Power Supply | 100–240 V AC |
| Power Consumption | Up to 35 W without HDDs |
| Dimensions | 442 × 432 × 86 mm; 2U height |
| Weight | Up to 5.5 kg without HDDs |
Intelligent analytics depend on camera compatibility and the selected operating mode. Only one NVR analyser mode can be active at a time.
Add the Uniview NVR504-64E-IQ to your cart to expand your surveillance recording system.
