Description
Description

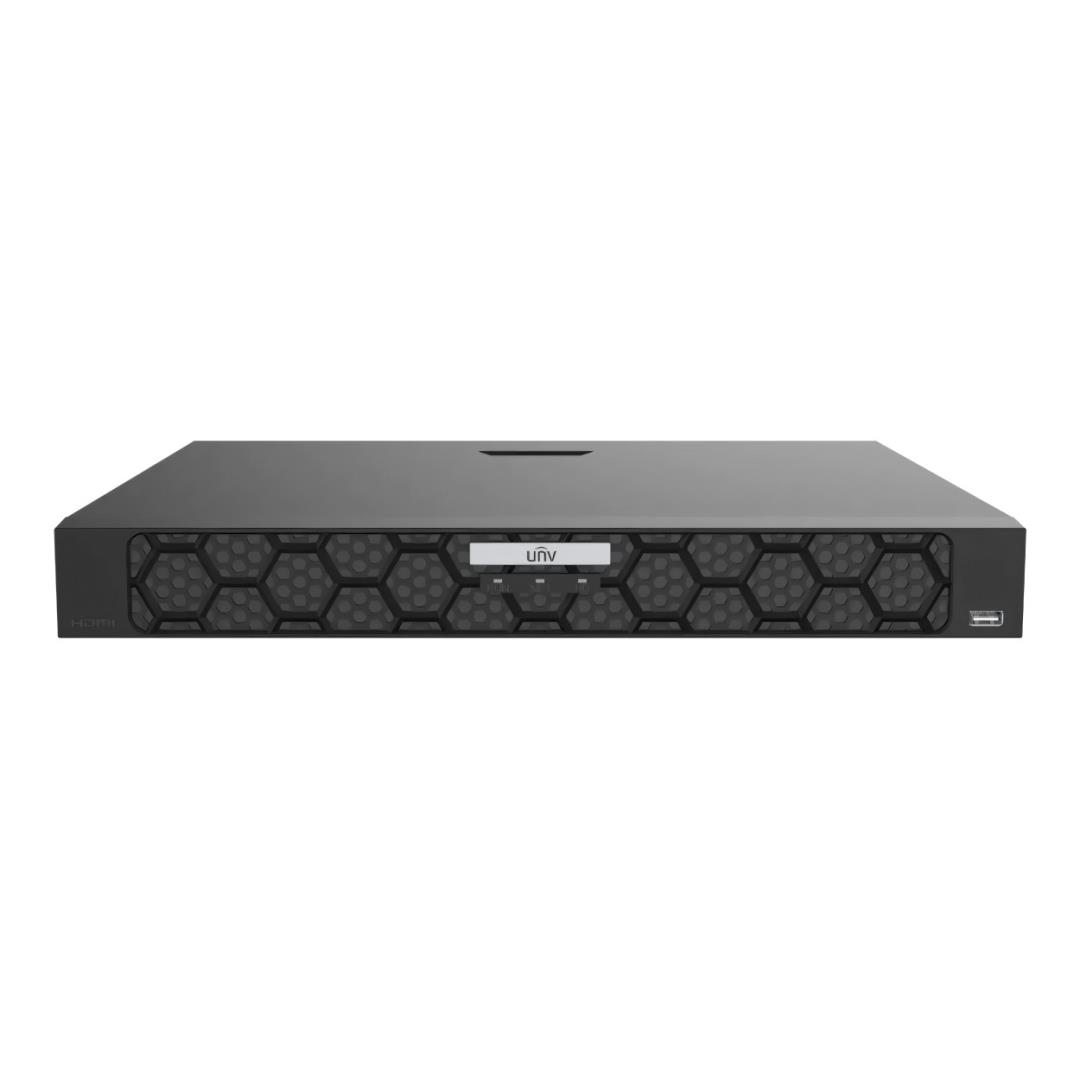

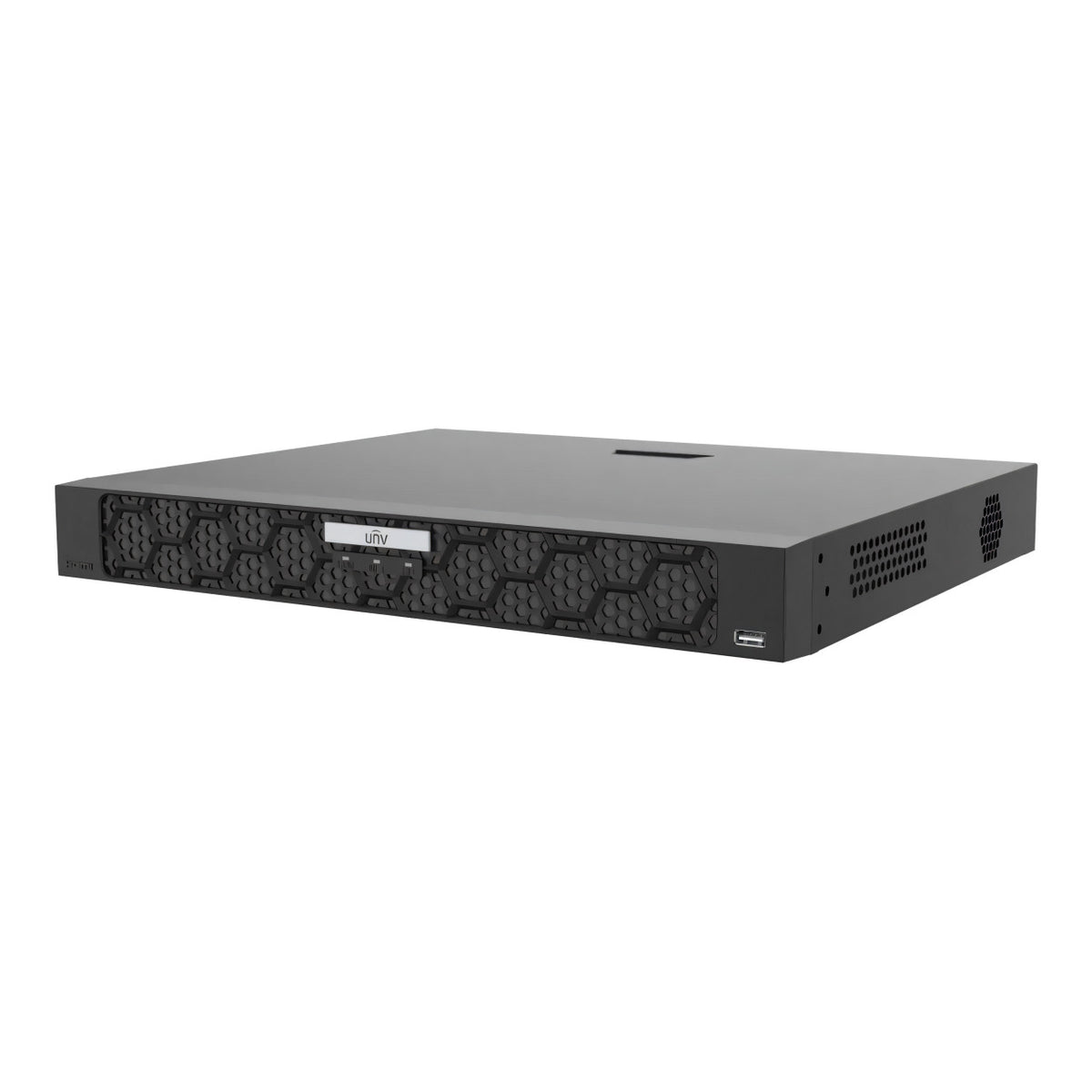

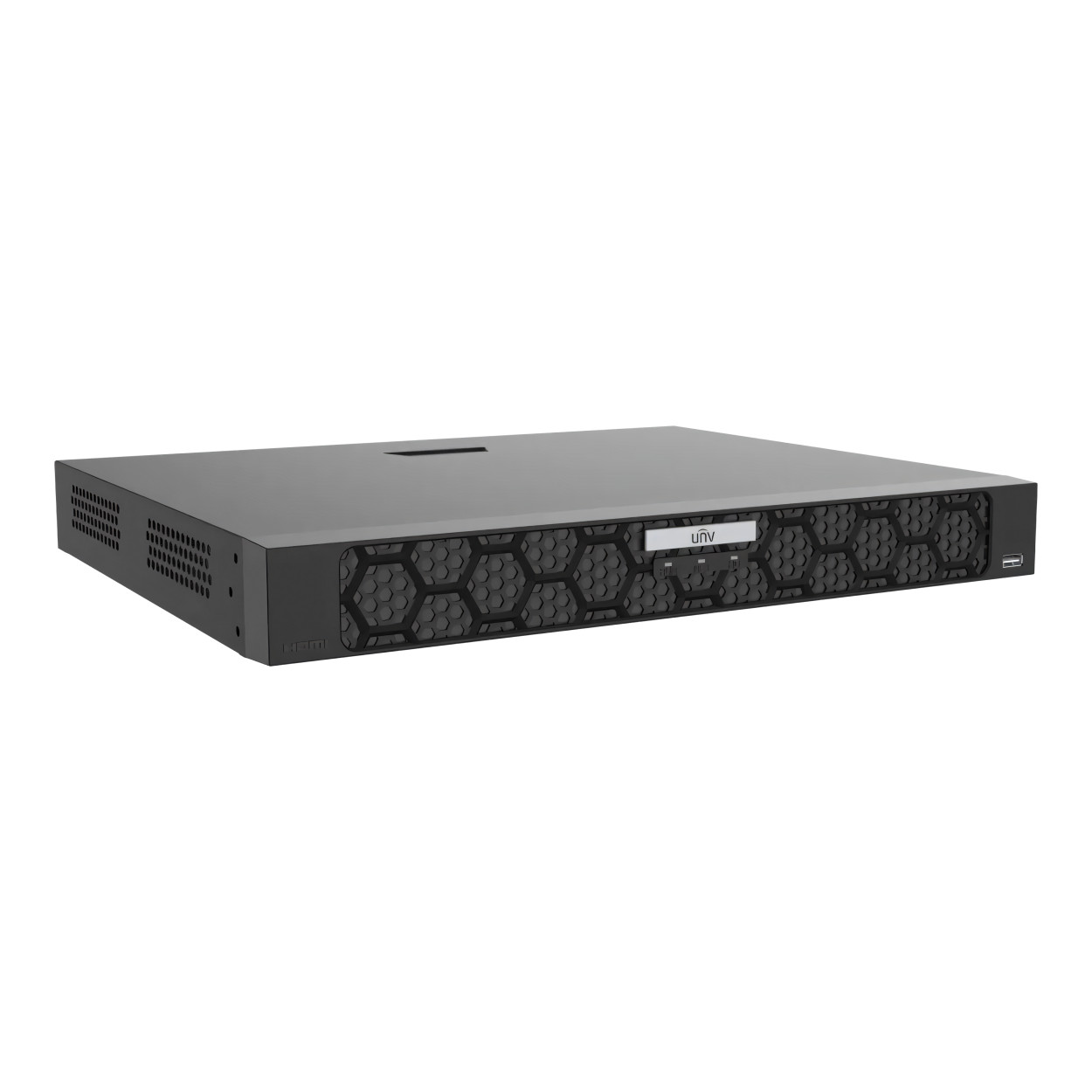

Uniview UNV Prime Series 4 HDD slots 32-Channel Network Video Recorder NVR504-32B-IQ
The Uniview NVR504-32B-IQ is a 32-channel network video recorder for commercial surveillance installations. It combines recording up to 16MP with four-drive storage support and intelligent search tools for compatible cameras.
Key Features
- Thirty-two IP camera inputs support larger surveillance systems.
- Ultra 265 compression helps manage recording storage.
- Four SATA interfaces provide flexible storage expansion.
- RAID 1 and RAID 5 support provide storage redundancy options.
- AcuSearch and AcuTrack support compatible Uniview SIP/UMD cameras.
- Independent HDMI and VGA outputs support flexible local viewing.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview |
| Model / MPN | NVR504-32B-IQ |
| Camera Inputs | 32 IP channels |
| Maximum Recording Resolution | 16MP |
| Video Compression | Ultra 265, H.265, H.264 |
| Incoming Bandwidth | Smart Off: 320 Mbps; Smart On: 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Local Synchronous Playback | 16 channels |
| Display Outputs | HDMI up to 3840 × 2160 at 30Hz; VGA up to 1920 × 1080 at 60Hz |
| Storage Support | 4 SATA interfaces; up to 24TB per HDD, subject to drive size and ambient temperature not exceeding 40°C |
| RAID Support | RAID 1 and RAID 5 |
| Network | 2 × RJ45 Gigabit Ethernet |
| USB | Front: 1 × USB 2.0; rear: 1 × USB 2.0 and 1 × USB 3.0 |
| Audio | 1 RCA input; 1 RCA output; two-way audio support |
| Alarm Interfaces | 16 inputs; 4 outputs |
| Serial Interface | 1 × RS485 |
| Power Input | 12V DC, 5A |
| Dimensions | 440 × 344 × 48 mm |
| Weight Without HDDs | ≤3.4 kg |
One NVR analysis mode operates at a time. Analytics depend on camera compatibility and resolution. For maximum-resolution HDMI viewing, clear the VGA live-view preview as specified by Uniview.
Expand your compatible surveillance system’s recording capacity and add this recorder to your cart today.
