FirstShop  |  SKU: NVR502-16B-IQ
New arrival

Uniview UNV Prime Series 2 HDD slots 16-Channel Network Video Recorder NVR502-16B-IQ

R 3,49900
Available Now

    Delivery and Shipping

    * Fast Delivery Available - Learn more

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

    Uniview UNV Prime Series 2 HDD slots 16-Channel Network Video Recorder NVR502-16B-IQ

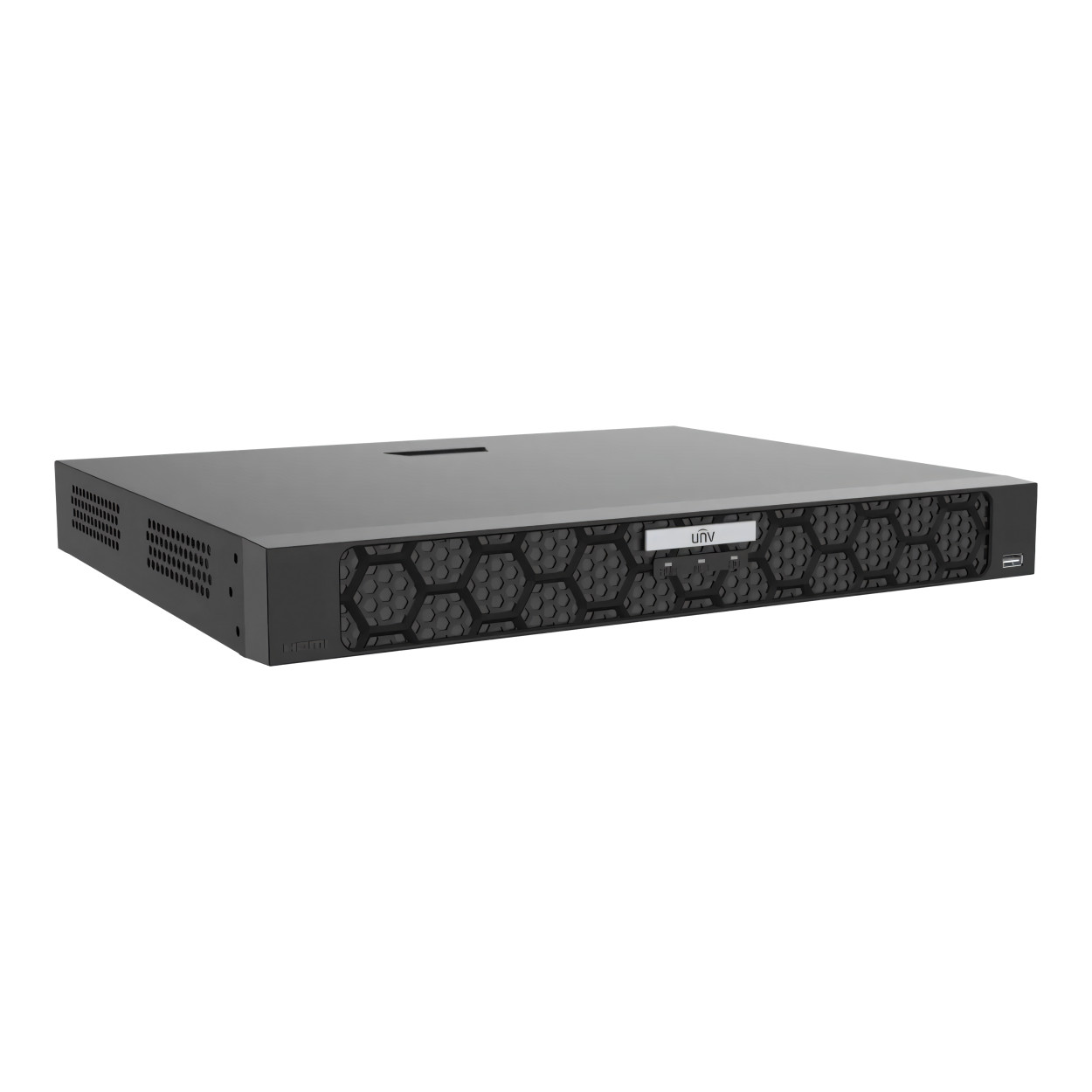

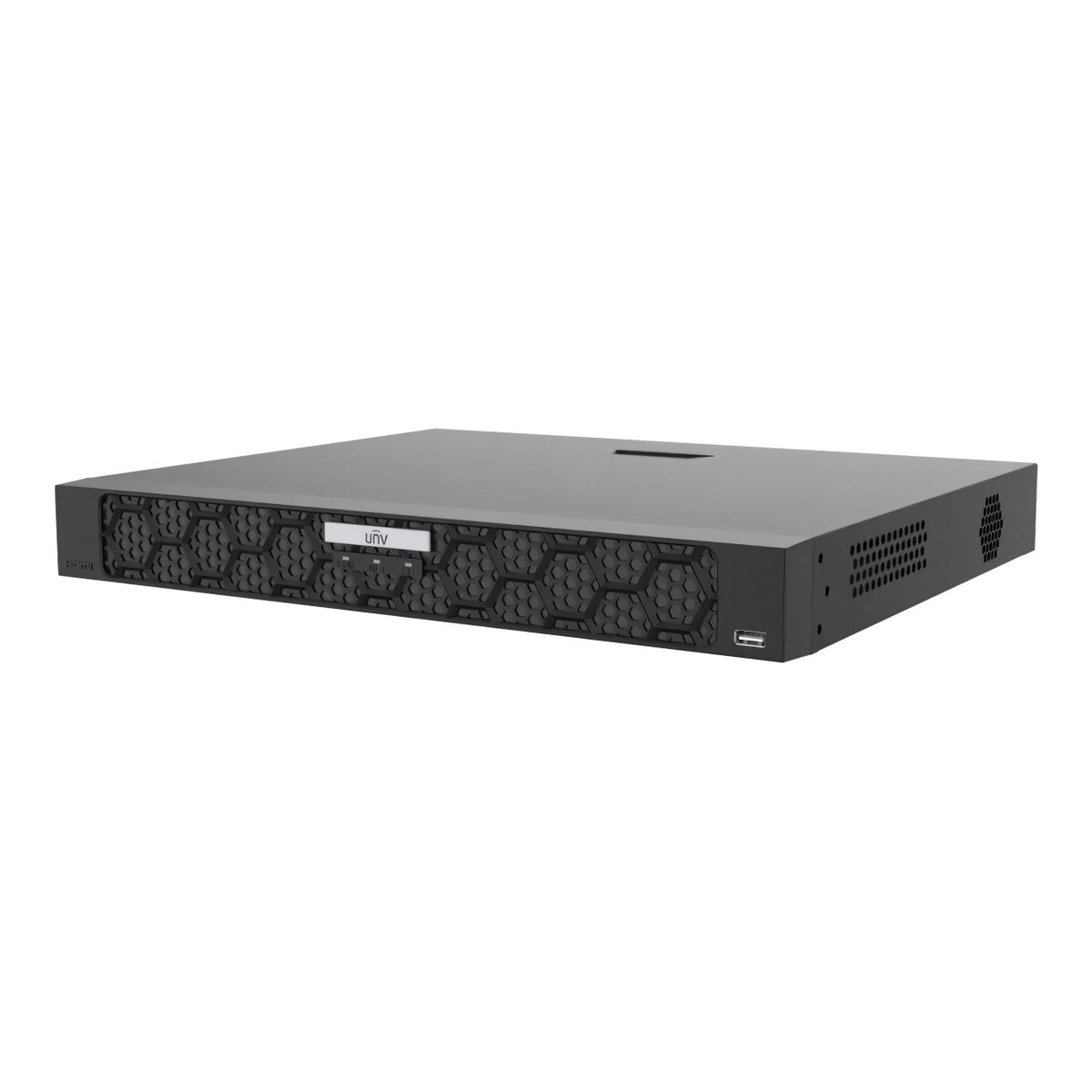

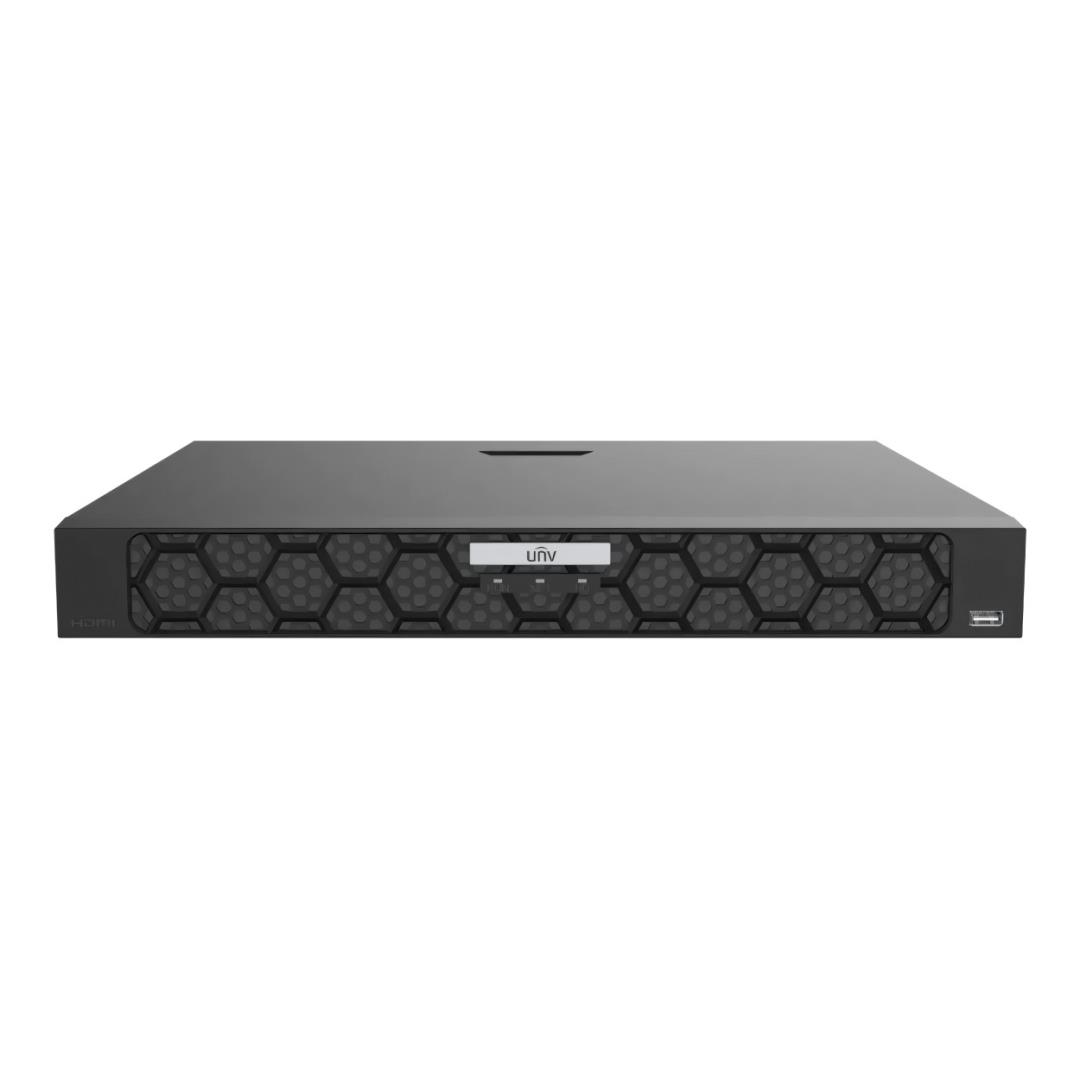

    The Uniview NVR502-16B-IQ is a 16-channel network video recorder for professional surveillance installations. It supports recording up to 16MP, two SATA drives and intelligent search tools for compatible cameras.

    Key Features

    • Sixteen IP camera channels support larger surveillance installations.
    • Ultra 265 compression helps manage recording storage.
    • Independent HDMI and VGA outputs provide flexible local viewing.
    • AcuSearch and AcuTrack support compatible Uniview SIP/UMD cameras.
    • RAID 1 support enables mirrored storage with suitable drives.
    • ANR supports recording recovery after network interruptions with compatible cameras.

    Product

    Technical Specifications

    Specification Details
    Brand Uniview
    Model / MPN NVR502-16B-IQ
    Camera Inputs 16 IP channels
    Maximum Recording Resolution 16MP
    Video Compression Ultra 265, H.265, H.264
    Incoming Bandwidth Smart Off: 320 Mbps; Smart On: 160 Mbps
    Outgoing Bandwidth 160 Mbps
    Local Synchronous Playback 16 channels
    Display Outputs HDMI up to 3840 × 2160 at 30Hz; VGA up to 1920 × 1080 at 60Hz; independent output supported
    Storage Support 2 SATA interfaces; up to 24TB per HDD, subject to drive size and ambient temperature not exceeding 40°C
    Storage Redundancy RAID 1
    Network 2 × RJ45 Gigabit Ethernet
    USB Front: 1 × USB 2.0; rear: 1 × USB 2.0 and 1 × USB 3.0
    Audio 1 RCA input; 1 RCA output; two-way audio support
    Alarm Interfaces 8 inputs; 2 outputs
    Serial Interface 1 × RS485
    Power Input 12V DC, 3A
    Consumption Without HDDs ≤12W
    Dimensions 380 × 315 × 53 mm
    Weight Without HDDs ≤2 kg

    One NVR analysis mode operates at a time. Analytics and channel limits depend on camera compatibility and resolution. For maximum-resolution HDMI viewing, clear the VGA live-view preview as specified by Uniview.

    Bring your compatible surveillance cameras together and add this recorder to your cart today.
