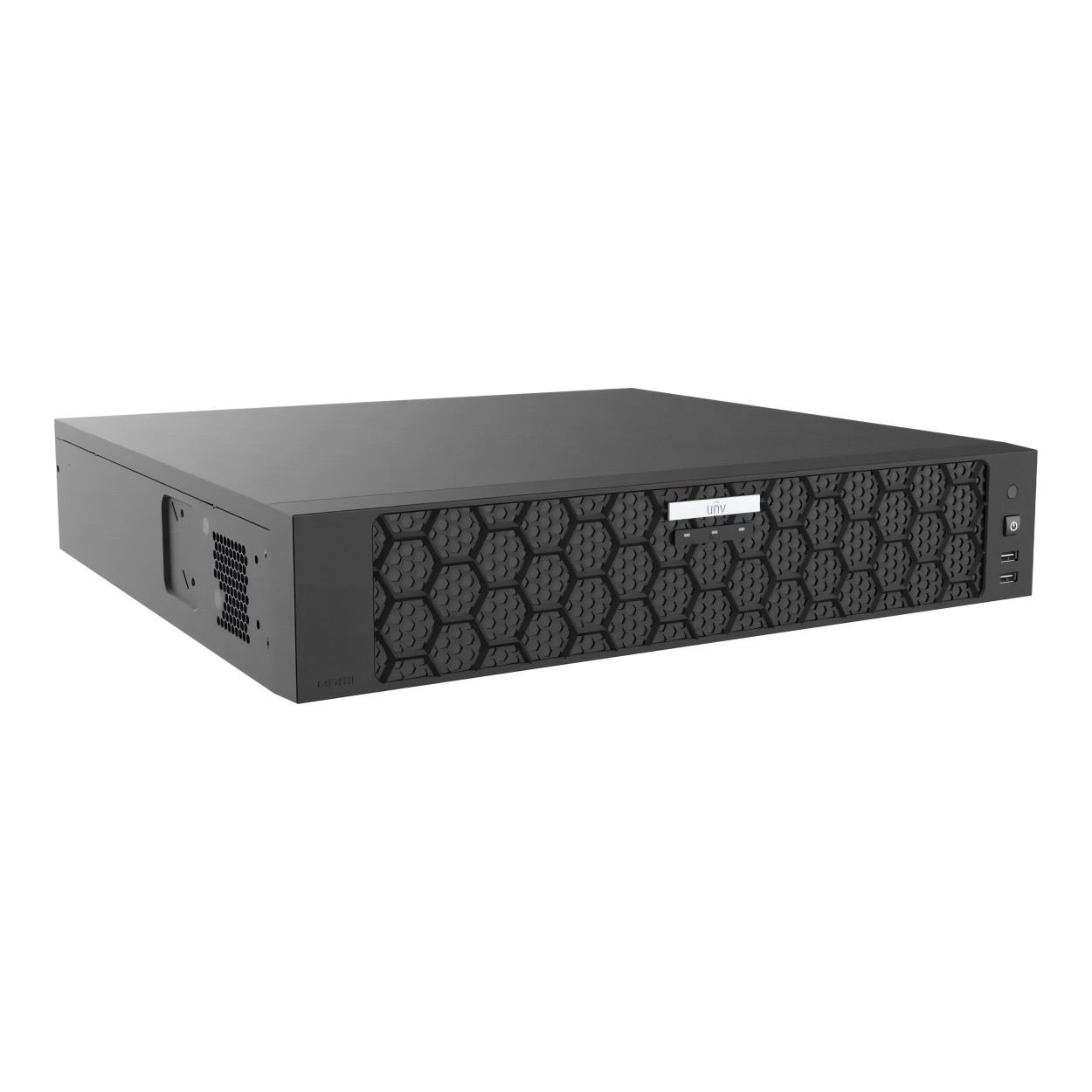

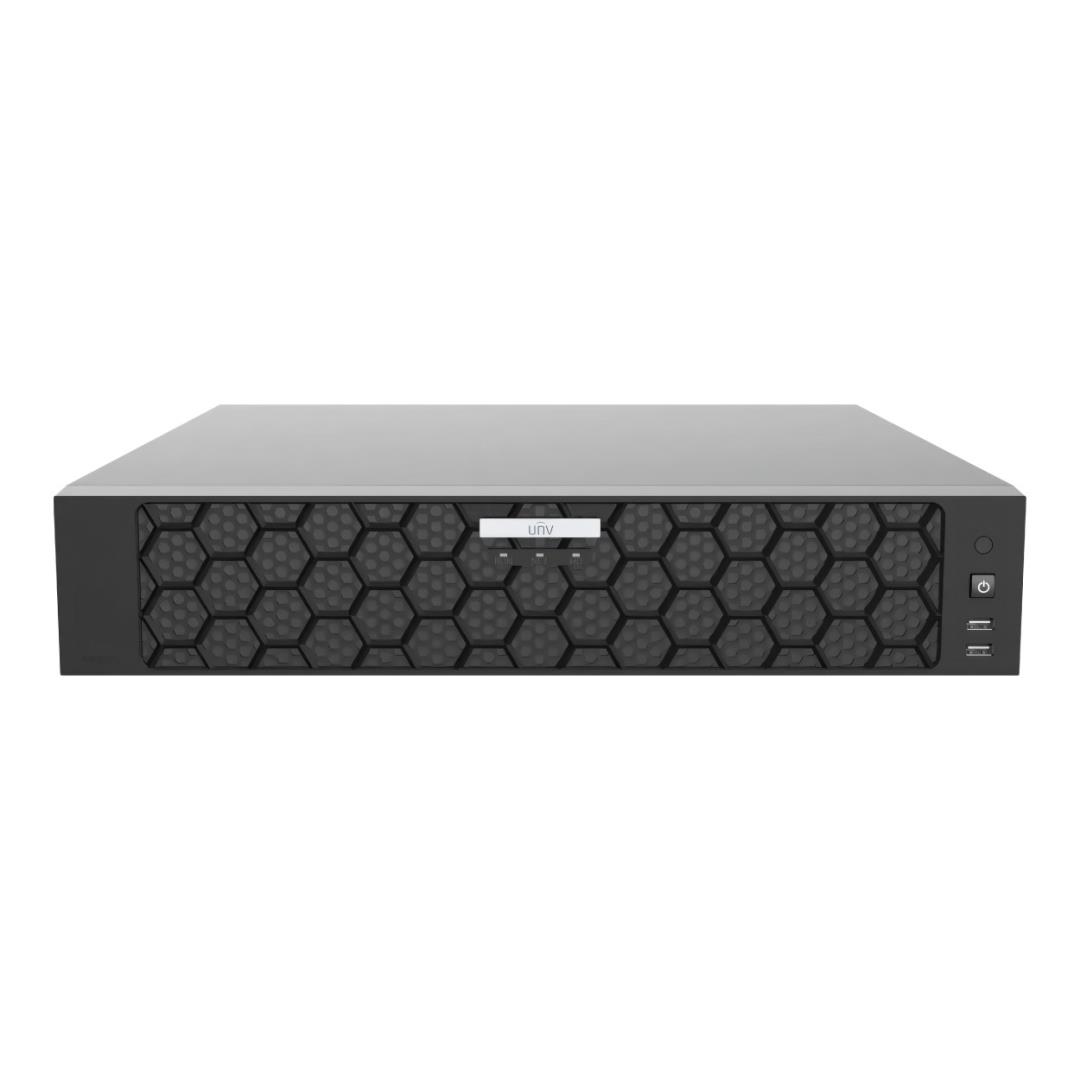

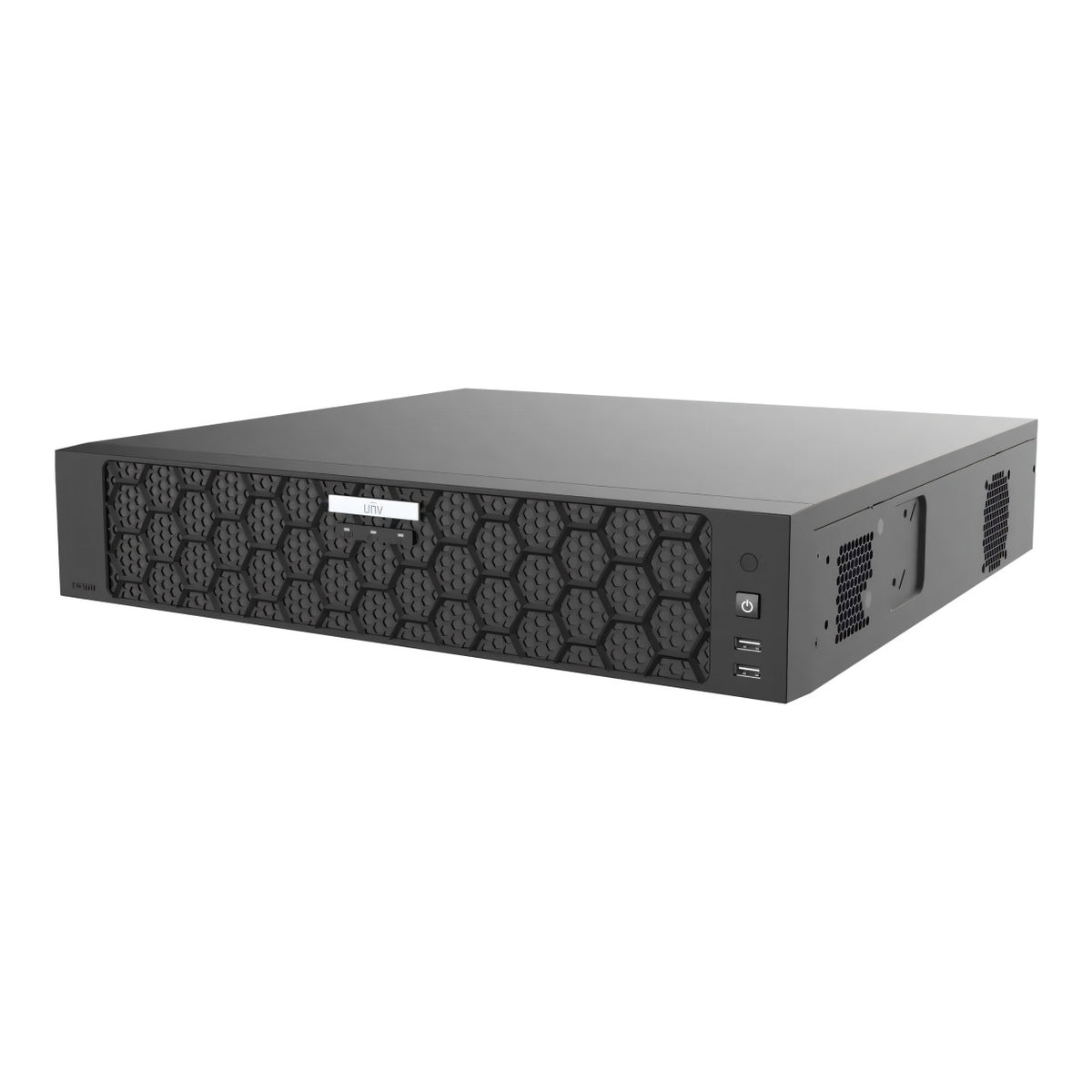

Uniview UNV IX Series 4 HDD slots 16-Channel Network Video Recorder NVR804-16-IX-G
The Uniview NVR804-16-IX-G is a 16-channel network video recorder for commercial surveillance systems requiring advanced video analysis. It combines 4K recording, four SATA storage interfaces and intelligent search tools to help operators manage recordings and investigate events. Multiple display outputs provide flexible viewing arrangements for security workstations.
Key Features
- 16-channel recording: Connect up to 16 IP cameras with recording resolutions up to 8 MP.
- Intelligent video search: SeekFree, AcuSearch and AcuTrack help locate relevant footage with compatible cameras.
- Advanced analytics: Supports intrusion prevention, video metadata, behaviour analysis and people counting, subject to configuration.
- Flexible storage: Four SATA interfaces with RAID 0, 1 and 5 support.
- Multiple display connections: Three HDMI outputs and one VGA output support flexible monitoring layouts.
- Dual Gigabit networking: Supports multi-access, load balancing and network fault tolerance.
Technical Specifications
| Model | NVR804-16-IX-G |
|---|---|
| IP Video Inputs | 16 channels |
| Maximum Recording Resolution | 8 MP / 4K |
| Video Compression | Ultra 265, H.265, H.264 |
| Incoming / Outgoing Bandwidth | 384 Mbps each |
| Local Synchronous Playback | 16 channels |
| Decoding Examples | 6 × 4K at 30 fps or 16 × 1080p at 30 fps, using H.264 or H.265 |
| Video Outputs | 3 × HDMI, supporting up to 3840 × 2160 at 60 Hz; 1 × VGA, up to 1920 × 1080 at 60 Hz |
| Display Operation | HDMI1 and VGA provide simultaneous output; HDMI1/VGA, HDMI2 and HDMI3 operate independently |
| Internal Storage | 4 × SATA interfaces; up to 24 TB per HDD, subject to drive size and ambient temperature. Maximum-capacity use requires an ambient temperature no higher than 40°C. |
| RAID Support | RAID 0, 1, 5 |
| Network Interfaces | 2 × RJ45 10/100/1000 Mbps |
| USB Ports | Front: 2 × USB 2.0; rear: 2 × USB 3.0 |
| Audio Connections | 1 × RCA input, 3 × RCA outputs; one-channel two-way audio |
| Alarm Connections | 16 inputs, 10 outputs |
| Additional Interfaces | 1 × eSATA, 1 × RS485, 1 × RS232 |
| Power Supply | 100–240 V AC |
| Power Consumption | Up to 50 W without HDDs |
Analytics availability and channel capacity depend on camera type, resolution and the selected analyser mode. Only one analyser mode can operate at a time.
