Description
Description
Uniview UNV IX Series 2 HDD slots 32-Channel Network Video Recorder NVR502-32E-IX-G
The Uniview NVR502-32E-IX-G is a 32-channel network video recorder for commercial surveillance. Its intelligent search, behaviour analysis and video metadata functions help operators review footage and monitor events across compatible cameras.
Key Features
- Thirty-two IP camera inputs support larger installations.
- Ultra 265 compression helps manage recording storage.
- SeekFree, AcuSearch and AcuTrack support compatible footage searches.
- Behaviour analysis and people counting support event monitoring.
- Two HDMI and two VGA outputs provide flexible display connections.
- Two SATA interfaces support expanded recording storage.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview |
| Model / MPN | NVR502-32E-IX-G |
| Camera Inputs | 32 IP channels |
| Video Compression | Ultra 265, H.265, H.264 |
| Bandwidth | 192 Mbps incoming; 192 Mbps outgoing |
| Local Synchronous Playback | 16 channels |
| Display Outputs | 2 × HDMI, up to 3840 × 2160 at 30Hz; 2 × VGA, up to 1920 × 1080 at 60Hz |
| Display Operation | Simultaneous output within each HDMI/VGA pair; independent output between pairs |
| Storage Support | 2 SATA interfaces; up to 24TB per HDD, subject to drive size and ambient temperature not exceeding 40°C |

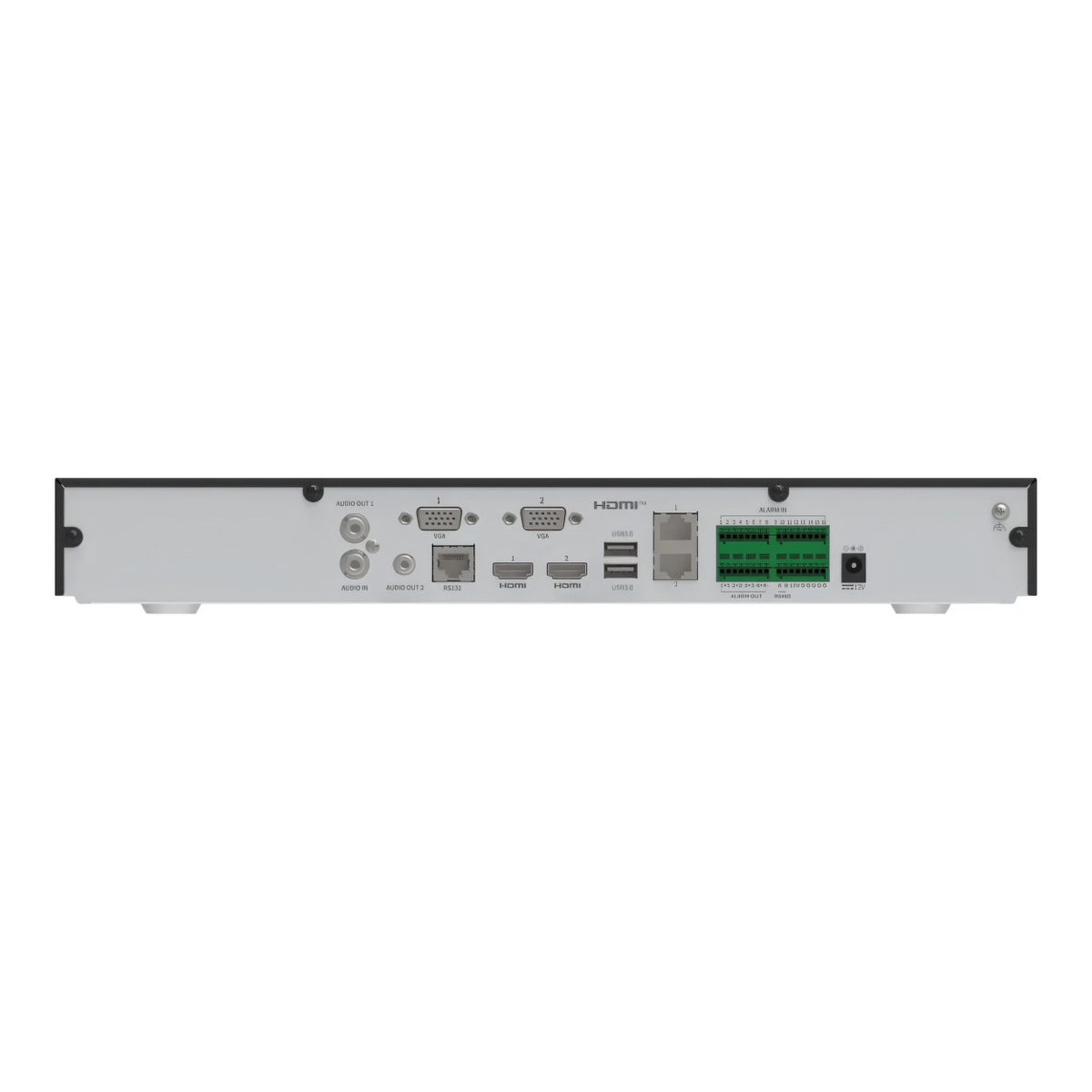

| Network | 2 × RJ45 Gigabit Ethernet |
| USB | Front: 1 × USB 2.0; rear: 2 × USB 3.0 |
| Audio | 1 RCA input; 2 RCA outputs; two-way audio support |
| Alarm Interfaces | 16 inputs; 4 outputs |
| Serial Interfaces | 1 × RS485; 1 × RS232 |
| Power Input | 12V DC, 5A |
| Dimensions | 380 × 322.4 × 53 mm |
| Weight Without HDDs | 1.87 kg |
Analytics depend on the selected mode, camera compatibility and resolution. SeekFree supports all channels with compatible Uniview SIP/UMD cameras; processing with other supported cameras is limited to 16 channels at 2MP, eight at 4MP or four at 4K.
Bring intelligent recording and search to your compatible surveillance installation and add this recorder to your cart today.
