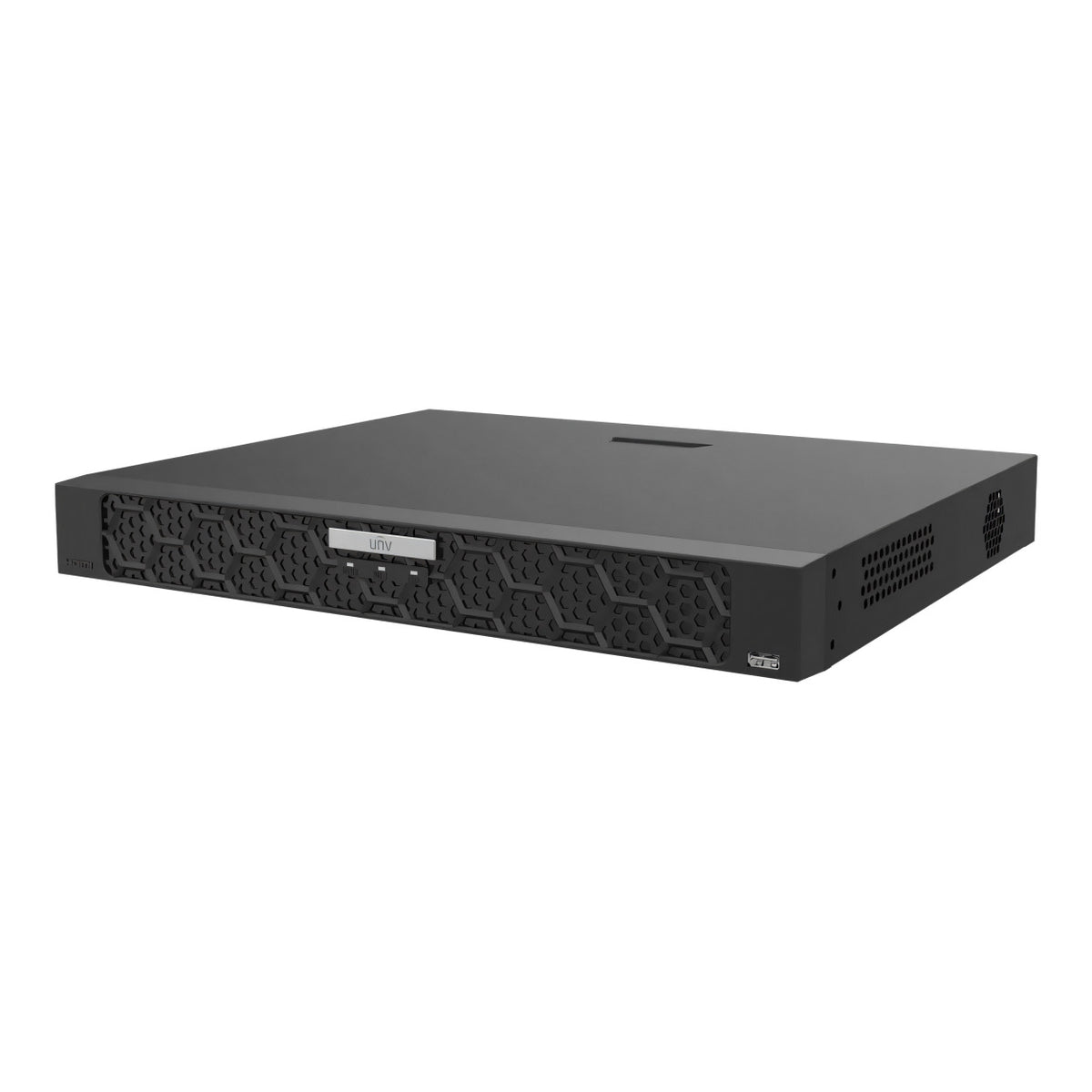

Uniview UNV IM Series 2 HDD slots 32-Channel Network Video Recorder NVR502-32E-IM-G
The Uniview NVR502-32E-IM-G is a 32-channel IM Series network video recorder for commercial surveillance. It combines recording up to 32MP with intelligent search tools to help operators locate relevant footage.
Key Features
- Thirty-two IP camera channels support larger surveillance installations.
- Ultra 265 compression helps manage recording storage.
- SeekFree supports searches across compatible camera footage.
- Video metadata and Smart Intrusion Prevention support event analysis.
- Two SATA interfaces and RAID 1 support provide flexible storage options.
- HDMI and VGA support simultaneous local viewing.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview |
| Model / MPN | NVR502-32E-IM-G |
| Camera Inputs | 32 IP channels |
| Maximum Recording Resolution | 32MP |
| Video Compression | Ultra 265, H.265, H.264 |
| Bandwidth | 192 Mbps incoming; 192 Mbps outgoing |
| Local Synchronous Playback | 16 channels |
| Display Outputs | HDMI up to 3840 × 2160 at 30Hz; VGA up to 1920 × 1080 at 60Hz |
| Storage Support | 2 SATA interfaces; up to 24TB per HDD, subject to drive size and ambient temperature not exceeding 40°C |
| Storage Redundancy | RAID 1 |
| Network | 2 × RJ45 Gigabit Ethernet |
| USB | Front: 1 × USB 2.0; rear: 1 × USB 2.0 and 1 × USB 3.0 |
| Audio | 1 RCA input; 1 RCA output; two-way audio support |
| Alarm Interfaces | 4 inputs; 1 output |
| Serial Interface | 1 × RS485 |
| Power Input | 12V DC, 3A |
| Dimensions | 380 × 322.4 × 53 mm |
| Weight Without HDDs | 1.87 kg |
SeekFree supports all channels with compatible Uniview SIP/UMD cameras. Processing with other supported cameras is limited to 16 channels at 2MP, eight at 4MP or four at 4K. Analytics availability depends on the selected mode.
Bring intelligent recording and search to your compatible surveillance system and add this recorder to your cart today.
