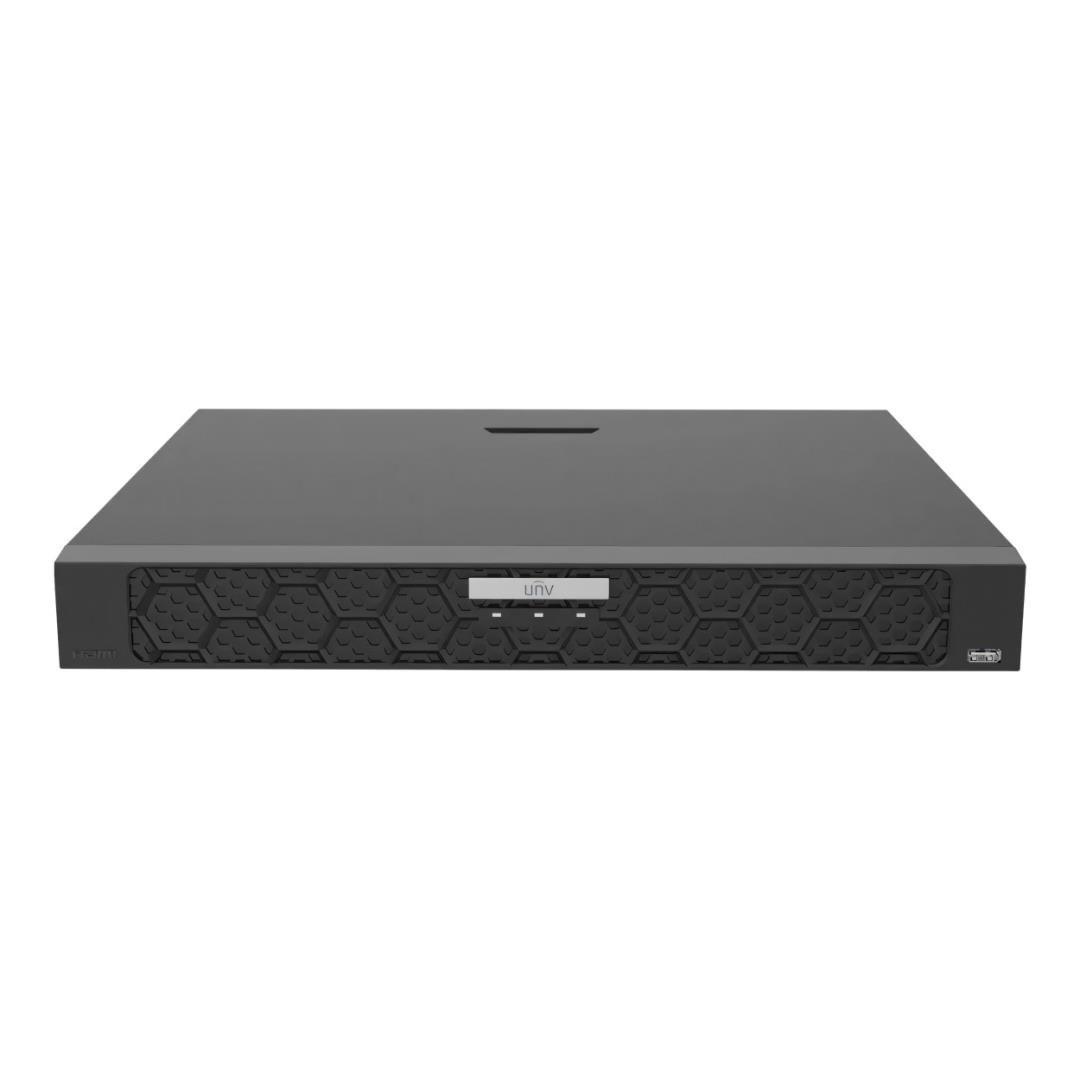

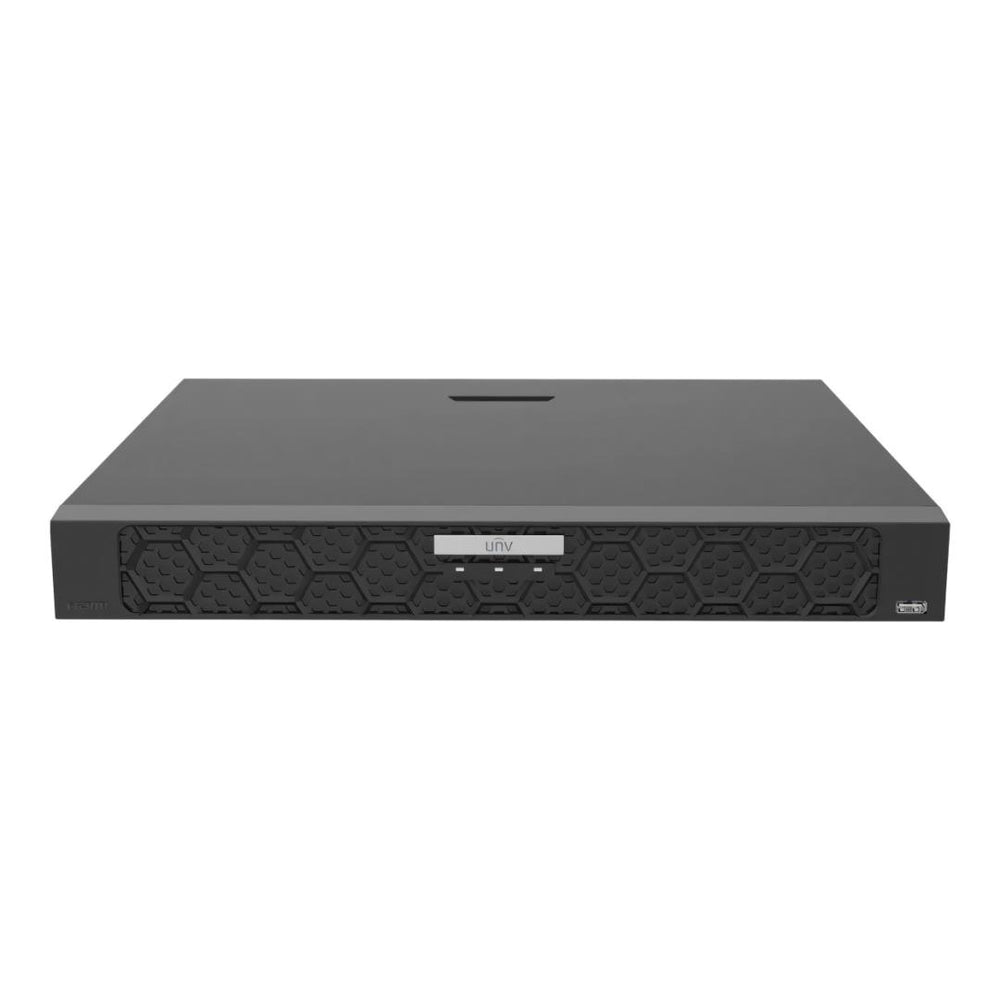

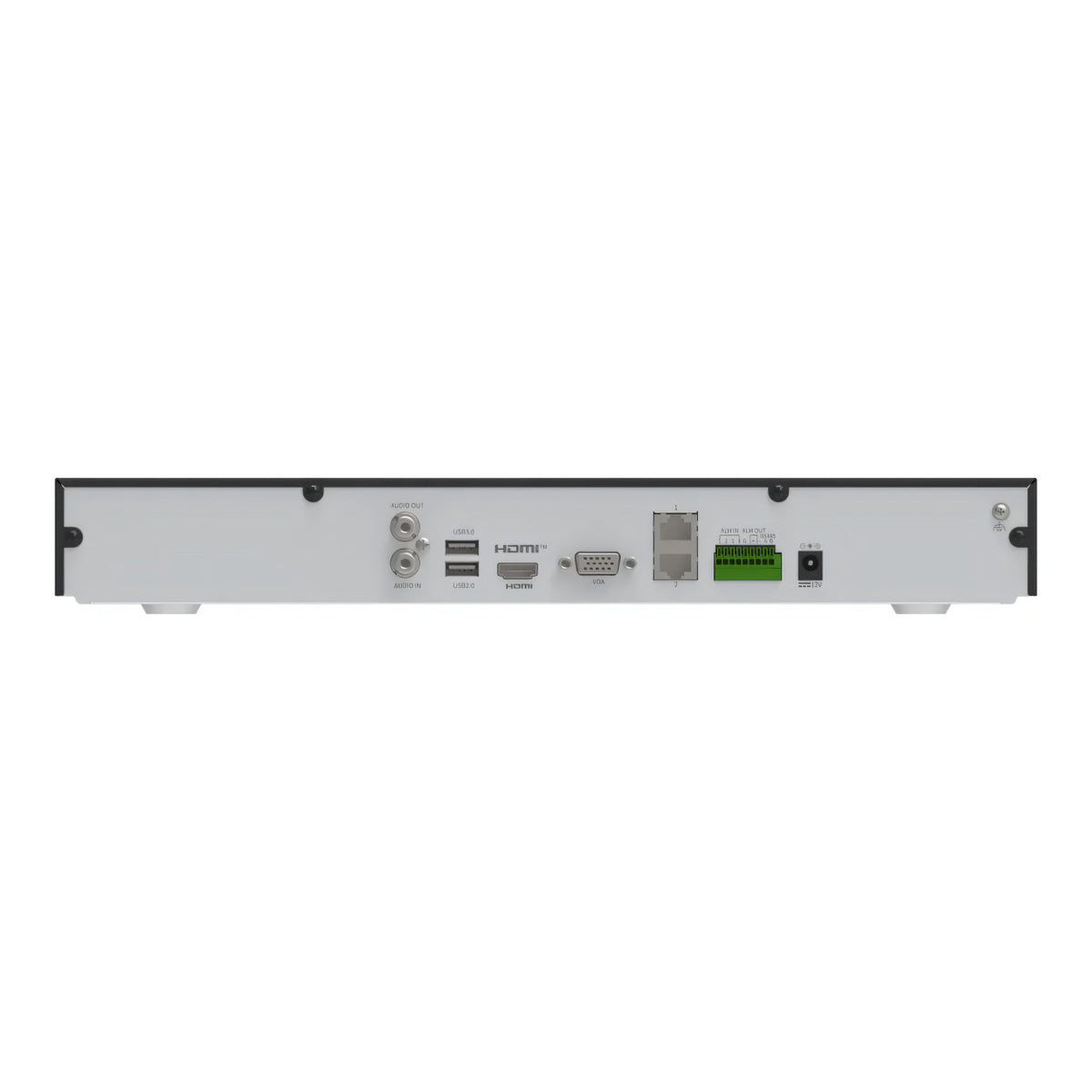

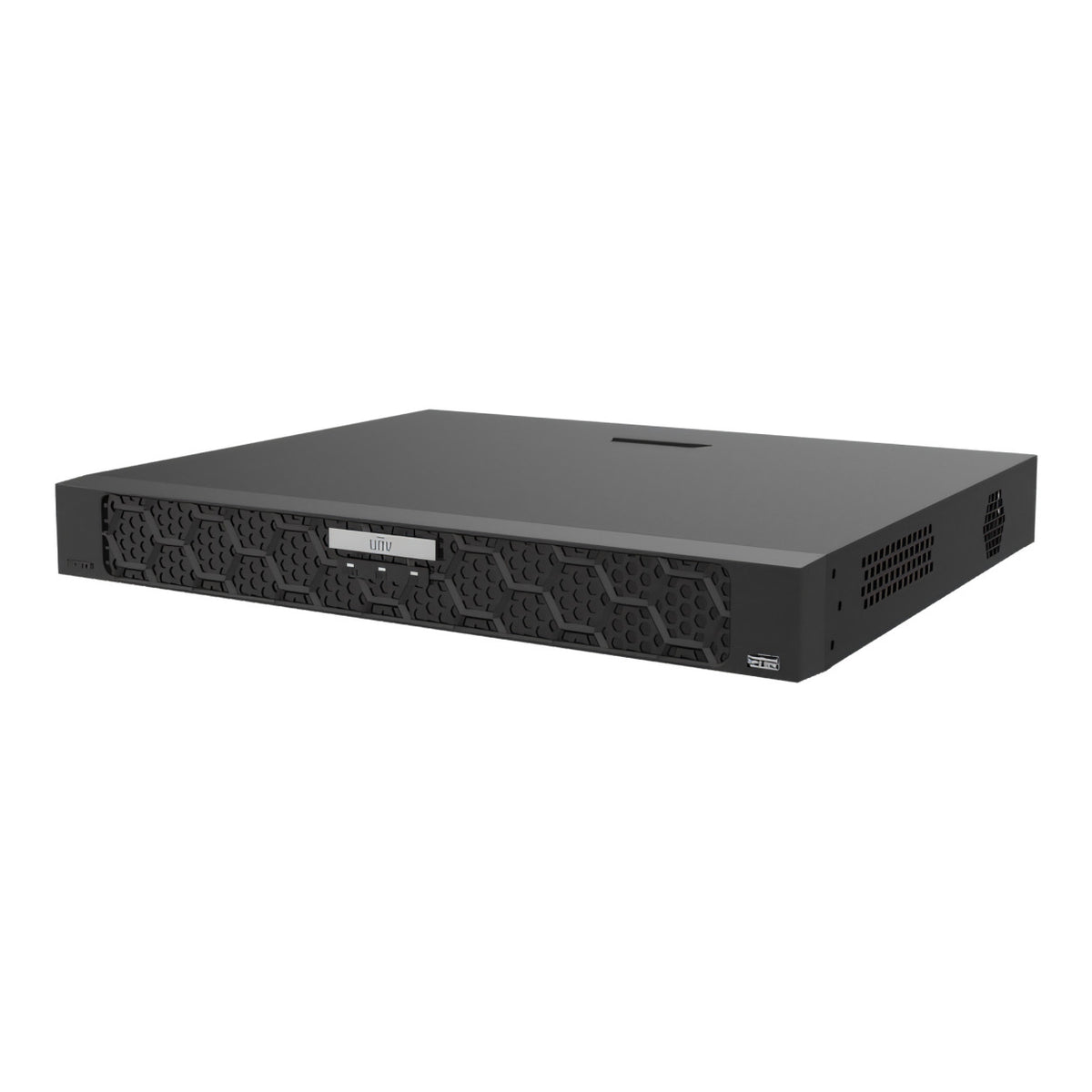

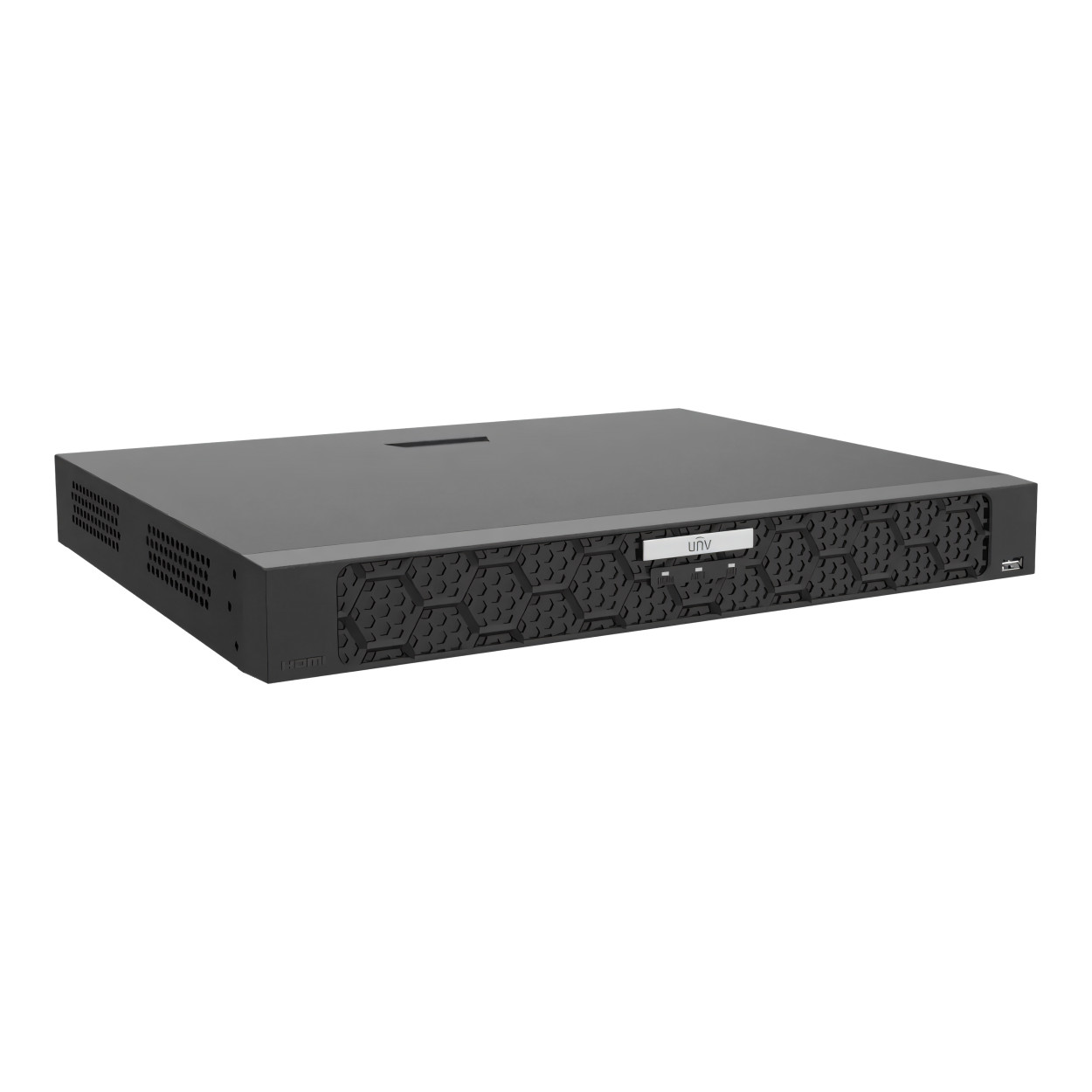

Uniview UNV IM Series 2 HDD slots 16-Channel Network Video Recorder NVR502-16E-IM-G
The Uniview NVR502-16E-IM-G is a 16-channel IM Series network video recorder for commercial surveillance. It combines recording up to 32MP with intelligent search and video metadata tools to help operators find relevant footage.
Key Features
- Sixteen IP camera channels support multi-camera installations.
- Ultra 265 compression helps manage recording storage.
- SeekFree supports footage searches with compatible cameras.
- Video metadata and Smart Intrusion Prevention support event analysis.
- Two SATA interfaces and RAID 1 support provide flexible storage options.
- HDMI and VGA support simultaneous local display output.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview |
| Model / MPN | NVR502-16E-IM-G |
| Camera Inputs | 16 IP channels |
| Maximum Recording Resolution | 32MP |
| Video Compression | Ultra 265, H.265, H.264 |
| Bandwidth | 192 Mbps incoming; 192 Mbps outgoing |
| Local Synchronous Playback | 16 channels |
| Display Outputs | HDMI up to 3840 × 2160 at 30Hz; VGA up to 1920 × 1080 at 60Hz |
| Storage Support | 2 SATA interfaces; up to 24TB per HDD, subject to drive size and ambient temperature not exceeding 40°C |
| Storage Redundancy | RAID 1 |
| Network | 2 × RJ45 Gigabit Ethernet |
| USB | Front: 1 × USB 2.0; rear: 1 × USB 2.0 and 1 × USB 3.0 |
| Audio | 1 RCA input; 1 RCA output; two-way audio support |
| Alarm Interfaces | 4 inputs; 1 output |
| Serial Interface | 1 × RS485 |
| Power Input | 12V DC, 3A |
| Consumption Without HDDs | ≤25W |
| Dimensions | 380 × 322.4 × 53 mm |
| Weight Without HDDs | 1.87 kg |
Analytics availability and channel limits depend on camera compatibility, resolution and the selected analysis mode.
